The pedal dropped two inches further than it should have, and the ABS light refused to clear. Marcus, a technician at a small fleet shop outside Detroit, had just replaced the ABS hydraulic unit on a 2019 Ford F-250. He bled all four wheels in the standard sequence, yet the brake pedal still felt like a sponge. His shop did not own a bidirectional scan tool with ABS auto-bleed. The customer needed the truck back by morning. This is exactly the situation where knowing how to bleed an ABS module without a scan tool becomes essential.
Manual ABS bleeding is not a perfect substitute for a scan-tool auto-bleed procedure. It is, however, a practical fallback when the right diagnostic equipment is unavailable. This guide explains how to bleed an ABS module without a scan tool using conventional, gravity, and vacuum-assisted methods. It also gives you clear verification criteria and a decision framework for when a manual bleed is sufficient and when the ABS hydraulic unit itself needs replacement. For a broader overview that includes scan-tool procedures, see our ABS hydraulic unit bleeding procedure guide.
Need a reliable replacement ABS hydraulic unit? Contact LOYAL INDUSTRIAL PTE. LTD. for technical specifications and industrial procurement support.

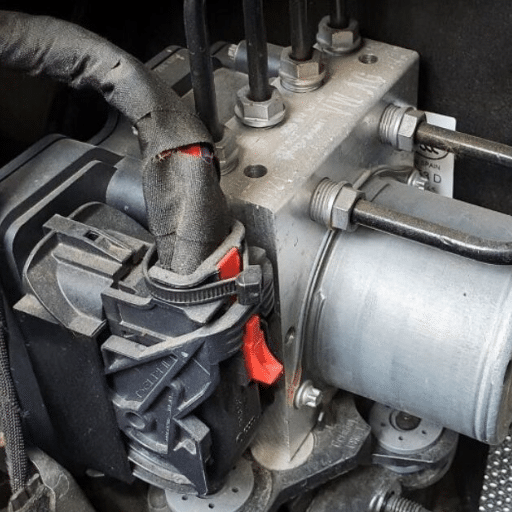

Can You Bleed an ABS Module Without a Scan Tool?
Yes, you can bleed an ABS module without a scan tool on many older or simpler ABS systems by combining a conventional wheel-circuit bleed with dynamic ABS activation. This manual method removes air from the brake lines and can push trapped air out of the modulator block. You may also hear technicians ask how to bleed an ABS module without a scanner or how to activate the ABS pump without a scan tool. The answer is the same: cycle the valves through controlled hard braking, then re-bleed. It is not always as complete as a scan-tool auto-bleed because you cannot command the internal solenoids to open on demand.
Modern ABS hydraulic control units contain a network of small passages, solenoid valves, and an accumulator or pump motor. When air enters the modulator block, it can become trapped behind valves that only open during an ABS event or during a scan-tool-activated bleed cycle. Without a scan tool, the technician must create those ABS events manually by triggering the system on a low-traction surface.
Manual bleeding works best when the system was opened only at the wheel circuits, the master cylinder was not run dry, and the ABS hydraulic unit itself is structurally sound. If the unit was replaced, if the brake system ran completely dry, or if the ABS warning light remains active after multiple bleed attempts, a scan tool or replacement unit is usually the correct path.
How ABS Modules Trap Air Differently from Standard Brake Circuits
The ABS Modulator Valve Block and Internal Passages
A conventional brake system connects the master cylinder directly to the wheel cylinders or calipers through brake lines. Air introduced into these lines can usually be removed by bleeding at the wheel. The complete ABS hydraulic unit engineering guide explains how an ABS hydraulic control unit adds a modulator valve block between the master cylinder and the wheels.
This modulator block contains inlet and outlet solenoid valves for each wheel circuit, along with a pump motor and accumulator. These internal passages create dead zones where air can collect. During normal braking, the valves remain open and fluid flows through. During an ABS event, the valves rapidly cycle to modulate pressure. A standard wheel bleed does not always move fluid through these internal passages, so air can remain trapped.
Why Gravity Bleeding Often Fails on ABS Systems
Gravity bleeding relies on fluid weight and differential pressure to move fluid downward from the master cylinder to the bleed screws. It works adequately for simple brake lines but has limited effectiveness inside an ABS modulator block. The internal valves, small orifices, and changes in flow direction slow or stop gravity flow through the modulator.
Without pressure pulses from brake-pedal actuation or pump cycling, air bubbles can cling to passage walls inside the modulator. That is why many technicians report a firm pedal after gravity bleeding, only to feel it soften again after the first hard stop that activates the ABS.
The Role of the ABS Pump Motor During a Proper Bleed
The ABS pump motor does not run during normal braking. It activates only when the ABS control module detects wheel slip and commands valve cycling. During a scan-tool auto-bleed, the technician opens each solenoid in sequence while the pump circulates fluid, flushing air from the modulator block directly.
When you bleed an ABS module without a scan tool, you must replicate this cycling through controlled hard braking on gravel, wet pavement, or dirt. Each ABS event opens and closes the solenoids and runs the pump briefly, which can dislodge trapped air and move it into the wheel circuits where conventional bleeding can remove it.
Tools, Fluids, and Equipment for Manual ABS Module Bleeding
Manual Bleed Kit Components
A basic manual bleed kit for an ABS module requires the following items:
- Box-end or line wrench set, typically 8 mm (5/16 inch) or 10 mm (3/8 inch) for bleeder screws
- Clear vinyl tubing with 3/16 inch inner diameter
- Catch bottle partially filled with fresh brake fluid to prevent air backflow
- Brake fluid that matches the manufacturer specification
- Clean shop rags and a container for waste fluid
- Floor jack and jack stands rated for the vehicle weight
- Wheel chocks and safety glasses
- A helper for the two-person pump-and-hold method
A vacuum bleeder or pressure bleeder is optional but recommended for faster one-person operation. Pressure bleeders apply fluid under low pressure at the master cylinder reservoir. Vacuum bleeders draw fluid through the bleeder screw with a hand pump. For technicians performing an ABS hydraulic unit manual bleed, these tools reduce labor time and make it easier to maintain a full master cylinder.
Brake Fluid Specification Table
Always use the brake fluid grade specified by the vehicle manufacturer. Mixing incompatible fluids can damage seals and reduce boiling point.
| Fluid Type | Dry Boiling Point | Wet Boiling Point | Common Applications |
|---|---|---|---|
| DOT 3 | 205°C (401°F) | 140°C (284°F) | Older passenger vehicles, light-duty trucks |
| DOT 4 | 230°C (446°F) | 155°C (311°F) | Modern passenger vehicles, many ABS systems |
| DOT 5.1 | 260°C (500°F) | 180°C (356°F) | High-performance and heavy-duty systems |
Torque and Hardware Reference Table
| Component | Typical Size or Torque | Notes |
|---|---|---|
| Bleeder screw wrench | 8 mm or 10 mm | Use a line wrench to avoid rounding |
| Bleeder screw torque | 8–12 Nm (6–9 lb-ft) | Do not overtighten; threads strip easily |
| Clear bleed tubing | 3/16 inch ID | Submerge the outlet end in fluid |
| Master cylinder cap | Hand tight only | Vent properly during gravity bleeding |
| Lug nuts | Refer to vehicle spec | Usually 100–140 Nm (74–103 lb-ft) |
Looking for a replacement ABS hydraulic unit with tested compatibility? Request a technical specification sheet from LOYAL INDUSTRIAL PTE. LTD.
How to Bleed an ABS Module Without a Scan Tool: 8-Step Procedure
The following procedure covers the most reliable manual approach for ABS module bleeding without a scan tool. It combines a standard wheel-circuit bleed, dynamic ABS activation, and a second bleed pass to remove displaced air.
Step 1 — Vehicle Prep and Master Cylinder Inspection
Park the vehicle on a level surface and apply the parking brake. Chock the wheels that will remain on the ground. Raise the vehicle with a floor jack and support it on jack stands. Remove all four wheels to access the caliper or wheel-cylinder bleeder screws.
Inspect the master cylinder reservoir before starting. Top it off to the MAX mark with the correct brake fluid. During the entire procedure, never let the fluid level drop more than about 10 percent below MAX. If the reservoir runs dry, air enters the master cylinder, and the bleed process must start over.
Step 2 — Conventional Wheel-Circuit Bleed
Bleed the wheel circuits in the manufacturer-specified sequence. A common passenger-vehicle sequence is right rear, left rear, right front, left front. Always verify the sequence in the service manual, because some vehicles use a different order.
Use the two-person pump-and-hold method:
- Attach the clear tubing to the bleeder screw and place the other end in the catch bottle.
- Have your helper press the brake pedal slowly and hold it down.
- Open the bleeder screw approximately one-quarter turn.
- Allow fluid to flow until it slows, then close the bleeder screw before your helper releases the pedal.
- Repeat until no air bubbles are visible in the tubing.
- Move to the next wheel in sequence.
Top off the master cylinder after each wheel. This first pass removes air from the main brake lines and calipers.
Step 3 — Dynamic ABS Activation to Cycle Solenoids
Lower the vehicle so all four wheels are on the ground. Find a safe, open area with loose gravel, wet pavement, grass, or dirt. There should be no traffic, pedestrians, or obstacles.
Accelerate to approximately 15–20 mph (24–32 km/h) and brake firmly enough to trigger ABS activation. You will feel pedal pulsation and hear the pump motor run. Repeat this process 5–10 times with short cool-down periods between events. This cycles the solenoids and pump, which can move trapped air from the modulator block back into the brake lines.
In 2024, a mobile technician named Elena working at a rural fleet shop used this exact method on a Chevrolet Silverado 2500 HD after replacing the ABS hydraulic unit. Her bay did not have a bidirectional scan tool. She performed the dynamic activation on a gravel lot behind the shop, re-bled the system, and verified a firm pedal. The truck passed a 40-mile road test without ABS intervention or warning lights.
Step 4 — Re-bleed Wheel Circuits
Return the vehicle to the work area and raise it again on jack stands. Re-bleed all four wheel circuits in the same sequence as Step 2. Watch for fresh air bubbles that were displaced from the modulator block during dynamic activation.
This second pass is where many technicians fail. They complete Step 2, assume the system is clean, and return the vehicle to the customer. Air trapped in the modulator only moves into the wheel circuits after ABS cycling. Skipping the second pass is a leading cause of soft-pedal comeback repairs.
Step 5 — Extended Gravity Bleed Option
If the pedal still feels soft after the second wheel-circuit bleed, use an extended gravity bleed. Raise the front of the vehicle slightly so the master cylinder sits higher than the bleeders. Open each bleeder screw about one-half turn and attach tubing submerged in fresh fluid.
Let fluid flow by gravity for 15 minutes or more at each wheel. Gently tap the brake lines and ABS hydraulic unit with a plastic or rubber mallet to dislodge clinging air bubbles. Keep the master cylinder topped off throughout. Close each bleeder only when no new bubbles appear for several minutes.
Step 6 — Vacuum-Assist Bleed Option
A vacuum bleeder allows one technician to complete the job efficiently. Connect the vacuum pump to the bleeder screw with the appropriate adapter. Pump to roughly 15–20 inHg, then crack open the bleeder screw. Draw fluid until it runs clear with no bubbles.
Close the bleeder screw before releasing the vacuum. If you release vacuum first, air can be drawn back into the system through the threads or the bleeder opening. Top off the master cylinder between wheels.
Step 7 — Pedal Feel and Pressure Verification
With the engine off, press the brake pedal several times and assess firmness. A properly bled system should feel firm with minimal travel. Typical maximum pedal travel under a 500 N force is 120–150 mm for passenger vehicles, per the SAE J2985 reference range.
Start the engine and press the pedal again. Power brake assist will make the pedal easier to depress, but it should still feel consistent and not sink under steady pressure. If the pedal slowly sinks to the floor, suspect an internal master-cylinder leak or remaining air in the system.
Step 8 — ABS Warning Light and Road Test Check
Clear any stored diagnostic trouble codes if possible. Some vehicles will turn off the ABS light automatically after a successful bleed and a short drive cycle. Others require a scan tool to reset the ABS module even when the hydraulic system is properly bled.
Perform a road test in a safe area. Make several normal stops from 30 mph, then one or two firm stops that activate ABS. The pedal should remain firm, the ABS should engage smoothly, and the warning light should stay off. If the light returns or the pedal softens during the test, repeat the bleed procedure or evaluate the ABS hydraulic unit for internal faults.
Manual Bleed vs. Scan Tool Auto-Bleed: Decision Table
When Manual Bleeding Is Sufficient
Manual ABS bleeding is usually adequate when only the wheel circuits or calipers were opened, the master cylinder never ran dry, and the ABS hydraulic unit is original and known good. A manual ABS module bleed also works well on vehicles with simpler ABS architecture and no integrated stability-control system, provided you can verify firm pedal feel and clear warning lights after the procedure.
When a Scan Tool Becomes Necessary
A scan tool with ABS auto-bleed or bidirectional control is required when the ABS hydraulic unit was replaced or opened internally, the brake system ran completely dry during repair, or the master cylinder was replaced and bench-bled, but the pedal remains soft. Vehicles with integrated stability-control or traction-control systems, and those where the ABS warning light stays on after multiple manual bleed attempts, usually cannot be fully bled with the bleed ABS module without a scanner approach.
When the ABS Hydraulic Unit Needs Replacement
Sometimes the problem is not air. It is a failing modulator valve block, a seized pump motor, or internal seal damage. Consider replacing the ABS hydraulic unit if:
- The pump motor runs continuously or not at all during ABS activation
- The pedal stays soft after multiple correct bleed procedures
- Diagnostic codes point to valve-coil or pump-motor circuit faults
- Fluid leaks from the ABS hydraulic unit housing
- The unit has been contaminated with the wrong brake fluid
For a full cost and procedure breakdown, see our ABS pump replacement cost framework. If replacement is the right choice, contact LOYAL INDUSTRIAL PTE. LTD. for replacement ABS hydraulic units. For the broader replacement decision framework, see our complete ABS pump replacement guide.
Commercial Vehicle ABS Module Bleeding (24V Systems)
Larger Fluid Volume and Line Capacity
Commercial trucks and buses with 24V ABS systems require the same fundamental procedure, but the scale differs. A Class 6–8 truck ABS typically holds 1.2–1.8 liters of brake fluid, compared with 0.4–0.6 liters for most passenger vehicles. The longer brake lines, larger wheel cylinders, and bigger modulator block mean more fluid and more time are required for a complete manual bleed.
Fleet technicians should keep at least two liters of the correct brake fluid on hand for a single-axle truck bleed. For tractors with multiple axles and trailer connections, three liters is a safer starting quantity.
24V Pump Motor Cycling Considerations
The ABS pump motor in a 24V commercial system operates at higher voltage and current than passenger-vehicle units. During dynamic activation, the pump may draw more power and run for longer cycles. Make sure the charging system is healthy before performing repeated ABS activation events. Low battery voltage can cause incomplete valve cycling or false fault codes.
Fleet-Scale Manual Bleeding Workflow
For fleet operations, standardize the procedure across all bays:
- Document the correct bleed sequence for each vehicle model in the fleet.
- Assign one technician to monitor the master cylinder fluid level continuously.
- Use pressure bleeders when available to reduce labor time.
- Record pedal-travel measurements after each bleed for quality tracking.
- Flag any vehicle that requires more than two complete bleed cycles for ABS unit inspection.
In 2023, a Class 6 delivery fleet in Texas discovered that mechanics were bleeding the right-front wheel before the left-rear on their 24V ABS-equipped trucks. After standardizing the RR-LR-RF-LF sequence and adding a second bleed pass after dynamic activation, soft-pedal complaints dropped by roughly 60 percent over the following quarter.
Common Mistakes When Bleeding an ABS Module Without a Scan Tool
Letting the Master Cylinder Run Dry
This is the most common and most damaging mistake. Once air enters the master cylinder, it can be forced into the ABS modulator and all brake lines. The entire bleed procedure must start over, and in severe cases the master cylinder may need to be bench-bled or replaced.
Using the Wrong Brake Fluid Specification
DOT 3, DOT 4, and DOT 5.1 are glycol-based and generally compatible in an emergency, but they have different boiling points and additive packages. DOT 5 is silicone-based and must never be mixed with glycol fluids. Always use the fluid grade specified by the manufacturer. For more on hydraulic fluid selection and system compatibility, see our ABS modulator valve diagnostic guide.
Skipping the Second Pass After ABS Activation
Dynamic ABS activation is only useful if you remove the air it dislodges. A second wheel-circuit bleed is mandatory. Technicians who skip this step often see the pedal soften within the first few miles of driving.
Ignoring Pedal Travel Verification
Pedal feel is subjective. Pedal travel is measurable. Use a ruler or tape measure to record travel under consistent force. If travel exceeds the manufacturer specification, the system is not fully bled.
What to Do If the Pedal Stays Soft After Manual Bleeding
Re-bleed Decision Tree
- Did the master cylinder run dry at any point? If yes, bench-bleed or replace the master cylinder and restart.
- Was the correct bleed sequence followed? If uncertain, consult the service manual and repeat.
- Was dynamic ABS activation performed at least five times? If not, repeat and follow with a full re-bleed.
- Did you try an extended gravity or vacuum bleed? If not, use one to remove stubborn trapped air.
- Is the pedal firm with the engine off but soft with the engine running? This points to power-brake assist or master-cylinder issues, not air in the ABS module.
Signs the ABS Hydraulic Unit Requires Replacement
If the pedal remains soft after two correct manual bleed cycles and a scan-tool auto-bleed is unavailable, evaluate the ABS hydraulic unit itself. Internal valve leakage, a weak pump motor, or seal degradation can cause a soft pedal that no amount of bleeding will fix.
Common indicators include:
- ABS warning light that returns immediately after reset
- Unusual pump-motor noise or continuous running
- Visible fluid seepage from the modulator block
- Diagnostic codes for valve or pump-motor circuits
- A history of incorrect brake fluid or contaminated fluid
For guidance on diagnosing these faults, read our article on ABS pump failure symptoms. Our how to test ABS hydraulic unit guide also covers pressure-hold and electrical checks.
FAQ
How do I know if my ABS module has air trapped inside it?
The most common sign is a soft or spongy brake pedal after a normal wheel-circuit bleed. If the pedal firms up temporarily but softens again after the ABS activates during driving, air is likely trapped in the modulator block.
Can I damage the ABS module by bleeding without a scan tool?
No, the manual procedure itself will not damage a healthy ABS module. However, letting the master cylinder run dry, using the wrong fluid, or repeatedly overheating the pump motor during dynamic activation can cause problems.
How long does it take to bleed an ABS module without a scan tool?
A complete manual procedure typically takes 45 to 75 minutes for a passenger vehicle. Commercial vehicles with larger fluid volumes may take 90 minutes or more. A scan-tool auto-bleed usually takes 8 to 15 minutes but requires the correct equipment. This time difference is why many shops want to know how to bleed ABS brakes without a scan tool when a bidirectional scanner is not available.
Why does my brake pedal still feel soft after bleeding?
Remaining air is the most likely cause. Other causes include a failing master cylinder, internal leakage in the ABS hydraulic unit, contaminated brake fluid, or a power-brake assist problem. Use the re-bleed decision tree in this guide to narrow it down.
Is dynamic ABS activation safe?
Yes, when performed correctly in a safe, open area at low speed. Use a gravel lot, wet pavement, or grass. Avoid public roads, pedestrians, and obstacles. Always wear a seatbelt and keep speeds below 25 mph.
Do all vehicles require a scan tool to bleed the ABS module?
No. Many older and simpler ABS systems can be bled manually. Newer vehicles with integrated electronic stability control, electric brake boost, or complex hydraulic architectures are more likely to require a scan tool.
Can a vacuum bleeder remove air from the ABS module?
A vacuum bleeder can help remove air from wheel circuits and may draw some air from the modulator block. It is usually not as effective as pressure bleeding or scan-tool auto-bleed for internal ABS passages, but it is useful as a supplementary step.
Conclusion
Knowing how to bleed an ABS module without a scan tool gives technicians a practical fallback when diagnostic equipment is unavailable. The procedure is straightforward: prepare the vehicle, bleed the wheel circuits in the correct sequence, activate the ABS dynamically to cycle the solenoids, re-bleed the wheels, and verify pedal firmness with measurable criteria.
Manual bleeding is not a universal replacement for scan-tool auto-bleed. It is a controlled, methodical workaround that works well when the system was opened only at the wheel circuits and the ABS hydraulic unit is in good condition. When the pedal stays soft after repeated correct attempts, or when diagnostic codes point to internal valve or pump-motor faults, the correct solution is usually to replace the ABS hydraulic unit.
