A failed ABS pump does not always announce itself with a dashboard warning. Sometimes it first appears as a brake pedal that pulses when it should not, a pump motor that runs long after ignition, or an ABS light that returns immediately after a sensor replacement. Fleet maintenance teams and independent technicians know that anti-lock braking system failures create both a safety risk and costly downtime.
In this guide, we cover a complete ABS pump replacement workflow for industrial, commercial, and fleet vehicles. You will learn how to identify failure symptoms, run focused diagnostics, remove and install the hydraulic unit correctly, bleed the brake system, and verify operation before returning the vehicle to service.
We will walk through each stage in order: what the ABS pump does, how it fails, warning signs, pre-replacement diagnostics, step-by-step replacement, bleeding and calibration, cost factors, and common mistakes to avoid.
Need help selecting the right hydraulic component for your fleet? Contact our engineering team for technical support and replacement recommendations.
When municipal fleet technician Marcus noticed the ABS warning light stayed solid on a 2018 utility truck, he pulled the diagnostic codes and found C121C, a pump motor circuit fault. After confirming power and ground at the module connector, he replaced the ABS hydraulic unit, bled the brake lines in the specified sequence, and cleared the codes. The truck completed a 50-mile road test without the fault returning. A methodical approach saved his team from a second service bay visit and a preventable comeback.

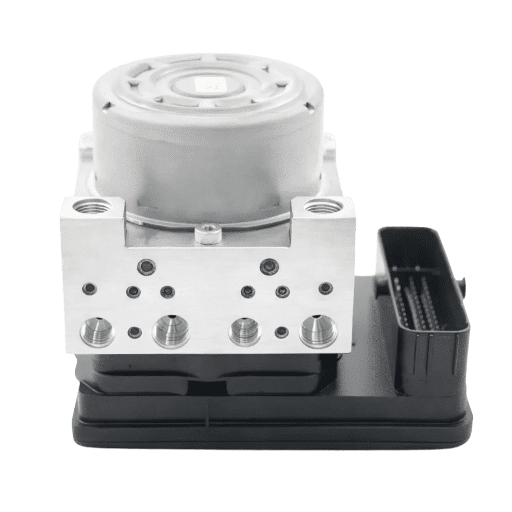

What an ABS Pump Does and Why It Fails
The ABS pump is the heart of the anti-lock braking system. It is a small, high-speed electric motor that drives a piston or gear pump inside the ABS hydraulic control unit, also called the electronic brake control module on some vehicles. During hard braking, wheel speed sensors detect an impending lock-up. The control module opens and closes solenoid valves and commands the pump to build, hold, or release hydraulic pressure at individual wheels. This cycling prevents the tires from skidding while preserving steering control.
Because the pump sits between the master cylinder and the wheel circuits, it must tolerate high pressure, rapid cycling, and constant exposure to brake fluid. Over time, the motor brushes wear, internal seals harden, and solenoid valves can stick. Corrosion can attack electrical pins, especially in vehicles operated in regions with road salt or high humidity. Contaminated or old brake fluid accelerates wear by reducing lubrication inside the hydraulic unit.
Failures usually fall into one of three groups. Mechanical failure covers worn pump motors, leaking seals, and stuck valves. Electrical failure includes open motor windings, corroded connectors, blown fuses, and failed relays. Hydraulic failure involves internal leaks, blocked passages, or fluid contamination that prevents the pump from generating enough pressure. Understanding which category applies is the difference between replacing the whole unit and fixing a $15 fuse.
Not every ABS warning light means the pump itself is bad. In fact, many shops replace a hydraulic unit only to discover later that a wheel speed sensor, damaged tone ring, or corroded ground caused the code. A precise diagnostic sequence protects your parts budget and your reputation.
Symptoms That Point to ABS Pump Replacement
Most drivers and technicians first notice an ABS problem through the instrument panel. The ABS warning light stays on after engine start, or it flashes during normal driving. On some vehicles, the traction control or stability control light may also illuminate because those systems share the same hydraulic modulator.
A bad pump can create distinct pedal behavior. You may feel the pedal sink slightly, pulse unexpectedly on dry pavement, or require more travel than usual. In severe cases, the pump motor may run continuously with a faint buzzing sound from under the hood, even when the vehicle is stopped. That sound usually means the control module is commanding the pump but cannot reach target pressure.
Diagnostic trouble codes provide the clearest signal. Codes such as C0265, C121C, or manufacturer-specific variants often point to pump motor circuit, pump relay, or hydraulic performance faults. A generic OBD-II scanner may not read these codes because they reside in the ABS module, so a scan tool with ABS coverage is essential.
Alessandro, a lead technician at a regional transport fleet, saw repeated C121C codes on a Class 5 delivery truck. The pump motor tested fine when energized directly, but voltage at the module connector dropped under load. Replacing the corroded ground terminal cleared the code for two days, then the warning returned. The second time, he scoped the pump current draw and found intermittent internal arcing. Only then did he replace the ABS pump, and the fault stayed gone. The lesson: symptoms can travel through several systems before the real culprit reveals itself.
Diagnostic Checks Before Replacing the ABS Pump
Before ordering a replacement, confirm that the pump is actually at fault. Start with a visual inspection of brake fluid level and condition. Low fluid can trigger ABS codes, and dark or contaminated fluid points to internal wear elsewhere. Check the reservoir cap and seal for damage, and inspect the area around the hydraulic unit for wetness that would indicate an external leak.
Next, use a scan tool that can access the ABS controller. Record all stored and pending codes, then review freeze-frame data if available. Note whether the codes return immediately after clearing them or only after the vehicle reaches a certain speed. Immediate resets often indicate electrical faults, while speed-dependent resets suggest sensor or tone ring issues.
Test the electrical side carefully. Locate the pump motor relay and swap it with a known-good relay if the design allows. Measure battery voltage at the ABS module connector with the key on, then load-test the pump motor circuit. A significant voltage drop under load points to corroded terminals, damaged wiring, or a weak battery. Do not overlook the ground path; a poor ground can mimic a failed pump.
If voltage and ground are solid, command the pump with the scan tool and listen. The motor should run smoothly for a short cycle and then stop. Compare the sound to a known-good vehicle. A grinding, labored, or continuously running motor confirms internal mechanical failure. Some scan tools also report pump motor current, which gives an objective benchmark.
Verify wheel speed sensors separately. Unplug each sensor and measure resistance against the specification. Spin each wheel and check for a clean AC voltage signal. Inspect tone rings for cracks, missing teeth, or debris. A single bad sensor can set the same warning light as a failed pump.
ABS Pump Replacement Procedure
Once diagnostics point to the hydraulic unit, gather the correct parts and tools. You will need a replacement ABS pump or complete hydraulic control unit, new brake fluid that meets the vehicle specification, a scan tool with ABS functions, flare wrenches, a torque wrench, line wrenches, brake bleeding equipment, and proper thread seal caps. Always confirm the replacement part number against the vehicle VIN; module variants differ by braking package, stability control calibration, and wheelbase.
Safety comes first. Park the vehicle on a level surface, set the parking brake, and chock the wheels. Disconnect the negative battery cable before touching the hydraulic unit. Brake fluid is corrosive, so wear gloves and eye protection, and protect painted panels with absorbent pads.
Step 1: Depressurize and access the unit
Remove the key from the ignition and pump the brake pedal 20 to 30 times to drain the accumulator if the system uses one. On some units, the pedal will become firm and then gradually softer as pressure bleeds off. Locate the ABS hydraulic control unit, which is usually mounted on or near the master cylinder, on the inner fender, or below a protective cover.
Step 2: Disconnect electrical connectors
Label each electrical connector before removal. ABS modules often have several plugs with different pin counts and locking tabs. Release the locks carefully to avoid breaking the plastic tabs. Inspect the pins for corrosion or fluid intrusion. If corrosion is present, address the source of moisture before installing the new unit.
Step 3: Disconnect brake lines
Use flare wrenches to loosen the brake lines at the master cylinder and outlet ports. These fittings are soft metal and round easily, so a six-point flare wrench is safer than an open-end wrench. As you remove each line, cap both the line and the port immediately to prevent contamination. Note the routing and port positions; some units use color-coded tags from the factory.
Step 4: Remove mounting hardware
Support the hydraulic unit before unbolting it. Most units use two to four bolts. Once free, lift the unit straight out and place it in a drain pan. Residual brake fluid will leak from the ports and mounting surface, so keep caps and absorbent materials ready.
Step 5: Install the replacement unit
Position the new unit on its mounts and start all fasteners by hand before tightening. Torque the mounting bolts to the manufacturer’s specification, usually between 8 and 18 Nm depending on the design. Reconnect the brake lines in the reverse order of removal, starting with the fittings that are hardest to reach. Torque the line fittings to spec; overtightening can crack the housing or distort the seats.
Step 6: Reconnect electrical connectors
Seat each connector until the lock clicks. Apply dielectric grease if the vehicle manufacturer recommends it. Reconnect the negative battery cable and check for leaks before moving to the bleed procedure.
Some replacement modules require programming or coding to match the vehicle configuration. Check the service information before starting the job. Skipping this step can cause stability control, traction control, or trailer brake faults.
Looking for replacement hydraulic pumps for your maintenance operation? Request a quote from our supply team.
Brake Bleeding and System Calibration
Air in the ABS hydraulic unit is one of the most common causes of a soft pedal after replacement. The unit contains narrow passages and solenoid valves that trap air if it is not pushed out correctly. A standard two-person pedal bleed may not remove all trapped air, so use a pressure bleeder, vacuum bleeder, or scan-tool-activated ABS auto-bleed function when available.
Begin with the wheel farthest from the master cylinder and work toward the closest. The traditional sequence is right rear, left rear, right front, left front, but always follow the manufacturer sequence because some vehicles differ. Open each bleeder screw only enough to allow fluid flow, and keep the master cylinder reservoir topped off throughout the process. Never let the reservoir run dry; that introduces air into the system and forces you to start over.
After the base bleed, activate the ABS auto-bleed routine with the scan tool. This cycles the solenoid valves and pump motor, flushing air from internal passages into the lines where it can be bled out at the wheels. Run the routine two or three times if the pedal still feels spongy.
Calibration may also be required. Many modern vehicles need a steering angle sensor reset, yaw sensor calibration, and brake pressure sensor learn after ABS work. Follow the scan tool prompts and drive the vehicle at the specified speed to complete calibration. A proper calibration ensures stability and traction control systems respond correctly during an emergency maneuver.
ABS Pump Replacement Cost and Timing
Replacement cost depends on the part source, vehicle class, and labor environment. A new OEM ABS hydraulic unit for a passenger car typically ranges from 400 to 1,200. Commercial trucks, buses, and specialty equipment can run higher because the units are larger and less common. Remanufactured units often cost 30 to 50 percent less than new OEM parts, but verify that the rebuilder replaces seals, tests solenoids, and updates software.
Labor time varies with accessibility. On a compact car, a technician may need 1.5 to 2.5 hours. On a full-size truck or cab-over commercial vehicle, the hydraulic unit may be buried behind panels, extending labor to 3 or 4 hours. Module programming, diagnostic time, and a thorough brake bleed add additional shop time.
When you total parts, labor, fluid, and shop supplies, a typical passenger vehicle ABS pump replacement lands between 600 and 1,800. Fleet vehicles and heavy equipment often exceed that range. External factors such as core charges, shipping, and regional labor rates also move the number.
Factor in downtime. A vehicle out of service for a day can cost more than the repair itself if routes are missed. Keeping a pre-qualified replacement supplier on hand reduces wait times and gets equipment back to work faster.
Common Mistakes and Safety Considerations
One of the most expensive mistakes is replacing the ABS pump without confirming the root cause. Always rule out sensors, wiring, grounds, fuses, and relays first. Another common error is installing a used or incorrect module without checking compatibility. Mismatched software can disable stability control or set permanent configuration faults.
Contamination is another silent killer. Brake fluid absorbs moisture over time, and contaminated fluid damages the new unit quickly. Always use fresh fluid from a sealed container, and never reuse fluid that has already been bled from the system. Cap lines and ports immediately to keep dirt out.
Overtightening brake line fittings is easy to do and hard to fix. A stripped or cracked port can ruin the new hydraulic unit and create a leak path that compromises braking performance. Use a torque wrench and the correct flare-nut wrench.
Skipping the bleed and calibration sequence leaves air in the system and warning lights on the dash. Never release a vehicle until the pedal is firm, the ABS light performs its self-test and extinguishes, and a road test confirms normal operation. Test in a safe area free of traffic, and perform one or two controlled hard stops to confirm ABS activation.
A regional bus fleet learned this lesson the hard way. After a technician installed a new ABS hydraulic unit on a 45-foot coach, he skipped the scan-tool auto-bleed step because the pedal felt firm in the bay. On the first downhill stop, the pedal faded, and the ABS warning lamp returned. The vehicle had to be towed back, and the second bleed using the automated routine resolved the problem. The extra ten minutes of calibration would have prevented a full day of downtime.
Brake work carries inherent risk. If you are unsure about wiring diagrams, programming requirements, or torque specifications, consult the factory service manual or a specialist. The few dollars saved by guessing are not worth the safety of the operator or the public.
Conclusion
ABS pump replacement is a structured repair that rewards preparation and precision. Start with a careful diagnosis, choose the correct replacement unit, follow the manufacturer torque and bleed sequence, and finish with a road test. Rushing any of these steps increases the chance of a comeback and puts safety on the line.
The key takeaways are simple: confirm the pump is truly at fault, use fresh brake fluid, bleed the system thoroughly, and complete any required calibration. Fleet teams that document the diagnostic data and maintain a relationship with a reliable parts supplier can reduce downtime and keep vehicles compliant.
