In March 2024, a customer walked into a repair shop with a flashing ABS warning lamp and left with a $2,400 quote to replace the entire ABS hydraulic unit. The diagnosis took the first technician under ten minutes, just long enough to read a C0276 trouble code. The customer drove away unconvinced and took the vehicle to a second shop the next morning. The second technician spent thirty minutes running a complete 7-step test procedure, measured solenoid coil resistance at 2.1 ohms (well inside the 1.5 to 4.0 ohm passenger spec), pulled pump motor current at 19 amps, and traced the actual fault to a corroded connector that he repaired for $135. The $2,265 difference is the real value of knowing how to test ABS hydraulic unit assemblies before replacing them.
Most shops skip the full test because the procedure feels intimidating. It is not. With a bidirectional scan tool, a multimeter, and the specifications in this guide, you can confirm or rule out hydraulic control unit failure in 15 to 30 minutes. This article walks through the complete ABS hydraulic unit test procedure for both passenger (12V) and commercial (24V) systems, with pass/fail criteria, a comprehensive specification table, bench test vs. in-vehicle workflows, and a decision tree for what to do after a failed test.
What an ABS Hydraulic Unit Test Verifies
An ABS hydraulic unit test is a structured diagnostic procedure that verifies five subsystems before condemning the hydraulic control unit (HCU) for replacement. Knowing how to test ABS hydraulic unit assemblies thoroughly is how shops avoid replacing 1,200 to 5,000 units that never needed to be replaced.
The 5 Subsystems Tested
- Pump motor, measured by current draw under load
- Solenoid valves, measured by coil resistance
- Pressure circuit, measured at the bleeder ports
- Electrical harness and connectors, inspected for corrosion and continuity
- Control module communication, verified through bidirectional commands
For a deeper background on how these subsystems interact, see our complete ABS hydraulic unit engineering guide.
When to Test vs. When to Replace
Test first whenever you see a single C0265, C0267, C0276 to C0279, or U0121 code without external evidence of catastrophic failure (cracked housing, leaking ports, seized motor). Replace without testing only when the unit is mechanically destroyed or when symptoms align with the late-stage progression described in our complete guide to ABS pump failure symptoms.
Tools and Equipment Required
- Bidirectional scan tool capable of ABS commands (Autel MaxiSys, Snap-on Solus, Launch X431, or OEM equivalent)
- Digital multimeter with 200-ohm and 20-amp ranges
- Inductive current clamp rated to 100 amps for commercial vehicles
- Hydraulic pressure gauge rated to 300 bar (optional, for full pressure verification)
- Wiring diagram for the specific vehicle
- DOT 3, DOT 4, or DOT 5.1 brake fluid (matched to the system spec)
Budget for tools sits between 130 for a basic DIY kit and 3,500 for a shop-grade bidirectional scan platform.
7-Step ABS Hydraulic Unit Test Procedure
Here is the complete 7-step test procedure in summary form. Each step has detailed instructions below.
- Visual inspection and pre-test documentation, 3 to 5 minutes
- Read stored and pending DTCs, 2 to 4 minutes
- Test pump motor current draw, 3 to 5 minutes
- Test solenoid coil resistance, 5 to 8 minutes
- Bidirectional solenoid activation test, 5 to 7 minutes
- Brake fluid pressure test (optional), 5 to 10 minutes
- Road verification and function confirmation, 5 to 10 minutes
Total elapsed time runs 15 to 30 minutes for a clean pass, longer if a step fails and requires repeat measurement.
Step 1: Visual Inspection and Pre-Test Documentation
Open the hood and locate the HCU. Photograph the unit, connectors, brake lines, and bleeder ports before touching anything. Look for fluid weeping at the brake lines, corrosion on the multi-pin connector, cracked housing, or evidence that brake fluid has been topped off without the underlying leak being addressed. Note the vehicle mileage, the customer complaint, and any prior repairs. This documentation matters when a manufacturer warranty claim or fleet audit is involved.
Step 2: Read Stored and Pending DTCs
Connect the scan tool, navigate to the ABS module, and read both stored and pending codes. Record the code numbers (for example, C0265, C0276, U0121), the freeze-frame data, and the times each code has set. A single intermittent code is a very different fault pattern from a code that has set 47 times across 19 ignition cycles. Save the report or screenshot the screen.
Step 3: Test Pump Motor Current Draw
The pump motor current draw test is the single fastest way to know if the pump itself is healthy. Place an inductive current clamp around the pump motor power wire (consult the wiring diagram to find it). Use a bidirectional scan tool to command the pump on for 5 to 10 seconds. A healthy passenger-vehicle pump draws 15 to 25 amps. A healthy commercial-vehicle pump draws 30 to 60 amps. Current below the minimum suggests worn brushes (about 45% of pump failures trace here) or armature damage. Current above the maximum suggests bearing seizure or a shortened winding.
Mini-story, 2024 DIY documentation win. A vehicle owner in Phoenix bought a 90 OBD−II bidirectional scan tool and a 40 inductive clamp meter in February 2024 after his ABS warning lamp turned on. He ran the abs pump motor current draw test in his driveway, measured 8.4 amps (well below the 15-amp passenger minimum), photographed the reading, and walked into the dealership the next day with documented evidence. The service writer skipped the $180 diagnostic charge and approved the replacement claim under powertrain warranty. Total elapsed driveway time: 12 minutes.
Step 4: Test Solenoid Coil Resistance
The ABS solenoid test procedure measures coil resistance with the ignition off and the multi-pin HCU connector disconnected. Set the multimeter to the 200-ohm range. Identify the solenoid pin pairs from the wiring diagram (there are typically eight solenoids in a four-channel system, four inlet and four outlet). Measure each coil. A healthy passenger-vehicle coil reads 1.5 to 4.0 ohms. A healthy commercial-vehicle coil reads 3.0 to 6.0 ohms. An open coil reads infinity (OL). A shorted coil reads near 0 ohms.
For the engineering context of why solenoid coils drift over time, see our ABS modulator valve diagnostic guide.
Step 5: Bidirectional Solenoid Activation Test
With the connector reattached and the ignition on, use the scan tool to activate each solenoid individually. The bidirectional scan tool ABS test commands each inlet and outlet valve in sequence and listens for the audible click. A healthy solenoid clicks crisply at 10 to 20 Hz cycle frequency during activation. A silent solenoid that passed the resistance test in Step 4 indicates a sticky valve or a control module driver fault, not a coil fault. This distinction matters: a sticky valve can sometimes be flushed and rescued, while a driver fault requires module replacement.
Step 6: Brake Fluid Pressure Test (Optional)
If you have a pressure gauge, install it at the bleeder port and command the pump to build pressure through the scan tool. A passenger-vehicle ABS system holds 170 to 180 bar (about 2,500 PSI) at full pump output. A commercial-vehicle system can run as high as 250 bar (3,625 PSI). Pressure below spec confirms a pump or check-valve fault. Pressure above spec suggests a regulator fault.
Step 7: Road Verification and Function Confirmation
After clearing codes, perform a controlled stop on a low-traction surface (wet pavement, loose gravel in a closed lot) at 25 to 30 mph. The ABS should activate with the characteristic pedal pulsation at 10 to 20 Hz. The dashboard lamp should remain off. Re-scan after the road test to verify no new codes have set. If the lamp returns or codes reappear, return to Step 3 and re-test.
ABS Hydraulic Unit Test Specifications (Reference Table)
This is the consolidated pass/fail reference for the entire 7-step procedure. Use it as a printable bench card.
| Test | Passenger Vehicle (12V) | Commercial Vehicle (24V) | Fail Indication |
|---|---|---|---|
| Pump motor current draw | 15 to 25 amps | 30 to 60 amps | Below min = worn brushes; above max = bearing seize |
| Solenoid coil resistance | 1.5 to 4.0 ohms | 3.0 to 6.0 ohms | OL = open coil; near 0 = shorted coil |
| Solenoid activation click | Crisp at 10-20 Hz | Crisp at 10-20 Hz | Silent = sticky valve or driver fault |
| Brake hydraulic pressure | 170 to 180 bar | Up to 250 bar | Below spec = pump or check-valve fault |
| Battery voltage at test | 12.4 to 14.7 VDC | 24.8 to 28.0 VDC | Low voltage invalidates the current draw test |
| Test duration | 15 to 25 minutes | 20 to 30 minutes | N/A |
| Common DTC mapping | C0035, C0040, C0044, C0265, C0276 | C0265, C0267, C0276-C0279, U0121 | Code without a mechanical fault = test before replacing |
Bench Test vs. In-Vehicle Test
Most ABS hydraulic unit tests are done in-vehicle. Understanding how to test ABS hydraulic unit systems on the bench is reserved for specific scenarios.
When Bench Testing Is Required
Bench test the ABS pump if the vehicle is being parted out and the unit is removed, if the unit is suspected of a low-side fault that the on-vehicle current clamp cannot isolate, or if you are qualifying a salvage unit before installation. Most fleet rebuilders bench test every salvaged HCU before resale.
Bench Test Setup and Procedure
A bench test rig consists of a regulated 12V or 24V DC power supply with at least 30-amp capacity, a clamp meter, a pressure gauge with adapter fittings, and a clean reservoir of fresh brake fluid plumbed to the HCU inlet and outlet ports. Command the pump on with direct power, measure current draw and pressure rise, then individually energize each solenoid coil with 12V or 24V (matched to the system) and confirm valve actuation. The full bench abs pump bench test takes 45 to 90 minutes.
Mini-story, 2023 fleet rebuilder audit. A Class 7 truck fleet rebuilder in Ohio implemented mandatory bench testing for every salvaged HCU starting in January 2023. Across the first 11 months they tested 287 units, rejected 64 (22%) for failed solenoid resistance or below-spec pump current, and reduced warranty returns from 9.4% to 1.1%. The bench test rig cost $4,200 to build and paid for itself in five months from avoided warranty labor.
In-Vehicle Test Workflow
In-vehicle tests follow the 7-step procedure above and require nothing more than a scan tool, a multimeter, and a current clamp. The vehicle battery powers the test, the scan tool drives the bidirectional commands, and the connectors stay attached except during Step 4. In-vehicle is the right workflow for 90% of diagnostic situations.
Commercial Vehicle ABS Hydraulic Unit Testing (24V Systems)
Commercial vehicles, including Class 3 through Class 8 trucks, run 24V electrical systems and use larger solenoids and pump motors than passenger vehicles. The test ABS control module procedure changes in three important ways.
24V Test Specifications
Pump motor current draw runs 30 to 60 amps under load (about double passenger spec). Solenoid coil resistance reads 3.0 to 6.0 ohms (about double passenger spec). Hydraulic pressure can climb to 250 bar at full pump output. Battery voltage during test must stay between 24.8 and 28.0 VDC; an undercharged commercial battery can produce a false low-current reading that mimics a worn-brush failure.
FMCSA-Compliant Documentation
Commercial fleets running ABS-equipped vehicles must keep brake-system inspection records to satisfy FMCSA pre-trip and quarterly maintenance requirements. Document each ABS hydraulic unit test with the date, vehicle VIN, mileage, measured values for current draw, solenoid resistance, and pressure, the test technician’s name, and any DTCs read and cleared. Most fleets attach the scan-tool report and the multimeter photo to the maintenance record.
Heavy-Duty Commercial Test Differences
Class 8 trucks with electronic stability control (ESC) integrate the ABS hydraulic unit with the ESC module and the trailer brake controller. When you test ABS control module circuits on these vehicles, verify the trailer ABS communication line is also reading correctly. A passing HCU test can still produce intermittent dashboard warnings from a trailer fault. The same systematic troubleshooting discipline applies whether you are working on a 4,000-PSI light-truck ABS unit or a 5,000-PSI commercial unit, and the broader systematic hydraulic component troubleshooting framework carries over from industrial applications.
Mini-story, 2023 commercial fleet audit avoidance. A 16-truck Class 7 fleet in Indiana implemented quarterly ABS testing starting in April 2023. During the Q3 cycle, the lead technician identified 4 units with solenoid coil resistance drifting toward 6.4 ohms (just outside the 3.0 to 6.0 ohm window). All 4 were replaced before a January 2024 DOT inspection. The DOT inspector flagged zero brake-system findings during the audit. The fleet manager estimated avoided out-of-service penalties at $18,000.

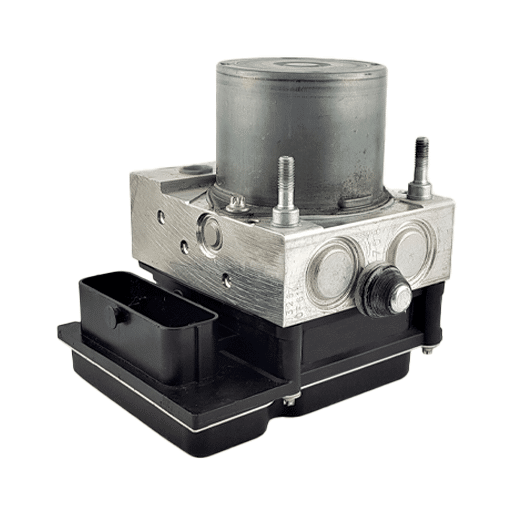

Common ABS Hydraulic Unit Test Mistakes and How to Avoid Them
Even shops that know how to test ABS hydraulic unit assemblies can still come to the wrong conclusion if any of these errors creep in.
Misreading Solenoid Resistance Values
Multimeter test leads add 0.2 to 0.4 ohms of resistance themselves. A passenger-vehicle solenoid that reads 1.7 ohms on the meter is actually around 1.4 ohms once you subtract the lead resistance, which puts it below the 1.5-ohm minimum. Always short the test leads together first, note the displayed resistance, and subtract it from every solenoid reading.
Skipping Connector Inspection
The 2024 misdiagnosis story at the top of this article hinged on a corroded connector that no shop bothered to inspect. Disconnect the multi-pin HCU connector, look inside both halves with a flashlight, and check for green corrosion, bent pins, or backed-out terminals. A single corroded pin can set a C0276 code on a fully functional HCU.
Testing Without Specification References
A scan-tool reading of “12 amps” means nothing without knowing the passenger-vehicle minimum is 15 amps. Print the specification table from this article (or pull a Bosch service reference) and keep it next to your scan tool during every test. The single biggest reason for misdiagnosis is technicians eyeballing readings against memory instead of the published spec.
What to Do After a Failed ABS Hydraulic Unit Test
The how to test ABS hydraulic unit workflow is only half the job. The other half is deciding what to do once you have a failed result.
Repair vs. Replace Decision Tree
- Step 4 fail with open coil (OL reading): Replace HCU. Coils are not field-serviceable.
- Step 4 fail with shorted coil (near 0 ohms): Replace the HCU. Same reason.
- Step 3 fail with current 0 amps: Inspect pump motor power wire and ground first. If both are intact, replace HCU.
- Step 3 fail with current below minimum but above 0: Likely worn brushes. Some HCUs allow brush replacement; most do not. Confirm with the manufacturer.
- Step 5 fail with passing coil resistance: Sticky valve. Try a brake-fluid flush first; if the silent click persists, replace the HCU.
- Step 2 code with all other steps passing: Inspect harness and connectors. A corroded connector or chafed wire is the likely culprit.
Sourcing Replacement Units
If a replacement is required, source from an OE distributor, an established remanufacturer, or a verified bench-tested salvage supplier. Verify the part number against the vehicle VIN, check warranty coverage (most rebuilders offer 12 to 24 months), and confirm the unit was bench tested to spec. For a full breakdown of cost and procurement options, see our ABS pump replacement cost framework and procedure.
Re-Test After Repair
After replacing the HCU or repairing a harness, repeat Steps 2 through 7 in full. A repair that fixes one fault but leaves another underlying issue (for example, replaces the HCU but leaves the corroded connector in place) will set a code within 2 to 6 ignition cycles. Re-testing catches this before the customer returns.
Frequently Asked Questions
Q: Can you test an ABS hydraulic unit at home?
A: Yes, if you have a bidirectional scan tool, a multimeter, and an inductive current clamp. The total tool budget starts around $130. The 7-step ABS hydraulic unit test procedure does not require a lift or shop-grade equipment.
Q: How much does an ABS hydraulic unit test cost at a shop?
A: Diagnostic labor for a full ABS hydraulic unit test runs 90 to 180 at most independent shops. For technicians who already know how to test ABS hydraulic unit assemblies themselves, the shop fee is avoided entirely. Dealerships typically charge 140 to 220. Both are far cheaper than the 1,200 to 5,000 you avoid if testing rules out replacement.
Q: What scan tool can test ABS hydraulic units?
A: Any bidirectional scan tool with ABS module support can execute the full procedure for how to test ABS hydraulic unit modules. Common options include Autel MaxiSys, Snap-on Solus Edge, Launch X431, Foxwell NT630, and OEM tools (Ford IDS, GM MDI, Bosch KTS). A scan tool without bidirectional control can read codes but cannot run Step 5.
Q: How long does an ABS hydraulic unit test take?
A: Fifteen to thirty minutes for a clean pass. Failed tests take longer because each failed step is typically re-measured to rule out instrument error. A bench test takes 45 to 90 minutes.
Q: Can you test an ABS pump without a scan tool?
A: Partially. The pump motor current draw test and solenoid coil resistance test can be performed with just a multimeter and a current clamp by directly wiring the pump terminal. However, the bidirectional solenoid activation test in Step 5 requires a scan tool, so a no-scan-tool test cannot fully diagnose the hydraulic unit.
Conclusion
Understanding how to test ABS hydraulic unit assemblies before condemning them is the single highest-leverage skill in modern brake diagnostics. The 7-step procedure outlined above (visual inspection, DTC scan, pump motor current draw, solenoid coil resistance, bidirectional activation, optional pressure test, road verification) takes 15 to 30 minutes and answers the only question that matters: does this HCU need to be replaced, or does the actual fault live somewhere else in the harness, the connector, or the pedal feel circuit?
For passenger vehicles the targets are 15 to 25 amps of pump motor draw, 1.5 to 4.0 ohms of solenoid coil resistance, and 170 to 180 bar of system pressure. For commercial 24V systems, the targets are 30 to 60 amps, 3.0 to 6.0 ohms, and up to 250 bar. Document every reading, photograph the connector, and save the scan-tool report. Whether you are a DIY mechanic, a shop technician, or a fleet maintenance manager, the test discipline you bring to the bench or the bay is what separates a 135 repair from a 2,400 replacement.
