ABS Pump Failure Symptoms: Complete Diagnostic Guide for Technicians and Fleet Managers

At 5:18 a.m. on a wet October morning in 2024, a Class 6 delivery truck driver in Pennsylvania pressed his brake pedal at a yellow light and watched his front wheels lock instantly. There was no pulsation. No ABS chatter. The truck slid 62 feet through the intersection and stopped one meter short of a school bus. The post-incident inspection revealed a stored C0265 fault code, three prior “ABS light on” notes in the maintenance log over six weeks, and a pump motor that drew 47 amps during commanded testing instead of the 22-amp specification. Every one of those ABS pump failure symptoms had been recorded. None had been acted on.

The ABS pump failure symptoms most technicians know are the obvious ones: the warning light, the lost pulsation, and the locked wheel. The symptoms that actually prevent incidents are the early ones: a 0.3-amp shift in pump current draw, an intermittent C0276 code that clears overnight, and a faint hum from the engine bay that lasts 90 seconds after key-off. This guide closes the gap between recognizing failure and recognizing impending failure. You will learn the eight most common ABS pump failure symptoms, how each symptom maps to a specific diagnostic trouble code, how symptoms progress from early warning to total failure, and how to differentiate ABS pump failure symptoms from wheel speed sensor, master cylinder, and brake booster faults that frequently get misdiagnosed.

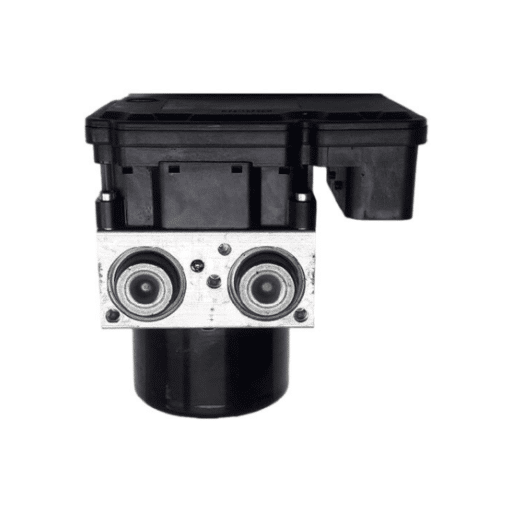

What Is an ABS Pump and Why Do ABS Pump Failure Symptoms Matter?

ABS Pump vs. ABS Hydraulic Unit vs. ABS Module

The term “ABS pump” refers specifically to the eccentric piston pump motor inside the ABS Hydraulic Control Unit (HCU). The HCU is the complete electro-hydraulic assembly that contains the pump, the solenoid valves, the accumulator, and the valve body. The ABS module is a separate electronic control unit that processes wheel speed data and commands the HCU. ABS pump failure symptoms can originate from any of these subsystems, which is why diagnosis requires precision rather than guesswork. For the complete subsystem breakdown, see our complete ABS hydraulic unit engineering guide.

Why Symptom Recognition Prevents Safety Incidents

ABS pump failure symptoms rarely appear without warning. Most failures progress through 6 to 14 weeks of detectable degradation before the system loses anti-lock function entirely. Technicians who recognize the early ABS pump failure symptoms catch them during scheduled maintenance and replace units before roadside incidents. Technicians who wait for the warning light to stay solid catch failures only after the safety margin has already eroded.

When ABS Pump Failure Symptoms Become Legally Reportable

For commercial vehicles operating under FMCSA jurisdiction, an illuminated ABS warning light is a documented inspection finding. Operating a Class 6-8 vehicle with known ABS pump failure symptoms beyond a reasonable repair window can produce DOT out-of-service designations. Fleet managers should treat any persistent symptom as a maintenance scheduling trigger, not a tolerable condition.

The 8 Most Common ABS Pump Failure Symptoms

The 8 most common ABS pump failure symptoms are: (1) persistent ABS warning light, (2) loss of brake pedal pulsation during ABS events, (3) wheel lock-up during hard braking, (4) continuous pump motor operation after key-off, (5) hard or spongy brake pedal, (6) stored DTCs in the ABS module, (7) audible grinding or whining noise from the HCU, and (8) loss of stability control and traction control. Each symptom maps to specific internal failures and specific diagnostic trouble codes.

1. Persistent ABS Warning Light

The dashboard ABS warning light is the most reported of the bad ABS pump symptoms. The light illuminates when the ABS module detects a fault that disables the anti-lock function. Intermittent illumination indicates a fault that comes and goes, typically from connector corrosion or coil resistance drift. Continuous illumination indicates a hard fault that the module has confirmed across multiple key cycles.

2. Loss of Brake Pedal Pulsation During ABS Events

During hard braking on wet, icy, or loose surfaces, a healthy ABS produces 10 to 20 pedal pulsations per second as the solenoid valves cycle. Loss of this pulsation is one of the failing abs pump signs that technicians often overlook because it requires a controlled test on a low-grip surface to detect. A pedal that stays firm during a hard stop on wet pavement indicates the pump motor is not pressurizing fluid back into the circuit during the ABS reduce-and-increase cycle.

3. Wheel Lock-Up During Emergency Braking

When ABS pump failure symptoms progress to complete pump motor failure, the system reverts to pre-ABS behavior. Wheels lock, tires skid, and stopping distances increase by 25 to 30 percent on slippery surfaces. This is the failure mode that converts ordinary stops into incidents and is one of the most severe ABS hydraulic unit failure symptoms.

4. Continuous Pump Motor Operation After Key-Off

A failing pressure sensor or a stuck-open outlet solenoid can cause the pump motor to run continuously after the ignition is off. The driver hears a sustained hum from the engine bay lasting 30 to 120 seconds. This is one of the most reliable abs pump motor failure symptoms because it usually precedes complete motor burnout by 200 to 800 miles. Catching it during this window prevents a roadside failure.

5. Hard or Spongy Brake Pedal

A stuck inlet solenoid can produce a hard pedal at one wheel circuit. A leaking valve seat can produce a spongy pedal that sinks under sustained pressure. Both pedal-feel changes are among the early ABS pump failure symptoms that get misdiagnosed as master cylinder or brake booster issues. The differentiator: pedal symptoms from ABS faults usually appear or worsen after an ABS event, not before.

6. Stored Diagnostic Trouble Codes

The ABS module stores DTCs for every fault it detects. Common codes pointing to ABS pump failure symptoms include C0035, C0040, C0044, C0265, C0276, C0277, C0278, C0279, and U0121. Code-based diagnosis is the starting point of every systematic evaluation of ABS pump failure symptoms.

7. Audible Grinding or Whining Noise from the HCU

A pump motor with worn brushes or scored bearings produces a characteristic high-pitched whine during commanded activation. A pump with internal cavitation due to air contamination produces a lower-frequency grinding noise. Both are signs of bad abs module hydraulic operation and indicate the pump is approaching mechanical failure.

8. Loss of Stability Control and Traction Control

Modern HCUs serve both ABS and Electronic Stability Control (ESC). When ABS pump failure symptoms appear, ESC and traction control deactivate simultaneously because both functions depend on the same pump motor and solenoid valves. A dashboard cluster showing ABS, ESC, and traction control warning lights together is a strong indicator of HCU-level failure rather than a wheel speed sensor or wiring issue.

If your fleet is experiencing repeated HCU replacements and you need supplier qualification or specification verification, contact our technical team for a sourcing consultation before your next bulk procurement cycle.

Symptom-to-DTC Mapping Table

The single most common diagnostic error is treating ABS pump failure symptoms without verifying the corresponding diagnostic trouble code. The table below maps each symptom to the DTCs most likely to be present.

History codes that clear overnight but recur over weeks are among the most predictive ABS pump failure symptoms. They indicate a fault that the module catches but cannot reproduce on every cycle, which almost always precedes a hard fault.

Symptom Progression Timeline: Early Warning to Total Failure

Most ABS pump failure symptoms progress through three identifiable stages. Recognizing the stage determines whether the action is monitoring, scheduled replacement, or immediate repair.

Stage 1: Intermittent Warnings (Weeks 0-4)

In the first stage of the ABS pump going bad, symptoms appear as intermittent ABS light illumination that clears after one or two key cycles, history DTCs that the module logs but does not retain as current faults, and pump motor current draw 5 to 10 percent above the specification range. The vehicle still passes a basic ABS function test on a low-grip surface. Most drivers and shops dismiss these symptoms as “computer glitches” and clear the codes without investigation.

Stage 2: Functional Degradation (Weeks 4-12)

In the second stage, ABS pump failure symptoms become more frequent. The warning light stays illuminated for the entire driving cycle before clearing. Current DTCs appear and remain after key-off. Pump motor current draw runs 15 to 30 percent above specification. The driver notices reduced ABS pulsation effectiveness during hard stops on wet surfaces. This is the optimal window for scheduled replacement because the vehicle is still safely driveable and parts can be sourced through normal procurement channels.

In 2024, a fleet of 28 medium-duty delivery vans implemented quarterly pump motor current draw monitoring. Over 18 months, the program identified three vehicles in Stage 2 of progressive HCU failure before any warning light appeared. Preemptive replacement during scheduled service cost the fleet manager $inpartsandlabor.\; Reactivation\; of\; the\; same\; units\; after\; roadside\; failures\; would\; have\; cost\; an\; estimated\; 5,300$ in towing, overtime labor, and expedited parts shipping. The monitoring program paid for itself in the first quarter.

Stage 3: Total Failure (Week 12+)

In the third stage, ABS pump failure symptoms reach the level that drivers report and shops cannot ignore. The warning light is permanent. ABS function is completely disabled. Pump motor current draw runs 50 to 200 percent above specification or drops to zero (open circuit). Wheel lockup occurs during emergency braking. ESC and traction control are disabled. The vehicle is no longer safe for normal road service and requires immediate HCU replacement. For the complete cost framework and replacement procedure, see our ABS pump replacement cost and procedure guide.

How to Differentiate ABS Pump Failure Symptoms from Other Brake Faults

The most expensive misdiagnoses in ABS service involve replacing the HCU when the actual fault is in another component. The four most common false positives:

ABS Pump vs. Wheel Speed Sensor Symptoms

Wheel speed sensor faults produce ABS warning lights and DTCs in the C0035-C0044 range. They do NOT produce pump motor noise, pedal feel changes, or continuous pump operation. If the only symptoms are the warning light and a wheel-specific DTC, the sensor and its harness are the suspect, not the pump. In 2023, a vehicle owner received a $quoteto\; replacethe\; HCUbasedon\; aC0040code.A\; second\; opinion\; identified\; a\; corroded\; front\; wheel\; speed\; sensor\; connector\; that\; was\; repaired\; for\; 180$. The $1,620 difference is the cost of skipping symptom-to-DTC verification.

ABS Pump vs. Master Cylinder Symptoms

Master cylinder failure produces a sinking pedal that gradually drops to the floor under sustained pressure. ABS pump failure symptoms that affect pedal feel typically appear or worsen after an ABS event, not during normal braking. A pedal that sinks during a long red light is the master cylinder. A pedal that sinks only after a hard stop on wet pavement is ABS valve seat leakage.

ABS Pump vs. Brake Booster Symptoms

Brake booster failure produces a uniformly hard pedal across all braking conditions. ABS pump failure symptoms that produce pedal hardness usually affect only one wheel circuit and only after an ABS event. A consistently hard pedal from cold start is the brake booster. A pedal that becomes hard only after the pump cycles is an ABS solenoid sticking.

ABS Pump vs. Brake Fluid Contamination Symptoms

Brake fluid contamination affects the entire hydraulic system uniformly. ABS pump failure symptoms typically affect specific circuits or specific functions. Brake fluid that has absorbed moisture, however, accelerates ABS valve seat erosion and is one of the upstream causes of bad abs pump symptoms over time. The same diagnostic principle applies that we cover in our systematic hydraulic component troubleshooting framework for industrial pumps.

Symptom Diagnosis Procedure (Step-by-Step)

How to tell if abs pump is bad with confidence requires a systematic five-step procedure. Each step either confirms or rules out specific failure modes.

Step 1: Verify the Symptom Pattern

Document every reported symptom with the conditions under which it occurs. Cold start? After 30 minutes of driving? Only during hard braking? Only on wet roads? The pattern often points directly to the failure mode before any tool is connected. ABS pump failure symptoms that occur only at startup typically indicate solenoid coil resistance drift. Symptoms that worsen with heat typically indicate motor brush wear.

Step 2: Read Stored and Pending DTCs

Connect a bidirectional scan tool with ABS module access. Document every current, pending, and historical code. Note the freeze-frame data captured when each code was set. History codes that recur across multiple service visits are the most predictive ABS pump failure symptoms for impending total failure.

Step 3: Test Pump Motor Current Draw

Use the scan tool’s bidirectional control function to command the pump motor for a 5 to 10 second test cycle. Healthy passenger vehicle pump motors draw 15 to 25 amps. Commercial vehicle motors draw 30 to 60 amps. Current draw 30 percent above specification indicates worn brushes or scored bearings. Current at zero indicates an open circuit or seized motor.

Step 4: Command Solenoid Activation

Use the scan tool to cycle each solenoid valve individually. The technician should hear a distinct mechanical click from each valve. Silent valves indicate open coil circuits or mechanically seized plungers. Measure solenoid coil resistance at the HCU connector if a valve fails to respond. Passenger vehicle coils read 1.5 to 4.0 ohms. Commercial vehicle coils read 3.0 to 6.0 ohms. For the deeper valve-level diagnostic procedure, see our ABS modulator valve diagnostic guide.

Step 5: Inspect Connectors and Harness

Disconnect the HCU electrical connector and inspect for corrosion, bent pins, and moisture intrusion. Many intermittent ABS pump failure symptoms trace back to connector issues rather than internal HCU faults. Road salt, brake fluid leakage, and harness damage near the HCU mounting bracket are the most common sources of intermittent connector-related faults.

In 2023, a vehicle owner with a $BluetoothOBD-IIreaderidentifiedaC0276code\; on\; hisdailydriver,\; isolated\; to\; the\; right-front\; inlet\; valve\; circuit\; with\; a\; multimeter\; resistance\; test,\; and\; presented\; his\; vehicle\; to\; a\; shop\; with\; the\; specific\; diagnosis\; already\; confirmed.\; The\; total\; repair\; was\; completed\; in\; two\; hours\; instead\; of\; the\; typical\; four-hour\; diagnostic-plus-replacement\; cycle.\; The\; 35$ reader and 15 minutes of testing saved $680 in shop diagnostic fees.

If your operation manages a multi-vehicle fleet and needs a systematic symptom-tracking protocol or supplier qualification framework, contact our technical team for a procurement and maintenance consultation tailored to your fleet size and vehicle mix.

Commercial Vehicle ABS Pump Failure Symptoms

Commercial vehicle ABS pump failure symptoms differ from passenger vehicle symptoms in three engineering-significant ways.

Class 6-8 Truck-Specific Symptoms

Heavy commercial HCUs operate at pressures up to 250 bar versus 170 to 180 bar for passenger vehicles. Symptoms appear earlier in the failure progression because the components operate closer to their design limits. A Class 8 truck showing intermittent ABS lights typically has 30 to 50 percent less remaining service life than a passenger vehicle with the same symptom pattern.

24-Volt System Considerations

Commercial vehicle HCUs run on 24-volt electrical systems with solenoid coil resistance specifications of 3.0 to 6.0 ohms. Pump motors draw 30 to 60 amps during ABS activation. ABS pump motor failure symptoms in 24-volt systems often manifest as low-side voltage drops under load rather than the clean open or short circuits seen in passenger 12-volt systems. Diagnostic equipment must support 24-volt commercial protocols.

FMCSA Regulatory Implications of Continued Operation

Commercial drivers and fleet managers operating vehicles with documented ABS pump failure symptoms beyond a reasonable repair window risk DOT out-of-service citations during roadside inspections. The Federal Motor Carrier Safety Administration treats ABS warning light illumination as a maintenance trigger, not an optional repair. The standard reference is SAE J2929 for braking system performance requirements.

In 2024, a regional freight operator running 16 Class 7 trucks implemented a 48-hour repair commitment policy for any ABS pump failure symptom logged by a driver. The policy eliminated two pending out-of-service designations from the previous year and reduced the fleet’s CSA score in the Vehicle Maintenance BASIC category by 23 points. The cost of the policy was four unscheduled HCU replacements over 14 months. The avoided regulatory and incident costs exceeded the repair cost by an estimated 4:1 ratio.

When ABS Pump Failure Symptoms Require Immediate Action vs. Scheduled Repair

Not every ABS pump failure symptom requires the same urgency. The triage framework below sorts symptoms by safety risk and repair window.

Safety-Critical Symptoms (Stop Driving)

Wheel lockup during normal braking, total loss of ABS function on wet or icy surfaces, continuous pump motor operation that drains the battery, and brake fluid contamination from internal HCU leakage are safety-critical ABS pump failure symptoms. The vehicle should be parked and towed for repair rather than driven to the shop.

Degraded Operation Symptoms (Schedule Soon)

Persistent ABS light with no pedal feel change, current DTCs that remain after key cycles, pump motor current draw 20 to 40 percent above specification, and audible HCU noise during commanded activation are degraded operation symptoms. Schedule repair within 1 to 2 weeks. Continued driving is acceptable on dry surfaces with extra following distance.

Monitoring Symptoms (Track and Re-Inspect)

Intermittent ABS light that clears after one or two key cycles, history DTCs with no current codes, slightly elevated pump motor current draw (5 to 10 percent above specification), and connector corrosion without active faults are monitoring symptoms. Document the readings, set a 30-day re-inspection date, and watch for progression.

Frequently Asked Questions

What are the first signs of a failing ABS pump?

The first signs of a failing ABS pump are intermittent ABS warning light illumination that clears after one or two key cycles, history DTCs (typically C0276-C0279 series) that the module logs but does not retain as current faults, pump motor current draw 5 to 10 percent above specification, and a faint hum from the HCU lasting 30 to 60 seconds after key-off. These early ABS pump failure symptoms typically precede total failure by 6 to 14 weeks.

Can you drive with a bad ABS pump?

The vehicle retains basic hydraulic braking when ABS pump failure symptoms appear, so short-distance driving on dry surfaces is technically possible. However, anti-lock function, electronic stability control, and traction control are disabled. Wheel lockup becomes likely during hard braking on wet or icy surfaces. Continued driving with confirmed ABS pump failure symptoms is not recommended and is prohibited for commercial vehicles under FMCSA regulations.

What does a failing ABS pump sound like?

A failing ABS pump typically produces a high-pitched whine during commanded activation (worn motor brushes), a lower-frequency grinding noise (internal cavitation from air contamination), or a sustained 30-to-120-second hum after key-off (stuck pressure sensor or stuck-open outlet valve). These audio ABS pump failure symptoms usually precede complete pump motor burnout by 200 to 800 miles.

How do I know if my ABS pump or wheel speed sensor is bad?

Wheel speed sensor faults produce ABS warning lights and wheel-specific DTCs (C0035, C0040, C0044) without pump motor noise, pedal feel changes, or continuous pump operation. ABS pump failure symptoms typically include pump motor noise, pedal feel changes, or DTCs in the C0265-C0279 range. A scan tool that can command pump motor activation and individual solenoid cycling differentiates the two failure modes in under 10 minutes.

Conclusion

ABS pump failure symptoms progress through identifiable stages over 6 to 14 weeks, from intermittent warnings through functional degradation to total failure. The technicians and fleet managers who catch ABS pump failure symptoms during the early and middle stages prevent the safety incidents, regulatory exposure, and emergency repair costs that follow Stage 3 failures. Engineering precision matters at every step: a 5-percent shift in pump motor current draw, an overnight-cleared C0276 code, or a 90-second post-key-off pump hum are not “computer glitches.” They are measurable diagnostic signals that the HCU is approaching its end of service life.

The five-step diagnostic procedure outlined in this guide, the symptom-to-DTC mapping table, and the commercial vehicle-specific symptom criteria together provide the framework for confident ABS pump failure diagnosis. Most misdiagnoses and unnecessary HCU replacements trace back to skipping the differentiation step, where wheel speed sensor faults, master cylinder issues, brake booster degradation, and connector corrosion get treated as pump failures. Spend 15 minutes verifying with a multimeter and scan tool before committing $1,200to$5,000 in parts and labor.
