A technician installs a remanufactured ABS hydraulic control unit, clears the warning light, and hands the keys back to the customer. Two days later, the vehicle returns with the same light, a soft pedal, and an unhappy owner. This scenario is more common than most shops admit, and the root cause is rarely a single defective part. Most ABS pump replacement mistakes trace back to skipped diagnostic steps, incompatible parts, or incomplete post-installation procedures.
Replacing an ABS pump or ABS hydraulic control unit (HCU) is not a simple bolt-on repair. The system sits at the intersection of hydraulics, electronics, and vehicle safety. One error during diagnosis, installation, bleeding, or coding can turn a profitable job into a costly comeback. In this guide, we break down the most frequent ABS pump replacement mistakes, explain why they cause failures, and show exactly how to prevent each one.
If you are looking for the broader replacement workflow, see our complete ABS pump replacement guide. The focus here is on what goes wrong and how to stop it before it happens.
Want the full diagnostic approach first? Our ABS hydraulic unit testing procedure explains how to confirm the pump is actually the fault before you order parts.
Why ABS Pump Replacement Comebacks Happen
ABS pump replacement comebacks happen when one or more phases of the job are treated as optional. The work flows through five stages: diagnosis, parts selection, installation, bleeding and coding, and final verification. A mistake at any stage can produce a warning light, poor pedal feel, or reduced braking safety. Understanding the full sequence is the first step toward preventing repeat visits.
The cost of a comeback is also higher than the parts bill suggests. Passenger vehicle ABS pump replacement typically runs $600–$2,100 total, while commercial vehicles can exceed $1,600–$5,000, according to national repair estimator data. Add a second tow, a second diagnostic session, and damaged customer trust, and the real cost becomes clear. That is why every phase deserves the same attention as the mechanical swap itself.
Mistake 1 — Replacing the Pump Without Confirming the Root Cause
Why Misdiagnosis Is So Common
The most expensive ABS pump replacement mistake is replacing a part that was never the problem. An illuminated ABS light, a stored pump-related diagnostic trouble code (DTC), or an audible pump-motor fault does not always mean the HCU has failed. Many faults share the same symptoms. A corroded wheel speed sensor connector, a blown fuse, or low brake fluid can all trigger codes that point toward the ABS pump.
Technicians under time pressure sometimes skip the full diagnostic sequence and install the most likely part. This approach, often called “diagnosing by replacement,” wastes money and creates unnecessary comebacks. According to one remanufacturer, quality remanufactured ABS pumps carry defect rates below 0.29%, which means the replacement unit is usually not the weakest link.
What to Check Before Replacing the HCU
Before ordering a replacement ABS pump, verify the basics:
- Wheel speed sensors and wiring harness condition
- Ground points and battery voltage stability
- Fuses and relays protecting the ABS circuit
- Brake fluid level and condition
- Stored DTCs and freeze-frame data
Use an ABS-capable scan tool to read live data from each wheel speed sensor while rotating the wheels. If one sensor drops out intermittently, the fault is likely upstream of the pump. Our ABS hydraulic unit testing procedure walks through a systematic check that reduces misdiagnosis risk. For a detailed procedure, see our guide on how to bleed an ABS module without a scan tool.
Mini-story: Marcus, a technician at a mid-size independent shop, faced a 2012 Ford F-150 with an ABS light and a pump-motor DTC. Rather than replacing the HCU immediately, he checked the wheel speed sensor connectors and found corrosion at the right-front harness. A $45 connector repair fixed the truck. The shop saved the customer over $900 and avoided a comeback that would have damaged its reputation.
Mistake 2 — Buying the Wrong, Incompatible, or Uncoded Unit
Part Number and Software Version Mismatches
Not every ABS module that fits the bracket will communicate correctly with the vehicle. ABS control modules often carry VIN-specific or trim-specific software. Two units with the same part number prefix can differ by firmware revision, internal sensor configuration, or brake-system calibration. Installing a unit with the wrong revision can cause communication faults, stability-control errors, or permanent configuration DTCs.
Used and Donor-Module Risks
Used ABS modules from salvage yards are attractive because they cost less, but they arrive with the donor vehicle’s coding. Even if the part number matches, the module may require recoding or adaptation before it functions correctly. In some cases, used modules cannot be recoded at all if they are locked to the original VIN.
VIN-Specific Coding Requirements
Many modern vehicles require the ABS module to be coded to the VIN after installation. BMW, Volkswagen, Audi, Mercedes-Benz, Ford, and Dodge/Ram are common examples. Skipping this step often leaves the ABS, traction control, and stability control lights on. Codes such as U2100, U2101, C2200, and C2202 are typical indicators of an unconfigured or incompatible module.
If your vehicle requires coding, follow our ABS pump coding and initialization guide. Matching the part number is only the first requirement; the second is making sure the module can be correctly initialized in the target vehicle.
Mistake 3 — Contaminating the Hydraulic System During Installation
Reusing Old Brake Fluid
Brake fluid absorbs moisture and collects debris over time. Reusing fluid that has been bled from the old system is one of the fastest ways to damage a replacement ABS pump. Contaminated fluid can clog solenoid valves, score the pump motor, and reduce hydraulic efficiency. Industry guidance on electro-hydraulic systems attributes roughly 70–80% of hydraulic outages to increased contamination.
Leaving Lines and Ports Uncapped
Brake lines and HCU ports should be capped immediately after disconnection. Even a few minutes of exposure can allow dust, moisture, or airborne contaminants into the hydraulic circuit. Clean work habits matter as much as clean parts.
Moisture and Debris Entry
Always use fresh brake fluid from a sealed container that meets the manufacturer’s DOT specification. Keep the reservoir filled during bleeding to prevent air entry, and flush the system if the old fluid was dark or contaminated. A clean installation protects the precision components inside the ABS hydraulic control unit.
Mini-story: At a busy shop in Phoenix, a technician reused brake fluid drained from a failed ABS pump to save time on a 2018 Toyota Camry. Three months later, the new pump motor failed with debris ingestion. The second repair was not covered under the parts warranty because contamination was ruled an installation error. The shop absorbed the full cost.
Mistake 4 — Overtightening or Damaging Brake Line Fittings
Aluminum HCU Port Vulnerability
Many ABS hydraulic control units use aluminum valve bodies. Aluminum threads and sealing surfaces are far less forgiving than steel brake lines. Overtightening by even a small margin can crack a port, distort a flare seat, or strip threads. Once the HCU body is damaged, the unit usually must be replaced.
Correct Torque Wrench and Flare-Nut Wrench Use
Always use a flare-nut wrench, also called a line wrench, on brake fittings. An open-end wrench can round the corners and lead to uneven force. Torque brake line fittings to the manufacturer specification, which commonly falls between 11 Nm and 18 Nm depending on the fitting size. When a torque spec is not available, tighten to the recommended service-manual value and no further.
Cross-Threading and Leak Paths
Start brake line fittings by hand. Forcing them with a wrench can cross-thread the fitting and ruin both the line nut and the HCU port. After installation, pressurize the system and check every fitting for seepage. A small leak at the HCU can introduce air and compromise the entire brake system.
Mistake 5 — Skipping the Proper Bleed and Calibration Sequence
Why Manual Bleeding Is Often Insufficient
A firm brake pedal in the service bay does not guarantee a properly bled ABS. The ABS modulator contains internal valves and passages that trap air during a standard gravity or vacuum bleed. Manual bleeding may not push fluid through those passages.
Scan-Tool Auto-Bleed Requirements
Many vehicles require a scan-tool-activated ABS bleed sequence. The tool cycles the solenoid valves and pump motor to move fluid through the internal passages and purge trapped air. Skipping this step can cause pedal fade, inconsistent braking, or a reappearing ABS light.
Specified Bleeding Order
Bleed the brakes in the order specified by the manufacturer, not just nearest-to-farthest. Some systems require the ABS module to be bled first; others require a conventional wheel sequence followed by an automated cycle. Our ABS hydraulic unit bleeding procedure explains when a scan tool is mandatory and how to perform the sequence safely.
Mistake 6 — Forgetting Module Coding, Initialization, or Adaptation
Which Manufacturers Require Coding
Coding is not optional on most vehicles built after the mid-2000s. European manufacturers were early adopters, but domestic and Asian brands now commonly require module initialization as well. If the replacement ABS module stores the donor vehicle’s configuration, the receiving vehicle will set configuration DTCs and may disable stability control.
Common Coding-Related Fault Codes
Watch for these codes after a replacement that has not been properly configured:
- U2100 — Initial Configuration Not Complete
- U2101 — Control Module Configuration Incompatible
- C2200 — ABS Module VIN Missing or Mismatch
- C2202 — VIN Not Programmed
Sensor Calibration
Some systems also require calibration of related sensors after module replacement. Steering-angle sensors, brake-pressure sensors, and yaw-rate sensors may need adaptation. Without calibration, the stability control system may not function correctly even if the ABS light is off.
Mini-story: A shop installed a remanufactured ABS module in a 2015 BMW 3-Series and skipped the coding step. The ABS and DSC lights stayed on with a “PT-CAN chassis number wrong” fault. The vehicle had to be sent to an independent specialist for an $180 coding session. The delay cost the shop a full day of bay time and a frustrated customer.

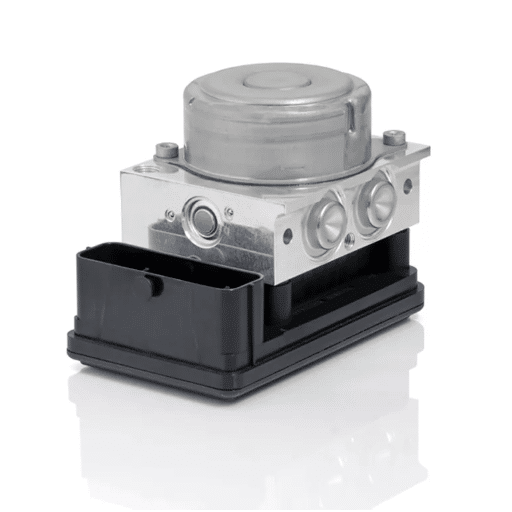

Mistake 7 — Overlooking Electrical and Grounding Details
Battery Disconnect Protocol
Disconnect the battery before working on the ABS module. The pump motor can run unexpectedly if the system is powered during disassembly, and accidental shorts can damage the module or nearby electronics. Follow the manufacturer’s memory-saver procedure if the vehicle requires radio or window calibration retention.
Connector Damage Prevention
ABS connectors often have multiple pins, locking tabs, and sealed gaskets. Pulling on the wires rather than the connector body can damage pins or break the seal. A poor connection after installation can mimic a failed pump and store intermittent communication codes.
Power, Ground, and CAN Bus Checks Before Replacement
Before condemning an ABS module, check power, ground, and CAN bus communication at the module connector. A “no communication” fault is often caused by a wiring or central-electronics issue, not the module itself. Verify the basics before committing to a replacement.
Mistake 8 — Releasing the Vehicle Without Final Verification
Pedal Feel and Self-Test Confirmation
Before the vehicle leaves the shop, confirm the brake pedal is firm and consistent. The ABS warning light should complete its self-test and go out. If the light stays on or returns after a short drive, the job is not finished.
Road Test and Controlled ABS Activation
A static check is not enough. Perform a road test that includes one or two controlled hard stops on a safe surface. This confirms the ABS pump activates, the valves cycle, and the system returns to normal braking feel. It also verifies that the wheel speed sensors read correctly under motion.
Clearing Stored Fault Codes
After the installation and verification sequence, clear all stored DTCs and perform a final scan. Some codes only appear after the vehicle has been driven. A follow-up scan ensures no new faults were introduced during the repair.
Mistake 9 — Choosing the Wrong Parts Tier for the Application
When Economy Aftermarket or Used Units Create Risk
The lowest-priced ABS pump is not always the lowest-cost choice. Economy aftermarket units may lack the precise internal calibration of an OEM or OES part. Used units carry donor-coding risks. Remanufactured units from established suppliers can offer strong value, but quality varies by source.
Fleet and Commercial Vehicle Tier Requirements
Fleet and commercial vehicles operate under higher duty cycles and stricter compliance requirements. Trucks and buses with hydraulic brakes manufactured on or after March 1, 1999 must meet FMVSS No. 105 ABS requirements, according to federal regulations. Using a substandard part on a commercial vehicle can create liability exposure and compliance problems.
Warranty and Support Considerations
Consider the total cost of ownership: part price, labor, coding fees, and warranty protection. A unit that saves $200 up front but requires recoding or fails within a year is more expensive than a properly sourced remanufactured or OES unit. Our OEM vs aftermarket ABS pump comparison breaks down the risk and value of each tier.
Mistake 10 — Poor Documentation and Warranty Handling
Core Return Errors
Many remanufactured ABS pumps are sold with a core charge. Failing to return the old unit, shipping it without proper protection, or sending a unit with cracked ports can void the core refund. Always follow the supplier’s core-return instructions exactly.
Missing Purchase and Installation Records
Warranty claims often require proof of purchase, installation date, and mileage. Missing records can delay or deny a claim. Keep copies of the invoice, the work order, and the pre-installation diagnostic report.
How Documentation Affects Warranty Claims
If a replacement part fails, the supplier may ask for evidence that it was installed correctly. Documentation of clean fluid use, proper torque, correct coding, and post-installation testing strengthens the claim and speeds up resolution.
Fleet and Commercial Vehicle Mistakes to Avoid
Fleet maintenance managers face additional ABS pump replacement mistakes at scale. Mixing part numbers across a fleet, skipping software-version checks on bulk orders, or ignoring FMCSA compliance requirements can multiply downtime and repair costs.
Always verify that each unit matches the specific vehicle VIN and brake-system configuration before installation. Establish a standardized diagnostic, installation, bleeding, and verification procedure for all locations. For heavy-duty and fleet-specific guidance, see our commercial vehicle ABS pump replacement article.
ABS Pump Replacement Mistake Prevention Checklist
Use this checklist to reduce comeback risk on every ABS pump replacement:
- Confirm the root cause before ordering parts; check sensors, wiring, fuses, and fluid first.
- Match the exact part number and software revision to the vehicle.
- Verify the replacement unit can be coded or initialized in the target vehicle.
- Use fresh brake fluid from a sealed container that meets the DOT specification.
- Cap all lines and ports immediately after disconnection.
- Torque brake line fittings to manufacturer specification using a flare-nut wrench.
- Perform the correct bleed sequence, including scan-tool auto-bleed if required.
- Code, initialize, and calibrate related sensors after module installation.
- Reconnect all electrical connectors and verify power, ground, and CAN bus integrity.
- Road test the vehicle and confirm ABS activation, pedal feel, and warning-light behavior.
- Clear all stored DTCs and perform a final scan.
- Keep complete purchase, installation, and testing records for warranty support.
If you want to try the replacement yourself, please read our article on ABS pump replacement DIY.
Frequently Asked Questions
What is the most common ABS pump replacement mistake?
The most common mistake is replacing the pump without confirming it is actually the root cause. Wheel speed sensors, wiring faults, and low brake fluid can all mimic ABS pump failure and lead to unnecessary HCU replacement.
Can I install a used ABS pump?
A used ABS pump can be installed, but it carries significant risk. The module may be locked to the donor vehicle’s VIN or incompatible with the target vehicle’s software. Recoding or adaptation is often required, and some units cannot be successfully reconfigured.
Why does the ABS light come back after replacement?
The ABS light usually returns because of incomplete bleeding, skipped coding, a faulty or incompatible module, or an unresolved electrical fault. A full post-installation scan and road test usually identify the cause.
What happens if you don’t bleed the ABS pump after replacement?
Air trapped in the ABS modulator can cause a soft or fading brake pedal and poor ABS performance. In some vehicles, manual bleeding is not enough; a scan-tool-activated bleed sequence is required to purge air from internal passages.
Do you need to code every new ABS pump?
Not every replacement requires coding, but most modern vehicles do. The requirement depends on the manufacturer and model year. Always check the service manual before starting the job.
Can a wrong ABS pump damage the vehicle?
An incompatible or incorrectly installed ABS pump can damage the valve body, introduce contamination, or disable stability and traction control. In severe cases, it can compromise braking safety.
How do I know the ABS pump is actually bad?
Confirm the fault with a systematic diagnostic process. Check the wheel speed sensors, wiring, grounds, fuses, relays, and the condition of the brake fluid. Use a scan tool to read live data and stored DTCs. Only replace the pump after ruling out upstream faults.
Conclusion
Most ABS pump replacement mistakes are preventable. The three highest-impact areas are accurate diagnosis before replacement, clean and specification-driven installation, and complete post-installation verification. When technicians treat every phase as critical, comebacks drop, and customer trust rises.
