At 6:00 a.m. on a Tuesday, a Class 6 delivery box truck rolled into the bay. The ABS warning lamp was glowing on the dash. The fleet manager had three decisions before the route started. He needed to confirm the fault, find the right replacement part, and estimate the true cost of downtime. That single truck generated $900 in revenue per day. Every hour idle ate into margin.
This is the reality behind commercial vehicle ABS pump replacement. Unlike passenger cars, commercial trucks use two very different brake designs. Class 3-6 vehicles usually have hydraulic ABS pump assemblies. Class 7-8 trucks and trailers use air-brake systems with ABS modulator valves and electronic control units.
Order the wrong part, skip calibration, or miss an FMCSA rule, and a routine repair becomes an expensive problem that keeps coming back.
In this guide, you’ll learn how commercial ABS systems differ by vehicle class. You’ll learn when replacement is necessary, what costs look like in 2026, and how fleet operators can source replacement ABS hydraulic units and modulator valves without adding downtime. For a broader framework, see our complete ABS pump replacement guide.
Want to cut procurement risk early? Request a fleet ABS pump quotation with your vehicle list and part numbers, and we’ll cross-reference voltage, configuration, and compatibility before shipment.
How Commercial Truck ABS Systems Differ from Passenger Vehicles
Passenger vehicle ABS systems are almost always hydraulic. A pump motor restores brake fluid pressure after the modulator valves release it. The entire assembly is compact, electrically simple, and typically operates on 12 volts. Commercial vehicles are not so uniform. The range of designs is much wider.
Hydraulic ABS Pumps vs. Air-Brake Modulator Valves

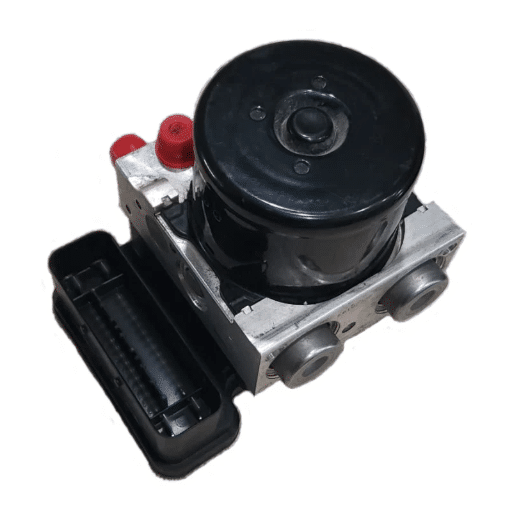

Class 3-4 light commercial trucks and Class 5-6 medium-duty trucks with hydraulic brakes use an ABS hydraulic control unit (HCU). The HCU contains the pump motor, solenoid valves, and accumulator. When the ECU senses wheel lock-up, the valves pulse hydraulic pressure to the calipers or wheel cylinders. The pump then restores fluid pressure to the master cylinder reservoir.
Class 7-8 heavy-duty trucks and most trailers use air brakes. Heavy-duty truck ABS pump replacement is not technically accurate here because these vehicles do not use a hydraulic pump. Instead, the ABS uses solenoid modulator valves. These valves mount on the frame rail or near the brake chambers. They increase, hold, or release compressed air under ECU command.
The air comes from the engine-driven compressor and reservoirs. Calling this component an “ABS pump” is technically inaccurate. Fleet buyers still use the term loosely when they search for parts.
The distinction matters. Parts procurement, labor time, and diagnostic steps differ completely between the two systems. A hydraulic HCU replacement means disconnecting brake lines and bleeding the hydraulic system. An air-brake modulator valve replacement means working with air line fittings, checking voltage, and leak testing. ABS modulator valve replacement on a truck air-brake system is a standard maintenance procedure when the valve fails. Mix them up, and the repair will fail.
For a deeper explanation of the hydraulic unit itself, read our ABS hydraulic control unit engineering guide.
Common Configurations and Voltage
Commercial ABS systems are described by sensor and modulator counts: 4S/4M, 6S/4M, or 6S/6M. The configuration determines replacement scope. A 6S/6M hydraulic HCU has more solenoid valves than a 4S/4M unit. A 6S/6M air-brake system may need several modulator valves.
Electrical voltage is just as critical. Medium-duty trucks usually run on 12 volts. Heavy-duty trucks, European commercial vehicles, and many trailers use 24-volt systems.
Install a 12-volt module on a 24-volt system, and it will fail immediately. Always verify voltage from the vehicle specification.
When Does a Commercial Vehicle Need ABS Pump Replacement?
Not every ABS warning lamp means the pump or modulator valve has failed. Wheel speed sensors, wiring, connectors, and tone rings cause many ABS faults. Replacing an HCU or valve without confirming the root cause wastes parts and labor.
Failure Symptoms Specific to Trucks
Common signs that point toward pump or valve replacement include:
- ABS warning lamp stays illuminated after ignition cycle
- Trailer ABS warning lamp active on the dash
- Brake pedal pulsation during normal braking
- Diagnostic trouble codes indicating pump motor, solenoid, or valve circuit faults
- Air leaks from the modulator valve assembly on air-brake systems
- Internal hydraulic leakage visible at the HCU on hydraulic systems
Diagnostic Confirmation Before Replacing
Commercial vehicles communicate fault data through SAE J1939 or J1708 protocols, not standard OBD-II. A generic code reader may miss manufacturer-specific ABS codes. Tools such as Bendix ACom or WABCO Toolbox provide deeper access to ECU data, active tests, and configuration records.
A proper diagnostic sequence starts with reading active and stored codes. Then command the solenoids or pump motor. Check sensor air gap, inspect tone rings, and verify battery voltage and ground integrity. Only after these checks should replacement be authorized. Guessing wastes money.
For a step-by-step diagnostic process, see our guide on ABS pump diagnostic testing.
Commercial Vehicle ABS Pump Replacement Cost by Truck Class
Commercial vehicle ABS pump replacement cost depends on vehicle class, brake architecture, parts tier, and labor market. The table below summarizes typical 2026 ranges for commercial fleets in North America.
| Vehicle Class | Brake Type | Component Replaced | Parts Cost | Labor Hours | Total Cost Range |
|---|---|---|---|---|---|
| Class 3-4 | Hydraulic | ABS HCU / pump assembly | $600−$1,400 | 3-5 | $1,200−$2,500 |
| Class 5-6 | Hydraulic | ABS HCU / pump assembly | $900−$1,900 | 4-6 | $1,600−$3,200 |
| Class 7-8 | Air brake | ABS modulator valve only | $140−$450 | 1.5-3 | $400−$1,000 |
| Class 7-8 | Air brake | ABS ECU / module | $400−$800 | 2-3 | $600−$1,200 |
| Class 7-8 | Air brake | Full valve package / integrated assembly | $1,000−$2,500 | 3-5 | $1,500−$3,500+ |
| Trailer | Air brake | Trailer ABS modulator valve | $100−$450 | 1-2 | $300−$800 |
Parts typically represent 60-75% of the total cost for hydraulic HCU replacements. For air-brake valve replacements, labor is a smaller share. These components are more accessible, and the systems do not need hydraulic bleeding.
Class 8 truck ABS module replacement cost is typically $600-$1,200 when the ECU itself has failed. A standalone modulator valve runs $400-$1,000.
For passenger and light truck cost comparisons, see our article on ABS pump replacement cost by vehicle type.
Trailer ABS systems use simpler 2S/1M or 4S/2M configurations. They must still communicate with the tractor through the seven-pin connector. A trailer valve fault can therefore be mistaken for a tractor fault.
Labor Time and Downtime Considerations for Fleets
ABS pump replacement for commercial trucks involves more than parts cost. Labor hours are only part of the cost equation. For fleets, the bigger number is downtime.
Typical Labor Hours by Vehicle Class
- Class 3-4 hydraulic HCU: 3-5 hours
- Class 5-6 hydraulic HCU: 4-6 hours
- Class 7-8 modulator valve only: 1.5-3 hours
- Class 7-8 ABS ECU/module: 2-3 hours
- Class 7-8 full valve package: 3-5 hours
- Trailer modulator valve: 1-2 hours
Diagnostic time, air-system bleeding, and module coding can add 0.5-1.5 hours. Independent truck shops typically charge $100-$150 per hour. Dealer labor rates often reach $150-$200 per hour or more in metropolitan areas.
For a detailed labor cost breakdown, see our guide on ABS pump replacement labor cost and time estimates.
Fleet Downtime Cost
According to fleet industry benchmarks, unplanned commercial vehicle downtime costs $450-$760 per day per truck. Lost revenue averages $40-$70 per hour. A Class 5 box truck sidelined for a full day can erase more profit than the repair invoice.
Planned replacement during preventive maintenance windows beats reactive roadside repair. A fleet that catches an ABS fault during a scheduled PM controls labor rates. It avoids expedited shipping. It keeps the route schedule intact. A truck that fails on the road may need towing, emergency labor, and missed delivery penalties.
Maria is a fleet maintenance supervisor in Ohio. She saw recurring ABS fault codes on three Class 6 step vans during scheduled inspections. She replaced the hydraulic HCUs during the next PM cycle. The planned repairs cost an average of $1,850 per vehicle. Her previous unplanned roadside ABS failure on a similar unit had cost $3,400, including towing and lost revenue. The planned approach saved approximately 45% per event.
FMCSA and DOT Compliance Requirements
ABS on commercial vehicles is not optional maintenance. Federal regulations require ABS on nearly all commercial trucks, buses, and trailers built after specific dates.
Federal ABS Mandates Under 49 CFR § 393.55
The FMCSA antilock brake system rules are found in 49 CFR § 393.55. The requirements apply based on vehicle manufacture date:
- Truck tractors with air brakes: manufactured on or after March 1, 1997
- Other air-braked commercial motor vehicles: manufactured on or after March 1, 1998
- Trucks and buses with hydraulic brakes: manufactured on or after March 1, 1999
- Trailers, semitrailers, and converter dollies: manufactured on or after March 1, 1998
These vehicles must meet FMVSS No. 105 for hydraulic brakes or FMVSS No. 121 for air brakes. They must also have a working ABS malfunction indicator lamp. This lamp alerts the driver when the system is not operational.
Out-of-Service and Roadside Inspection Risk
A commercial truck with the ABS warning lamp illuminated can usually still be driven. The base braking system remains functional. However, the antilock function is disabled. This increases stopping distance on low-friction surfaces and raises the risk of wheel lock-up and jackknife on heavy trucks.
During DOT roadside inspections, an active ABS malfunction can contribute to out-of-service violations or CSA scoring points. Fleets that operate with known ABS faults also expose themselves to liability if an accident occurs. Document ABS inspections, fault codes, repairs, and parts replacements. This documentation supports warranty claims and compliance reviews.
Fleet ABS Pump Replacement Procurement Strategy
Sourcing the right replacement ABS component at the right price takes more than matching a part number. Before ordering, confirm the vehicle year, make, model, gross vehicle weight rating, brake system type, ABS configuration, electrical voltage, OEM part number, and cross-reference compatibility. VIN-based verification reduces the risk of ordering the wrong unit. Many ABS modules and valves look identical on the outside. They can differ in firmware, calibration, or voltage.
Parts Tier Comparison for Commercial ABS
| Tier | Description | Best Application |
|---|---|---|
| OEM dealer | New unit from vehicle manufacturer | Warranty-critical, low-volume fleet |
| OES equivalent | Same specification as OEM, different label | Fleet replacement, consistent spec |
| Premium remanufactured | Rebuilt and tested to OEM standards | Older vehicles, budget-conscious fleets |
| Economy aftermarket | New unit from third-party manufacturer | Temporary solution, non-critical units |
Bulk Sourcing and Warranty Terms
Fleets with multiple vehicles of the same type can reduce unit cost through volume purchasing. Negotiate minimum order quantities, warranty periods, core return credits, and failure-rate guarantees. A supplier offering 12- to 24-month warranty coverage on replacement ABS hydraulic units provides stronger long-term value than a cheaper option with no support.
Core return programs are especially important for hydraulic HCUs and remanufactured modules.
When vetting a supplier, verify IATF 16949 certification. Check pressure and endurance testing capability, material traceability, cross-reference support, export packaging experience, and after-sales technical support. A supplier that cannot provide test data or application verification shouldn’t handle safety-critical brake components.
Common Replacement Mistakes in Commercial Vehicles
Even experienced shops make errors when working across multiple vehicle classes and brake designs. The most costly mistakes include:
- Confusing hydraulic ABS pumps with air-brake modulator valves
- Installing a 12V module on a 24V electrical system
- Skipping post-installation coding, initialization, or steering-angle calibration
- Replacing tractor components before isolating trailer ABS faults
- Using incorrect DOT brake fluid grade in hydraulic HCUs
Repair vs. Replace for Fleet ABS Components
Replacement is not always the first option. Repair is practical when the failure is limited to external wiring, corroded grounds, wheel speed sensors, module refurbishment, or minor air line fitting leaks.
Replacement is necessary when the failure involves internal hydraulic leakage, cracked or seized valve bodies, pump motor failure inside the HCU, internal ECU damage, or corrosion that has penetrated the valve body. Continuing to operate with these faults risks complete ABS failure. Don’t wait on these failures.
For help deciding between repair and replacement, read our guide on whether an ABS pump can be repaired.
Frequently Asked Questions
Do commercial trucks have ABS pumps or modulator valves?
Class 3-6 trucks with hydraulic brakes use ABS hydraulic control units with pump motors. Class 7-8 trucks and trailers with air brakes use ABS solenoid modulator valves that control compressed air. Use the terminology that matches the vehicle design.
How much does ABS pump replacement cost for a commercial truck?
For hydraulic ABS HCU replacement, expect $1,200-$2,500 for Class 3-4 and $1,600-$3,200 for Class 5-6. For air-brake Class 7-8 trucks, a modulator valve replacement typically costs $400-$1,000. A full integrated assembly can reach $1,500-$3,500 or more.
Is ABS required on all commercial trucks?
Federal law requires ABS on truck tractors with air brakes built on or after March 1, 1997. It also requires ABS on other air-braked commercial vehicles built on or after March 1, 1998, hydraulic-braked trucks and buses built on or after March 1, 1999, and most trailers built on or after March 1, 1998.
Can you drive a truck with the ABS light on?
The base braking system usually remains functional, so the truck can stop. However, the antilock function is disabled. This increases risk on slippery surfaces. Operating with an active ABS fault can also lead to DOT inspection violations.
How long does ABS pump replacement take on a semi truck?
A semi truck with air brakes doesn’t have a hydraulic ABS pump. Replacing an ABS modulator valve takes 1.5-3 hours. Replacing an ABS ECU or module takes 2-3 hours. A full valve package replacement can take 3-5 hours plus diagnostic time.
Conclusion
Commercial vehicle ABS pump replacement isn’t a one-size-fits-all procedure. Fleet managers and repair shops must first identify whether the vehicle uses a hydraulic ABS HCU or an air-brake modulator valve. Then they must verify voltage, configuration, and compliance requirements before sourcing parts.
The key takeaways are clear:
- Match the replacement component to the brake architecture.
- Verify voltage and ABS configuration before ordering.
- Use diagnostic tools that read J1939 or J1708 codes.
- Plan replacements during scheduled maintenance to minimize downtime.
- Source from suppliers with quality certification and application support.
If you’re evaluating replacement ABS hydraulic units, modulator valves, or complete valve packages for your fleet, request a fleet ABS pump quotation from LOYAL INDUSTRIAL PTE. LTD. We provide application cross-referencing, voltage verification, and export-ready delivery to keep your commercial vehicles in service.
