In January 2026, a maintenance manager for a 40-truck regional delivery fleet watched an ABS lamp flash on a Class 8 tractor and told the driver to keep going. The light was only intermittent, and the brakes felt normal. Eleven days later, that same tractor lost ABS, traction control, and stability control on a rain-soaked interstate exit. The driver managed to avoid a jackknife, but only because the ramp was empty.
You already know that commercial truck ABS failure symptoms are easy to dismiss. An intermittent lamp, a faint air hiss, a brake that releases a half-second late: these all get logged as “minor” and pushed to the next PM. That pattern is exactly why this guide exists.
This article gives you a symptom-first framework for commercial trucks across Class 3-8. You’ll learn which symptoms point to a hydraulic ABS pump, which point to an air-brake modulator valve, how to decode dash lamps and blink codes, and when a symptom becomes an FMCSA compliance issue. The goal is simple: recognize the warning signs before they become a roadside incident.
For a full list of pump-related warning signs, see our article on common ABS pump failure symptoms.

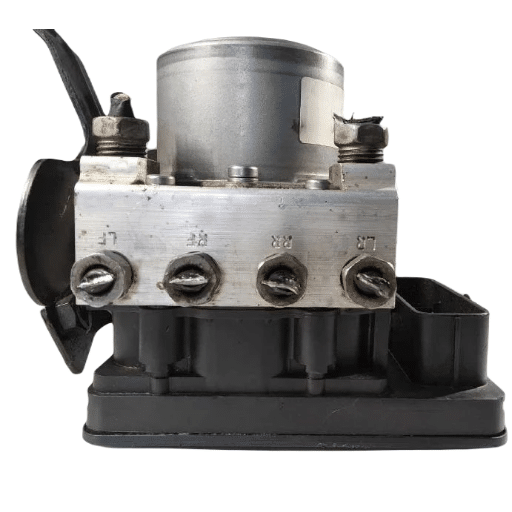

Why Commercial Truck ABS Diagnostics Differ from Passenger Vehicles
Most ABS articles online describe passenger cars. Commercial trucks are different, and the difference starts with how the brakes actually work.
Hydraulic ABS Pumps (Class 3-6) vs. Air-Brake Modulator Valves (Class 7-8)
Medium-duty trucks in Classes 3 through 6 typically use hydraulic brakes. Their anti-lock systems use an ABS hydraulic control unit (HCU), which contains a real hydraulic pump motor that builds pressure during ABS events. When the pump fails, you get pedal feel changes, pump motor noise, and wheel lock-up under hard braking. This is the “ABS pump” that passenger-style diagnostic guides describe.
Heavy-duty trucks in Classes 7 and 8 use air brakes. Their ABS systems are built around solenoid modulator valves and an ABS controller. There is no hydraulic pump in the traditional sense. When a driver or technician says “ABS pump failure” on a Class 8 truck, the real fault is usually a modulator valve, the ECU, a wheel speed sensor, or the wiring between them.
Getting this distinction wrong is expensive. Ordering a hydraulic ABS pump assembly for an air-brake tractor is a guaranteed return, plus a day of downtime while the correct part ships. On a semi truck, the ABS warning light rarely means the pump failed; it means a modulator valve, sensor, or wiring fault.
Why Symptom Recognition Matters for Fleets
A fleet of 50 trucks generates thousands of brake system hours every month. Most ABS faults announce themselves early with a specific, repeatable symptom. Catching that symptom during a pre-trip inspection or PM lane costs minutes. Catching it on the road costs hours, a tow, and possibly a DOT violation.
The 8 Most Common Commercial Truck ABS Failure Symptoms
The eight symptoms below cover both brake architectures. Recognize one, and you know the diagnostic direction. The 8 most common commercial truck ABS failure symptoms are:
- ABS warning lamp illuminated (solid or intermittent)
- Momentary trailer ABS lamp while traveling
- Modulator valves failing to cycle at power-up
- Air leaking from the modulator or relay valve exhaust port
- Slow-releasing or dragging service brakes
- Wheel lock-up under hard braking
- Soft, hard, or unresponsive brake pedal (hydraulic-brake trucks)
- Stored blink codes or J1939 fault codes
Each symptom below gets its own detail section so you know what to look for and what it usually means.
ABS Warning Lamp Illuminated
On a Freightliner Cascadia, a solid ABS lamp indicates a fault in the truck’s own ABS. A momentary lamp during travel usually signals a trailer ABS fault instead. That single distinction narrows the diagnosis considerably.
An intermittent lamp that comes and goes, especially over bumps, points to an intermittent electrical connection. In the NHTSA investigation into Ram 2500-5500 hydraulic control units, swollen pump motor brushes caused exactly this pattern: the lamp would light, clear itself, and then the system would fail days later.
Momentary Trailer ABS Lamp While Traveling
A trailer ABS lamp that flashes briefly at the start of a trip is often normal, a self-test. A lamp that keeps flashing or reappears under braking means the trailer ABS controller is reporting a fault. On Bendix trailer controllers, a red MOD LED indicates a modulator fault. Intermittent trailer faults trace back to corroded connectors or a bad power or ground in the trailer harness more often than to the modulator itself.
Modulator Valves Failing to Cycle at Power-Up
When you power up a truck with air-brake ABS, the modulator valves perform an audible self-test, sometimes called a chuff test. If the valves don’t cycle, the controller may be faulted or the solenoids may be dead. Meritor WABCO troubleshooting guides use the missing power-up cycle as a first check before reaching for a scan tool.
Air Leaking from the Modulator or Relay Valve Exhaust Port
A constant air leak from the exhaust port of an ABS modulator valve or relay valve, especially when the parking brake is released, points to a failed internal valve or contamination. A small leak wastes air and can drain the system overnight. A larger leak affects brake application itself, which is one reason a damaged modulator valve is the ABS component most likely to impair normal braking.
Slow-Releasing or Dragging Service Brakes
Brakes that release slowly or drag usually show up as heat, brake fade, or premature pad wear. Kinked air lines, dirt in the valve, a faulty return spring, or an over-adjusted slack adjuster can cause it. The ABS controller logs dynamic modulator faults when wheel behavior stays abnormal during an ABS event, and dragging brakes are a leading mechanical cause.
Wheel Lock-Up Under Hard Braking
If wheels lock up in a panic stop, ABS has lost its ability to modulate pressure. On a hydraulic medium-duty truck, this points to the ABS pump or HCU. On an air-brake tractor, it points to the modulator valve, the controller, or the wheel speed sensors. Either way, a locked wheel under hard braking is a safety-critical symptom, not a schedule-it-later item.
Soft, Hard, or Unresponsive Brake Pedal (Hydraulic-Brake Trucks)
On Class 3-6 hydraulic trucks, pump failure changes pedal feel. A soft, sinking pedal can mean internal seal leakage in the HCU. A hard pedal with increased stopping distance can mean the pump can’t build pressure during an ABS demand. Locked brakes that only release when a bleeder is opened indicate a stuck solenoid valve. These are the same physical symptoms a passenger ABS guide would list, applied to heavier hydraulic systems.
Stored Blink Codes or J1939 Fault Codes
Every truck ABS stores a code when a fault sets. On air-brake systems, you can often read those codes without a scan tool by counting dash lamp blinks. We cover blink codes and J1939 faults in a dedicated section below.
For the engineering detail behind each of these symptom families, start with our complete ABS pump failure symptoms guide. It maps every symptom to the underlying diagnostic code. Vehicle-make-specific symptom patterns are broken out in our ABS pump failure symptoms by vehicle make guide.
Hydraulic ABS Pump Symptoms in Medium-Duty Trucks
Class 3-6 trucks with hydraulic brakes share the HCU architecture of passenger vehicles, but at heavier-duty ratings. The failure signatures follow.
Brake Pedal Feel Changes
The pedal is the best indicator. A soft or spongy pedal suggests air, moisture, or an internal hydraulic leak. A pedal that sinks slowly under steady pressure points to a failing seal inside the HCU. A rock-hard pedal during an ABS event means the pump cannot build the pressure the modulator expects.
Continuous or Noisy Pump Motor Operation
A healthy ABS pump motor runs briefly during the self-test and only for the duration of an ABS event. A pump that runs continuously, buzzes, or whines points to an accumulator pressure leak or a worn motor. A motor that only runs when tapped has worn brushes. Both are replacement triggers, and both show up in the current draw.
Blown Fuses and Current-Draw Checks
A blown ABS pump motor fuse is a symptom of an electrical fault, not the fault itself. Measure the current draw with a clamp meter during a commanded activation. Commercial hydraulic ABS pumps draw roughly 30 to 60 amps during activation, compared with 15 to 25 amps in passenger vehicles. Draw that exceeds specification suggests mechanical binding or a shorted winding. Our step-by-step ABS hydraulic unit test guide walks through the full procedure.
Air-Brake ABS Modulator Valve Symptoms in Heavy-Duty Trucks
Class 7-8 trucks depend on modulator valves, and their symptoms live in the air system.
Static vs. Dynamic Modulator Faults
OEM manuals split modulator faults into two families. Static faults are electrical, meaning an open or short circuit in the wiring or solenoid. Dynamic faults appear during an ABS event and usually trace to a mechanical problem elsewhere: dragging brakes, dry bearings, a faulty return spring, restricted air lines, or an over-adjusted slack adjuster. The split tells you whether to reach for a multimeter or a brake adjustment tool.
Air Leak and Drag Patterns
Listen for leaks at the exhaust ports and feel for heat in the hubs after a short drive. A hub that runs hot, or brakes that drag, will generate dynamic ABS faults and wear components prematurely.
Solenoid Resistance Specifications
When a static fault sets, measure the solenoid coil resistance at the valve connector and compare it to the specification for that exact valve. An out-of-range reading confirms the valve must be replaced.
| Valve / Measurement | Resistance (ohms) |
|---|---|
| Meritor WABCO valve solenoids | 4.0 – 9.0 |
| Bendix M-30, Hold-to-Common | 3.5 – 5.0 |
| Bendix M-30, Exhaust-to-Common | 3.5 – 5.0 |
| Bendix M-30, Exhaust-to-Hold | 7.0 – 10.0 |
Trailer ABS Fault Symptoms and Tractor-Trailer Communication
Trailer ABS faults are the most commonly ignored commercial ABS failure symptoms because the truck itself still stops.
Trailer ABS Lamp Blinking Patterns
The trailer ABS lamp sits on the trailer nose or the rear of the cab. A short blink at power-up is the self-test. A repeating blink pattern is a blink code, and counting the blinks gives you the code without any tool. On Meritor WABCO trailer systems, the common codes are:
| Blink Code | Meaning (Meritor WABCO trailer) |
|---|---|
| 7 | External modulator failure |
| 9 | Internal modulator H2 failure |
| 10 | Internal modulator H1 failure |
Power and Ground Wiring Faults Between Tractor and Trailer
Trailer ABS runs on power from the tractor through the trailer harness. Corroded connectors, broken pins, and damaged ground returns are the leading causes of intermittent trailer ABS faults. A trailer with a blinking ABS lamp may be running without any ABS protection in wet conditions. That’s a safety gap no fleet should tolerate.
How to Read ABS Fault Codes on a Commercial Truck
Commercial trucks do not use the same OBD-II chassis codes as passenger cars. Heavy-duty ABS diagnostics run on SAE J1939 and J1708, and on the older J1587 blink-code standard.
Blink Codes via the Dash Lamp (J1587)
You can read many air-brake ABS faults by entering the diagnostic mode and counting lamp blinks. On WABCO and Meritor systems, press and hold the blink-code switch for about one second to enter the mode, then count the sequence. Each blink count maps to a fault. This requires no scan tool and no special training.
J1939 SPN/FMI Codes with a Diagnostic Tool
With a heavy-duty scan tool, ABS faults appear as SPN/FMI pairs on the J1939 bus. The SPN identifies the component, and the FMI identifies the failure mode. Fleet shops already running J1939 tools for engine and transmission codes can read ABS with the same hardware.
Manufacturer Tools: Bendix ACom and WABCO Toolbox
Bendix ACom and WABCO Toolbox are the factory diagnostic suites. They read codes, run component activations, and guide guided troubleshooting. For a fleet doing in-house ABS work, one of these tools pays for itself in avoided misdiagnosis.
Once you have a code, our ABS pump failure DTC codes guide maps the most common commercial codes to their causes and next diagnostic steps.
Fleet Predictive Maintenance: Catching ABS Symptoms Before Failure
Preventive maintenance is where fleets actually win. The data is clear: fleets that catch faults early report roughly 35 to 50 percent less downtime and about 27 percent fewer breakdowns. ABS symptoms respond well to a structured catch.
Pre-Trip and PM-Lane Inspection Checklist
Add these checks to the PM lane:
- Watch the ABS lamp cycle during power-up and record any blink code.
- Listen for the modulator valve self-test on air-brake trucks.
- Check the trailer ABS lamp and blink pattern at the dock.
- Measure pump motor current draw on hydraulic trucks during activation.
- Check for air leaks at modulator and relay exhaust ports.
- Feel brake hubs for heat after a short test drive.
Symptom Logging and Trend Tracking
Log every ABS lamp event and code across the fleet, even if the fault cleared itself. A truck that throws a transient code three times in two months is failing, and the fourth failure will happen at the worst time. Trend tracking turns random events into a predictable maintenance signal.
Annual DOT Inspection Preparation
At annual inspection time, ABS is checked as part of the brake system. A documented history of ABS faults and their resolutions makes the inspection cleaner and gives you evidence if a compliance question ever comes up.
FMCSA Compliance and Out-of-Service Exposure
ABS Requirements Under 49 CFR Section 393.55
The Federal Motor Carrier Safety Administration requires ABS on commercial vehicles built after specific dates. Truck tractors built on or after March 1, 1997, other air-braked commercial motor vehicles built on or after March 1, 1998, and hydraulic-braked trucks and buses built on or after March 1, 1999 must have a functioning ABS.
Operating with Disabled ABS
An illuminated ABS lamp on a commercial vehicle is a roadside inspection flag, not a cosmetic warning. Base brakes usually continue to work, which is why drivers reach the shop, but stopping distances grow on wet surfaces and wheel lock-up becomes possible. An ABS fault that also triggers the main brake warning lamp, or that produces a low or hard pedal, means the vehicle should not move until it’s inspected.
Frequently Asked Questions
Why is my truck’s ABS light on?
The ABS lamp lights when the ABS controller detects a fault in the system. The most common causes are a failed wheel speed sensor, a modulator valve fault, a wiring or connector problem, or, on hydraulic trucks, a failing ABS pump motor. Read the stored code to identify the exact cause instead of guessing.
Can you drive a truck with the ABS light on?
Legally and technically, yes, because the base brakes still work. But ABS, traction control, and stability control are disabled, which raises stopping distance on low-traction surfaces. If the ABS and brake warning lamps are both lit, or the pedal feels wrong, stop driving and inspect immediately.
What does a blinking ABS light on a trailer mean?
A single short blink at power-up is a normal self-test. A repeating blink pattern is a blink code that identifies the fault. Count the blinks and reference the controller manual, or connect a diagnostic tool to read the code directly.
Do commercial trucks have ABS pumps or modulator valves?
It depends on the brake system. Medium-duty trucks with hydraulic brakes (Classes 3-6) have ABS hydraulic control units with a pump motor. Heavy-duty trucks with air brakes (Classes 7-8) use solenoid modulator valves and an ABS controller, with no hydraulic pump.
How do you read ABS blink codes on a truck?
Enter the diagnostic mode by pressing and holding the blink-code switch on the ABS controller for about one second, then count the dash lamp blinks. Each blink count maps to a specific fault. A scan tool can read the same faults as J1939 SPN/FMI codes.
What are the symptoms of a bad ABS modulator valve?
The main symptoms are a missing power-up valve cycle, constant air leaking from the exhaust port, slow-releasing or dragging service brakes, and a stored modulator fault code. A damaged modulator valve can impair normal braking because it sits directly in the air line.
Is an ABS light on a truck a DOT violation?
Operating with an inoperative ABS can be cited during a roadside inspection, and the out-of-service criteria are strict for brake-related defects. Federal rules require functioning ABS on applicable commercial vehicles. Fix the fault and document the repair.
Why does my air brake valve keep leaking?
A constant leak at a relay or modulator valve exhaust port usually means a failed internal valve, contamination, or a worn seal. Small leaks drain the air system overnight. Large leaks affect brake application and should be repaired promptly.
Conclusion
Commercial truck ABS failure symptoms are predictable, and they rarely fail without warning. The challenge is that fleets ignore the early signs because the base brakes still stop the truck.
The key takeaways are these:
- Class 3-6 hydraulic trucks have ABS pumps; Class 7-8 air-brake trucks have modulator valves. Diagnose the right architecture.
- The dash lamp is your first diagnostic tool. A solid lamp means a truck fault; a momentary lamp often means a trailer fault.
- Blink codes and J1939 faults identify the component without guesswork.
- Air leaks, dragging brakes, and missing valve cycles are real symptoms, not noise.
- A documented fault history keeps your fleet compliant and your maintenance planned.
Set up the PM-lane checklist today, log every lamp event, and read the code before you order a part. When a confirmed ABS component does need replacement, request a technical specification sheet from our engineering team so you source the correct hydraulic unit or modulator valve the first time.
