In April 2025, Mike replaced the ABS pump on his 2009 Toyota 4Runner because the brake pedal had gone hard. Two hundred dollars and a full day later, the pedal still felt the same. The real fault was a cracked vacuum hose at the brake booster, not the pump. He replaced the wrong part because he never separated the two very different causes of a hard pedal and a spongy pedal.
A brake pedal hard after ABS failure usually points to the brake booster or its vacuum supply. A spongy pedal usually points to air trapped in the ABS hydraulic control unit (HCU), an internal modulator failure, or contaminated brake fluid. If you’ve had ABS work done and the pedal now feels wrong, you’re dealing with one of the most misdiagnosed complaints in brake repair.
This guide explains how to tell which cause you’re facing and the exact steps to diagnose and fix it. You’ll learn the booster vacuum test that prevents a wasted part purchase, the scan-tool bleed procedure that clears trapped air, and how to choose a replacement ABS pump that won’t bring the problem back.
Want the full symptom framework first? Read our complete guide to ABS pump failure symptoms before diving into the pedal-specific diagnosis below.
Why ABS Failure Changes Brake Pedal Feel
How the Brake System Delivers Pedal Feel
The brake pedal connects to a master cylinder through a vacuum booster. Pressing the pedal moves incompressible hydraulic fluid to the calipers, which clamp the rotors. For the pedal to feel normal, two conditions must hold. The booster must multiply your foot pressure, and the fluid must remain free of air.
ABS failure disrupts the second condition. The anti-lock braking system (ABS) sits between the master cylinder and the wheels. Inside its hydraulic control unit, solenoid valves and a pump motor modulate brake pressure during an ABS event triggered by the wheel speed sensors. When these internal passages trap air or a valve sticks, pedal feel changes in predictable ways.
Hard vs. Spongy: Two Opposite Symptoms
Hard pedal means high pedal effort with little travel. The pedal feels stiff and resists your foot. Spongy pedal means soft, excessive travel, sometimes sinking toward the floor. These are opposite symptoms with opposite causes.
A hard pedal is almost always a loss of power assist, not a hydraulic block problem. A spongy pedal is almost always a loss of incompressibility in the fluid, either from air or internal leakage. Confusing the two leads directly to the wrong repair.
| Pedal Symptom | How It Feels | Most Likely Cause | First Check |
|---|---|---|---|
| Hard pedal | Stiff pedal, high effort, little travel | Brake booster or vacuum loss | Booster vacuum test |
| Spongy pedal | Soft pedal, excessive travel, may sink | Air in the ABS unit, internal seal bypass, or bad fluid | Scan-tool ABS bleed |
Brake Pedal Hard After ABS Failure: The Causes
Brake Booster and Vacuum Supply: The Misdiagnosis Trap
A hard pedal is most often a brake booster or vacuum supply fault. The booster uses engine vacuum to multiply pedal force. When vacuum is lost through a split hose, a failed check valve, or a leaking booster diaphragm, the pedal becomes hard because your leg supplies all the force.
Here is the trap. A vehicle with an ABS fault will often set warning lights and DTCs at the same time the booster fails. The codes point at the ABS, so the pump gets replaced. The pedal stays hard because the booster was never the problem. One Bimmerforums thread documents exactly this pattern: a vehicle that received three pre-charge pumps and an ABS module before a leaking check valve was found.
ABS Hydraulic Unit Failing to Release Pressure
Less commonly, the ABS hydraulic unit itself causes a hard pedal. If a solenoid valve sticks in the closed position or the pump motor fails to release pressure, the unit can block fluid flow to the calipers. The result is a hard, wooden pedal that resists effort. This is a genuine ABS-unit failure, but it’s far less common than a booster fault. Verify the vacuum side first.
When the ABS Is Not the Problem at All
Diagnostic trouble codes can mislead you. A pump-motor code such as C1095 or C0110 can be stored for an electrical reason that has nothing to do with pedal feel. Before you condemn the ABS unit, make sure the booster and its vacuum supply are healthy. A brake pedal hard to press after an ABS pump replacement does not automatically mean the pump is faulty. The engine-off, engine-on test in the diagnostic section below takes two minutes and prevents a wasted purchase.
For ABS pump abnormal noise issues, please read our article on ABS pump noise symptoms.
Spongy Brake Pedal After ABS Failure: The Causes
Air Trapped in the ABS Hydraulic Control Unit
Air trapped in the ABS hydraulic control unit is the most common cause of a spongy pedal after ABS work. The HCU’s internal passages, solenoid chambers, and pump circuits form high points where air collects. Conventional bleeding at the wheel bleeders cannot reach this air because the solenoids remain closed.
This is why a scan tool is frequently required. The tool cycles the solenoids and runs the pump motor, forcing trapped air out to the caliper bleeders where it can be purged. If the ABS unit is not cycled, a brake pedal spongy after an ABS event can stay soft no matter how many times you bleed it manually, even when you follow NAPA’s brake bleeding tips.
Internal Modulator Seal Bypass and Sticking Solenoids
Internal wear inside the modulator produces the same symptom as air. As seals degrade, fluid bypasses through internal circuits instead of moving to the calipers. Understanding how modulator valves fail helps separate this fault from a simple bleed problem. Sticking solenoids, often caused by particles in old fluid, create a restriction that makes the pedal soft. These mechanical failures often set no code at all. The ABS computer only detects electrical faults, so an internal seal leak can go unnoticed while the pedal sinks.
Contaminated Brake Fluid
Brake fluid absorbs moisture over time. Water lowers the fluid’s boiling point and promotes internal corrosion. The corrosion accelerates seal wear and solenoid sticking. Dark, brown, or cloudy fluid in the reservoir is a strong signal that the entire system needs a flush, not just a bleed. Most manufacturers recommend fluid replacement every two years or roughly 30,000 km.
Defective Replacement Pump or Module
A brake pedal soft after an ABS module replacement can also mean the replacement part itself is defective. Used salvage units may have internal pressure regulation problems or degraded seals. Remanufactured units vary in quality depending on the rebuild standard. One forum owner swapped in a used Mazda 5 ABS pump and the pedal went soft immediately. After a computer-driven bleed, the pedal remained soft, and the used unit turned out to be internally faulty. New parts with a proper scan-tool bleed resolved it.
Diagnostic Steps: Booster, ABS Unit, or Replacement Part?
Work through these steps in order. Each step rules out a whole class of causes before you spend money.
Step 1: Rule Out the Booster and Vacuum Supply
With the engine off, pump the brake pedal five to ten times. It should get progressively harder as vacuum depletes. Keep your foot on the pedal and start the engine. The pedal should sink slightly as vacuum builds. If it stays rock hard, the booster, its check valve, or the vacuum hose is the problem. A healthy booster holds roughly 20 to 25 inHg of vacuum with the engine off. Fix the vacuum side before touching the ABS unit.
Step 2: Inspect Fluid Level, Condition, and Leaks
Check the reservoir level and the fluid’s appearance. Dark or sludgy fluid indicates overdue replacement. Inspect lines, hoses, and fittings for leaks or crystalline residue, which is dried brake fluid. Even a small leak can introduce air and cause a spongy pedal.
Step 3: Read ABS Diagnostic Trouble Codes
Use a scan tool that can access the ABS and traction control controllers, not just the engine ECU. Record all stored and pending codes. The table below maps the pedal-feel symptoms to the codes most often associated with each.
| Symptom | Likely DTCs | What the Codes Point To |
|---|---|---|
| Hard pedal, no assist | No ABS code, or a coincidental Cxxxx code | Brake booster, vacuum hose, check valve |
| Hard pedal with ABS light | C1095, C1096, C1098, C0110, C0020 | ABS pump motor circuit, module driver |
| Spongy pedal, no code | No code or U0121 | Air in HCU, internal seal bypass |
| Spongy pedal with pressure sensor code | C0634 | Pressure sensor correlation, module |
| Pump runs continuously | C0020, C0050 | Pump motor relay or module output |
Step 4: Isolate the Base Hydraulic System from the ABS Unit
For a non-integral ABS, you can isolate the master cylinder from the ABS unit. Plug the outlet ports at the master cylinder and apply the pedal. If it feels spongy, the master cylinder is faulty. If it feels firm, work down the system and pinch off lines to find the problem circuit. If the base system passes, the ABS modulator becomes the prime suspect.
Step 5: Test the ABS Pump Motor and Valves
Check the pump-motor fuse, relay, and wiring. Measure the motor winding resistance, typically 0.5 to 5 ohms, and bench-test the motor by applying 12 volts directly. Use a bi-directional scan tool to command each solenoid and confirm it activates. For the full component-level test procedure, see our guide on how to test an ABS hydraulic unit.

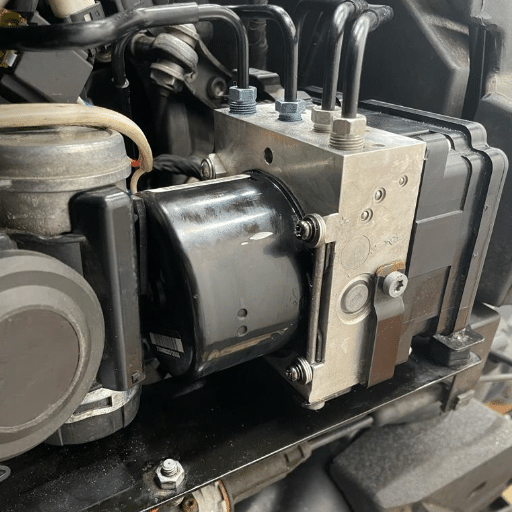

How to Fix a Hard or Spongy Brake Pedal After ABS Failure
Bleed the ABS Hydraulic Unit with a Scan Tool
The most common fix for a spongy pedal is a scan-tool ABS bleed. The procedure cycles the solenoids and pump motor to purge trapped air, and it must be repeated at the wheel bleeders in the manufacturer’s order. Conventional manual bleeding alone is usually not enough for an ABS-equipped vehicle. The full step-by-step process, including the manual, scan-tool, and pressure-bleed methods, is covered in our guide on how to bleed an ABS hydraulic unit.
Flush and Replace Contaminated Brake Fluid
If the fluid is dark or moisture-laden, flush the entire system with the correct DOT-rated fluid before deciding the unit is faulty. Contaminated fluid is a root cause of sticking solenoids and internal seal wear. A flush removes the contamination that caused the fault and protects the new or repaired unit.
Repair or Replace the ABS Hydraulic Unit or Pump
If a proper bleed and flush do not restore pedal feel, the ABS hydraulic unit or pump motor is likely failing internally. Module repair services can rebuild worn motors and clear sticking valves for a fraction of the cost of a new unit. When replacement is the right path, match the unit by VIN or part number and factor in coding after installation. For the full decision and cost framework, see our ABS pump replacement cost and procedure guide.
When to Stop Driving and Call a Professional
Stop driving immediately if the pedal is hard or unresponsive, if it sinks to the floor, or if the brake warning light indicates a hydraulic fault beyond the ABS. These conditions affect base braking safety. Have the vehicle towed and diagnosed before further use. A hard or spongy pedal combined with warning lights is a safety-critical condition, not a scheduling convenience.
Choosing a Replacement ABS Pump: New, Reman, or Used?
Why Pump Quality Affects Pedal Feel
The ABS pump motor is the component that rebuilds pressure during modulation. If the replacement motor is weak, internally worn, or misaligned, the pedal may never recover its correct feel even after a perfect bleed. A brake pedal hard after ABS failure can persist through a pump swap when the replacement unit is below standard, which is why the quality of the replacement part matters as much as the installation procedure. Pump selection is a hydraulic engineering decision, not just a parts lookup.
What to Verify Before Installing
Verify that the replacement unit matches the original part number and system generation. Confirm that it is compatible with your vehicle’s ABS architecture, which is often Bosch, ATE/Continental, or Advics. Check whether the unit requires coding or initialization after installation. Understand the warranty and the return policy, because a defective unit can cause a second failed repair and extended downtime. For a detailed comparison of part sources, see our guide on OEM vs. aftermarket ABS pump replacement.
From a manufacturer’s perspective, this is where quality control separates good components from bad ones. LOYAL INDUSTRIAL PTE. LTD. applies multi-stage performance and pressure testing to every hydraulic pump before shipment, because an untested pump is a future failure. When you source a replacement, ask what testing the supplier performed and what standards the unit meets; our guide on evaluating ABS hydraulic unit manufacturers covers the key questions. Consistent manufacturing control is what prevents the replacement from bringing the original problem back.
Commercial Vehicles and Fleets
24V System and Class 6-8 Differences
Heavy-duty commercial vehicles use 24-volt electrical systems with higher pump-motor current draws. Pedal-feel diagnostics follow the same booster-first logic, but the vacuum pump, fluid volume, and current thresholds differ from passenger cars. A Class 6-8 truck holds roughly three times the brake fluid of a passenger vehicle, so a full flush is a larger job, and a bleed must account for the larger circuit.
Fleet Diagnostic Workflow
Fleet managers should log pedal-feel complaints with the vehicle number and mileage before assigning a repair. A spongy pedal across several trucks often traces to a shared maintenance gap, such as overdue fluid replacement, rather than individual component failure. Standardizing the booster test and the ABS bleed procedure across the fleet catches the pattern early and prevents repeated downtime.
In one 2025 example, a mid-size fleet found three trucks with spongy pedals within a single month. The shop had been bleeding each truck individually and blaming the ABS units. A fluid check showed all three reservoirs held contaminated fluid with visible moisture. A fleet-wide flush and scan-tool bleed restored normal pedal feel in all three vehicles without a single pump replacement.
Frequently Asked Questions
Does a bad ABS pump cause a hard brake pedal?
Usually not. A hard pedal is most often a brake booster or vacuum supply failure. A failed ABS pump can make the pedal hard if it fails to release pressure, but the booster and vacuum system should be ruled out first.
Can a bad ABS pump cause a spongy brake pedal?
Yes. A failing pump motor, sticking solenoid, or internal seal bypass in the ABS hydraulic unit can produce a soft or spongy pedal. Air trapped in the unit after repair is the most common cause.
How do I bleed ABS brakes after a pump replacement?
Use a bi-directional scan tool to cycle the ABS solenoids and pump motor, then bleed the wheel circuits in the manufacturer’s order. Manual bleeding alone often leaves air trapped in the HCU, which is why the scan-tool bleed in the fix section above is required.
Why is my brake pedal hard after starting the car?
If the pedal stays hard after the engine starts, the booster is not receiving vacuum. Check the vacuum hose, the check valve, and the booster itself. A pedal that sinks slightly at engine start indicates the booster is working.
How can I tell if it is the brake booster or the ABS pump?
Run the booster test from the diagnostic section. If the pedal does not sink when the engine starts, the fault is on the vacuum side. If the booster passes, scan the ABS module for codes and test the pump motor before replacing anything.
Is it safe to drive with a hard or spongy brake pedal?
No. Both conditions reduce braking performance. A hard pedal reduces the force applied to the brakes, and a spongy pedal increases stopping distance. If either symptom appears after ABS failure, have the vehicle diagnosed before driving it.
Conclusion
A hard pedal after ABS failure and a spongy pedal point to different root causes. A hard pedal usually means lost booster vacuum, not a failed pump. A spongy pedal usually means air in the ABS hydraulic unit, internal modulator failure, or contaminated fluid. Diagnose the booster first, read the ABS codes, isolate the base system, and test the pump motor before spending on parts.
The payoff is straightforward. You avoid replacing a good pump, you clear the trapped air that causes most spongy pedals, and you choose a replacement unit that meets real quality standards if replacement is required. Keep these points in mind:
- A hard pedal usually means lost booster vacuum, not a failed pump.
- A spongy pedal usually means air in the ABS unit, an internal modulator failure, or contaminated fluid.
- Diagnose the booster first, read the ABS codes, isolate the base system, then test the pump motor.
- A scan-tool bleed resolves most spongy pedals after ABS work.
