A technician in a Cleveland fleet shop closed the hood of a 2019 delivery van and heard something wrong. The ignition was off, but a low hum continued from the ABS hydraulic control unit for 47 seconds before it finally stopped. The driver had reported nothing. The warning light was not on. Yet that sustained post-key-off sound was the first ABS pump noise symptom of a pressure sensor beginning to fail. Two weeks later, the pump motor burned out on the highway.
Most ABS pump noise symptoms are heard before they are measured. A technician who understands what each sound means can diagnose a failing unit faster than any scan tool alone. This guide classifies ABS pump noise symptoms by sound type, operating condition, and likely cause. You will learn what a failing ABS pump sounds like, which noises are normal, which noises point to specific diagnostic trouble codes, and how to decide whether repair or replacement is the right path.
If you need a broader view of ABS pump failure beyond sound, see our complete guide to ABS pump failure symptoms.
What Is Normal ABS Pump Noise?
Not every sound from the ABS hydraulic control unit indicates failure. Some noises are part of normal operation. The key is duration, frequency, and context.
The Key-On Self-Test Sound
When the ignition switches on, the ABS electronic control unit runs a self-test. The pump motor activates for 0.5 to 3 seconds. This produces a brief hum, buzz, or click from the engine bay. This ABS pump noise on startup is short, occurs once per key cycle, and stops before the engine starts. It is normal.
Normal ABS Activation Sound During Hard Braking
During emergency braking on wet, icy, or loose surfaces, the ABS pump motor runs to restore hydraulic pressure after each pressure-release cycle. The driver hears a low mechanical hum combined with rapid pedal pulsation. This ABS pump noise when braking is normal. ABS modulates brake pressure at 10 to 20 cycles per second during these events. The sound lasts only as long as the wheel is near lock-up and stops when brake pressure decreases.
Hybrid and Electric Vehicle ABS Accumulator Sounds
Hybrid and electric vehicles often use accumulator-based brake actuators rather than conventional vacuum boosters. These systems may produce a brief whir or pump cycling sound when the driver presses the brake pedal or when the accumulator recharges. The sound is usually short and periodic. Continuous or unusually loud cycling is not normal and should be diagnosed.
ABS Pump Noise Symptoms: A Sound-Type Diagnostic Table
The most useful way to interpret ABS pump noise symptoms is to match the sound to the underlying failure. The table below maps common noise types to their likely causes, associated diagnostic trouble codes, and recommended urgency.
| Noise Type | Likely Cause | Common DTCs | Urgency |
|---|---|---|---|
| High-pitched whine during activation | Worn pump motor brushes or scored bearings | C0265, C0267, C1300 | Schedule replacement soon |
| Grinding or growling from HCU | Internal cavitation, debris, or mechanical damage | C1300, C1095 | Inspect immediately |
| Continuous humming after key-off | Stuck relay, faulty pressure sensor, or stuck solenoid | C0265, C0267, C1380 | Inspect within 24 hours |
| Rapid clicking or cycling | Solenoid valve chatter or relay fault | C0276-C0279, C0265 | Diagnose within one week |
| No noise when ABS should activate | Failed pump motor, blown fuse, open circuit | C0020, C052E, C05A7 | Immediate safety concern |
| Pump noise with pedal vibration | Module commanding pump incorrectly or valve fault | C0265, U0121 | Diagnose promptly |
This table is the core diagnostic shortcut for ABS pump noise symptoms. A technician who can describe the sound can narrow the failure domain before connecting a scan tool.
What Does a Failing ABS Pump Sound Like?
The progression from healthy pump to failed pump usually produces changing noise patterns. Recognizing the stage helps determine how much time remains before the system loses anti-lock function.
Early-Stage Noise Symptoms
Early ABS pump noise symptoms are subtle. The pump may run 1 to 2 seconds longer than usual during the key-on self-test. The pitch may shift slightly higher. Some technicians report a faint hum from the hydraulic control unit that lingers after shutdown. Current draw during commanded activation may rise 5 to 10 percent above specification. These early signs are easy to dismiss as normal aging, but they often precede mechanical failure by several hundred miles.
Mid-Stage Noise Symptoms
As wear progresses, the ABS pump making noise becomes more obvious. The high-pitched whine from worn brushes becomes audible inside the cabin. The grinding from internal cavitation grows louder during every ABS event. The pump may cycle repeatedly at low speeds or during light braking. At this stage, the warning light may illuminate intermittently, and DTCs such as C0276 or C1300 may store as history codes.
Late-Stage Noise Symptoms
Late-stage failure produces the most dangerous ABS pump noise symptoms. The pump may run continuously after the ignition is off, drawing current until the battery drains. Alternatively, the pump may make no sound at all when commanded, indicating a seized motor or open electrical circuit. Wheel lock-up during hard braking confirms that anti-lock function has been lost.
Intermittent vs. Constant Noise Patterns
Intermittent ABS pump noise symptoms, such as occasional whining or brief post-key-off humming, usually point to developing wear or corrosion. Constant noises, such as continuous buzzing or grinding, indicate an active fault that will worsen quickly. Intermittent sounds demand monitoring and scheduled diagnosis. Constant sounds demand immediate inspection.
ABS Pump Noise Causes by Component
Each sound originates from a specific subsystem within the ABS hydraulic control unit. Understanding the source helps separate repairable electrical faults from mechanical failures that require replacement.
Pump Motor Mechanical Wear
The ABS pump motor is a high-speed DC motor with carbon brushes and sleeve bearings. Brush wear reduces contact efficiency and increases electrical resistance. The motor draws more current and produces a rising ABS pump whining noise. Bearing wear allows rotor movement and produces a lower ABS pump grinding noise. Once mechanical wear produces audible ABS pump noise symptoms, the motor usually requires replacement.
Solenoid Valve Chatter
The hydraulic control unit contains multiple solenoid valves that open and close rapidly during ABS events. A sticking valve can produce rapid clicking or buzzing as the valve plunger fails to seat properly. This creates the ABS pump clicking noise or ABS pump buzzing noise symptom that many drivers misidentify as relay chatter. Individual valve command testing with a bidirectional scan tool confirms whether the noise originates from a specific valve coil.
Pressure Sensor and Accumulator Issues
The pressure sensor monitors hydraulic pressure inside the ABS control unit. A sensor that reads incorrectly can command the pump to run continuously because the module never sees the target pressure reached. This produces the ABS pump running continuously symptom, often accompanied by a steady hum after key-off. In hybrid vehicles, accumulator pressure decay can cause repeated pump cycling during normal braking.
Electrical Relay and Wiring Faults
The ABS pump relay supplies high current to the pump motor. A relay with welded contacts keeps the pump running even when the module commands it off. Corroded connectors or damaged harnesses can produce voltage drops that make the pump run weakly or chatter. These faults are often repairable without replacing the entire hydraulic control unit.
Brake Fluid Contamination and Cavitation
Contaminated or aerated brake fluid causes cavitation inside the pump. Cavitation produces a grinding or growling noise and accelerates internal wear. Old brake fluid with absorbed moisture also promotes corrosion inside the valve body. If contamination is the cause, a complete brake fluid flush may reduce noise and extend pump life, provided mechanical damage has not already occurred.
How to Diagnose ABS Pump Noise Symptoms
A structured diagnosis prevents unnecessary parts replacement and identifies whether the issue is electrical, hydraulic, or mechanical.
Step 1: Document When the Noise Occurs
The most important diagnostic detail is timing. Note whether the noise happens at key-on, during normal braking, during hard braking, at low speed, or after the ignition is off. Record duration in seconds and whether the sound is constant or intermittent. This history often points directly to the failing component.
Step 2: Scan for Stored DTCs
Connect a scan tool capable of reading ABS codes. Record all current and history codes. Common codes associated with ABS pump noise symptoms include C0020, C0265, C0267, C0276 through C0279, C052E, C05A7, C1095, C1300, C1380, and U0121. The code list narrows the search from the entire brake system to a specific circuit or component.
Step 3: Command the Pump with a Bidirectional Scan Tool
A bidirectional scan tool can command the ABS pump motor and individual solenoid valves on demand. Listen to the sound during commanded activation. Compare the observed noise to the expected brief hum. If the pump sounds abnormal or fails to run, the fault is isolated to the pump motor, relay, or supply circuit.
Step 4: Measure Pump Motor Current Draw
Normal passenger-vehicle pump motor current draw is 15 to 25 amps during operation. Commercial vehicles may draw 30 to 60 amps. Use a clamp meter on the pump motor supply wire during commanded activation. Current draw 15 to 30 percent above specification indicates brush wear or mechanical binding. Zero current indicates an open circuit or blown fuse. Sustained high current points to a seized or binding motor.
Step 5: Inspect Connectors, Relay, and Fuse
Inspect the ABS pump fuse and relay in the engine compartment fuse box. A blown fuse or welded relay can explain continuous pump operation or no operation at all. Examine the hydraulic control unit connector for corrosion, moisture, or bent pins. Clean or repair connections before condemning the pump motor.
Step 6: Perform Hydraulic and Sound Isolation Checks
If the noise occurs during braking but the electrical tests are normal, perform a brake fluid inspection. Check fluid color, level, and contamination. Air in the system or degraded fluid can cause cavitation noise. Bleed the system according to manufacturer procedure, using a scan tool if the vehicle requires automated ABS bleeding.
ABS Pump Noise vs. Other Brake System Noises
Many under-hood noises travel through the firewall and sound similar to ABS pump noise symptoms. Isolating the source prevents misdiagnosis.
ABS Pump Noise vs. Brake Booster Noise
A failing vacuum brake booster can produce a hissing sound when the brake pedal is pressed. The sound stops when pedal pressure is released. ABS pump noise may also change with braking, but it is more mechanical and may include hums, clicks, or grinding rather than air hiss.
ABS Pump Noise vs. Power Steering Pump Noise
Power steering pump whine typically rises and falls with engine speed and steering input. ABS pump noise is triggered by brake pedal input, key-on events, or module commands. The two systems are close together in some engine bays, so visual and audio isolation is important.
ABS Pump Noise vs. Wheel Bearing Noise
A damaged wheel bearing produces a growling or rumbling sound that changes with vehicle speed and may worsen during turns. ABS pump noise does not vary with vehicle speed unless the ABS is actively cycling. Wheel bearing noise also does not stop when the ignition is turned off.
ABS Pump Noise vs. Brake Pad Wear Indicator Noise
Brake pad wear indicators produce a high-frequency squeal during light braking. The sound is metallic and rhythmic with wheel rotation. ABS pump noise is lower in frequency, comes from the engine bay rather than the wheel, and is tied to pump or valve operation.

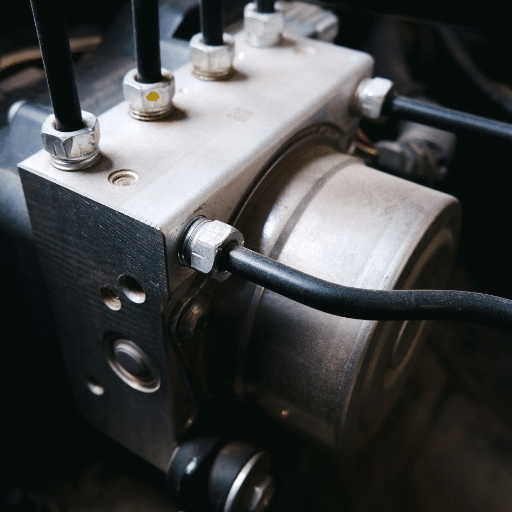

Repair or Replace? Decision Framework by Noise Type
The right repair decision depends on which component is producing the noise and whether the damage is reversible.
Noises That Indicate Repairable Electrical Faults
Rapid clicking, relay chatter, or continuous humming caused by a stuck relay, faulty pressure sensor, or corroded connector can often be repaired without replacing the hydraulic control unit. Replacing the relay, cleaning the connector, or repairing the harness may resolve the ABS pump noise symptoms at a fraction of replacement cost.
Noises That Indicate Mechanical Pump Failure
High-pitched whining, grinding, growling, or no noise at all during commanded activation usually indicate mechanical failure inside the pump motor or valve body. These faults generally require replacement of the ABS pump or the complete hydraulic control unit. Repairing internal mechanical damage is usually not cost-effective or reliable.
When Immediate Replacement Is Required
Immediate replacement is required when the ABS pump noise symptoms are accompanied by warning lights, loss of ABS function, or continuous pump operation that drains the battery. Continuing to operate the vehicle with a failed ABS pump disables anti-lock braking, traction control, and stability control. According to research, ABS reduces stopping distance by approximately 14 percent on wet asphalt and concrete surfaces compared with locked-wheel braking. Losing that safety margin increases incident risk in wet or emergency conditions.
If your diagnosis points to replacement, our ABS pump replacement complete guide covers selection, installation, and bleeding procedures.
Frequently Asked Questions
What does a failing ABS pump sound like?
A failing ABS pump may produce a high-pitched ABS pump whining noise, ABS pump grinding noise, continuous humming after key-off, rapid ABS pump clicking noise, or no sound at all when the system should activate. The specific sound depends on whether the failure is mechanical, electrical, or hydraulic.
Is it normal for the ABS pump to make noise?
A brief hum, buzz, or click lasting 0.5 to 3 seconds at key-on is normal. A low mechanical hum during hard braking is also normal. Loud, continuous, grinding, or whining noises are not normal and indicate a problem.
Why is my ABS pump making a grinding noise?
Grinding usually comes from internal cavitation caused by aerated or contaminated brake fluid, or from mechanical wear inside the pump motor. Both conditions require inspection. If fluid contamination is the cause, a flush may help. If mechanical wear is the cause, replacement is usually needed.
Why does my ABS pump keep running?
Continuous pump operation after key-off is commonly caused by a stuck pump relay, a faulty pressure sensor, or a stuck-open solenoid valve. The pump runs because the control module never receives the signal that target pressure has been reached, or because the relay contacts have welded closed.
Can a bad ABS pump cause noise?
Yes. Noise is one of the earliest and most reliable indicators of ABS pump problems. The type of noise helps identify the underlying failure, from worn brushes and bearings to solenoid chatter and cavitation.
How do I know if my ABS pump or sensor is bad?
Wheel speed sensor faults usually set codes such as C0035, C0040, or C0044 and cause warning lights, but they do not produce pump noise or pedal feel changes. ABS pump faults often set codes such as C0265, C0276 through C0279, or C1300 and produce audible noise, abnormal pedal feel, or continuous pump operation.
Should I replace my ABS pump if it makes noise?
Not all noise requires replacement. Brief self-test sounds are normal. Electrical faults such as relay or connector problems may be repairable. Mechanical noises such as whining, grinding, or silence during commanded activation usually require replacement. A proper diagnosis prevents unnecessary spending.
For help deciding between repair and replacement, see our comparison of ABS pump repair vs. replace options.
Conclusion
ABS pump noise symptoms are diagnostic signals, not background noise. The sound type, duration, and operating condition reveal whether the problem is a normal self-test, a repairable electrical fault, or a mechanical failure requiring replacement. Technicians who classify these sounds correctly diagnose faster, avoid unnecessary parts replacement, and keep vehicles safely on the road.
Start with the sound. Match it to the cause. Confirm with a scan tool and current draw measurement. Then decide whether repair or replacement is the right path. For a complete understanding of the ABS hydraulic control unit and its components, refer to our ABS hydraulic unit guide. If your fleet or workshop needs reliable replacement hydraulic pumps, valves, or ABS components, contact our engineering team for a sourcing consultation.
