A technician at a commercial fleet workshop once spent three hours diagnosing what looked like a failed ABS pump. The warning lights were on, the pedal felt wrong, and the pump motor would not run during a self-test. After checking power and ground, he almost ordered a replacement hydraulic unit. One last check of the wheel speed sensors revealed the real problem: a cracked tone ring on the rear axle was sending erratic signals, and the module had disabled the pump circuit as a protective response. The sensor and tone ring repair cost a fraction of a new ABS pump.
That story is more common than most technicians expect. Knowing how to tell if the ABS pump or wheel speed sensor is bad saves time, prevents unnecessary part replacement, and gets the vehicle back to safe operation faster. Both failures can trigger the same dashboard warnings, but the root causes, symptoms, and diagnostic paths are different.
In this guide, you will learn how the ABS pump and wheel speed sensors work together, what symptoms point to each component, and a practical diagnostic sequence to test the sensor first before condemning the hydraulic unit. You will also see typical replacement costs and safety guidance for vehicles with active ABS faults.
Key point before you start: Wheel speed sensor faults are far more common than ABS pump failures. A methodical sensor-first approach prevents most misdiagnoses.
How the ABS System Uses the Pump and Wheel Speed Sensors
Modern anti-lock braking systems depend on two core components working in real time: the wheel speed sensors and the ABS hydraulic pump, often called the ABS pump motor or hydraulic control unit (HCU).
The wheel speed sensors monitor each wheel’s rotational speed. They send that data to the ABS control module many times per second. When the module detects that one wheel is decelerating much faster than the others, it assumes that wheel is about to lock up. It then commands the hydraulic modulator valves to release and reapply brake pressure at that wheel, usually 10 to 15 times per second.
The ABS pump motor provides the hydraulic pressure needed for those rapid valve cycles. When the modulator valves release brake fluid from a wheel circuit, the pump returns that fluid to the master cylinder or accumulator. Without the pump, the valves cannot cycle fast enough to prevent lockup during hard braking.
Because both components report to the same control module, a fault in either one can illuminate the ABS warning light. The module’s job is safety, not precision diagnosis. It disables the ABS function when it loses confidence in any input or output. That is why technicians must look beyond the warning light and compare symptoms, codes, and live data before replacing parts.
Need a deeper technical foundation? Read our guide on how the ABS hydraulic unit functions before moving into symptom analysis.
Symptoms of a Bad ABS Pump
A failing ABS pump or hydraulic control unit produces symptoms that are usually mechanical, electrical, or hydraulic in nature. These signs are less common than sensor faults, but they are also more expensive to repair.
Warning Light Behavior
The ABS warning light is the most obvious indicator. In many vehicles, a pump or module fault will also turn on the traction control and stability control lights at the same time. This happens because the same hydraulic unit and control module often support those systems. If all three lights illuminate together, especially immediately at startup, the fault is more likely centered on the hydraulic unit or module than on a single wheel speed sensor.
Pedal Feedback Issues
A healthy ABS pump should create a distinct pulsation in the brake pedal during an ABS event on a slippery surface. If the pedal remains firm and the wheels lock up instead, the pump may not be pressurizing the hydraulic circuit. Some drivers also report a hard or spongy pedal after the system attempts an ABS cycle, which can indicate a stuck modulator valve or internal leak in the hydraulic unit.
Unusual Pump or Motor Noises
The ABS pump motor normally runs briefly during the ignition self-test. It should not continue running after the engine starts, and it should not run after the key is turned off. A pump that hums, buzzes, grinds, or runs continuously is a strong indicator of internal relay failure, worn motor brushes, or a stuck pressure sensor. Continuous pump operation can also drain the battery.
Braking Performance Under Hard Stop
If the vehicle’s wheels lock up during hard braking on wet or loose surfaces, the ABS function is not working. That can be caused by a failed pump motor, seized valves, or loss of hydraulic pressure in the modulator. In commercial vehicles, this symptom has serious safety implications and should be addressed before the vehicle returns to service.
Common DTCs associated with ABS pump or hydraulic unit faults include C0110, C0265, C0267, C0268, C0276 through C0279, and U0121. These codes generally point to pump motor circuit problems, low supply voltage, or lost communication with the module.
For a full list of pump-related warning signs, see our article on common ABS pump failure symptoms.
Symptoms of a Bad Wheel Speed Sensor
Wheel speed sensor faults are the leading cause of ABS warning lights. The sensor itself is a small component, but its signal is critical to the entire system.
Intermittent or Constant ABS Light
A bad wheel speed sensor often turns on the ABS light. The light may come and go, especially if the fault is caused by a loose connector, corroded wiring, or an intermittent open circuit. In some cases, the light stays on continuously from the moment the ignition is switched on.
Traction and Stability Control Warnings
Because traction control and electronic stability control use wheel speed data to decide when to intervene, a bad sensor can also disable those systems. The driver may see the TC or ESC light along with the ABS light. This does not necessarily mean the hydraulic unit is faulty; it often means the control module no longer trusts the speed data.
Erratic Speedometer Reading
Some vehicles use the wheel speed sensor signal to drive the speedometer. When a sensor fails, the speedometer may drop to zero, fluctuate, or read incorrectly at certain speeds. This symptom is more common with passive variable-reluctance sensors than with active Hall-effect sensors.
False ABS Activation or Uneven Braking
One of the most distinctive symptoms of a failing wheel speed sensor is false ABS activation. The driver feels the brake pedal pulsing or the system cycling during light braking on dry pavement. The module interprets a weak or erratic sensor signal as a wheel that is locking up, so it releases brake pressure unnecessarily. This can lengthen stopping distance and create an unsettling pedal feel.
Common wheel speed sensor DTCs include C0035, C0040, C0044, C0221 through C0227, C1152, and C1221 through C1228. These codes are usually wheel-specific and identify which circuit needs attention.
You can read more about sensor-specific diagnosis in our guide to ABS wheel speed sensor faults.
ABS Pump vs. Wheel Speed Sensor: Side-by-Side Comparison
Use this comparison to narrow down the likely source of the fault before connecting a scan tool or lifting the vehicle.
| Symptom | Likely Bad Wheel Speed Sensor | Likely Bad ABS Pump / Module |
|---|---|---|
| ABS warning light | Often first or only sign | Common, but usually with other symptoms |
| Traction / stability control light | Often appears with ABS light | All three lights frequently appear together |
| Brake pedal pulsation at low speed | Very common, false ABS activation | Possible, but more often during actual ABS events |
| Hard or spongy brake pedal | Usually not present | Common indicator of hydraulic fault |
| Pump motor noise or grinding | Usually absent | Strong indicator of pump failure |
| Pump runs after key-off | No | Classic pump relay or pressure sensor fault |
| Wheels lock up under hard braking | Possible if ABS shuts down | More likely when pump cannot modulate pressure |
| Vehicle pulls to one side braking | Usually not | Possible stuck solenoid valve |
| Speedometer erratic or dead | Possible if sensor feeds speed signal | Rare, but reported in some vehicles |
| ABS activates on dry pavement | Very common | Less common |
| Warning lights only at certain speeds | Common with failing sensor | Less likely |
| Typical DTCs | C0035, C0040, C0044, C1152, C1221–C1228 | C0265, C0267–C0268, C0276–C0279, U0121 |
The single most useful rule is this: if the symptoms are wheel-specific, intermittent, or accompanied by false ABS activation, test the wheel speed sensor circuit first. If the symptoms are hydraulic, audible, or module-wide, focus on the ABS pump and control module.
How to Diagnose the Problem
A structured diagnostic sequence prevents expensive mistakes. Start with the cheapest and easiest checks, then move toward component-level testing.
Step 1: Read ABS Fault Codes
Connect an ABS-capable scan tool and record all current, pending, and history codes. Note the freeze-frame data if available. History codes that return after clearing are highly predictive of a real failure. Do not clear codes until you have recorded them and identified the affected circuit.
If the only codes are wheel-specific, such as C0035 or C0040, inspect the sensor and wiring before considering the pump. If the codes point to the pump motor circuit, proceed to power-supply checks before replacing the hydraulic unit.
Step 2: Inspect Wheel Speed Sensors, Wiring, and Tone Rings
Remove each sensor and inspect the tip for metal debris, brake dust, or corrosion. Check the connector for green corrosion, bent pins, or pushed-out terminals. Follow the wiring harness and look for chafing, especially where it passes near suspension components or the wheel arch.
Inspect the tone ring or reluctor ring for cracks, missing teeth, excessive rust, or debris. A damaged tone ring produces the same symptoms as a bad sensor. Spin the hub by hand and watch for runout or contact between the ring and the sensor.
Step 3: Test Sensor Output
For passive variable-reluctance sensors, measure resistance across the sensor terminals and compare the reading to manufacturer specification, typically 900 to 2,500 ohms. Use an oscilloscope or AC voltmeter to watch the signal while spinning the wheel. A healthy sensor produces a clean sine wave that increases in amplitude and frequency with wheel speed.
For active Hall-effect sensors, check for a clean square-wave digital output. These sensors require power and ground, so verify supply voltage at the connector before condemning the sensor.
Step 4: Evaluate ABS Pump Motor Operation
If sensor testing is normal and the codes point to the pump, verify power and ground at the ABS module. Many pump motor codes are caused by a blown fuse, bad relay, or corroded terminal rather than a failed pump. Check the high-amperage ABS pump fuse and measure voltage at the module connector.
Use a bidirectional scan tool to command the pump motor to run. A healthy passenger-car pump typically draws 15 to 25 amps. Commercial vehicle pumps may draw 30 to 60 amps. A current draw significantly above specification indicates worn brushes or bearing drag. Zero current draw suggests an open circuit or seized motor.
Step 5: Confirm Component Failure Before Replacement
Never replace an ABS hydraulic unit based only on a warning light. Confirm that:
- Power, ground, and CAN communication to the module are correct.
- All wheel speed sensors and tone rings are functioning.
- The pump motor current draw is out of specification, or the motor does not run.
- Solenoid valves do not respond when individually commanded.
- Codes return immediately after sensor and power repairs.
When the hydraulic unit is genuinely at fault, sourcing a reliable replacement matters. Our guide to ABS pump replacement explains the selection, coding, and installation steps technicians need to follow.
For detailed pump testing procedures, see our article on how to test an ABS hydraulic unit.
Replacement Cost and Safety Considerations
Cost should never drive the diagnosis, but it is a practical consideration once the faulty component is confirmed.
Wheel Speed Sensor Replacement Cost
A wheel speed sensor is usually the least expensive ABS fault to repair. Parts range from $50 to $200 depending on the vehicle. Professional replacement, including diagnostics and labor, typically costs $150 to $400 per sensor. Some sensors are easy to access, while others require hub or bearing removal.
ABS Pump and Hydraulic Unit Replacement Cost
An ABS pump or hydraulic control unit replacement is substantially more expensive. Parts can range from $300 to $1,000 or more, and replacement often requires bleeding, coding, or initialization with a scan tool. Professional repair frequently totals $700 to $1,500, with dealer pricing sometimes higher.
Repair vs. Replace
Some ABS modules and hydraulic units can be repaired or remanufactured. Repair services may address common faults such as failed relays, solder joints, or motor brushes at a lower cost than replacement. However, internal valve body damage or corrosion usually requires a complete unit. The right choice depends on the specific failure mode, vehicle value, and downtime tolerance.
Safety Notes
A vehicle with an active ABS fault will usually still have normal base braking. The driver can still stop the vehicle, but the anti-lock function is disabled. Emergency braking on wet, icy, or loose surfaces becomes more dangerous because the wheels can lock up. Traction control and stability control may also be disabled.
Do not ignore an ABS warning light, especially if the brake warning light is also on. If both lights are illuminated, stop driving and inspect the brake system immediately. A red brake warning light indicates a potential hydraulic brake fault, not just an ABS electronics issue.

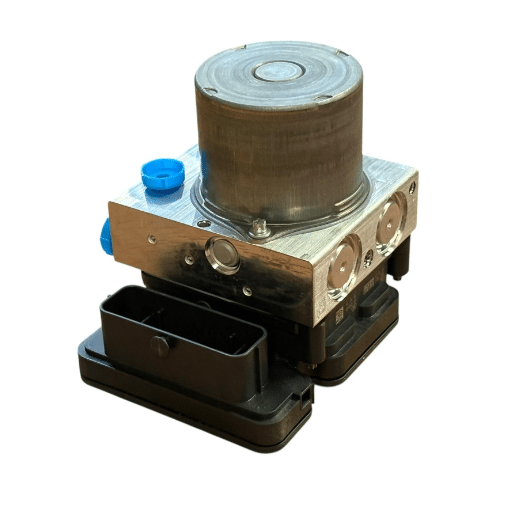

When the ABS Hydraulic Unit Is the Cause
Even though sensor faults are more common, there are clear situations where the ABS hydraulic unit itself is the problem.
The hydraulic unit is likely at fault when the pump motor current draw is out of specification, the motor does not run when commanded, or solenoid valves fail to click during individual activation tests. It is also the likely cause when DTCs such as C0265 or U0121 return immediately after power, ground, and sensor circuits have been verified.
Internal module failure can also set multiple unrelated codes at the same time, such as wheel speed sensor faults, pump motor faults, and communication faults. That pattern usually points to the control module electronics rather than individual sensors.
When replacement is necessary, technicians should source a unit that matches the vehicle’s exact specification. The replacement may need coding or parameterization to match the vehicle’s braking system, steering angle sensor, and other modules. Using a quality replacement unit reduces the risk of repeat failure and ensures consistent braking performance.
At LOYAL INDUSTRIAL PTE. LTD., we supply ABS hydraulic pumps and related components built to industrial-grade quality standards. Our products are tested for pressure integrity, motor performance, and long-term durability to support reliable operation in demanding vehicle applications. If you need help selecting the right ABS hydraulic pump or replacement component, contact our technical team for a specification review.
Conclusion
Knowing how to tell if the ABS pump or wheel speed sensor is bad prevents wasted labor, unnecessary parts spending, and unsafe vehicles returning to the road. The two failures share warning lights, but their symptoms and diagnostic paths are different.
Wheel speed sensor faults are more common and usually produce wheel-specific codes, false ABS activation, or intermittent warning lights. ABS pump and hydraulic unit faults are less common but more serious, often producing pump noises, pedal feel changes, or module-wide codes.
Start every diagnosis by reading the codes, then inspect and test the wheel speed sensors before moving to the hydraulic unit. Confirm power, ground, and sensor integrity before replacing any ABS pump or module. When replacement is required, choose a quality unit and follow the correct coding or initialization procedure.
