Marcus cleared the C0035 code, installed a new ABS wheel speed sensor, and handed the keys back to the customer. Fifty miles later, the ABS warning light returned. The sensor was fine. The real problem was a cracked tone ring throwing erratic magnetic pulses that the control module misread as wheel slip. Marcus had replaced a $40 part twice and still missed the root cause.
If you are a technician, fleet manager, or maintenance engineer, this scenario is familiar. ABS wheel speed sensor diagnostics are often treated as simple part swaps. In reality, sensor faults, tone ring degradation, wiring issues, and air gap problems all produce identical ABS sensor symptoms. Replacing the sensor without systematic testing wastes parts, labor, and customer trust.
In this guide, you will learn how ABS wheel speed sensors function, the difference between passive and active wheel speed sensor technologies, how to test each type with common shop tools, how to inspect tone rings for hidden failure modes, and how sensor faults cascade into unnecessary ABS hydraulic unit activation. By the end, you will have a diagnostic workflow that finds the real problem the first time.
Need replacement ABS sensors or hydraulic components tested to specification? Contact our engineering team for a technical consultation on sensor compatibility and bulk procurement.

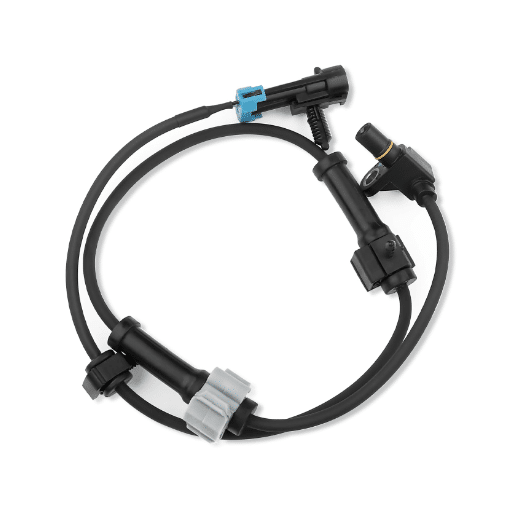

What an ABS Wheel Speed Sensor Does and Why It Matters
An ABS wheel speed sensor monitors the rotational speed of each wheel and transmits that data to the ABS control module. The control module compares speeds across all four wheels. When it detects one wheel decelerating faster than the others during braking, it commands the ABS hydraulic unit to modulate brake pressure and prevent lockup.
For a complete technical breakdown of how the hydraulic unit responds to these signals, see our complete ABS hydraulic unit engineering guide.
How the Sensor Provides Input to the ABS Control Module
The sensor generates an electrical signal proportional to wheel speed. In passive inductive designs, a magnetic coil produces an alternating current voltage whose frequency increases with wheel speed. In active Hall-effect designs, a semiconductor element detects magnetic field changes and outputs a digital square-wave signal.
The ABS control module counts pulses per unit of time to calculate wheel speed. It updates this calculation continuously, typically sampling each sensor dozens of times per second. Any interruption, weakening, or distortion of the signal can trigger a fault code and disable the ABS function.
The Relationship Between Sensor Data and Hydraulic Unit Response
The ABS hydraulic unit does not operate independently. It waits for the control module to process sensor data and issue commands. When a sensor reports anomalous speed, the control module may command solenoid valve cycling and pump motor activation even when the vehicle is driving straight on dry pavement.
This means a faulty ABS wheel speed sensor can cause the hydraulic unit to cycle unnecessarily. Over time, that excess wear degrades pump motor brushes, solenoid valve seals, and accumulator diaphragms. Diagnosing sensor faults correctly protects the entire brake system.
Passive vs Active Wheel Speed Sensor: Inductive vs Hall-Effect Comparison
Not all ABS wheel speed sensors work the same way. Understanding the two dominant technologies is essential for selecting the right test procedure and replacement part.
Passive Inductive Sensors, Magnetic Reluctance Principle
Passive inductive sensors contain a coil wound around a permanent magnet. As the tone ring rotates, its teeth pass the sensor tip. Each tooth concentrates the magnetic field and induces a voltage pulse in the coil. The gaps between teeth allow the field to weaken, creating the alternating pattern.
These sensors generate their own voltage. They require no external power supply. Output amplitude increases with wheel speed, which creates a diagnostic challenge: at very low speeds, the signal may be too weak for the control module to detect reliably.
Hall Effect Wheel Speed Sensor: Semiconductor-Based Detection
Active Hall-effect sensors use a Hall element mounted near a permanent magnet. When a tone ring tooth passes the sensor, it alters the magnetic flux density. The Hall element detects this change and switches an internal transistor, producing a clean digital square-wave output.
These sensors require a 12-volt power supply from the ABS control module. Their output amplitude remains constant regardless of wheel speed. This makes them more accurate at low speeds and more immune to electrical noise. Most vehicles produced after 2005 use Hall effect wheel speed sensors.
Why Most Modern Vehicles Have Switched to Hall-Effect Design
Hall-effect sensors offer three decisive advantages. First, their digital output is easier for the control module to process, reducing software complexity. Second, they function reliably at near-zero speeds, enabling advanced features like hill-hold assist and automated parking. Third, their constant-amplitude signal tolerates longer wiring runs and noisier electrical environments.
| Feature | Passive Inductive | Active Hall-Effect |
|---|---|---|
| Power supply | Self-generating | 12V DC from ECU |
| Output type | Analog AC voltage | Digital square wave |
| Low-speed accuracy | Degrades below ~3 mph | Accurate to near-zero |
| Air gap tolerance | Narrow (0.3–0.8 mm) | Wider (0.5–1.5 mm) |
| Diagnostic method | Resistance + AC voltage | Supply voltage + signal |
| Typical application | Pre-2005 vehicles | Post-2005 vehicles |
Common ABS Sensor Symptoms and ABS Wheel Speed Sensor Failure Modes
Recognizing ABS sensor symptoms early prevents unnecessary hydraulic unit wear and safety system disablement. Sensor faults produce a predictable set of failure modes.
ABS Warning Light and Traction Control Illumination
The most visible symptom is an illuminated ABS warning light on the instrument cluster. On many vehicles, the traction control system (TCS) and electronic stability control (ESC) warning lights illuminate simultaneously because these systems share the same wheel speed data. For more on how ESC uses sensor data, see our ESC and ABS integration guide. The check engine light may not activate unless the fault also affects the powertrain control module.
Erratic or False ABS Activation During Normal Braking
A failing ABS wheel speed sensor can report intermittent dropouts or speed spikes. The control module interprets these as wheel lockup events and commands the hydraulic unit to pulsate brake pressure. The driver feels pedal vibration and hears the solenoid clicking during routine stops on dry pavement. This is one of the most dangerous symptoms because it lengthens the stopping distance when the system activates unnecessarily.
Pump Motor Cycling When Vehicle Is Stationary
If a sensor produces random noise or voltage fluctuations while the vehicle is parked with the ignition on, the control module may detect phantom wheel movement. The ABS pump motor cycles briefly at idle. Technicians sometimes misdiagnose this as a faulty hydraulic unit when the root cause is a damaged sensor or corroded connector.
For a full diagnostic checklist on hydraulic unit behavior, see our ABS pump failure symptoms guide.
Speedometer Inaccuracy or Cruise Control Malfunction
On vehicles where the speedometer derives data from a wheel speed sensor rather than the transmission output shaft, sensor faults cause erratic or dead speedometer readings. Cruise control systems also rely on accurate speed data and may refuse to engage or drop out unexpectedly.
How Sensor Faults Trigger ABS Hydraulic Unit Errors
A failing ABS wheel speed sensor does more than turn on a warning light. Furthermore, it creates downstream stress on the hydraulic hardware that shortens component life.
False Wheel Lock Signals and Unnecessary Solenoid Cycling
When a sensor dropout mimics a locking wheel, the control module opens and closes solenoid valves to modulate pressure. Each cycle wears the valve seat and solenoid plunger. A sensor that drops out ten times per minute during normal driving can accumulate thousands of extra cycles per week. The valves are designed for emergency-event duty cycles, not continuous false activation.
Excessive Pump Motor Wear From Erratic Activation
The hydraulic pump motor within the ABS unit activates to restore pressure after solenoid release events. False sensor signals trigger the pump repeatedly when no actual braking event is occurring. Pump motors are typically rated for intermittent duty. Continuous cycling overheats the motor, degrades brush contact, and accelerates bearing wear.
ESC and TCS Disablement Due to Signal Loss
When the control module detects an implausible or missing signal from one sensor, it often disables ABS, traction control, and stability control as a failsafe. The vehicle reverts to conventional braking. For commercial fleets operating in adverse weather, this disablement creates real safety exposure until the fault is corrected.
In 2023, a regional delivery fleet in Ohio experienced repeated ABS hydraulic unit failures across twelve vans. Their maintenance contractor replaced three HCUs at over $800 each before an independent technician identified the actual problem: a batch of aftermarket ABS wheel speed sensors with incorrect resistance values. The sensors produced erratic signals that caused constant pump cycling. The unnecessary hydraulic unit replacements cost the fleet over $8,000. Once the sensors were swapped for OEM-specification units, the failures stopped entirely.
Step-by-Step Wheel Speed Sensor Testing and ABS Wheel Speed Sensor Diagnostics
Systematic testing separates sensor failures from tone ring, wiring, and module faults. Therefore, use the procedure that matches your sensor type.
Visual Inspection, Connector, Harness, and Sensor Tip Condition
Begin with a physical inspection. Look for corroded connector pins, chafed wiring near suspension components, and physical damage to the sensor tip. Road salt and debris accumulate on sensor tips and alter magnetic coupling. Clean the tip with brake cleaner and a lint-free cloth before electrical testing.
Wheel Speed Sensor Resistance Testing for Passive Inductive Sensors
Disconnect the sensor and measure resistance across its two terminals with a digital multimeter. Typical passive ABS wheel speed sensor resistance ranges from 800 to 2,000 ohms, depending on the manufacturer. A reading near zero indicates a shorted coil. An infinite reading indicates an open circuit. Compare your measurement to the vehicle specification.
With the sensor connected and the wheel rotated slowly by hand, switch the multimeter to AC voltage mode. You should see a small alternating voltage that increases with rotation speed. No voltage output during rotation confirms a failed sensor or excessive air gap.
Supply Voltage and Signal Output Testing for Hall-Effect Sensors
Hall-effect sensors require three circuit checks. First, with the ignition on and the sensor disconnected, measure the supply voltage at the harness connector. You should see approximately battery voltage, typically 11.5 to 12.5 volts. Low or missing supply voltage indicates a wiring or module fault, not a sensor problem.
Second, reconnect the sensor and back-probe the signal wire. With the wheel stationary, the signal should rest at either near-zero or supply voltage, depending on whether a tone ring tooth is aligned with the sensor. As the wheel rotates, the voltage should toggle cleanly between high and low states.
Third, measure signal frequency with the wheel rotating at a known speed. A missing or erratic toggle confirms sensor failure or tone ring damage.
Oscilloscope Waveform Analysis (AC Voltage and Frequency)
An oscilloscope provides the most definitive sensor test. For passive sensors, you should see a clean sinusoidal waveform whose amplitude and frequency increase with wheel speed. For Hall-effect sensors, expect a sharp square wave with clean rising and falling edges.
Waveform abnormalities reveal specific faults. A sinusoid with missing peaks indicates a cracked tone ring. A square wave with rounded edges or noise suggests supply voltage instability or sensor degradation. Intermittent dropouts that do not correlate with wheel position point to internal sensor fractures or connector issues.
Scan Tool Live Data Review, Wheel Speed Comparison
A professional scan tool with ABS live data displays real-time wheel speeds from all four sensors. Drive the vehicle at a steady 20 to 30 mph on a straight road. All four readings should match within one to two mph. A sensor that reads zero, fluctuates wildly, or lags the others indicates the fault source.
Some scan tools also display sensor voltage output directly. This is the fastest way to identify Hall-effect sensor failures without removing wheels or crawling underneath the vehicle.
For additional guidance on full hydraulic system diagnostics, see our guide on how to test an ABS hydraulic unit.
ABS Tone Ring Inspection and Reluctor Ring Inspection
The tone ring is the passive partner in the sensor system. A perfect sensor cannot function if the tone ring is damaged.
Locating and Accessing the Tone Ring
Tone rings mount on the wheel hub, driveshaft, or inside the wheel bearing assembly, depending on the vehicle design. Some are external and visible once the brake rotor is removed. Others are internal to sealed wheel bearings and require bearing replacement to access. Consult the service manual for your specific application.
Visual Inspection for Cracks, Corrosion, and Missing Teeth
Remove the sensor to gain visual access. Inspect every tooth for cracks, chips, or missing segments. Even a single missing tooth creates a dropout in the signal that the control module reads as wheel deceleration. Corrosion on ferrous tone rings alters magnetic permeability and weakens signal amplitude.
Runout and Alignment Issues Affecting Sensor Air Gap
Tone rings must run concentrically with the sensor tip. Excessive radial runout, often caused by bent hubs or improper bearing installation, varies the air gap cyclically. The sensor may read correctly at one wheel position and fail at another. This produces the classic intermittent fault that disappears during bench testing.
Cleaning Contaminated Tone Rings Without Damaging Tooth Geometry
Accumulated brake dust, rust, and road debris can fill the gaps between tone ring teeth. Clean the ring with a soft brass brush and solvent. Never use abrasive grinding or sandpaper; these alter tooth geometry and change the magnetic signature. After cleaning, verify that all gaps are free of packed debris.
ABS Sensor Air Gap Specifications, Adjustment, and Wheel Speed Sensor Air Gap
Air gap is the distance between the sensor tip and the tone ring teeth. However, it is one of the most commonly overlooked diagnostic variables.
Typical Air Gap Ranges by Vehicle Class
Passenger vehicles typically specify an air gap of 0.3 to 1.0 mm for passive sensors and 0.5 to 1.5 mm for Hall-effect designs. Light trucks and SUVs allow slightly wider gaps. Commercial vehicles with larger tone rings may tolerate gaps up to 2.5 mm. Always verify the specification for the exact vehicle platform.
Consequences of Excessive or Insufficient Air Gap
An excessive air gap weakens the magnetic field and reduces signal amplitude. At high speeds, the signal may still be adequate, but at low speeds, the control module loses resolution. An insufficient air gap risks physical contact between the sensor and tone ring, which destroys both components.
How Wheel Bearing Wear Affects Effective Air Gap
As wheel bearings wear, the hub shifts axially and radially. This movement changes the relative position of the tone ring to the sensor. A sensor that tested within specification at installation may gradually fall out of tolerance as the bearing degrades. When you find an air gap problem, always assess bearing condition before simply resetting the sensor.
Sensor Mounting Bracket Inspection and Correction
Bent, corroded, or loose mounting brackets allow the sensor to shift position. Inspect the bracket bolt torque and bracket flatness. Replace brackets that have been distorted by collision damage or rust. Some aftermarket sensors include adjustable shims that allow precise gap setting during installation.
ABS Wheel Speed Sensor Replacement Procedure and ABS Sensor Replacement
Correct ABS sensor replacement technique ensures the new sensor functions reliably and the air gap stays within specification.
Pre-Replacement Diagnostic Confirmation
Never replace a sensor based solely on a stored DTC. Confirm the fault with live data, resistance testing, or scope capture. Verify that the tone ring and wiring harness are serviceable before installing the new part. Document pre-replacement readings for warranty support.
Safe Removal Without Damaging the Sensor Tip
Sensors often seize in their mounting bore due to corrosion. Apply penetrating oil and allow it to soak. Remove the retaining bolt and rock the sensor gently while pulling straight out. Prying sideways with a screwdriver risks snapping the sensor body or scoring the mounting bore.
Proper Installation Torque and Orientation
Clean the mounting bore thoroughly before inserting the new sensor. Apply a thin film of silicone grease to the sensor O-ring to prevent binding. Insert the sensor fully until it bottoms against the tone ring or mounting shoulder, then torque the retaining bolt to specification. Overtightening cracks the sensor housing. Undertightening allows movement.
Post-Installation Testing and Clearance Verification
After installation, clear all stored DTCs and perform a road test. Monitor live data to confirm all four wheels read correctly at various speeds. For adjustable sensors, verify air gap with a feeler gauge or non-ferrous shim stock.
Frequently Asked Questions
What does an ABS wheel speed sensor do?
An ABS wheel speed sensor monitors the rotational speed of each wheel and sends that data to the ABS control module. The module uses this information to detect impending wheel lockup and command the hydraulic unit to modulate brake pressure.
How do I know if my ABS wheel speed sensor is bad?
Common symptoms include an illuminated ABS warning light, traction control disablement, false ABS activation during normal braking, and erratic speedometer behavior. Confirm the diagnosis with multimeter resistance testing, oscilloscope waveform analysis, or scan tool live data before replacing the sensor.
What is the difference between a passive and an active ABS wheel speed sensor?
Passive sensors generate their own AC voltage through magnetic induction and require no external power. Active Hall-effect sensors receive 12-volt power from the control module and output a digital square-wave signal. Hall-effect sensors are more accurate at low speeds and dominate modern vehicle applications.
Can a bad ABS wheel speed sensor damage the hydraulic unit?
Yes. A faulty sensor can send false wheel-lock signals that cause unnecessary solenoid cycling and pump motor activation. This excess wear degrades seals, valves, and motor brushes over time. Diagnosing sensor faults early protects the entire ABS hydraulic system.
Conclusion
ABS wheel speed sensor diagnostics demand more than reading codes and swapping parts. A complete diagnostic workflow includes visual inspection, electrical testing, waveform analysis, tone ring evaluation, and air gap verification. Skipping any of these steps risks repeat failures, unnecessary hydraulic unit wear, and customer dissatisfaction.
Key takeaways from this guide:
- Always distinguish passive inductive from active Hall-effect sensors before testing
- Verify tone ring condition and air gap; a good sensor cannot overcome a damaged ring
- Use the oscilloscope or scan tool live data to confirm faults before replacement
- Recognize that sensor faults can trigger unnecessary ABS hydraulic unit cycling and premature wear
- Fleet operators benefit from sensor standardization and bulk procurement agreements
Accurate ABS wheel speed sensor diagnostics protect the entire brake system. Ultimately, the time invested in proper testing saves far more than the cost of misdiagnosed components.
