Hydraulic Vane Pump Maintenance Intervals: How Often to Service
Inspect a hydraulic vane pump at every shift start, change the oil at 500 hours with 2,000 hours as a ceiling, and inspect the cartridge at 2,000 hours or whenever flow drops more than 10%. The exact numbers depend on duty: dust, heat, continuous running, and wet environments all shorten the clock.
The table below is the baseline for a clean industrial installation running ISO VG 46 on 10 µm absolute return filtration. Treat it as a starting point and refine it with oil analysis.
| Interval | What to do | Why it matters |
|---|---|---|
| Every shift (5–10 h) | Check oil level and colour; scan for leaks at the shaft seal and case drain; listen for whine or knocking; check reservoir temperature | Level and noise are the earliest signals of aeration, starvation or a failing seal |
| Weekly (≈50 h) | Check return filter differential pressure; inspect the suction line and fittings; confirm case drain flow | A loading filter is the leading early warning of a contamination problem |
| Monthly (≈160 h) | Inspect the shaft seal for weeping; check coupling alignment and mounting bolts; sample oil for appearance and water | Steady weeping beyond a few drops per hour means a seal change is coming |
| Semi-annual (500–1,000 h) | Change hydraulic oil and the return filter element; clean the breather and any suction screen; check case drain pressure | Additive depletion and oxidation start to matter at this horizon |
| Annual (≈2,000 h) | Replace the shaft seal and all O-rings and gaskets; measure vane thickness and rotor groove clearance; verify flow against the rated curve; inspect the cam ring | This is the planned slot where a cartridge decision is made without downtime pressure |
Severe-duty adjustment: halve every interval above in dusty, hot, wet, or high-duty-cycle service, and shorten the oil change to 300 to 400 hours. A foundry or mining machine running three shifts is a different maintenance world from an intermittent mobile circuit.
Keep two intervals separate in your head. The inspection interval is how often you look. The replacement interval is how often you change a part. Most unplanned vane pump failures come from extending a replacement interval because nothing had visibly failed yet.
Hydraulic Oil & Viscosity for Vane Pumps
Vane pump oil viscosity sets the lubricating film that the vanes, rotor, and cam ring all depend on. Get it wrong in either direction, and the pump wears at start-up or erodes at temperature.
ISO VG grade. Most industrial vane pumps run ISO VG 46. VG 32 suits cold ambients or high-speed fixed-displacement units; VG 68 suits hot environments or slow, heavily loaded drives. Match the grade to the fluid temperature the circuit actually reaches, not the ambient temperature of the plant.
The viscosity window matters more than the grade label:
| Condition | Value | What happens outside it |
|---|---|---|
| Operating viscosity | 13–54 cSt | Below about 10 cSt, the lubricating film thins; port-plate erosion and scoring begin |
| Optimum for life | ≈30 cSt | Closest to the design point for most vane pumps |
| Maximum at start-up | ≈2,000 cSt | Above this, the pump pulls a local vacuum at the inlet and vanes stick in their slots |
| Fluid temperature | 15–60 °C continuous, ≈65 °C max | Heat oxidises oil and drives vane frosting and galling |
| Water content | 0.10% max (mineral oil), 0.05% (other fluids) | Free water destroys the lubricating film and rusts the plates |
The cold-start rule follows directly. A vane pump turning over on over-viscous fluid can see 2,000 cSt before the oil warms, which is how mobile circuits starve their inlet on the first cold morning of winter. Warm the fluid before start-up, or drop a grade for the cold season.
Anders ran a forestry machine on VG 68 year-round because the summer duty ran hot. In January the pump screamed for the first two minutes of every shift, and the vanes began sticking in their slots. Switching to VG 32 for the cold months and idling the machine to warm the oil ended both symptoms, and the cartridge went on to finish a normal service life.
Vane pump oil change interval. Flush and refill after the first 100 hours on a new or rebuilt pump to clear break-in debris. Then change at 500 hours routinely, with 2,000 hours as an absolute ceiling on a well-filtered system. Severe duty drops to 300 to 400 hours. Change ahead of schedule if the oil turns milky, dark, foamy, or smells burnt.
Keep a decoder for fluid condition:
| Appearance / smell | Likely cause | Action |
|---|---|---|
| Milky or cloudy | Free water or emulsion | Drain, flush, find the water source, refill |
| Dark with a burnt smell | Oxidation from overheating | Drain, clean the reservoir, check cooling and temperature control |
| Foamy, with air entrainment | Aeration from the suction side or return line | Check level, return-line placement, and baffles before changing oil |
| Cloudy with visible particles | Contamination | Change oil and filter, then investigate filtration and ingress |
Never mix fluid types or brands to top up. Additives differ, and a mixed charge can varnish and stick the vanes. Reservoir volume and cooling capacity set the ceiling on all of this; if the circuit runs near 65 °C with a correctly sized cooler, the reservoir may be undersized. Our hydraulic reservoir sizing guide covers the sizing rule.
Fluid Cleanliness & Filtration: The Number One Life Factor
Contamination is the largest single cause of vane pump failure, so filtration is the highest-return part of any maintenance program.
Vane pumps sit near the piston end of the cleanliness scale, finer than gear pumps, because the vane tips and the cam ring contact surface suffer first from particles in the clearance range. This abrasive mechanism, sometimes called the “sandpaper effect”, is why contamination that a gear pump tolerates for years destroys a vane cartridge. YHDE describes the mechanism as three-body abrasion between the vane tip and the cam ring.
| System pressure | ISO 4406 target | Return filtration |
|---|---|---|
| Up to 140 bar | 18/15 or better | 25 µm absolute acceptable |
| 140–210 bar | 17/14 or better | 10–20 µm absolute |
| Critical / high duty | Work toward 18/16/13 | 10 µm absolute |
Those codes are ISO 4406 cleanliness classes, read as three numbers: particles above 4 µm, above 6 µm, and above 14 µm per millilitre. Lower is cleaner, and that figure, the vane pump ISO cleanliness code, is the target your filtration has to hold every hour the pump runs.
The precision point most maintenance pages miss: absolute is not nominal. A filter sold as “25 micron” is usually rated nominal, meaning it captures a percentage of particles at that size but passes a meaningful fraction of larger ones. A 25 µm absolute filter holds essentially all particles at 25 µm and above. A 10 µm absolute return filter is the recommendation for precision vane pumps from Vickers, Denison, and Yuken; 25 µm absolute is the acceptable minimum on less demanding systems. If your filter is quoted only as nominal, you do not know what your pump is actually being protected from. Beta ratio (βx) is the rigorous way to specify it: β10 = 200 means 200 particles at 10 µm and above are captured for every one that passes.
Do not fit an inlet strainer. This is a vane-specific rule, and it is not negotiable. A strainer on the suction line creates a vacuum at the pump inlet as it loads. Vane pumps need positive inlet pressure to keep the vanes seated against the cam ring on the suction side. Under inlet vacuum, the vanes lose ring contact, then get hammered back onto the ring on the discharge side, and the failure that follows is rapid and catastrophic rather than gradual. Parker documents this explicitly. If a strainer is unavoidable, keep it at 250 µm or coarser and monitor its pressure drop. Filter on the return line and with a separate bypass loop instead.
Monitor filter differential pressure and change the element on the gauge, not the calendar. A filter that has gone into bypass is not filtering at all, which is exactly the condition that killed Daniel’s two pumps.
Aeration, Cavitation & Reservoir Hygiene
Aeration is air entrained in the fluid. Cavitation is the fluid itself vaporising at a low-pressure point. Both put gas where oil should be, both collapse the lubricating film, and both wear the pump from the inside.
Aeration is the more common maintenance problem because its causes usually sit in the reservoir and suction plumbing rather than in the pump. Air bubbles compress, so the pump cannot build pressure predictably, and the uneven load on the vanes accelerates cam ring wear. Severe aeration breaks vanes outright.
Mei inherited a power unit whose return line discharged directly in front of the suction connection. The unit ran hot and loud, and the cam ring showed wear-checking every six months. Re-routing the return below the fluid level, away from the suction, and fitting a proper baffle removed the aeration. The replacement cartridge ran its full life with no recurrence.
HOF Hydraulic’s vane pump troubleshooting catalog traces most aeration cases to the same short list. Use it as a reservoir and suction hygiene checklist:
- Baffle velocity below 0.5 m/s through the baffle, so air has time to separate before the fluid reaches the suction.
- Return line discharging below fluid level and away from the suction connection, with an anti-siphon hole in the return pipe.
- Inlet velocity between 0.5 and 1.9 m/s. The upper bound avoids pressure drop; the lower bound matters too, because flow that is too slow does not clear entrained air.
- Inlet opening cut on an angle, well submerged, positioned to avoid a vortex.
- A clear breather and air filter. A clogged breather pulls the tank into vacuum and aerates the fluid.
- Correct oil level and an adequately sized reservoir.
Reservoir material affects how quickly heat leaves the oil; aluminium versus steel vane pump housings covers that trade-off.
Installation, Alignment & Commissioning
A correctly maintained pump still fails early if it was installed badly, so commissioning belongs in a maintenance program.
- Coupling alignment within 0.05 mm. Misalignment above this shows up as vibration at the pump and drives premature bearing and seal failure. Use a dial indicator, not a straightedge.
- Case drain pressure not above 2 bar. Excessive case drain pressure blows the shaft seal and distorts the cartridge. Run a dedicated drain line to the reservoir, above the oil level and unrestricted.
- Flush before commissioning. If contamination is suspected, flush the reservoir and circuit with an external pump and filtered fluid before filling with the production charge.
- Fill and bleed correctly. If the pump sits above fluid level, fill through the outlet port before start-up. If it sits below, loosen the outlet fitting and let fluid displace the air.
- Warm the fluid before start-up, so all parts are within about 25 °C of each other, and raise flow gradually to avoid water hammer in the circuit.
- Verify after start. Confirm free rotation, hold the temperature at or below 60 °C, and listen for the first sign of aeration or starvation.
After any cartridge work, re-locate the dowel pins and re-check alignment. A cartridge change that disturbs the mounting without a re-check is a common source of a new pump that failed early.
Measuring Vane Wear: Limits & Inspection
Vane thickness is the single most useful wear indicator on a vane pump. Measure it during planned downtime, and you can schedule a cartridge change instead of reacting to a breakdown.
The table below holds representative values. Always confirm the limits against the manual for your specific pump, because clearances vary by model and brand.
| Item | New / OK | Investigate | Replace |
|---|---|---|---|
| Shaft-to-bushing oil clearance | 0.03–0.05 mm | Approaching 0.07 mm | Above 0.07 mm, replace shaft and front housing |
| Rotor groove-to-vane clearance | At or near spec | Widening toward limit | Above 0.033–0.04 mm (model-specific), replace vane and rotor |
| Vane plate minimum thickness | At or near spec | Near minimum | Below about 1.40 mm thickness, replace the vane set |
| Rotor vane slots | Free, unworn | Slight witness marks | Worn more than 0.0002 in., rotor cannot be reused |
| Body or housing surface | Smooth | Light scoring, resurfaceable 0.005 to 0.010 in. | Past 0.010 in. needs re-notching; never beyond 0.020 in., replace |
Bezares specifies that rotor slots worn beyond 0.0002 in. cannot be reused at all, which is why a worn rotor goes into scrap rather than back into service.
Measure vane height, thickness, and length with a micrometer. Check rotor groove clearance with a feeler gauge. Use a dial indicator for shaft and bushing play where the design allows it.
Two surface signatures tell you the cartridge is finished. Vane frosting is a dull, frosted edge caused by abrasive contamination. Galling is torn, welded metal caused by loss of the oil film through overheating. Both mean the same thing: replace the rotating group, and fix the fluid condition that caused them.
Intervention threshold. A flow loss of 10 to 15% against the rated curve is the point to investigate. At 20% or more, plan a rebuild or cartridge change. Checking flow against the curve requires knowing the rated flow at your operating speed, which is the calculation in our guide to vane pump sizing.
Vane Pump Seal Replacement, Bearings & Spare Parts
The shaft seal is the part you inspect most often and the part that fails most visibly.
- Monthly (≈160 h): inspect the shaft seal for weeping. A few drops per hour is normal; a steady drip or a visible film means the seal is degrading, so plan a change within one to two months.
- Annually (≈2,000 h): replace the shaft seal and all O-rings and gaskets proactively, whether or not they are weeping.
- Bearings: measure radial play and replace on noise, vibration, or measured play beyond specification.
The most common cause of premature seal failure is not seal quality. It is misalignment, vibration, over-pressure, heat, or excessive case drain pressure, all of which are installation and operating conditions rather than parts. Replacing the seal without fixing the cause guarantees a repeat, which is why the alignment check belongs in the same maintenance program as vane pump seal replacement.
One structural advantage of vane pumps is the cartridge design. On most industrial frames, the rotating group lifts out as a unit, so a worn pump can be restored to rated flow without removing the pump body or re-aiming the drive. That is a repair procedure rather than a maintenance task, and it is worth understanding before the pump fails so the decision is planned rather than urgent.
How Long Do Hydraulic Vane Pumps Last?
A hydraulic vane pump lasts 8,000 to 15,000 hours or more on clean industrial duty with disciplined filtration, roughly 5,000 hours for high-pressure designs on general industrial duty, and 2,000 to 5,000 hours in severe, dirty, or intermittent mobile service. The fluid program, not the pump, sets where in that band you land.
| Duty | Typical life | Dominant life-limiting factor |
|---|---|---|
| Clean, continuous, disciplined filtration | 8,000–15,000 h+ | Scheduled component wear, seal life |
| General industrial, high-pressure designs | ≈5,000 h | Vane tip and cam ring wear |
| Severe, dirty, intermittent, or hot | 2,000–5,000 h | Contamination and overheating |
That band is wide because the variables are. The realistic engineering answer is not a single figure but a filtration target and a flow measurement: run to the ISO 4406 class for your pressure, track flow against the rated curve, and the pump tells you when its life is ending.

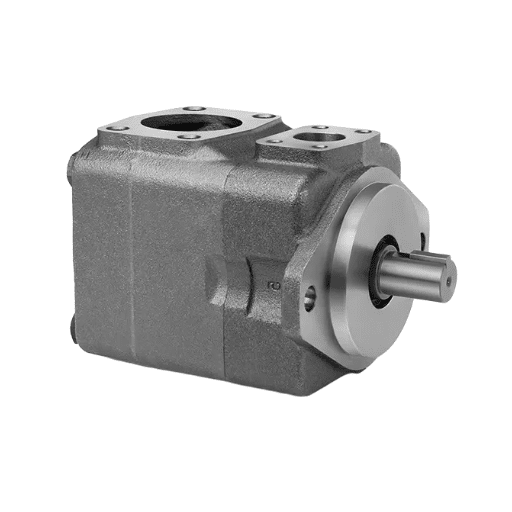

Hydraulic Vane Pump Maintenance Checklist
Every shift
- Check oil level and colour
- Inspect for leaks at the shaft seal and case drain
- Listen for whine, knocking, or cavitation rattle
- Check reservoir temperature
Weekly
- Check return filter differential pressure
- Inspect the suction line, fittings and clamps
- Confirm case drain flow is present and unrestricted
Monthly
- Inspect the shaft seal for weeping
- Check coupling alignment and mounting bolt torque
- Sample oil for appearance, water, and, where available, particle count
Semi-annual
- Change hydraulic oil and the return filter element
- Clean the breather and any suction screen
- Check case drain pressure at the pump
Annual
- Replace shaft seal, O-rings and gaskets
- Measure vane thickness and rotor groove clearance
- Verify flow against the rated curve
- Inspect the cam ring for scoring, rippling, or wear-checking
FAQ
How often should a hydraulic vane pump be serviced?
Inspect at every shift, change oil at 500 hours with 2,000 hours as a maximum, and inspect the cartridge at 2,000 hours or when flow drops more than 10%. Halve the intervals in dusty, hot, wet, or high-duty service.
What oil and viscosity does a vane pump need?
ISO VG 46 suits most industrial vane pumps, with VG 32 for cold service and VG 68 for hot duty. Target 13 to 54 cSt at operating temperature, about 30 cSt for longest life, and keep start-up viscosity below roughly 2,000 cSt.
How often should the hydraulic oil be changed?
After 100 hours on a new or rebuilt pump, then every 500 hours, with 2,000 hours as an absolute ceiling. Severe duty calls for 300 to 400 hours. Change early if the oil is milky, dark, foamy, or burnt-smelling.
What ISO cleanliness code should a vane pump run at?
18/15 or better up to 140 bar, 17/14 or better from 140 to 210 bar, and work toward 18/16/13 for critical high-duty systems. Use a 10 µm absolute return filter for precision vane pumps.
Should a vane pump have an inlet strainer?
No. An inlet strainer creates suction vacuum that lets the vanes lose contact with the cam ring and fail rapidly. Filter on the return line instead. If a strainer is unavoidable, use 250 µm or coarser and monitor its pressure drop.
How do you measure vane wear?
Vane thickness is the key indicator, measured with a micrometer during planned downtime. Check rotor groove clearance with a feeler gauge and shaft play with a dial indicator, and compare each against the pump manual.
Why does my vane pump get hot?
Heat usually comes from over-viscous or degraded oil, a clogged filter in bypass, an undersized reservoir or cooler, or internal leakage from wear. Confirm the oil temperature stays at or below 60 °C and check the fluid before suspecting the pump.
How long does a hydraulic vane pump last?
8,000 to 15,000 hours or more on clean, well-filtered industrial duty; about 5,000 hours for high-pressure designs on general duty; 2,000 to 5,000 hours in severe service. Filtration discipline is the largest single variable.
When should a vane pump be rebuilt instead of serviced?
When flow has dropped 20% or more against the rated curve, or when inspection shows a scored cam ring, frosted or galled vanes, or clearances past the wear limits. Below 10 to 15% flow loss, investigate and adjust the fluid program first.
Conclusion
Hydraulic vane pump maintenance is a fluid program with a mechanical schedule attached. Three things carry most of the result.
Keep the fluid clean. A 10 µm absolute return filter for precision vane pumps, ISO 4406 targets of 18/15 or 17/14 depending on pressure, no inlet strainer, and the majority of the failure risk is removed. Keep the fluid right. ISO VG 46 at 13 to 54 cSt, about 30 cSt for life, 15 to 60 °C continuous, and under 0.10% water. Keep the schedule honest. Inspect every shift, change oil at 500 hours, and measure vane thickness at 2,000 hours so a rebuild is a planned event rather than a breakdown.
Fix the cause, not the pump. Daniel’s replacement failed for the same reason as the original and will keep failing until the filter stops bypassing. Anders’ cold-start starvation and Mei’s aeration both disappeared once the system around the pump was corrected.
