The hydraulic circuit that tilts a loader bucket or powers a skid steer attachment usually depends on a component small enough to hold in one hand: the external gear pump. It is the most widely used positive displacement pump in fluid power, yet few buyers can explain how two meshing gears turn shaft rotation into steady flow at 250 bar.
That gap matters during procurement. When a maintenance manager orders a replacement external gear pump, they need to know why displacement sets the flow, why pressure ratings fall as pump size grows, and why rotation direction is not optional. Getting any of these wrong means a pump that runs backward, a circuit that overheats, or a machine that stays down for another week.
This guide walks through the external gear pump working principle in plain engineering terms. You will learn the three phases of operation, the role of each major component, how specifications are rated, and when this design beats the alternatives. If you only need the family overview first, our complete guide to hydraulic gear pumps covers the full gear pump family.
What Is an External Gear Pump?

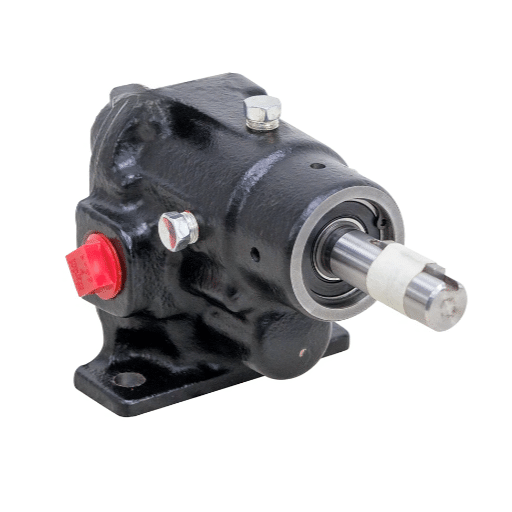

An external gear pump is a rotary, positive displacement pump that moves fluid using two identical, externally toothed gears that mesh inside a close-fitting housing. The gears are the only primary moving parts, and they deliver a fixed volume of fluid with every revolution.
Two characteristics define how the pump behaves in a hydraulic system. First, it is a positive displacement pump: fluid is mechanically pushed from inlet to outlet rather than relying on momentum. Second, it has a fixed displacement: each revolution moves a set volume, so output flow rises and falls in direct proportion to shaft speed.
That is why gear pumps fit auxiliary and constant-flow circuits so well. A relief valve, not the pump, protects the system because a fixed displacement pump keeps pushing fluid even against a closed line.
The numbers explain its popularity. Research firms put the global hydraulic gear pump market near USD 2.2 billion in 2026, and external gear pumps make up the largest product segment at roughly 52 to 58 percent of that category. Asia Pacific accounts for about 38 percent of demand, with China the single largest country market.
How Does an External Gear Pump Work?
An external gear pump works in three phases. As the drive gear turns, the teeth come out of mesh on the inlet side, which enlarges the tooth spaces and creates a partial vacuum that draws fluid in. The fluid is then carried around the outside of the gears inside the housing, and finally the teeth re-mesh at the outlet, which squeezes the trapped fluid out under pressure.
That paragraph is the whole mechanism in miniature. The detail behind each phase explains why the pump behaves the way it does.
Suction Phase
The drive gear connects to the motor, gearbox, or engine through a keyed, splined, or tang shaft. The driven gear meshes with it and rotates in the opposite direction. On the inlet side, the teeth are separating, so the space between two teeth opens wider as the gear rotates. That expanding volume lowers the local pressure below atmospheric, and tank pressure pushes hydraulic fluid into the growing void.
External gear pumps are self-priming, but their suction ability is limited. A flooded inlet, where fluid gravity-flows to the pump, is the safest arrangement. Long suction lines, a clogged strainer, or very cold oil all raise the risk of cavitation.
Transport Phase
Once fluid fills a tooth space, it cannot flow back through the center of the pump because the two gears are tightly meshed there. Instead, the fluid is trapped between the gear teeth and the curved wall of the housing, and it rides around the outside of each gear toward the outlet.
Sealing depends on clearances measured in microns. In many designs, the gap between the gear tips and the housing, and between the gear faces and the side plates, is held under 10 micrometers to limit leakage from the high-pressure outlet back to the low-pressure inlet. Tighter clearances mean less internal slip and higher volumetric efficiency.
Discharge Phase
On the outlet side, the gear teeth are coming back into mesh. As two teeth slide together, the space between them shrinks, and the trapped fluid is forced out of the discharge port. Because the gears provide a positive internal seal, the fluid leaves at the pressure the downstream circuit demands.
This is the moment to remember why flow depends on speed. Each tooth space carries a fixed volume, so output flow equals displacement per revolution times shaft speed. Doubling the RPM roughly doubles the flow, at least until internal leakage and inlet starvation take over. There is no internal adjustment that changes the swept volume, which is exactly what the term fixed displacement means.
External Gear Pump Components and Construction
Reading a cutaway view is easier when the parts have names. Every external gear pump shares the same core architecture, though heavy-duty series add refinements.
- Drive gear and shaft. The powered gear is machined as one piece with its shaft. The shaft end comes keyed, splined, or tang-style to match the prime mover.
- Driven gear. The idler, which freewheels on its own shaft and is rotated by the drive gear. Both gears are nearly identical.
- Housing and covers. The casing and front and rear covers form the pumping chamber and hold the bearings and seals.
- Bearing assemblies. Most designs use plain journal bushes, four in total, that ride directly on the gear shafts and are lubricated by the fluid being pumped.
- Side plates or pressure plates. Many modern pumps use floating side plates that are pressed against the gear faces by discharge pressure, which keeps clearances tight and volumetric efficiency high as pressure rises.
- Shaft seal. The front shaft seal keeps fluid in the pump where the shaft passes through the cover.
- Ports. The suction and discharge openings, sized for the flow the pump must pass.
One manufacturing detail is worth knowing. Some pumps are run in at maximum pressure so the gear tips cut a precise clearance into the housing. The pump then must never be operated above its rated pressure, because that is the point at which the running-in clearance was set.
Spur vs Helical Gears
Most external gear pumps use spur gears with straight teeth. They are the cheapest to make, produce no axial thrust, and dominate mobile hydraulics. Their weakness is pulsation: each tooth meshing event sends a small ripple into the flow, which shows up as noise.
Helical gears, with angled teeth, engage more gradually. That smooths the pressure ripple and can cut noise by up to 15 dBA, which matters in noise-sensitive indoor plants. The trade-off is an axial thrust load that must be managed with thrust bearings, plus higher manufacturing cost.
| Attribute | Spur Gear | Helical Gear |
|---|---|---|
| Tooth engagement | Sudden, line contact | Gradual, sliding contact |
| Noise and pulsation | Higher | Lower (up to ~15 dBA quieter) |
| Axial thrust | None | Present, needs thrust bearings |
| Cost | Low | Moderate |
| Typical use | Mobile hydraulics, most industrial circuits | Quiet fixed-speed industrial circuits |
External Gear Pump Specifications: Pressure, Flow and Displacement
Manufacturers organize external gear pumps into frame groups, and the relationship between displacement, pressure, and speed stays consistent across brands. Small units can be under 1 cc/rev for lubrication duty; large pumps exceed 100 cc/rev for high-flow mobile and industrial circuits.
Continuous pressure in common hydraulic sizes reaches about 250 bar, with many series rated to peaks of 280 to 320 bar. Pressure falls as displacement grows because the pressure difference between inlet and outlet pushes the gears sideways and loads the bearings unevenly. This unbalanced side load is the main design limitation of the external gear pump.
Three real series show the pattern:
| Series | Displacement | Continuous Pressure | Notes |
|---|---|---|---|
| Bosch Rexroth AZPF | 4 to 28 cc/rev | 250 bar (small) down to about 195 bar (large) | Plain-bearing design, speeds up to ~4,000 RPM |
| Parker PGP050 / PGP051 | 41.8 to 104.5 cc/rev | ~210 bar (3,000 psi) | Cast-iron heavy-duty pumps |
| Bucher AP250HP / AP312HP | 15.2 to 75 cc/rev | Up to 300 bar | Cast-iron, for wheel loaders and excavators |
Volumetric efficiency at rated conditions typically runs from 90 to 95 percent or higher, and overall efficiency lands between 70 and 85 percent. Speed range is wide, roughly 500 to 4,000 RPM depending on frame size, fluid viscosity, and inlet pressure.
Shafts, flanges, and ports follow standard conventions, so pumps interchange across brands. SAE A, B, and C two-bolt flanges and ISO mounting patterns are common, with keyed or splined shafts. Rotation matters: a pump ordered clockwise versus counterclockwise must match the drive direction, because the internal relief and port layout are built for one rotation. Our SAE mounting and port standards guide covers the dimensional conventions in more detail.
External Gear Pump Advantages and Limitations
The external gear pump wins on cost, simplicity, and tolerance of real-world conditions. It also has clear boundaries, and honest buyers need both lists before choosing.
Advantages
- Low purchase cost and simple construction with very few moving parts.
- Compact and easy to mount in tight engine bays and machinery frames.
- Capable of high speed and medium-to-high pressure in a small package.
- Good contamination tolerance compared with piston pumps, because the lubricated clearances accept moderate particle loads.
- High volumetric efficiency when clearances are tight, and oil is clean.
- Bidirectional versions exist for circuits that reverse direction.
Limitations
- Pressure pulsation and noise from the gear meshing events.
- No wear compensation. As clearances open with wear, internal slip rises and efficiency slowly declines.
- Unbalanced bearing side load limits pressure and speed at larger displacements.
- Sensitive to cavitation, dry running, and solids. The pump relies on the fluid for lubrication and cooling.
- Needs a relief valve, since a fixed displacement pump will build pressure until something fails.
Maintenance engineer Rosa Gutierrez learned the contamination lesson on a quarry conveyor. Her team replaced a failed external gear pump on a power unit, only to see the new unit fail within three months. The oil analysis finally showed ISO 4406 cleanliness far below the pump maker’s requirement. The first pump had died from contamination, and the second one followed because nobody flushed the reservoir or changed the filters. The fix was not another pump; it was a filtration upgrade that cost a fraction of the replacement.
External vs Internal Gear Pump
The internal gear pump is the quieter cousin. A typical internal design runs 8 to 10 dBA quieter than an equivalent external unit, handles higher-viscosity fluid, and holds pressure for long periods with less internal leakage. Standard internal pumps are usually limited to lower pressures, though compensated designs reach 300 to 400 bar. External pumps stay cheaper, more compact, and easier to source for most hydraulic circuits.
Where External Gear Pumps Are Used
External gear pumps power auxiliary and implement circuits across construction, agriculture, and industry. They are rarely the main pump in a high-pressure variable-flow system, where piston pumps take over, but they handle a huge share of fixed-flow duties.
| Industry | Typical Equipment | Working Pressure | Why External Gear Pump |
|---|---|---|---|
| Construction | Excavator attachments, loaders, skid steers | 180 to 250 bar | Compact, low cost, contamination tolerant |
| Agriculture | Tractors, harvesters, sprayers | 180 to 250 bar | High speed from PTO and engine drives |
| Material handling | Forklifts, telehandlers | 150 to 250 bar | Fixed flow for steering and attachment circuits |
| Industrial | Hydraulic power units, machine tools, lubrication | Up to 250 bar | Simple constant-flow supply |
| Off-highway | Dump bodies, winches, paving equipment | 150 to 250 bar | Rugged, easy to replace |
A 20-ton excavator often uses a Group 2 external gear pump around 10 to 20 cc/rev at roughly 200 to 250 bar to feed attachment functions such as grapples and thumbs.
How to Select and Source an External Gear Pump
Choosing the right unit is a checklist exercise, and every item maps to a specification on the pump nameplate.
- Define the required flow in liters per minute or GPM.
- Confirm the working pressure and any peak transients.
- Select the displacement in cc/rev or cubic inches per revolution that delivers that flow at the available shaft speed.
- Verify the mounting flange, shaft type, and rotation direction.
- Match the port size and thread or flange standard to the existing hoses.
- Confirm the hydraulic oil grade and viscosity range.
- Check duty cycle and whether the circuit needs continuous or intermittent pressure.
Sourcing deserves the same care as sizing. A cross-reference that matches displacement, SAE mount, shaft, and rotation will usually bolt in correctly, but the quality of the pump itself decides how long it lasts. Procurement engineer Daniel Osei saw this firsthand when he sourced a branded pump equivalent from a factory-direct supplier for a fleet of forklifts. The unit matched every dimension and pressure rating on the data sheet, and it came with documented performance test results. It cost less than the OEM part and has run for two years without a failure.
Look for a supplier with documented quality control: multi-stage inspection, pressure and leak testing before shipment, and clear specifications rather than vague claims. Factory-direct sourcing removes distributor markup, but it only pays off if the manufacturer can show consistent production quality and support the order with real engineering data. LOYAL INDUSTRIAL PTE. LTD. supplies tested external gear pumps and hydraulic components with OEM customization, global export packaging, and technical specification sheets on request.
External Gear Pump FAQ
What is an external gear pump?
An external gear pump is a positive displacement pump that moves fluid with two externally toothed gears meshing inside a close-fitting housing. It delivers a fixed volume per revolution.
How does an external gear pump work?
Gear teeth unmesh at the inlet to create suction, carry fluid around the outside of the gears inside the housing, then re-mesh at the outlet to push the fluid out under pressure.
What is the difference between external and internal gear pumps?
External gear pumps use two meshing gears side by side. Internal gear pumps use a rotor inside a ring gear with a crescent seal. Internal designs run quieter and handle higher viscosity; external designs are cheaper and more compact.
What pressure can an external gear pump handle?
Common hydraulic sizes run to about 250 bar continuous, with peaks of 280 to 320 bar on many series. Heavy-duty cast-iron pumps reach 300 bar continuous.
Why is an external gear pump noisy?
Each gear tooth meshing event creates a small pressure ripple. More teeth produce more, smaller pulses; helical gears smooth them out.
What causes external gear pump cavitation?
Low inlet pressure, long or undersized suction lines, a clogged strainer, or high oil viscosity stops fluid from filling the tooth spaces. Collapsing vapor bubbles erode the gears and make a gravel-like noise.
Is an external gear pump fixed or variable displacement?
Fixed. Output flow is set by displacement and shaft speed, so a relief valve protects the circuit rather than a displacement control.
Conclusion
The external gear pump converts shaft rotation into steady, fixed flow using just two meshing gears. Its three-phase working principle, suction, transport, and discharge, explains why flow tracks speed, why clearances decide efficiency, and why pressure derates as pump size grows.
For most medium-pressure, contamination-tolerant, and cost-sensitive circuits, it remains the most practical choice in fluid power. The selection checklist is short: match displacement, pressure, speed, mounting, and rotation to the duty, then source from a supplier that proves quality with data.
