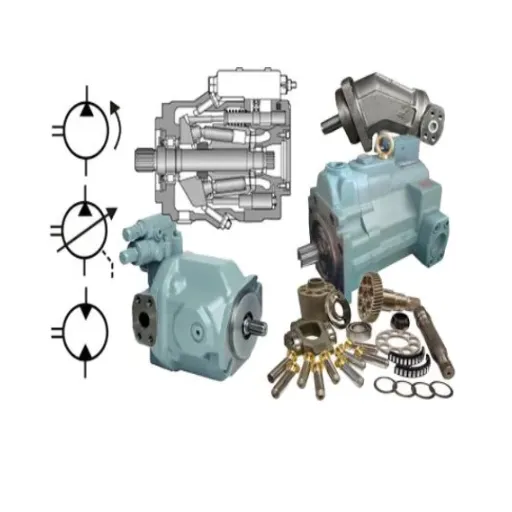

How Do You Check a Hydraulic Pump for Issues?
What are the Signs of Pump Problems?
Early recognition of hydraulic pump malfunctions typically prevents the system from suffering additional damage and incurring costly downtime. One classic warning sign is the generation of unusual noise during pump operation. It could be a sorrowful whining or a harsh banging-type noise. Cavitation, air contamination, or fluid levels being too low in the system usually create these noises. Hence, these noises are signals that the pump cannot operate efficiently and must be undergoing some form of internal stress.
Another critical indicator would be a drop in system performance, such as low-pressure values or slow actuator movement. If the pressure can hardly be maintained or if everything in the system seems a little sluggish, there would be internal leakages, worn components, or damage to the pumping mechanism itself. Any time low system efficiency is noticeable with some regularity, inspection of the hydraulic pump and its components should commence immediately.
The third thing to watch out for is fluid leaking outside around the pump housing or fittings. Leaks can result from worn or damaged seals or cracked housings, or loose fittings. Left unaddressed, they will serve to undermine system performance, may give rise to environmental hazards, and eventually cause complete pump failure. Time invested in monitoring these symptoms and fixing them will ensure that your hydraulic system remains reliable and safe, thereby allowing components to demand replacement less frequently.
How to Measure System Pressure and Flow?
A pressure gauge is connected to a designated system test point for measuring system pressure. Proper selection of a gauge should be based on the pressure range expected within normal operating conditions so that, when the system is activated, the readings can be observed. These pressures should be measured during normal operating conditions so that anomalies can be observed when the system is loaded. This provides an insight into possible problems, such as drops in pressure or irregularities that could be related to inefficiencies within the system.
The flow meter should be chosen to suit the particular medium and operating range of the system under test. It must be installed at a point of control, for example, the inlet or outlet of a test component. When flow measurements are made under normal operating conditions, such measurements will tell whether the system is delivering the flow rates it is supposed to. Any deviations in flows can indicate items such as clogged filters, leaks within the system, or wear on the filters.
Pressure and flow measurements are important for investigating the performance of a system. Regularly test the system with calibrated instruments for safety and proper operation. Refer to the manufacturer’s instructions for installation and measurement, and never ignore the instructions for safety to prevent damage or injury. Further, these practices will assure the maintenance of the integrity and reliability of the hydraulic system.
What Tools are Needed for a Hydraulics Diagnostic?
The hydraulics diagnostic is very much an art and just a little science, and needs precision instruments and equipment for accurate and reliable results. Foremost, it requires a set of calibrated pressure gauges that can measure the whole range of pressures in a hydraulic system.
Flow meters constitute another tool required for the hydraulic system, as they measure the flow rates of hydraulic fluid through the system. They would drop in flow rate if there were leaks or blockages, or worn components. Hence, it is essential to choose flow meters suitable for the working pressures and types of fluid in the system.
Other equipment options may include an infrared temperature meter meant for registering temperature differences, which may point to overheating or fluid degradation issues. A hydraulic test stand or an equivalent portable tester will even be handy for more advanced diagnoses, where technicians on their own simulate operational conditions so that the system can be evaluated on its performance against controlled variables. The right combination of these instruments can achieve thorough analysis for diagnosing and solving potential issues.
What is the Process to Troubleshoot a Faulty Hydraulic Pump?
How to Detect a Leak in the System?
Having a systematic approach to leaky hydraulic system detection ensures that all sources of fluid losses are identified and taken care of. The leakage diagnosis usually begins by visually inspecting components of the system: hoses, fittings, seals, cylinders, and reservoirs. The technician should be searching for traces of oil accumulation, wet areas, or dripping fluid. The use of brightly colored or ultraviolet (UV) reactive hydraulic fluid, when combined with UV lights, makes the identification of the slightest of leaks very easy. Pressure loss may also point towards a leak, especially if it presents itself in conjunction with hissing sounds or inconsistencies in the operation of system components.
Actual leak detection techniques involve the use of more advanced diagnostic equipment. Ultrasonic leak detection is particularly helpful in modern hydraulic systems; ultrasonic leak detectors pick high frequency sounds beyond human hearing, signifying escaping of pressurized air or fluid through an orifice. Thermal imaging cameras detect the abnormal temperature differences caused by fluid escaping at high velocity in systems under constant pressure. Furthermore, pressure gauges installed at strategic points in the system help detect abnormal pressure drops, which are normally caused by the leaks of fluids inside the system or outside.
Finally, the system’s performance metrics need to be considered in accounting for leaks. Any reduction in system efficiency, sluggish movement of actuators, and inability to maintain pressure strongly indicate substantial leakage, be they internal or external. Comparing performance data at present with the performance data of the specifications of the manufacturer can only act as a rough guideline if the abnormal performance is due to a physical leak or some other system malfunction. Prioritizing scheduled maintenance inspections along with thorough recording of the system’s behavior over time can foresee any leak risks and cut down on the downtime related to bigger system failures.
How Can I Verify the Relief Valve Functionality?
A systematic, data-driven methodology is needed to verify that the relief valve is functional. Start with a visual inspection confirming the absence of visible damage, contamination, or blockage that may hinder its performance. Next, measure and record the operating pressure in the system and compare it with the set pressure rating of the valve provided by the manufacturer. Since precision is required, consider using calibrated pressure gauges or digital pressure transducers.
Considering performance testing, this implies that the valve must be exposed to conditions that replicate controlled operating parameters. This is when the valve opening and reseating should be verified as per the required pressure limits. Comprehensive verification is generally attained through the use of a hydrostatic or pneumatic test bench. During testing, verify that the valve is opening at the correct pressure range, the pressure normalizes, and reseating occurs without any leakage.
Modern diagnostic tools, such as acoustic emission sensors or infrared thermography, also offer the possibility of non-intrusive monitoring of valve operation and will be able to detect abnormalities in operation without disconnecting the valve from the system. The effectiveness of the aforementioned methods can be further enhanced through comparison with historical data on the valve’s past performance until any abnormalities are corrected.
What Does Pump Wear Indicate?
Pump wear stands as one of the relevant health indicators for the pumping system. Typically, the hydraulic performance is lowered, the energy consumption goes higher, and the system may even fail as impellers, bearings, seals, and other components wear over time. In the case of impellers, wear may reduce their ability to maintain the optimum flow rate, thereby reducing the overall efficiency of the system being served. Seals, if deteriorated, may leak with operational integrity of the system being compromised. Depending on what is being transported by such a system, it could be a matter of contamination risk or safety hazard.
The causes for pump wear very often arise from any operational demand placed upon the equipment that exceeds the design limits: cavitation, abrasive particles in the fluid, or lack of adherence to maintenance schedules. Cavitation is an especially great cause, as it produces implosion of microbubbles within the pump; this process produces surface pitting in due course. If the fluids have abrasive materials in that constitutes erosion, which will hasten wear on the interior surfaces. Regular inspections, advanced diagnostic tools, and predictive maintenance strategies should always be monitored to identify early warning signals before they become manifestations of severe damage.
With the help of advanced data analysis techniques combined with access to historical and real-time operational data, it becomes very easy for an engineer to interpret the wear trends of the pumps and schedule maintenance accordingly. With predictive analytics tools powered by machine-learning algorithms, one can study wear patterns and relate them to the operating conditions of the equipment to obtain some practical insights. Further applications integrated with IoT devices enable remote monitoring of pumps such as vibration, temperature, and pressure, presenting an overall view of pump health. This data-based approach provides for timely interventions, thus curtailing unforeseen downtime and ensuring that would-be critical pumping systems stand the test of time and perform at their best.
How to Perform a Comprehensive Pump Test on a Bench?
What Steps are Involved in Setting Up a Test Bench?
The installation of a test bench for testing pumps needs to consider technical specifications, safety issues, and precise instrumentation. The first steps in this activity include choosing the right pump and motor assembly for each test while considering the system requirements, such as flow rate, pressure capacity, etc. The test bench must be installed with standard components like inlet and outlet pipelines, calibrated flow meters, pressure gauges, and control valves that would contribute to the accurate measurement of performance criteria.
The fluid supply system, such as a suitable reservoir or tank, has to be set up in such a way that it keeps the fluid level and quality constant during the test. Connections between components must be of the right fittings to avoid any leakage, pressure losses, etc., thereby ensuring an air-tight and water-tight machine. Next, the test pump should be mounted on a sturdy surface or frame capable of damping vibrations, which may cause misalignment in the drive system, resulting in mechanical stresses.
While setting up the electrical connections and control systems, variable-speed operation should be considered to simulate a wide range of operating conditions locally. Use a data acquisition system to record and log all important discharge pressure, suction pressure, flow, and efficiency in real time. All monitoring devices must be correctly calibrated to ensure reliability and accuracy.
After these, a dry run of the test installation will be made to verify the installation’s performance and detect any faults. Before undertaking any test, all safety devices shall be checked, including emergency stops and relief valves. Following the above-mentioned steps, the installation will be followed thoroughly and precisely, which may serve as a basis for the conduct of intensive pump performance testing.
How to Use a Flow Meter for Testing?
Testing with a flow meter consists of various steps that have to be followed carefully in order to guarantee the correctness and integrity of the measurement data. Select the type of flow meter to be used, considering various applications about the flow rate range, the kind of fluid to be measured, temperature, and pressure conditions. For example, ultrasonic, electromagnetic, or turbine-type flow meters are commonly used for reasonably accurate measurements under very different conditions.
First, the flow meter should be fitted into the section of the piping system so designated while being certain of its alignment with the flow direction indicated on the flow meter. A good installation will prevent all turbulence that could otherwise affect readings. Ensure that any inline flow conditioning components, such as straight pipe lengths upstream and downstream of the meter, conform to the manufacturer’s recommendations.
Afterward, if digital output is desired, the flow meter has to be connected to a data acquisition system. Begin calibration and adjust the discrepancies or deviations from the actual flow rate readings concerning a standard. Once in operation, perform diagnosis through the respective software interface to identify any deviation in malfunction.
Measure and record flow data for a predetermined period to establish any transient behaviors in the system. Efforts should be made to eliminate external disturbances such as vibration or electromagnetic interference. Regularly, maintenance should be carried out to keep the meter clean, especially in cases where the fluid involved may cause scaling or debris build-up. This will, in turn, guarantee the maintainability of measurements over time. Adherence to this attention-to-detail procedure will ensure that any test data from the flow meter will be accurate with consistent precision.
How to Identify Hydraulic Pump Problems?
Common Signs of Hydraulic Pump Failure
As indicated by the top three industry sites, diagnosing hydraulic pump failures involves observing several common indicators, among them are:
- Strange Sound: Knocking or whining sounds are symptoms of cavitation or aeration problems. The technical parameters involved can include a pump running at an irregular speed, air pockets present within the system, etc. – all of which are detrimental to efficiency and the level of noise.
- Excessive Temperature: One reason excessive heat is formed in a hydraulic pump is internal leakage or poor cooling. The normal operating temperature must not be higher than 140 degrees Fahrenheit (60 degrees Celsius) to avoid overheating or damaging the other components in the system.
- Lower Performance: If the preset flow and pressure are not being met, it is most likely due to friction or heterogeneities in the system. The acceptable flow rates of a standard hydraulic pump, meta5100h70p, have to be complemented within its manufacturer-specific parameters to ensure optimal operations.
- Fluid leaks: These can be leaks seen on the surface of the seals situated between the pump and the connectors, which are signs of a completely worn seal or excessive pressure sent to one location. The pressure in the system must never be off the charts and should be safe operational limits, most commonly described as 3000 psi or so, based on the hydraulic pump design.
- Erratic System Operation: Variations in the pump’s output or pressure readings can indicate a stuck check valve or an internal failure in the system. Therefore, pressure stability and area factor reliability are also essential in assessing the overall system reliability.
With knowledge of these signs and their respective technical meanings, industry professionals can properly diagnose and fix problems with their hydraulic pump systems, thereby increasing the system’s overall reliability.
Understanding Cavitation and Its Effects on Performance
When vapor bubbles form inside a liquid due to local pressure falling beneath the vapor pressure, cavitation occurs. In regard to hydraulic systems, cavitation poses severe risks: reduction in efficiency, substandard performance by the pumps, and long-term injury to vital components. The bubbles almost always experience sudden collapse when the pressure goes back up, creating shockwaves that erode the metal surface.
Cavitation causes many negative effects in performance: noise, vibration, and diminished flow of fluid. After further pitting of the internal surfaces with time, the vascular integrity is gravely compromised and predisposes it to greater harm.
Controlling this is not just a matter of intuition; it requires a systematic approach. Among the key measures are maintaining appropriate fill levels, keeping inlet pressures within safety margins, and using hydraulic fluids having a viscosity that is recommended for the pressure and temperature range. Also, from a system design point of view, sharp bends in piping should be avoided, as these induce turbulence, thereby aggravating existing low-pressure zones.
Then, solving cavitation-causing problems greatly prolongs hydraulic systems’ life and allows civil engineers to achieve an optimal, efficient state, minimizing maintenance and downtime expenses. Advanced diagnostics, incorporating pressure sensors and flow meters, provide real-time monitoring capabilities, allowing for quick identification and correction of cavitation incidents.
Checking for Leaks and Contamination in the Hydraulic System
To ensure operational efficiency and avoid costly downtime, proper leak and contamination inspections in a hydraulic system are imperative. Leaks in a hydraulic system result from worn-out seals, a ruptured hose, loose connections, drainage of system pressure, and diminished performance, with some exceptions. A visual check is often the first procedure by looking out for leaks of oil around fittings, couplings, or ponds beneath the machinery. One could also use leak-detecting tools like an ultrasonic leak detector that finds leakage points invisible to the naked eye.
Contamination, often called the root cause of hydraulic system failure, usually finds its origin in external sources or internal wear debris. It is highly advisable to monitor oil cleanliness by the use of particle counters or oil analysis instruments to determine contamination levels. Modern hydraulic systems also have the provision for installing condition monitoring sensors that evaluate fluid health continuously in real time, and this paves the path for predictive maintenance scheduling.
Adherence to manufacturer recommendations concerning consistent replacement of filters and the sealing of all components is crucial, as well as operating under the recommended pressure and temperature limits to lessen wear. This includes the regular check-ups of systems and flushing of systems when contamination is discovered for great hydraulic fluid performance and long service life.
What are the Steps Involved in Troubleshooting a Hydraulic Pump?
Step-by-Step Guide to Troubleshoot Your Hydraulic Pump
- Check for Visible Leaks： Begin troubleshooting by carrying out a visual inspection of the hydraulic system. Look for external leaks at the seals, fittings, hoses, and connections. Leaks are signs of wear or damage to a component, so they could lead to performance inefficiencies.
- Look at Hydraulic Fluid Levels and Quality： Ensure the hydraulic fluid level is within the prescribed limits. A fluid level that is too low leads to cavitation or overheating. Also, check the quality of the fluid: a pump may not work well with cloudy, dark, or contaminated fluid. If there is contamination, it may be best to drain and replace the fluid and clean the reservoir.
- Monitor System Pressure： Employ pressure gauges to note inlet and outlet pressure. Compare these values to the limits given in the pump technical manual. Pressure differences may indicate blockages, worn-out components, or cavitation.
- Listen for Abnormal Noises： Unusual sounds, either knocking or whining, frequently mean cavitation or air entrapment. The abnormal noises can give clues to diagnose the condition of the pump and other components involved.
- Check for Clogged Filter： Check for any clogged or dirty filters of the hydraulic system. A clogged filter blocks fluid flow, offering resistance that stresses pump operation unnecessarily.
- Check Pump Alignment and Mounting： Inspect pump alignment and mounting for any signs of misalignment, loose bolts, or vibration. When misaligned, undue wear will be imposed on the bearing and seal for decreased efficiency and premature failure.
- Check the Suction Line： Ensure that suction lines are free of restrictions or air leaks. That could mean that, if it is collapsed or loose, the pump will not be sucking an adequate amount of hydraulic fluid and the cavitation will set in, along with overheating.
- Test System Components Individually： Isolate certain components (e.g., valves, actuators) to prove or disprove whether external factors are brought to bear or not. This helps to prove if the actual problem lies within the pump itself or is caused by another part of the system.
- Analyze Temperature Reading： Measure the operating temperature of the hydraulic system and keep it within the permissible limit. Excessive heat might allude to overloading, a bad condition of fluid, or inadequate means of cooling.
By addressing these diagnostic steps one at a time, operators can begin to determine the precise source of performance issues within the hydraulic pump, allowing them to apply appropriate remedies.
How to Check the Condition of Your Hydraulic Pump
To begin with, let me check the hydraulic fluid and system for cleanliness. Many experts agree that pollution is the most significant cause of pumps going wrong, so it is essential to keep the system clean from dirt and debris. Periodic fluid sampling and testing make it easier to manage and control the presence of particulates.
Next, I must concentrate on the pressure levels achieved and the static within the system. This necessitates the use of a good pressure gauge so that the system operates within the manufacturer’s recommended limits. The pressure should be monitored constantly so that any abnormal values indicating leakages or abnormal operations can be investigated.
Finally, I look at the pump’s temperature control mechanisms. If the heat exchanger and cooling components are in good working order, then the operating temperatures can be controlled properly, and thus, the chances of overheating, which distorts the entire system’s workings, can be minimized.
Cumulatively, these three identified areas can help me operate the hydraulic pump more reliably and efficiently.
References Image source factors
Frequently Asked Questions (FAQ)
Q: What are the initial steps to troubleshoot a hydraulic pump?
A: Begin by consulting the pump’s manual and specifications to understand its operational requirements. Inspect the hydraulic system for any visible issues such as leaks, ruptures, or blockages in hoses and pipes. Check the reservoir for proper fluid levels and ensure the breather is clear of debris.
Q: How can I check for internal leakage in a hydraulic pump?
A: Internal leakage can be checked by measuring the flow at the case drain. An increased drain flow rate can indicate internal leakage. Use a flow meter or gauge to verify the flow rate against the manufacturer’s specifications.
Q: What is the role of the drive motor in a hydraulic system?
A: The drive motor provides the necessary torque and rpm to operate the hydraulic pump, which in turn powers the hydraulic system. Ensure the drive motor is functioning properly to maintain reliability and prevent downtime.
Q: How can I determine if the problem is with the pump or elsewhere in the system?
A: Isolate the pump by disconnecting it from the rest of the hydraulic system. Test its pump output and pressure line for proper operation. If the pump can deliver the expected pressure and flow, the problem is elsewhere in the system.
Q: How do I prevent my hydraulic pump from overheating?
A: Check for blockages in the pressure line and ensure the pump’s cooling mechanisms are functioning. Use an infrared thermometer to monitor thermal conditions and ensure that the fluid is within the recommended temperature range to prevent overheating.
Q: What could cause insufficient pump output?
A: Insufficient pump output can be caused by several factors, including low pressure in the hydraulic system, internal leakage, a clogged filter, or a faulty solenoid or seal. Diagnostics and verification using a gauge and other tools can help identify the issue.
Q: What maintenance should be performed regularly on a hydraulic pump?
A: Regular maintenance includes checking the oil level and quality, replacing the filter, inspecting and replacing worn seals and bearings, and ensuring that the pump’s displacement and adjustment settings are per the manufacturer’s specifications.
Q: How can I ensure good pump performance over time?
A: To ensure good pump performance, regularly monitor and maintain the hydraulic system, perform routine diagnostics, and address any signs of wear or malfunction promptly. Proper lubrication and timely replacement of parts like the shaft and seals are crucial.
Q: What should I do if the pump shows signs of wear?
A: If the pump shows signs of wear, such as unusual noise, vibration, or decreased performance, inspect for worn components like the bearing or vane pump. Replace any damaged parts and perform a thorough inspection of the entire hydraulic power system.
