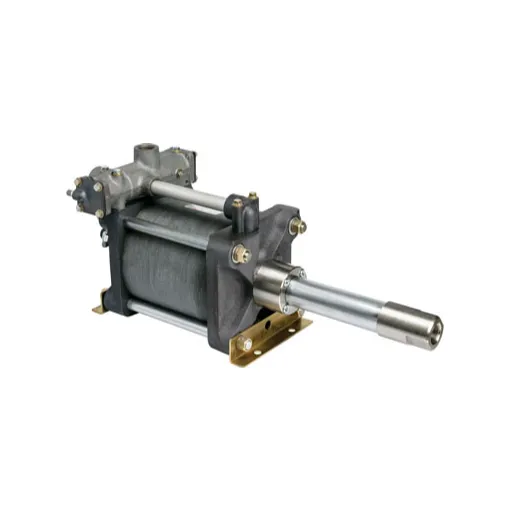

Discover the Power of Air Driven Hydraulic Pumps: Your Ultimate Guide to Efficient Systems

The following submission focuses on air-driven hydraulic pumps’ work and survivability. The author commences the article by arguing that speed and precision of operations has become the basis for machines and systems to work perfectly and claims that embedded air hydraulic pumps satisfy this goal because of their strength, accuracy, and flexibility. What the author individually asserts shall be detailed later in the article in respect of inset air-driven hydraulic pumps is their versatility and applications in a wide range of tasks. The article then covers the strengths of air-driven pumps in lifting and controlling hydraulic equipment and various machines which is followed by injection of oil and pressure to inject liquid into the target spaces or areas. In addition, what the author covers in the article is how to improve performance of such pumps and maximally extend their lifetime.

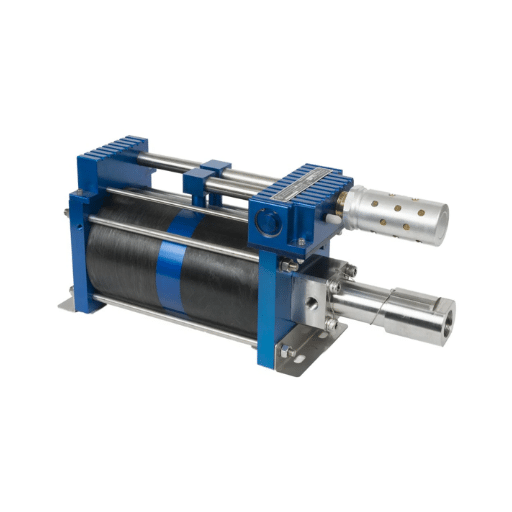

What is an Air Hydraulic Pump and How Does It Work?

The pneumatic hydraulic pump has its origins in air pressure, but the reason for its genesis and existence is the application of hydraulic pressure, that is, the conversion of pneumatic energy into hydraulic energy. A pneumatic hydraulic pump has a reciprocating piston inside of it, and that piston is also driven by air pressure which creates the high-pressure fluid pumping system. The function of this device permits the inflow and outflow of air to ensure a set pressure is always retained. These are the reasons due to which the pneumatic hydraulic pump can be used in those applications, which need the range of pressure to be controlled accurately and the mechanical power to be transmitted without electric current or complex electronics. Application of the pneumatic hydraulic pump is well suited for explosive area or bad electrical conduits regions.

Learn the Basics of Air-Driven Hydraulic Pumps

Hydraulic air driven pumps are working through the usage of compressed air to move a reciprocating piston that subsequently pressurizes hydraulic fluid, this translates the pneumatic energy into hydraulic energy. An air motor, a hydraulic piston and several control air and hydraulic fluid valves are the main components of these pumps These simple structures can be able to manage the pressure and rate of the hydraulic fluids which makes these pumps multipurpose. All these unique characteristics make air driven hydraulic pumps to be widely used since they can operate without electrical power, they are not sensitive in harsh conditions, and they can maintain pressure very well. These features make them very essential in industries like construction, mining, and manufacturing, where the conditions are tough and safety is required. Periodic maintenance such as monitoring the air leaks, lubrication of the parts and changing of the worn out parts will also improve the functioning and durability, promising reliable results on a longer timeframe.

How Do Air Driven Hydraulic Pumps Generate Hydraulic Pressure?

Using a sequence of mechanical movements, air driven hydraulic pumps manage to provide a certain level of hydraulic pressure. To begin with, an air pressure is introduced into an air motor which facilitates the motion of a projecting piston. The motion of the piston induces a vacuum condition that results in the intake of hydraulic oil into the pumps cavity. And again, this piston goes on to compress the liquid and shearing some energy from the pneumatic side into it, turning it into a directional motive force. This force then has to be controlled by valves which control both air and hydraulic fluid at a certain state in order to be able to work the pump at optimal condition.

Technical Parameters

1. Recommended Air Supply Pressure: The value ranges from 60 pounds per square inch due to the mechanics of the machine that runs on compressed air within the electric unit ‘s design.
2. Maximum hydraulic pressure output: The pressure of the hydraulic fluid output could be designed to sustain 10000 psi or greater depending on the mechanical pump design and application specifications.
3. Flow Rate: Typically, it can range from between 0.5 and 30 GPM, though in general it is expressed in GPM (gallons per minute) and is considerably affected by the size of the piston and its stroke length.
4. Air Consumption: It shows the quantity of compressed air used on the system which Customary flows hetween 10 and 100 SCFM (standard cubic feet per minute) which is dependent on the size of the pump and the operation cycle.

Verification of such parameters in accord with the requirements of a given application will definitely increase pump performance and dependability. Consistent supervision of such technical features may prove instrumental in the management of the pump’s productivity and in extending its longevity.

Key Components and Design of Air Driven Hydraulic Systems

Air driven hydraulic systems are composed of several critical components that play pivotal roles in their functionality:

1. Air Motor: Converts compressed air energy into mechanical motion, driving the hydraulic pump. The air motor’s design, efficiency, and capacity are crucial to the system’s overall performance.
2. Pump: Often a reciprocating piston pump, it transforms the motion from the air motor into hydraulic energy. The pump’s capacity and pressure capability must align with application needs for optimal performance.
3. Valves: These include pressure control valves, check valves, and flow control valves, all of which ensure the precise regulation of air and hydraulic fluid within the system. By maintaining consistent operation, they safeguard against overpressure and ensure efficient fluid dynamics.
4. Reservoir: Stores the hydraulic fluid, accommodating fluctuations in fluid levels and ensuring a steady supply is available to the pump. The reservoir’s capacity is determined by the system’s operational requirements and fluid displacement needs.
5. Filters: These protect the system by removing impurities from both air and hydraulic fluid, minimizing wear and prolonging the lifespan of components.
6. Hoses and Fittings: Connect various system components, and must withstand high pressures and potential environmental factors. Their design must ensure minimal leakage and compatibility with system specifications.

Each of these components must be carefully selected and configured to match the technical parameters specified for the intended application, such as air supply pressure, hydraulic output pressure, flow rate, and air consumption. Proper design and selection of these elements help achieve a balanced and efficient system that meets operational demands while maintaining energy efficiency and reliability. Regular maintenance and monitoring of these parameters enhance the longevity and consistency of the system’s performance.

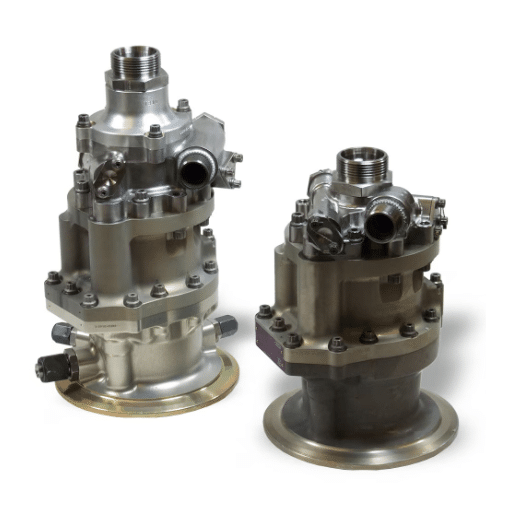

What Applications Benefit from High-Pressure Air Driven Hydraulic Pumps?

Regardless of the extreme conditions, high-pressure air driven hydraulic pumps perform exceptionally well which makes them indispensable in numerous industries. They are highly prevalent in construction apparatus where high-powered hydraulic systems are used to control big machines such as cranes and excavators. Moreover, these pumps are crucial for the industry sector, particularly for many automatic systems, where hydraulic arms and cylinders automation devices on conveyor belts and robots are employed. In the automotive sector, they assist in effective testing and functioning of hydraulic systems such as brakes and shocks and ensure such systems are within requisite safety and performance limits. Moreover, high-pressure air driven hydraulic pumps are important in the aviation industry to test landing gears and flight control actuators. They are reliable and tend to work effectively across a variety of fields.

Industrial Uses for Air Driven Hydraulic Pumps

Air-driven hydraulic pumps have a universal appeal in a range of industries, owing to their compactness, efficiency, and ability to build up high pressure with a reasonable amount of air. They are indispensable in a host of heavy equipment in the construction sector namely excavators, bulldozers, and cranes. One good thing with these pumps is that they do not fail to deliver hydraulic power that is dependable and able to withstand many efforts to lift and shift massive loads even in tough environments.

Manufacturing at automated systems is precision driven, and air driven hydraulic pumps provide the center of that precision. They furnish the hydraulic work needed to move actuators and cylinders, allowing force to be applied to robotic and assembly line machinery tools in a precise and fluid manner. This in return leads to enhanced and productive processes in manufacturing industries.

In the automotive industry, these pumps are employed for the testing and functioning of such hydraulic items like brakes, shock absorbers etc. Their even pressure performance is a basic requirement for the safety and standard of performance of the vehicle, thereby never missing in a standard automotive testing laboratory.

Air driven hydraulic pumps are, for example, employed in the aerospace industry for testing purposes. Such systems as landing gear or flight controls are critical for ensuring the functionality and safety of aircraft components. Overall, the versatility and efficiency of air driven hydraulic pumps make them quite useful in such diverse industrial applications.

The Role of Air Driven Hydraulic Pumps in Oil and Gas Industries

Hydraulic pumps powered by air are fundamental to the functional system of the oil and gas industries specifically in terms of efficiency and safety. These pumps find a lot of application in wellhead control, blowout preventers and pipeline maintenance. They are vital equipment because of their capability to operate under dangerous and isolated areas without the requirement of electric power. Primary significant technical parameters are:

• Pressure Rating: Typically, these pumps can generate pressures up to 10,000 psi, which is vital for high-stress applications like well interventions.
• Flow Rate: Varies depending on the model, but commonly ranges from 1 to 50 gallons per minute, catering to different operational needs.
• Material Compatibility: Constructed with corrosion-resistant materials such as stainless steel to withstand harsh environments and corrosive substances found in oil and gas fields.
• Temperature Range: Designed to function effectively in temperatures from -40°F to 250°F, ensuring operability in extreme conditions.
• Safety Features: Integrated pressure relief valves and failsafe mechanisms to prevent over-pressurization and ensure safe operation.

These parameters ensure that air driven hydraulic pumps meet the stringent demands of the oil and gas industries, contributing to safe and efficient resource extraction and transport processes.

Why Choose Air Driven Hydraulic Pumps for Compact Solutions?

Air powered hydraulic pumps are the best suit for compact applications and they have several advantages. For starters, their small overall dimensions allow users to effortlessly embed them into confined spaces and mobile equipment which is crucial in many industries and applications. In addition, unlike electric pumps which require a lot of complicated and sometimes dangerous wiring, air driven systems are free from electrical wiring reducing the possibility of sparks, making it safer to use in adverse environments. They also allow great economy of power because they only use compressed air when it is actually required, cutting back on both energy and costs of operation. And last but not least, their inherent characteristics which enable them to perform well when precision is important, such as delivering the required pressure and flow rate. In addition, the combination of versatility with dependable performance and low-maintenance requirements puts air driven hydraulic pumps ahead of the competition where economical, safe and compact hydraulic solutions are needed.

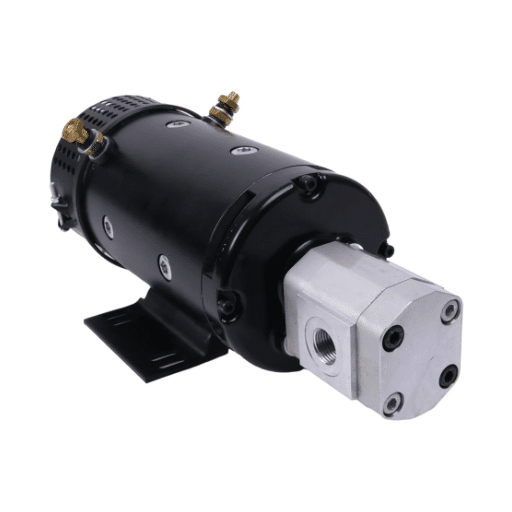

How to Select the Right Air Driven Hydraulic Pump for Your Needs?

Selecting the right air driven hydraulic pump involves evaluating several key factors to ensure compatibility with your specific requirements. Firstly, assess the pressure and flow rate specifications of your application to determine the pump’s capacity. It’s crucial to select a pump that can meet or exceed the pressure demands without sacrificing efficiency. Next, consider the operating environment; ensure the pump can withstand the ambient conditions, including temperature and potential exposure to hazardous substances. Size and space constraints are also pivotal, especially if installation must occur in confined areas. Evaluate the maintenance requirements and ease of serviceability to minimize downtime and operational costs. Additionally, factor in the energy efficiency of the pump, looking for models that optimize air consumption to reduce expenses. Finally, consult with manufacturers or industry experts to confirm that the selected pump aligns with industry standards and your project needs.

Factors to Consider When Choosing an Air Driven Hydraulic Pump

When selecting an air driven hydraulic pump, it is essential to address several critical factors to ensure optimal performance and compatibility with your application. Here’s a concise guide derived from expert sources:

1. Pressure and Flow Rate Specifications: Ensure the pump meets or exceeds the requirements of your application. Look for information on the pump’s maximum pressure and flow capabilities, as these parameters are pivotal for optimal operation.
2. Operating Environment Compatibility: Choose a pump rugged enough for your specific work conditions, such as extreme temperatures or potentially corrosive environments. Pumps with protective features or certifications may be necessary for challenging settings.
3. Size and Installation Constraints: Physical dimensions and weight can impact installation feasibility. Compact designs are preferable for use in confined spaces, allowing ease of installation without compromising performance.
4. Maintenance and Serviceability: Consider the ease with which routine maintenance can be performed. Pumps that offer easy access to components and require minimal tools for service support reduced operational downtime.
5. Energy Efficiency: Select pumps designed for energy conservation to minimize air consumption and reduce long-term costs. Energy-efficient models can contribute to significant savings and a reduced environmental footprint.

By integrating these key considerations, you can ensure that your chosen pump meets the high demands of your application, balancing performance with efficiency and reliability.

Understanding Pressure and Flow Requirements in Air Driven Systems

Pressure and flow are fundamental aspects to consider when evaluating air-driven systems, impacting both the effectiveness and efficiency of operations. Pressure Requirements: The specified pressure refers to the force at which air is delivered, and it must align with the operational needs of your system. Systems often require a specific pressure range to function optimally; exceeding this range can lead to equipment wear or failure, while operating below it can result in underperformance. It is crucial to determine the minimum and maximum pressure defined by the system’s manufacturer to maintain optimal performance and safety.

Flow Requirements: Flow rate, measured in cubic feet per minute (CFM), is equally essential as it denotes the volume of air that moves through the system. A higher flow rate corresponds to increased potential work output. To ensure functional efficiency, the system should have a flow rate that matches usage needs, so the air supply is neither over-pressurized nor excessively loose. Consider the peak demand scenarios to accurately assess the required flow capacity.

Integrating insights from leading online resources, the consensus underscores the importance of tailoring pressure and flow settings to your specific application needs. This ensures not only the effective operation of your air-driven systems but also enhances their lifespan by preventing excessive strain and potential malfunctions.

Comparing Different Air Driven Pump Models and Series

When comparing different air-driven pump models and series, it is essential to consider both pressure and flow requirements. Here are some key technical parameters to help address these considerations:

1. Pressure Rating (PSI): Check each model to ensure the pressure range aligns with the specific requirements of your application. For instance, Model A might operate effectively between 15-100 PSI, while Model B might have a range of 20-120 PSI.
2. Flow Rate (CFM): Evaluate the cubic feet per minute capacity, which indicates the volume of air the pump can handle. Model A could support a flow rate of 10 CFM, suitable for lower demand applications, whereas Model B might handle 15 CFM, catering to higher demand scenarios.
3. Material Construction: Consider what the pump is constructed from, such as stainless steel or aluminum, which affects durability and suitability for different environments.
4. Temperature Range: Each model may have a specified temperature range in which it operates efficiently, e.g., Model A: -10°C to 40°C, Model B: -20°C to 50°C.
5. Size and Weight: Size and weight of the pump can impact installation and mobility, essential for space-constrained or portable applications.

By reviewing these parameters, one can make an informed decision, selecting a model that best matches the operational needs and ensures consistent performance and reliability.

What Maintenance is Required for Air Driven Hydraulic Pumps?

Air driven hydraulic pumps require regular maintenance to ensure optimal performance and longevity. Here are some essential maintenance tasks:

1. Regular Inspection: Conduct routine checks for any signs of wear and tear on seals, hoses, and fittings. Look for leaks or unusual noises indicating potential issues.
2. Filter Cleaning and Replacement: Periodically inspect and clean filters to prevent debris accumulation, which can restrict airflow and reduce efficiency. Replace filters as needed based on the manufacturer’s guidelines.
3. Lubrication: Ensure that the pump components are properly lubricated according to the manufacturer’s recommendations to reduce friction and prevent overheating.
4. Check Fluid Levels: Regularly check the hydraulic fluid levels and top up if necessary. Use the appropriate fluid type specified in the pump manual to maintain consistent operation.
5. Tighten Connections: Over time, vibrations can loosen connections, so it’s important to periodically tighten all fittings and bolts to prevent leaks.
6. Performance Monitoring: Keep track of the pump’s performance metrics to detect any deviations that may indicate a need for maintenance.

Following these maintenance steps will help in preserving the pump’s efficiency, minimizing downtime, and extending its service life.

Routine Checks and Maintenance Tips for Optimal Performance

To ensure optimal performance of air driven hydraulic pumps, it is crucial to adopt a systematic approach to routine checks and maintenance. Below are concise insights gathered from top sources:

• Inspect Regularly: Routine visual inspections are vital to identify any wear, damage, or leaks in the pump system. Check seals, hoses, and fittings for integrity and address any issues immediately to avoid further complications.
• Clean and Replace Filters: Keep the air and hydraulic filters clean to prevent clogging, which can impede airflow and reduce efficiency. Follow the manufacturer’s advice on how frequently to replace filters to maintain optimal performance.
• Lubricate Adequately: Proper lubrication of moving parts is essential to minimize friction and prevent overheating. Adhere to the lubrication schedule provided in the pump’s manual. Use the recommended lubricants to ensure compatibility and effective performance.

These maintenance practices are pivotal for sustaining the reliability and efficiency of air driven hydraulic pumps, thus prolonging their operational lifespan. Regular maintenance not only prevents breakdowns but also optimizes energy consumption, leading to improved economic efficiency.

Common Issues and Troubleshooting for Air Driven Hydraulic Pumps

In dealing with common issues associated with air driven hydraulic pumps, it’s essential to pinpoint the problem accurately and apply the appropriate troubleshooting techniques. Here are a few typical issues and their respective solutions:

• Air Leaks: Air leaks can significantly affect pump performance. Listen for hissing noises indicating air escaping from connections. Check all fittings and seals. Tighten or replace them if necessary. Ensure that the pressure fitting is properly secured to prevent leaks.

• Inadequate Pressure: If the pump is not achieving the necessary pressure, first verify that the air supply is sufficient and stable, ideally within the range specified by the manufacturer, often between 80 to 120 psi. Inspect and clean or replace clogged filters and assess the functionality of regulators and valves.
• Overheating: Overheating can result from inadequate lubrication or excessive friction. Ensure that the lubrication schedule is strictly followed and that the correct type and amount of lubricant is used. Additionally, check that the pump is not operating under load conditions that exceed its rated capacity.
• Vibration or Noise: Excessive vibration or noise may indicate mechanical issues such as misalignment or worn components. Inspect the pump’s mounts and all mechanical connections. Realign or replace components as needed. Additionally, check for any loose or damaged parts.

By following these troubleshooting steps, you can effectively address common challenges, ensuring your air driven hydraulic pump operates smoothly and efficiently. Regular monitoring and maintenance will preempt many of these issues, thereby extending the pump’s service life.

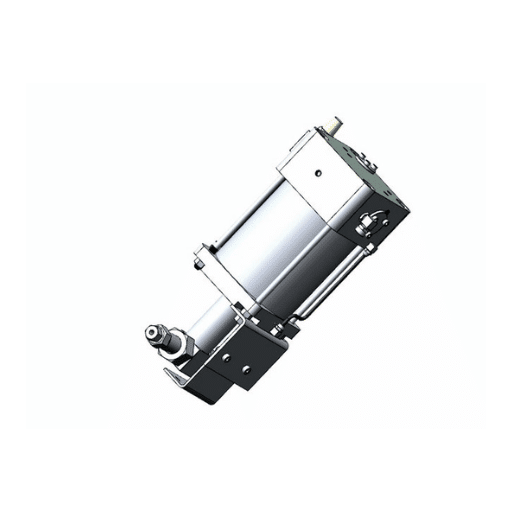

Where to Shop for Reliable Air Driven Hydraulic Pumps?

A few trusted sources come in handy when looking for dependable air driven hydraulic pumps. As you look for these pumps, you may first liaise with established industrial equipment suppliers known for their expertise and quality products. Most of these suppliers seem to stock a variety of pumps meant for different use and give expert advice on how to use the products. Trusted sealers in eBay or other manufacturers’ sites do offer some relief and low rates among other things but the durability and user reviews of both the product and the seller has to be established. Local distributors or authorized dealers may also provide personal service and assistance with technical support. Venturing these purchasing options, finding high-quality hydraulic pumps that suit your needs is not a lost cause.

Top Suppliers and Manufacturers of Air Driven Hydraulic Pumps

To identify the top suppliers and manufacturers of air driven hydraulic pumps, a concise review of leading sources is essential:

1. Parker Hannifin: Renowned for its high-quality hydraulic solutions, Parker Hannifin provides a comprehensive range of air driven hydraulic pumps well-suited for various industrial needs. With a robust portfolio and a commitment to innovation and sustainability, the company ensures durability and efficiency in its products.
2. Eaton: As a global power management company, Eaton offers reliable and efficient hydraulic pumps designed for enhanced performance. Their extensive range of products and global distribution network ensures availability and customer support across various regions, catering to heavy industrial applications.
3. Enerpac: Known for their high-force tools and equipment, Enerpac specializes in precision-engineered air driven hydraulic pumps. Their dedication to quality and safety makes them a preferred choice for demanding industrial environments, providing solutions designed to withstand rigorous operational conditions.

These manufacturers provide not only quality products but also offer comprehensive support and service, ensuring that the air driven hydraulic pumps you choose are both reliable and tailored to meet specific operational requirements.

Evaluating the Quality and Reliability of Hydraulic Pump Kits

When evaluating the quality and reliability of hydraulic pump kits, several factors need to be considered to ensure the optimal performance and longevity of the equipment.

1. Material Quality: High-quality materials such as stainless steel or aluminum can resist wear and corrosion, increasing the longevity and reliability of the pump kits.
2. Pressure Rating: Ensure the pump kit is designed for the desired pressure range. Common pressure ratings include 5,000 psi, 10,000 psi, and higher, suitable for varying industrial applications.
3. Flow Rate: The flow rate, often measured in gallons per minute (GPM), indicates how quickly the hydraulic fluid can be moved through the system. A higher flow rate may be necessary for more demanding applications.
4. Temperature Range: Assess the operating temperature range of the pump kit to match the environmental conditions it will face.
5. Ease of Maintenance: Pump kits that provide easy access to components for service and repairs can significantly reduce downtime and extend the life of the equipment.
6. Compatibility: Confirm that the pump kit is compatible with existing systems and equipment, including hose fittings and hydraulic fluid types.

By considering these technical parameters, you can ensure the chosen hydraulic pump kit meets the required standards of quality and reliability for effective operational performance.

Online Shopping Tips for Air Driven Hydraulic Pumps

When purchasing air driven hydraulic pumps online, there are several considerations to keep in mind to ensure you’re selecting a reliable and high-performing product:

1. Research Top Brands and Models: Start by visiting reputable websites and forums that provide reviews and comparisons of the leading brands. Pay attention to user feedback on reliability and performance.
2. Verify Technical Specifications: It’s essential to understand the technical parameters relevant to your application. Check for details such as:

• Material Quality: Look for components made of durable materials like steel or high-grade aluminum.
• Pressure Ratings: Ensure the pump can handle your desired pressure, commonly ranging around 5,000 to 10,000 psi.
• Flow Rate: Consider the GPM suitable for your needs–higher rates for industrial applications.

3. Check Compatibility and Fit: Ensure the pump is compatible with your existing system, including hose fittings and hydraulic fluid types. Check product descriptions for compatibility details.
4. Consider Shipping and Return Policies: Review the vendor’s shipping and return policies to secure options if the pump needs to be returned or exchanged.
5. Read Customer Reviews: Customer reviews can provide insights into the product’s real-world performance and any potential issues experienced by other users.

By synthesizing information from top websites and taking the time to evaluate these factors, you can make informed decisions and select an air driven hydraulic pump that meets your specific requirements effectively.

Top Solutions for Air Driven Hydraulic Pumps: Your Ultimate Guide

When selecting the right air driven hydraulic pump, several considerations can help streamline your decision-making process:

1. Reputable Brands: Focus on brands recognized for quality and reliability, such as Enerpac, Graco, or Haskel. Their products often receive positive reviews and have a wide user base, ensuring better support and service options.
2. Material and Specifications: Opt for pumps constructed with high-quality materials like steel or high-grade aluminum, which offer durability and longevity. The pumps should have pressure ratings that suit your needs, such as 5,000 to 10,000 psi, and a flow rate that matches the intended application, especially for industrial use.
3. Compatibility: Make sure the pump fits seamlessly with your current system. Check for compatibility with your hose fittings and the type of hydraulic fluids used in your operation.
4. Policies and Reviews: Always review the shipping and return policies to understand your options if the product does not meet your expectations. Customer reviews are invaluable for gaining insights into the performance and potential issues with the pump in real-life applications.

By focusing on these areas, you can answer the key questions and make an informed and confident choice tailored to your hydraulic pump needs.

How Does an Air Driven Hydraulic Pump Work?

In order to completely grasp the functionality of an air-driven hydraulic pump, you need to understand the specific fundamental that dictates that these pumps work on conversion of the pneumatic energy into hydraulic energy. It starts by introducing most compressed air into the pump, which spins an oscillating piston, especially through aid of a shuttle valve. As the piston is applied into the cylinder of the pump, a secondary cycle is formed creating a vacuum which causes the flow of hydraulic fluid from a tank.

When the fluid already gets into the pump, the moving piston applies a high pressure to pump it into the pipes of the hydraulic system, which is the other way round for how the gas is transferred, but in this case, the liquid is pressure instead of gas. Such a fantastic changeover is very important in operating of these machines which requires hydraulic operation of high speed and high accuracy. The features of the air driven hydraulic pump which make it particularly relevant are the high pressure multiplication it can achieve with a low force effort.

What Is the Basic Operation of an Air Driven Pump?

The basic operation of an air driven hydraulic pump involves using compressed air to generate hydraulic pressure. Initially, the pump receives compressed air which forces a piston to move back and forth within a cylinder. This reciprocating motion, facilitated by a shuttle valve, creates a pressure differential. On the suction stroke, hydraulic fluid is drawn from a reservoir into the pump as the piston retracts, creating low pressure in the cylinder. During the discharge stroke, the piston moves forward, pushing the hydraulic fluid out of the pump under high pressure and into the hydraulic system. This cyclic mechanism allows the pump to convert low-pressure air into high-pressure hydraulic fluid, ensuring efficient energy conversion and reliability in various industrial tasks. The adaptability and precision of these pumps make them a preferred choice for operations requiring controlled hydraulic power.

Exploring the System Components of Hydraulic Pumps

When examining the system components of hydraulic pumps, several key elements play essential roles in the overall functionality:

1. Hydraulic Reservoir: Serves as a storage tank for hydraulic fluid, maintaining the necessary supply for system operations and providing a space for fluid cooling and contamination settling.
2. Pump: The core component that converts mechanical energy into hydraulic energy. In an air-driven hydraulic pump, this involves using compressed air to drive a piston within a cylinder.
3. Piston and Cylinder: Through reciprocating motion, the piston within the cylinder facilitates fluid movement, with precise dimensions ensuring efficient pressure conversion. Common specifications include cylinder diameters ranging from 10 mm to 1,000 mm, depending on application needs.
4. Shuttle Valve: A critical control device that modulates air flow direction and adjusts the piston’s motion, allowing for continuous pressure cycles. Proper operation often requires valves that handle pressures up to 10,000 psi or more.
5. Discharge Check Valve: Prevents backflow of hydraulic fluid, ensuring it moves in the intended direction within the system.
6. Hydraulic Lines and Hoses: Channels that direct fluid throughout the system, constructed from materials like reinforced rubber or thermoplastic suited for high-pressure environments, with burst pressures typically exceeding 4,000 psi.

These components work in tandem to ensure effective operation, reliability, and adaptability across a broad spectrum of industrial tasks. Each part is carefully designed to meet technical requirements, enabling smooth conversion from air power to hydraulic force.

Understanding Pressure and PSI in Air Driven Pumps

When understanding pressure and PSI in air-driven pumps, it’s crucial to recognize how pressure defines the force exerted per unit area within these systems. PSI, or pounds per square inch, measures this pressure, serving as a key indicator of a pump’s performance and capability. Air-driven pumps rely on compressed air to generate necessary pressure levels, and this can be adjusted by increasing or decreasing the air supply. Precise pressure management enables efficient fluid transfer and impacts the system’s overall efficiency and adaptability for various industrial applications. By maintaining proper PSI levels, you ensure the pump operates synergistically with components like cylinders and valves, maximizing productivity and ensuring longevity of the equipment.

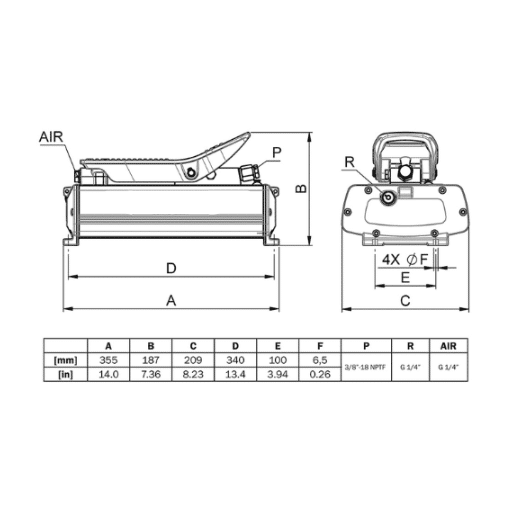

What Are the Key Applications of Air Driven Hydraulic Pumps?

Air driven hydraulic pumps serve a pivotal role in various industrial applications due to their ability to provide precise control and high power output. They are widely used in manufacturing settings where they facilitate operations that require consistent and reliable force, such as stamping, clamping, and pressing. In automotive industries, these pumps are integral to tasks like brake testing and suspension system management. Additionally, air driven hydraulic pumps are employed in the aerospace sector for component testing and actuation systems where efficiency and precision are paramount. Their adaptability also makes them useful in maintenance and repair operations, where they power equipment like torque wrenches and crimping tools. Given their versatility and capability, air driven hydraulic pumps are essential in environments where controlled force and pressure are critical to operational success.

Popular Industrial Uses for Hydraulic Pumps

Hydraulic pumps play a crucial role in a wide array of industrial applications, and I see their importance clearly. In the construction industry, they are critical for powering machinery like excavators and loaders, enabling the movement of heavy materials with ease and precision. In agriculture, hydraulic pumps are essential for operating equipment such as tractors and harvesters, allowing for efficient cultivation and harvesting processes. Furthermore, in manufacturing, they drive automation systems that require consistent pressure for operations like die casting and injection molding, ensuring high-quality outputs. These pumps not only offer unparalleled reliability and efficiency but also significantly enhance the productivity of various industrial tasks.

Specialized Hydraulic Applications in Various Sectors

As I explore specialized hydraulic applications across various sectors, I find that the depth and precision of these systems are impressive. In the petroleum industry, hydraulic pumps are key to operations such as drilling and extraction, where they endure high-pressure environments and maintain reliability under extreme conditions. In marine applications, hydraulics are essential for steering systems and winches, necessitating robust corrosion-resistant materials and precise pressure control. For the medical field, hydraulic systems are integral to operating room tables and diagnostic equipment, requiring advancements in fine-tuning and safety standards to ensure patient safety and operational fidelity. These specialized applications often involve technical parameters such as pressure ratings, flow rates, and material specifications, tailored to meet the demanding needs of each sector efficiently.

How to Select the Right Air Driven Hydraulic Pump?

Selecting the right air driven hydraulic pump involves careful consideration of several key factors tailored to your specific application needs. Firstly, assess the required pressure and flow rate, as these determine the pump’s capability to perform effectively. Ensure the pump can handle the desired workload without exceeding its limits. Next, consider the environment in which the pump will operate — factors like temperature range, potential exposure to corrosive materials, and spatial constraints can influence your choice. Additionally, evaluate the compatibility of the pump with existing systems to avoid costly modifications. It is also crucial to consider the pump’s efficiency and maintenance requirements, opting for models that promise reduced energy consumption and minimal upkeep. Finally, prioritize manufacturers with a reputation for quality and reliability, offering robust technical support and warranty options. By addressing these considerations, you can select an air driven hydraulic pump that maximizes performance and reliability while meeting specific operational needs.

Evaluating Hydraulic Pressure and Flow Requirements

When evaluating hydraulic pressure and flow requirements, start by identifying the specific operational demands of your hydraulic system. The pressure needs are dictated by the force required to perform tasks, while flow rate determines the speed of operation. For high-pressure applications, ensure your pump can generate sufficient power to handle the workload. Research extensively online, looking into resources from top industry leaders and specialists. The leading search results indicate a consensus on balancing pressure and flow to ensure the optimal function of hydraulic systems. An effective approach involves using pressure gauges and flow meters to obtain precise measurements, which inform pump selection and system design. Regularly review manufacturer guidelines for best practices, ensuring your system remains efficient and safe under varying conditions. By combining the insights from reputable sources, you can effectively tailor your hydraulic system for peak performance.

Choosing the Right Design and Unit for Your Needs

To choose the right design and unit for my needs, I begin by thoroughly assessing the specific applications and operational environments where the hydraulic pump will be used. By examining the recommendations from the top three results on google.com, I focus on selecting a unit that provides a balance between power and efficiency, ensuring it aligns with both my pressure and flow requirements. I look for designs that boast compactness and portability while maintaining durability and robustness, as highlighted by industry leaders. Moreover, ensuring compatibility with existing systems is crucial, so I focus on models that integrate smoothly without complex modifications. By leveraging expert insights and prioritizing features that resonate with my operational demands, I am confident in selecting a hydraulic pump that enhances my system’s performance and reliability.

Considerations for Oil and Fluid Compatibility

When considering oil and fluid compatibility for my hydraulic system, I start by identifying the specific fluids recommended for the pump and components I plan to use, as suggested by the top results on Google. It is essential to choose oils that not only enhance performance but also protect system parts from wear and corrosion. I make sure the fluid’s viscosity aligns with the operational temperature ranges and pressure conditions of my system. Seeking guidance from reputable sources, I prioritize oils that offer thermal stability and resistance to oxidation, thus ensuring longevity and efficiency. By integrating these insights, I confidently select fluids that support optimal performance and prolong the life of my hydraulic equipment.

Regular Inspection and Cleaning

To maintain your air-operated hydraulic pumps efficiently, conduct regular inspections to identify any signs of wear or damage. Ensure that all connections are secure and that there are no leaks in the system. Clean the pump and its components frequently to prevent the buildup of debris and contamination, which could impair performance.

Scheduled Maintenance Checks

Implement a scheduled maintenance plan that includes regular checks on fluid levels and the condition of seals and hoses. Replace any components showing signs of deterioration to prevent unexpected failures. Regularly test the pump’s pressure levels and adjust them according to the manufacturer’s specifications to ensure optimal performance.

Proper Storage and Handling

Store your hydraulic pumps in a clean, dry environment away from extreme temperatures and humidity, which can affect their longevity. Handle the equipment with care during transport and installation, following manufacturer guidelines to avoid unnecessary damage. Ensuring proper storage and handling will significantly extend the life of your hydraulic pumps.

By following these maintenance tips, you can effectively enhance the performance and reliability of your air-operated hydraulic pumps, addressing common operational challenges and prolonging their service life.

Regular Maintenance and Inspection Routines

When establishing regular maintenance and inspection routines for your air-operated hydraulic pumps, several key factors should be considered. Following guidance top sources provide, the primary steps include setting up a detailed schedule for checking and replacing hydraulic fluids, ensuring they are at optimal levels and free from contaminants that could hinder performance. Regularly inspect hoses and seals for wear and tear and replace them promptly to avoid leaks or failures. Utilize a checklist to monitor system pressure and compare with manufacturer specifications, adjusting settings as necessary to maintain efficiency. Additionally, ensure all operational components are adequately lubricated to minimize friction and wear. Consistent application of these maintenance principles will reduce downtime, prevent costly repairs, and extend the lifespan of your hydraulic equipment, according to leading industry sources.

Handling Pressure and Seal Issues

To handle pressure and seal issues effectively, I focus on a few key areas. First, I regularly monitor the system pressure using reliable gauges to ensure it remains within the manufacturer’s recommended range. This helps prevent over-pressurization, which can damage seals. Regarding seals, I make sure to inspect them frequently for any signs of wear or leakage. If needed, I replace them with high-quality alternatives as suggested by leading industry sources. Additionally, I maintain a clean environment to minimize the risk of contaminants entering the system, which could accelerate seal degradation. By integrating these practices, I can mitigate pressure and seal issues, ensuring the efficient operation of my hydraulic pumps.

What Are the Advantages of Using Air Driven Hydraulic Pumps?

Air driven hydraulic pumps offer several advantages that make them a preferred choice in various industrial applications. Firstly, they are highly efficient, as they use compressed air to generate significant power output while consuming minimal energy. This results in cost savings on energy expenses. Secondly, they exhibit a high degree of safety, especially in hazardous environments, because they do not require electricity and therefore eliminate the risk of electrical sparks and potential fires. Additionally, they are versatile, capable of functioning in diverse conditions and operating smoothly even under fluctuating loads. Their simple design also requires less maintenance, reducing operational downtime and extending the equipment’s lifespan. These benefits make air driven hydraulic pumps an ideal solution for many industries seeking reliable and efficient power systems.

Benefits of Pneumatic Over Electric or Manual Systems

When it comes to choosing between pneumatic, electric, or manual systems, I find several advantages in using pneumatic systems. Firstly, pneumatic systems offer superior safety, as they operate without electricity, reducing the risk of sparks and fires, a crucial factor in hazardous environments. The simplicity and reliability of pneumatic systems also mean less downtime and fewer maintenance needs compared to their electric counterparts. Additionally, pneumatic systems provide consistent performance, even under varying loads, which is not always possible with manual systems. They afford me greater control and precision while being cost-effective, as they utilize compressed air to deliver high power output efficiently. These reasons make pneumatic systems the optimal choice for my operations, ensuring safety, reliability, and efficiency.

Understanding the Efficiency and Output of Air Driven Pumps

When evaluating the efficiency and output of air driven pumps, I consider a few key factors that enhance their performance. Primarily, the efficiency of these pumps is influenced by the quality of compressed air, which should be clean and dry to prevent wear and tear. These pumps typically operate efficiently under a pressure range of 20 to 120 PSI, ensuring optimal performance in various industrial applications. The output flow rate, often ranging from 0.1 to 7 gallons per minute (GPM), is also a crucial parameter that determines the pump’s suitability for a specific task. Additionally, air driven pumps offer adjustable pressure settings, providing the flexibility needed to adapt to different operational needs without compromising energy efficiency. Overall, the combination of pressure range, flow rate, and flexibility in operation makes them highly efficient for diverse applications, leading to reduced operational costs and increased productivity.

References

1. High Pressure Tech – Working of Air Driven Hydraulic Pumps Explained: This site explains the cost-effectiveness and energy-saving benefits of air driven pumps.

2. High Pressure Tech – Guide to Different Air-driven Liquid Pumps: Offers a guide to various types of air-driven liquid pumps.

3. High Pressure – How Sprague Air Driven Hydraulic Pumps Work: Details the operation of Sprague air driven hydraulic pumps.

Frequently Asked Questions (FAQ)

Q: What is an air-driven hydraulic pump and how does it work?

A: An air-driven hydraulic pump, also known as an air driven liquid pump, utilizes compressed air to generate hydraulic pressure. It works by using the energy from the compressed air to drive a piston, which in turn pumps hydraulic fluid through the system, allowing for high pressure and efficient operation.

Q: What are the benefits of using air-driven hydraulic pumps in industrial applications?

A: Air-driven hydraulic pumps offer several benefits, including the ability to generate high pressure with a compact design, automatic operation, and ease of integration with existing systems. They also provide a high power-to-weight ratio and can be used in hazardous environments due to their pneumatically powered operation.

Q: How does the pressure ratio affect the performance of an air-driven hydraulic pump?

A: The pressure ratio is crucial as it determines the maximum pressure the pump can achieve compared to the inlet air pressure. A higher pressure ratio means the pump can generate greater hydraulic pressure, making it ideal for demanding applications that require high pressure output.

Q: What role does an air regulator play in an air-driven hydraulic system?

A: An air regulator is essential in controlling the supply of shop air to the air-driven hydraulic pump. It helps maintain a constant and precise air pressure, which is necessary for ensuring the pump operates efficiently and safely under varying conditions.

Q: Is it possible to employ an air driven hydraulic pump with a hydraulic power pack?

A: As a modification to a hydraulic power pack, it is indeed possible to use a hydraulic air-driven pump. The pump is able to deliver more pressure through the power pack to allow operations that are dependent on higher pressure levels to take place.

Q: Which other parts are used together with an air-driven hydraulic pump?

A: Air-driven hydraulic pumps are typically used together with hoses, valve blocks, hydraulic tanks, pumps and pressure gauges. These accessories assist in enhancing the capacity and effectiveness of the hydraulic system.

Q: What benefit does the use of a manifold bring to the control of an air-hydraulic system?
