In March 2023, a fleet manager in Ohio sat down to spec 12 new Class 6 delivery trucks. The ABS option added 3,900 per vehicle, a 46,800 line item that made him pause. He called his maintenance director and asked a direct question: Does ABS actually prevent enough accidents to justify that cost on every single truck? The maintenance director pulled NHTSA data, IIHS motorcycle studies, and FMCSA commercial vehicle requirements, built a spreadsheet, and walked the fleet manager through the numbers. The 12 trucks got ABS. Eight months later, one of the fleet’s older non-ABS trucks slid through a wet intersection, causing $23,000 in collision damage. The fleet manager never asked that question again.
That is the central tension behind every ABS vs. non-ABS brake system decision. Understanding the ABS vs. non-ABS brake system comparison is essential for technicians, fleet managers, and procurement engineers who still face real questions about maintenance cost, component complexity, performance on different surfaces, and whether the safety benefit justifies the investment. ABS has been mandatory on new passenger vehicles in the United States since 2000, on light trucks since 1997, and on air-brake commercial vehicles since 1998. This article provides an engineering-grade comparison of ABS and non-ABS brake systems, with stopping distance data, safety statistics, component cost breakdowns, and a fleet procurement framework.
What Is an ABS Brake System and How Does It Work?
An anti-lock braking system (ABS) is an active safety system that prevents wheel lockup during heavy braking by automatically modulating brake pressure at each wheel. The system uses wheel speed sensors, a control module, and a hydraulic control unit (HCU) with solenoid valves and a pump motor to cycle brake pressure at 10 to 20 Hz.
The Four Components of an ABS System
- Wheel speed sensors mounted at each wheel hub measure rotational speed and detect imminent lockup.
- ABS control module processes sensor data and decides when to activate the pressure modulation cycle.
- Hydraulic control unit (HCU) containing solenoid valves and a pump motor physically modulates brake pressure.
- Brake pedal pulsation mechanism returns feedback to the driver during ABS activation.
For a deep technical breakdown of the HCU itself, see our complete ABS hydraulic unit engineering guide.
The ABS Cycle: How Solenoids Prevent Wheel Lockup
When a wheel decelerates faster than the vehicle, the control module commands the inlet solenoid for that wheel to close and the outlet solenoid to open. Brake fluid diverts to a low-pressure accumulator, the pump motor returns fluid to the master cylinder side, and the wheel unlocks. The cycle repeats at 10 to 20 Hz, producing the characteristic pedal pulsation.

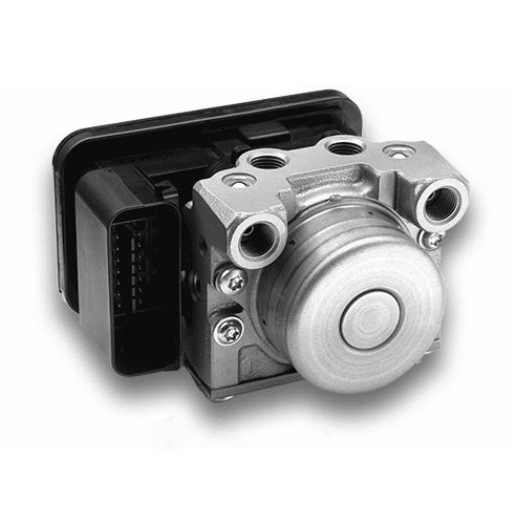

ABS Hydraulic Unit as the Core Control Component
The HCU is the physical heart of the system. It contains the solenoid valves that modulate pressure, the accumulator that temporarily stores diverted fluid, and the pump motor that cycles fluid back to the master cylinder. For the component-level engineering detail of how modulator valves function, see our ABS modulator valve diagnostic guide.
What Is a Non-ABS (Conventional) Brake System?
A non-ABS brake system, also called a conventional braking system, is a passive hydraulic circuit with no electronic modulation. Brake pedal force travels through the master cylinder, brake lines, and wheel cylinders or calipers without any intervention from sensors, control modules, or solenoid valves.
How Conventional Hydraulic Braking Works
The driver presses the pedal. The master cylinder piston pressurizes brake fluid. That pressure transmits through steel lines and flexible hoses to wheel cylinders or calipers. The pads contact the rotors or drums. Friction converts kinetic energy to heat. The vehicle slows. There is no electronic backup, no automatic pressure release, and no pedal pulsation.
Threshold Braking and Cadence Braking Techniques
Without ABS, a skilled driver can approach ABS-like performance through threshold braking, which means applying pedal pressure just below the lockup point. On older vehicles without ABS, cadence braking, a manual pump-the-pedal technique, mimics the ABS cycle. Both require significant skill and situational awareness that most drivers do not possess under emergency conditions.
Why Wheel Lockup Occurs Without ABS
On a non-ABS system, if brake pressure exceeds available tire traction, the wheel stops rotating and begins to slide. Locked front wheels eliminate steering control. Locked rear wheels cause instability and fishtailing. A four-wheel lockup produces a straight-line skid with no directional control.
ABS vs Non-ABS Brake System Comparison Table
This side-by-side comparison covers the engineering and practical differences between the two systems.
| Feature | ABS Brake System | Non-ABS Brake System |
|---|---|---|
| Pressure modulation | Active electronic (solenoid/pump) | Passive hydraulic only |
| Wheel lockup prevention | Automatic | Manual threshold braking |
| Steering during hard braking | Maintained | Lost if wheels lock |
| Pedal feel during activation | Pulsates at 10-20 Hz | Smooth, linear |
| Component count | HCU, sensors, module, wiring | Master cylinder, lines, calipers |
| System weight | +5 to 10 kg | Baseline |
| New vehicle cost | Standard (mandatory since 2000) | No longer available new (U.S.) |
| Maintenance complexity | Higher (electronic + hydraulic) | Lower (hydraulic only) |
| Dry pavement stopping | Equivalent to non-ABS | Equivalent to ABS |
| Wet pavement stopping | 10-18% shorter | Longer than ABS |
| Snow/gravel stopping | 15-30% longer, but directional control | Shorter, but no steering control |
| Component replacement cost | 1,200−5,000 (HCU) | 200−600 (master cylinder) |
| Failure mode | Reverts to non-ABS operation | No electronic backup |
Stopping Distance: ABS vs Non-ABS Performance Data
The ABS vs non-ABS braking distance question is the most common point of confusion in the ABS vs non-ABS brake system comparison. The answer depends entirely on the surface.
Dry Pavement Results
On dry asphalt or concrete with good tires, ABS and non-ABS stopping distances are statistically equivalent. A skilled driver, threshold-braking a non-ABS vehicle, can match an ABS-equipped vehicle within 1 to 2 meters from 100 km/h. An unskilled driver in a non-ABS vehicle will lock the wheels and take 10 to 20% longer to stop.
Wet Pavement Results
On wet pavement, ABS reduces stopping distance by 10% to 18% compared to locked-wheel skidding. More importantly, ABS maintains steering control, which means the driver can steer around an obstacle while braking. A non-ABS vehicle in a lockup skid cannot steer.
Snow and Ice Results
This is where the comparison becomes counterintuitive. On deep snow or loose gravel, a locked wheel builds a wedge of material in front of the tire that helps decelerate the vehicle. ABS prevents that wedge buildup, which can increase stopping distance by 15 to 30% on snow. However, ABS still maintains directional control, which means the driver can steer. A locked-wheel skid on snow or ice is a straight-line slide with zero steering authority.
Gravel and Unpaved Surface Results
On gravel roads, the same principle applies. A non-ABS vehicle with locked wheels digs into the gravel surface and stops in a shorter distance than an ABS-equipped vehicle that keeps the wheels rotating. The tradeoff is that the locked-wheel vehicle cannot steer around a pothole, animal, or oncoming traffic.
Mini-story, 2024 gravel road realization. An off-road construction fleet in Montana removed ABS fuses from 6 work trucks in April 2024, believing that non-ABS braking produced shorter stops on the gravel access roads. During a steep descent in May, two trucks lost directional control when the rear wheels locked. Both slid into ditches. One required a $4,200 tow and body repair. The fleet manager reinstalled all ABS fuses the following week and retrained drivers on the difference between stopping distance and directional control. The lesson: on gravel, ABS is about maintaining steering, not shortening stops.
Safety Statistics and Crash Data
The safety data strongly favor ABS, though the magnitude of benefit varies by vehicle type and surface.
NHTSA and IIHS Safety Findings
NHTSA studies indicate that ABS reduces fatal crash involvement by approximately 31% for passenger cars and 21% for light trucks on wet or slippery roads. The Insurance Institute for Highway Safety (IIHS) has consistently rated ABS as a critical active safety feature since the 1990s.
Fatality Rate Reduction with ABS
The most compelling safety data comes from motorcycle applications. Motorcycles with ABS are 31% less likely to be involved in a fatal crash, according to IIHS analysis. This is the largest safety benefit of any ABS application because motorcycle riders have no vehicle structure protecting them in a crash.
When ABS Does Not Help (and When It Can Hurt)
ABS does not improve stopping distance on dry pavement for skilled drivers. On deep snow or loose gravel, ABS can increase stopping distance by 15 to 30%. However, the directional control benefit still outweighs the distance penalty in almost every real-world scenario. A vehicle that stops 3 meters later but remains steerable is safer than a vehicle that stops 3 meters sooner but hits the obstacle because the driver could not turn.
Cost Comparison: ABS vs Non-ABS
The cost analysis matters for fleet procurement, retrofit decisions, and maintenance budgeting.
New Vehicle Purchase Cost Delta
On new passenger vehicles, ABS has been mandatory since 2000, so there is no purchase premium. On commercial vehicles, ABS may still be offered as an option on certain chassis configurations, though FMCSA mandates ABS on air-brake trucks. Where optional, the premium typically runs 2,500 to 4,500 per vehicle.
Component Replacement and Maintenance Costs
ABS adds electronic components that conventional brakes do not have. The hydraulic control unit replacement costs 1,200 to 5,000. Wheel speed sensors cost 80 to 200 each. The control module costs 400 to 1,200. By comparison, a conventional master cylinder costs 200 to 600. For a full breakdown of replacement costs and procedures, see our ABS pump replacement cost framework and procedure.
Insurance and Regulatory Cost Implications
Insurance premiums for commercial fleets often reflect ABS status. Fleets with 100% ABS coverage may qualify for lower rates. FMCSA regulations mandate ABS on commercial vehicles, and operating a non-compliant vehicle can result in out-of-service orders and fines.
Mini-story, 2023 fleet procurement decision. A Class 6 delivery fleet in Ohio faced a $46,800 premium to spec ABS on 12 new trucks in March 2023. The fleet manager hesitated until the maintenance director compiled NHTSA and IIHS data showing a 21% reduction in fatal crash involvement for ABS-equipped light trucks. The fleet approved the option. Eight months later, one of the fleet’s older non-ABS trucks slid through a wet intersection, causing $23,000 in collision damage and lost delivery revenue. The fleet manager calculated that a single avoided accident would have paid for ABS on 5 trucks.
Commercial Vehicle ABS vs Non-ABS (Air Brake Systems)
Commercial vehicle braking differs from passenger vehicle braking because Class 3 through Class 8 trucks use air brakes rather than hydraulic brakes. The ABS principle is the same, but the hardware is different.
FMCSA ABS Requirements for Commercial Trucks
FMCSA mandates ABS on all air-brake-equipped commercial vehicles manufactured after March 1, 1997. Tractors manufactured after March 1, 1998, must also have ABS. These regulations make the ABS vs non-ABS brake system question largely moot for new commercial vehicle procurement. The relevant question is maintaining existing ABS-equipped vehicles, not choosing between ABS and non-ABS.
Air Brake ABS vs Standard Air Brakes
Air brake ABS uses modulator valves on each axle rather than a central hydraulic control unit. The system pulses air pressure to the brake chambers instead of hydraulic fluid to the wheel cylinders. The control logic, wheel speed sensors, and safety benefits are functionally identical to hydraulic ABS.
Fleet Procurement Decision Framework
For fleet managers, the decision is not whether to buy ABS. The decision is whether to maintain existing ABS systems or defer maintenance. A deferred ABS repair may save $1,200 today but exposes the fleet to FMCSA violations, insurance premium increases, and liability exposure. The framework is simple: repair ABS faults immediately, document all maintenance, and never operate a vehicle with a known ABS failure unless the failure mode is confirmed to revert to standard braking.
ABS vs Non-ABS Motorcycles
Motorcycle ABS produces the largest safety benefit of any vehicle category.
Motorcycle-Specific Safety Data
IIHS data shows that motorcycles equipped with ABS are 31% less likely to be involved in a fatal crash. The European Union made ABS mandatory on all new motorcycles over 125cc starting in 2016. The safety benefit is so pronounced that many insurers offer significant premium discounts for ABS-equipped motorcycles.
Why Motorcycle ABS Has a Greater Impact Than Car ABS
A car driver in a slide has a metal cage, crumple zones, and airbags. A motorcycle rider in a slide has a helmet and riding gear. Preventing the slide in the first place matters far more for motorcycles. Additionally, motorcycle riders must balance the vehicle while braking, and a locked front wheel almost always causes a low-side crash. ABS prevents that lockup.
Mini-story, 2023 motorcycle ABS save. A rider in Oregon purchased a used 2019 Honda CB650R without ABS in September 2023 to save $800 on the purchase price. In November, he low-sided on a wet corner when the front wheel locked under braking. Medical bills totaled $12,400, the motorcycle required $3,800 in repairs, and he missed 6 weeks of work. The $800 savings from skipping ABS cost him over $16,000. His next motorcycle, purchased in April 2024, had ABS.
Failure Modes: What Happens When Each System Fails
Understanding how each system fails is critical for maintenance decisions.
ABS Failure Symptoms and Fail-Safe Behavior
When an ABS fails, the control module illuminates the ABS warning lamp and typically reverts to standard non-ABS braking. The hydraulic circuit still functions. The vehicle still stops. The driver simply loses the anti-lock modulation feature. Common failure causes include failed wheel speed sensors, corroded HCU connectors, stuck solenoid valves, and failed pump motors. For a complete guide to recognizing failure before it becomes critical, see our ABS pump failure symptoms reference.
Non-ABS System Failure Patterns
A non-ABS system fails through hydraulic leaks, master cylinder bypass, worn pads, or contaminated brake fluid. There is no electronic backup. A failed master cylinder means no brakes. A burst line means no brakes on that circuit. The diagnostic approach is purely mechanical.
Which Failure Is More Dangerous?
An ABS failure that reverts to non-ABS operation is less dangerous than a catastrophic non-ABS hydraulic failure because the vehicle still has basic braking. However, an ABS failure that produces erratic solenoid behavior, such as unwanted pressure modulation during normal braking, can be dangerous. When ABS behaves unpredictably, the diagnostic priority is immediate. For the complete test procedure, see our guide on how to test ABS hydraulic unit assemblies.
Mini-story, 2024 retrofit confusion. A shop owner in Texas fielded a call in January 2024 from a customer who wanted to retrofit ABS onto a 1998 Chevrolet pickup. The customer believed ABS was legally required and that retrofitting was straightforward. The shop owner explained that retrofitting a complete ABS system onto a non-ABS vehicle requires a new HCU, sensors, wiring harness, control module, tone rings, and recalibrated brake proportioning. Total parts cost exceeded $4,500, and no aftermarket kit guaranteed compatibility. The customer chose to maintain the existing non-ABS system with fresh pads, fluid, and lines. The shop documented the conversation and now uses it as a reference for similar inquiries.
Frequently Asked Questions
Q: What is the difference between ABS and non-ABS brakes?
A: ABS uses electronic sensors, a control module, and a hydraulic control unit to automatically modulate brake pressure and prevent wheel lockup. Non-ABS brakes rely entirely on hydraulic pressure from the master cylinder with no electronic intervention. The core difference is that ABS maintains steering control during hard braking, while non-ABS brakes require the driver to manually prevent lockup.
Q: Does ABS reduce braking distance?
A: It depends on the surface. On dry pavement, ABS and non-ABS distances are nearly identical. On wet pavement, ABS reduces stopping distance by 10 to 18%. On snow or loose gravel, ABS can increase stopping distance by 15 to 30%, but it maintains directional control that non-ABS locked-wheel skidding cannot provide.
Q: Are non-ABS brakes illegal?
A: Not on existing vehicles. FMVSS 135 mandates ABS on all new passenger vehicles sold in the U.S. since 2000. FMCSA mandates ABS on new air-brake commercial vehicles since 1997-1998. Older vehicles without ABS are legal to operate, but new vehicles must be equipped with ABS.
Q: Can you convert non-ABS to ABS?
A: Retrofitting ABS onto a vehicle that was not originally equipped is technically possible but rarely practical. It requires a complete HCU, wheel speed sensors, tone rings, a control module, a wiring harness, and brake proportioning recalibration. Total cost typically exceeds $4,500 with no guarantee of reliable function.
Q: Is it safe to drive with the ABS light on?
A: Yes, with caution. An illuminated ABS light means the system has detected a fault and reverted to standard non-ABS braking. The vehicle will still stop normally. However, the anti-lock feature is disabled, so hard braking on slippery surfaces may cause wheel lockup. The fault should be diagnosed and repaired promptly.
Conclusion
The ABS vs. non-ABS brake system comparison is no longer a procurement question for new vehicles. Federal mandates have made ABS standard on passenger cars since 2000 and on commercial air-brake vehicles since 1997. The relevant questions in the ABS vs non-ABS brake system decision today are maintenance discipline, component replacement decisions, and whether to keep older non-ABS vehicles in service.
The engineering data is clear. On wet pavement, ABS reduces stopping distance by 10 to 18% and maintains steering control. On snow and gravel, ABS may increase stopping distance slightly, but it prevents the loss of directional control that makes locked-wheel skids so dangerous. Motorcycles see a 31% reduction in fatal crashes with ABS. Fleet data consistently shows that the cost of ABS maintenance is lower than the cost of a single preventable accident.
For technicians, the practical framework is straightforward: maintain ABS-equipped vehicles to specification, repair faults immediately, and understand that an ABS failure that reverts to non-ABS is still a failure that needs attention. For fleet managers, the framework is equally clear: ABS compliance is not optional, and the safety data supports the investment.
