The A10VSO Series Axial Piston Pump by Bosch Rexroth is a multipurpose piece of equipment that can be found in hydraulic systems used in many different fields. This manual was designed as an all-inclusive introduction to the A10VSO series, which includes its design characteristics, operational principles, and applications. Even if you are a professional who wants to expand your expertise or someone new to hydraulic pumps altogether, this article will provide necessary insights and valuable facts about modern hydraulic engineering, focusing on the A10VSO series. After reading through it, one should know how these pumps work, what they offer over other types, and some tips for using/maintaining them best.
What Is the Bosch Rexroth A10VSO Series Axial Piston Pump?

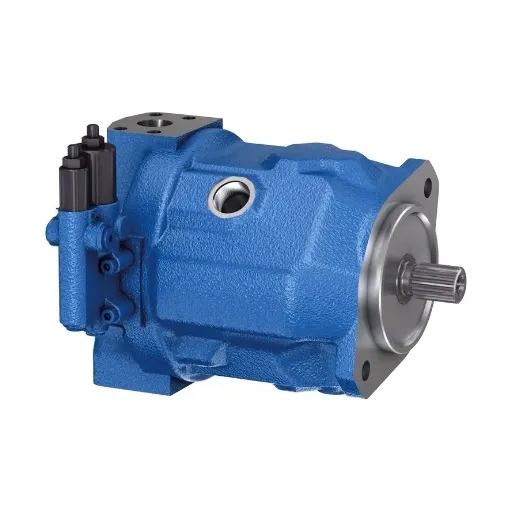

Image source: https://store.boschrexroth.com/
The Bosch Rexroth A10VSO Series Axial Piston Pump is a hydraulic pump that can change its displacement for better performance. The innovation of swashplate design enables smooth and precise flow rate control and pressure output control through the fluid. Due to their durability, even under severe conditions, this range always becomes the first choice in heavy-duty industries such as manufacturing, agriculture, or construction. In addition, A10VSO series pumps are compact but powerful enough, making them irreplaceable for many machines needing hydraulics power units.
Key Features of the A10VSO Axial Piston Pump
- Variable Displacement: By changing flow rates, this feature helps operators save energy by providing output needed only so far, making it work efficiently.
- Swashplate Design: Designed with a plate hinged at one end to move back and forth like a pendulum creating an uneven compression stroke then sucks in more oil. At the same time, the other side pushes out less oil, improving the pump reliability under different loads over time.
- High Power Density: These pumps are small but mighty because they have been built strong enough to generate lots of power for their size. Thus, they can fit into tight spaces where there is not much room available without sacrificing the performance level expected from such a device.
- Durable Construction: What sets apart these types from others lies mainly in their toughness; wear-resistant materials used during the manufacturing process contribute significantly towards reducing breakdown frequency caused by wearing off parts hence extending lifespan, thereby lowering maintenance cost required periodically, especially when working in harsh environments characterized by high temperatures combined with abrasive dust particles present around them constantly.
- Quiet Operation: These units run quietly in order not to disturb people within the vicinity where it operates, particularly those who work near places where much noise produced may affect concentration involving delicate tasks being carried out at that particular moment, so they should be placed away from such areas if possible otherwise soundproofing measures need taken into consideration during the installation process itself or even afterward depending upon circumstances prevailing thereat whatsoever until desired level achieved eventually so far ever since production begun till the present day.
-
Wide Application Range: The A10VSO series can be used in a variety of industries such as construction, agriculture, and industrial machinery, etc. due to their versatility, they can adapt to different hydraulic systems with varying requirements according to specific needs arising from various applications within these sectors thus becoming applicable universally across all fields related to mechanical engineering technology whatsoever at any given time till now or even future times ahead whenever necessary always.
Understanding the Variable Displacement Unit
In the A10VSO series, a variable displacement unit is designed in a pump that enables it to change the quantity of oil produced depending on what the machine requires. It does this by modifying the angle between the pistons and the drive shaft through the swash plate to alter their stroke length, which ranges from zero (when they touch) until the maximum value attained when they reach opposite ends of the cylinder bore. Thus, such a pump can deliver the exact volume of hydraulic fluid needed, thus saving power consumed while running under different loads. This feature becomes very useful where accurate control over hydraulics is necessary for smooth operation and reduced losses within hydraulic systems.
Typical Applications of the Bosch Rexroth A10VSO
The versatility and efficiency in the performance of Bosch Rexroth A10VSO pumps make them familiar in many fields. Here are some uses:
- Building Machinery: Excavators, loaders, and cranes all use A10VSO pumps. The possibility of changing flow rates allows for a more precise and quick hydraulic system response.
- Agricultural Equipment: These pumps are used in farming machinery such as tractors or harvesters, where they ensure an effective hydraulic power supply for implements and attachments, thus increasing productivity while saving fuel consumption.
- Industrial Automation: Manufacturing and processing equipment often employs the A10VSO series, which provides reliable hydraulic power for press machines, injection moulding machines, and conveyor systems, among other applications, to enhance operational efficiency and performance optimization.
Such examples show how adaptable the A10VSO series is within different sectors, making it the preferred choice for hydraulic solutions.
How Does the Bosch Rexroth A10VSO Pump Work?
The variable displacement A10VSO pump of Bosch Rexroth is designed to adjust the flow of hydraulic fluid efficiently in response to system requirements. The pump is an axial piston design, where pistons are arranged in a circle and move back and forth in a cylinder block. When the piston moves, it creates suction that brings hydraulic fluid into the chamber. The displacement volume of the pump is controlled by the swash plate’s rotational motion, which tilts at different angles. With this feature, the pump can increase or decrease fluid flow by changing the swash plate angle so that only the necessary fluids for best performance reach hydraulic systems. Besides delivering power consistently throughout hydraulic systems, this design also saves energy by maintaining minimum consumption levels.
The Mechanics of the Axial Piston Rotary Group
The central part of the Bosch Rexroth A10VSO pump is the axial piston rotary group. It has been created to provide maximum hydraulic efficiency. This assembly involves several pistons arranged in rows, which combine to convert mechanical energy into hydraulic energy. When it comes to rotating the drive shaft, the swash plate tilts, putting the pistons in contact with the cylinder block. During the return stroke, these reciprocating pistons draw hydraulic fluid into the cylinder and push it out under high pressure, thus allowing adjustable displacement by changing the swash plate angle.
Not only does this design allow for accurate control of fluid output, but it also ensures that pumps can smoothly handle different load conditions. Besides being small-sized yet robustly constructed as well; therefore, offering higher power-to-weight ratio while operating more effectively in space-limited areas. In summary, integrating the axial piston rotary group into the A10VSO pump represents state-of-the-art engineering designed for better performance within hydraulic applications.
Exploring the Swashplate Design for Hydrostatic Drives
The swashplate design is essential for hydrostatic drives as it helps in controlling the flow and pressure of fluids with ease. In this design, the tilting element is a swash plate that influences the pistons’ stroke length within an axial piston rotary group. Each time this happens, it changes the effective stroke on pistons, thus allowing variable displacement besides fine-tuning output flow rates. This is important because such kinds of drives should be able to work under different conditions where they will still perform best. Many modern hydraulic systems are based on this concept, making them more efficient while responding quickly to changing loads, ensuring smoothness and reliability during various applications. The swivel angle can also be adjusted so that the pump can provide maximum power at any given time.
The Role of the Controller in the A10VSO Pump
The controller of the A10VSO pump is essential in controlling how the hydraulic system works. This means that it regulates the pump’s speed, pressure, and flow rates to ensure it performs at its best. The device can change the inclination of its swashplate depending on loads because it keeps track of different variables continuously. Such kind of control allows the A10VSO pump to operate consistently, thereby improving the reliability and efficiency of the hydraulic system. Furthermore, more advanced models could have diagnostic capabilities that help identify problems during repairs and increase the lifespan for pumps used frequently while requiring little maintenance.
What Are the Specifications and Models Available?
This pump series is known as A10VSO and has many specifications that can be used in different areas of hydraulics. These essential features include displacement capacity between 10 and 71 cm³ per revolution, a maximum pressure rating of typically 420 bars (6,000 psi), and a wide speed range that permits use in various environments. In terms of types, there are standard ones for general purposes and those with high efficiency to save energy. Also, some versions come equipped with integrated electronic controls allowing accurate adjustment and performance monitoring. Each type is designed to ensure the best possible performance regarding reliability, durability, efficiency, etc.; therefore, they are widely applied in mobile and industrial hydraulic systems.
Examining the A10VSO 71 cm³ and A10VSO 100 cm³ Models
Within the A10VSO series, the 71 cm³ and 100 cm³ models of the A10VSO are recognized for their strong performance in different applications. Commonly having a maximum displacement of 71 cm³/rev, the 71 cm³ model is characterized by this feature. It facilitates power delivery efficiency under medium-pressure hydraulic systems without compromising dependability and quick response time. Conversely, it offers a higher displacement value of 100 cm³/rev, enabling more excellent flow rates and increased power output that suits applications requiring such capabilities best described by the A10VSO 100cm^3 model. They possess advanced functionalities geared towards improved efficiency where adjustable swash plate angles are used to realize better load handling ability. At the same time, integration with electronic controls enhances flexibility, enabling operators to optimize their performance depending on specific operational conditions or environments they will be subjected to. These qualities make them suitable selections for numerous industrial and mobile hydraulic applications.
Pressure and Flow Ratings of the Bosch Rexroth A10VSO
A wide variety of hydraulic systems can benefit from the intense pressure and flow capabilities of the Bosch Rexroth A10VSO series. These models are rated for a maximum pressure of 400 bar (5,800 psi) across the A10VSO 71 cm³ and A10VSO 100 cm³ sizes, which means they can work in harsh operational environments. They have flow rates ranging from about 40 L/min to 100 L/min depending on specific system requirements and model type used; this provides enough power to meet various needs within hydraulic machinery efficiency. Another essential feature is that these pumps can adjust their performance to optimize it under different load conditions by using variable axial piston pumps with swash plate design, thus making them applicable to mobile hydraulics and industrial applications.
Understanding the Differences Between Variable Pump Models
One way to achieve different flow rates and power outputs in hydraulic systems is by using a variable displacement pump. The A10VSO series from Bosch Rexroth, for instance, is made to deliver the exact amount of fluid required by any given application while also being energy efficient. There are some differences and similarities between models within this range concerning their sizes or displacements (which affect flow rates), among other things. To illustrate this point, it should be noted that bigger pumps like an A10VSO 100 cm³ can push more liquid through themselves at once – making them potentially suitable for higher power applications where necessary. In addition to these points, however, there may still be more features, such as hydraulic controls, which allow the swash plate angle to change so that loads can be handled better under various working conditions. It’s worth mentioning, too, that not all machines are designed for speed or fuel economy; some focus primarily on torque and overall power output instead, depending on what they’re meant to do precisely. With this knowledge, we can quickly identify the most appropriate pump model based on operational requirements.
How to Maintain and Troubleshoot the Bosch Rexroth A10VSO Pump?
To ensure maximum performance and durability of the Bosch Rexroth A10VSO pump, it is necessary to maintain it. The hydraulic fluid must be replaced regularly to avoid pollution and wear out, so you should check levels frequently. It is also essential to examine all connections, hoses, and fittings for damages or leakages and then fix them immediately if they have any problems. Filters should be changed or cleaned occasionally to ensure suitable purification and system efficiency.
When troubleshooting this device, one should listen for abnormal sounds, vibrations, or fluctuations in its operation. Make sure that everything is correctly positioned and the drive mechanism functions properly. If the pump does not meet flow rates or starts working irregularly, try adjusting the swash plate angle on top of checking pressure settings because such tests might reveal more about what could be wrong with its performance. This will save time during repairs while enhancing reliability, too, as failure may occur without warning signs being given, thus leading to unnecessary downtime.
Common Issues and How to Diagnose Them
When working with the A10VSO pump of Bosch Rexroth, some common issues that compromise its performance might be encountered. Among such troubles is cavitation, which often comes with abnormal noise and can cause severe harm if not solved. To diagnose it, test for air suction and affirm that the right fluid levels are reaching the pumps since low pressure may result from a small amount.
Another prevalent hitch is overheating, which can lead to inefficiency or even complete breakdown of a pump system. You can easily identify this problem by checking temperature readings; if they exceed what has been specified as operational temperatures, then there must be something wrong with the cooling system, like blockages or poor flow rates of coolants in use.
Lastly, variations in output pressure may indicate faults elsewhere in an installation. To troubleshoot this matter, examine relief valves on the pump alongside hydraulic fluid conditions because performance could be affected by contaminated oil. It is advisable to be watchful about these known issues so as to prevent failure before time while still ensuring efficiency for your A10VSO pump throughout its life span.
Maintenance Tips for Prolonged Pump Life
To keep a Bosch Rexroth A10VSO pump working for a long time and at its best, it is necessary to do maintenance on it regularly. Below are brief recommendations based on expert advice:
- Monitor fluid levels: Continuously observe and substitute hydraulic fluid levels as required. Use the type of fluid recommended by the manufacturer for compatibility and better performance.
- Examine filters: Make sure that the filters used in hydraulics are clean and functioning properly. If they get clogged up, this might reduce efficiency and damage pumps; therefore, they should be replaced or cleaned according to maintenance schedules.
- Maintain appropriate temperature conditions: Frequently monitor the temperature such machines work under and check whether their cooling systems are efficient enough to prevent overheating, which can result in wear through continuous high temperatures, causing breakdowns in fluids and, thus, wear-out pumps.
- Check components: Regularly look out for signs of worn-out seals, hoses, and joints by inspecting them from time to time, during which damaged parts should be replaced promptly before more serious faults arise later.
- Calibrate and test: It is essential to regularly carry out system calibration exercises coupled with pressure testing procedures to verify if pumps operate within given limits. This helps one identify potential problems early enough before they become too big to handle.
By adopting these maintenance practices, you can greatly improve reliability and prolong the life expectancy of an A10VSO pump, thus reducing unplanned downtimes and repair costs.
Where Can You Purchase the Bosch Rexroth A10VSO Series Axial Piston Pump?
You can buy the Bosch Rexroth A10VSO Series Axial Piston Pump from many authorized distributors and online sellers dealing with hydraulic parts. The primary source for this information is the official website of Bosch Rexroth, which also provides a list of certified distributors. Besides that, you can look for these pumps in large industrial supply stores like Grainger or McMaster-Carr and on platforms such as Amazon. Another approach would be to contact local hydraulic service companies – they may offer new and reconditioned units, so you can choose whichever suits your requirements better.
Top Rated Products and Customer Reviews
- Bosch Rexroth A10VSO 71
The Bosch Rexroth A10VSO 71 is popular among customers because it can be trusted to work well even in demanding conditions and for long hours. People who have used it have commented on its sturdiness and ease of setup, often saying that these make it an excellent option for industrial hydraulic systems. According to reviews, this product lasts very long and needs less maintenance than similar items, thus becoming a favorite among experts.
- Parker F12 Series
Many reviewers agree that the design of the Parker F12 series is versatile enough to fit any need while still performing better than most mobile hydraulics in general use today. They also love how quiet these units are when running continuously, as well as how consistently they deliver power output under varying loads throughout their lifespan; this feature alone has won over many industry professionals who had previously been skeptical about trusting anything less robustly built or with fewer moving parts (especially those rated by decibels). Additionally, people appreciate the company’s customer support service, which provides quick help during installation processes and troubleshooting tips that improve user satisfaction.
- Eaton Vickers Series
Commonly known as Eaton Vickers pumps or just “Vickers,” these devices have gained wide recognition for performing effectively across different economic segments, such as construction sites where they can operate heavy machinery like cranes without consuming too much energy. What most users find interesting about them, however, is how smoothly they run despite their affordable prices, which makes one wonder why other brands would opt not to make equally good machines available at lower rates given the current economic hardships faced by buyers worldwide.
In conclusion, these three brands enjoy high rankings among professionals because, apart from exhibiting excellent performance records over time, reliability remains a key consideration point since breakdowns usually occur at the least expected times, especially if there isn’t readily accessible backup support from manufacturers or suppliers.
Official Online Store of Bosch Rexroth
If you want to buy Bosch Rexroth products, you should visit their official online shop. This platform sells everything it manufactures, including hydraulic systems, pumps, and components. On this site, potential buyers are given all the information they need about what each product does, how it works, and where it can be used; these details are often contained in user manuals and installation guides. Additionally, a search bar makes finding items very easy since many things are available here. Any issues encountered during shopping will be handled by customer support, who also has contacts listed on this page. Sign up for their newsletters to get the best deals, or stay up-to-date with new releases!
Buying Guides and Tips
To explore hydraulic systems and pump options, it is recommended that we use authoritative references coupled with comparisons.
- Hydraulics and Pneumatics: This website provides inclusive buying guides that discuss essential factors such as flow rates, pressure ratings, and compatibility with current systems. They advise looking at product specifications carefully while also considering energy efficiency, which helps cut down on long-term operational costs.
- Grainger: Alongside valuable tips on choosing the right hydraulic pump, Grainger offers a wide range of products. They stress checking for certifications and warranties as indications of good quality but still request clients to talk to their technical support for personalized recommendations based on application requirements.
- Direct Industry: This site lists many manufacturers, allowing users to compare hydraulic components. Their advice is to use filter options to narrow down the selection process by power source, application type, or material composition, among other vital attributes, thus ensuring that what is bought meets specific needs in terms of efficiency and reliability.
Using these resources, potential buyers can make wise decisions about purchasing hydraulic system parts, considering cost-effectiveness against quality.
