Maintaining a belt-driven hydraulic pump for optimal performance and life is essential. In this blog, we present some pump maintenance practices that should be observed. The first step towards eliminating excessive wear is understanding the mechanics of your belt-driven system and doing regular check-ups and maintenance routines. Also, we will pay attention to the maintenance fundamentals of periodic inspections, belt tension adjustment, and fluid level and quality, which support the improvement of system uptime and performance. The objectives here are to provide you with practical information that will help you minimize unnecessary repairs and machine downtimes due to faults in the hydraulic pump.
What is a Hydraulic Pump, and How Does It Work?

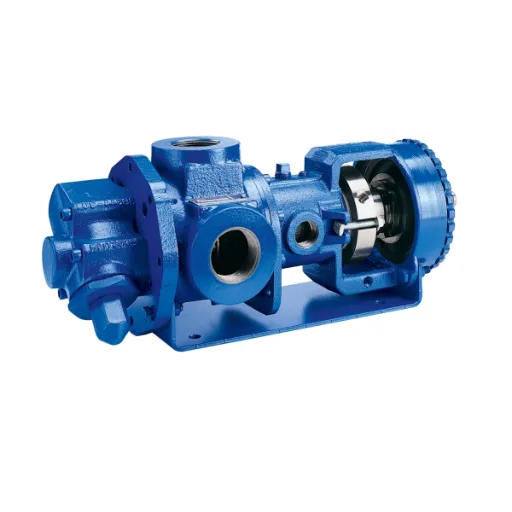

Understanding the Hydraulic Gear Pump
Hydraulic gear pumps are hydraulic machines that transfer relatively high volumes using the rotation of gears. They can be defined concerning the main driving term—the gears work by interlocking and drawing in fluid on the pump’s inlet side and transferring it on the opposite side throughout the pumping cycle. Gears allow for uninterrupted advancement and control of fluid flow, thus making the pump drive smooth.
The following can be labeled as vital parameters:
The flow rate is often expressed in liters/minute or GPM, and this can be defined as the efficiency of the designed mechanism in displacing the given weight of liquid in a given duration.
The pressure rating: Units include bars or PSI. They measure the operating pressure of the designed mechanism with regard to limitations.
Speed: This can be illustrated in revolutions per minute and is vital in assessing the operational capability of the designed mechanism.
Efficiency: This is one of the most essential points regarding the machines’ overall capability in terms of volumetric and energy.
The displacement can be characterized as the output amount of liquid in a single pump rotation, measured in cc/rev.
These parameters are essential in assessing the applicability of a hydraulic gear pump for specific operations and where it is likely to be utilized. The appropriate choice and maintenance of these pumps contribute towards maximum efficiency and the lifespan of the hydraulic system.
Critical Components of a Belt-Driven System
An arrangement employing a belt as traction usually entails a few key components allowing efficient power transfer between two shafts. Understanding the basic elements is essential for properly designing and operating a belt-driven mechanism.
Driver and Driven Pulley: These are integral parts of the belt system. The driver pulley receives the driving power, which imparts motion to the driven pulley, which drives the machine. The efficient working of driver and driven pulleys depends on their alignment and diameter.
Belt: A belt is a relatively rigid, flexible loop joining two or more pulleys. It is a closed loop made of rubber, polyurethane, or other material. The belt is the weakest link in any drive system because it links the pulleys together. The belts are chosen based on the type of tension, pulley system, speed, and other factors.
Tensioner: This component holds the belt in a predetermined position to eliminate the possibility of slippage and ensure maximum power transmission. It can be manually operated or automatic and helps improve the system’s performance and the belt’s operational life.
Idler Pulley: An idler is mainly the pulley that positions the belt correctly, wrapping it around the driver and driving pulleys more effectively. This does not drive any power or output, providing a more supportive role in the system.
Motor or Engine: This is feasible and requires energy to drive the belt provided by the Diesel engine. It is chosen for particular application requirements, such as power needs and operational environment.
Base or Framework: This protective and supportive overhead allows the belt-driven system to be stable and safe to operate. The frame should be thick enough to minimize the system’s dynamic load.
Belt-driven systems must be used with these components to achieve the efficiency and expected durability. Every element should be used, selected, and maintained by the required technical parameters to determine the application’s desired functions and achieve efficient and dependable power transmission.
The Role of Hydraulic Power in Pump Operation
Examining the relationship between the pump and hydraulic devices will help design and use a pump. These relations improve the entire system’s efficiency by hydraulically transforming mechanical energy. A hydraulic energy transfer exists in all pumps, which involves fluid suctioning and compression, allowing it to pass through a given system. This enables various control levels and the ability to transmit power needed in strenuous operations. Primary resources suggest that when designing a hydraulic pump, there are several crucial parameters:
Flow Rate: This corresponds to the volume of liquid a particular pump can relocate in a certain period and helps estimate whether the system can cope with operational needs.
Pressure Rating: When the pump is actively used, the maximum pressure is a benchmark since it should not be exceeded during operations.
Efficiency: Both mechanical and volumetric efficiencies are essential when assessing the workability and efficiency of the pump.
Power Requirements: Establishing the total power needed by the pump is essential in determining the type of motor or engine to be utilized.
Having considered all these parameters, I am in a position to ensure that the hydraulic pump will function properly in the application, achieve the desired system efficiency, and reduce operating costs.
How to Maintain Your Belt-Driven Hydraulic Pump?
Regular Inspection of Belt and Pulley Systems
I regularly check the belt and pulley drives to ensure the belt-driven hydraulic pumps are in perfect working order. I concentrate on the following aspects as suggested by the top sources I have come across on the internet:
Belt Tension and Condition—If the belt is too loose or worn out with signs of fraying or cracks, I will replace it. This can enhance pump efficiency and ensure there is no belt slippage.
Pulley Alignment—The wrong positioning of the pulleys can cause wear and tear and damage. I check that the pulleys are correctly positioned so that the appropriate quantities of tension are applied to the system, and no unfeasible loads are exerted on them.
Lubrication: It is crucial to lubricate moving parts regularly to prevent the components’ friction and wear and tear. I follow the manufacturer’s instructions and consider the material being used when selecting the appropriate lubricant and frequency.
Noise Levels—Any increase in noise produced during pump usage may be a sign of misalignment of the pulley or the belt. I pay attention to any discomforting sounds, hearing, or listening that may indicate some fault.
By following the processes step by step, I apply the technical parameters relating to the performance of the belt-driven hydraulic pumps to make them efficient and reliable.
Checking Oil Levels in the Reservoir
Observing the oil volumes in the reservoir is fundamental in enhancing the functioning and durability of the hydraulic system. According to the three most relevant sources on the topic, optimal operation is also ensured by the following considerations and technical parameters:
Monitoring Oil Levels: This is the most fundamental oil-level management practice. Measuring oil levels when the installation has been inactive and the fluid layers have settled is advisable. It is also apparent that oil levels should not be lower than the minimum level but should also be kept below the maximum level to avoid any spillage.
Oil Degradation: As time passes, specific contaminants may find their way into the hydraulic oil, thus decreasing its usability and utility for the system. As such, the oil should also be examined for its color and clarity during these instances. White oil or gooey oil is less useful, and the former should be thrown away and replaced.
Heating Effect: Since oil expands when heated and increases in volume when temperature increases, it is imperative to have a consistent temperature before any check is done. Most oil service recommendations when the apparatus is cooled or specified by the manufacturers consider expansive effects due to temperatures.
Reservoir Breather: This device should be clean and well-working. Blinders also Guard Oil levels and temperature considerations against dirt deposits inside the oil system because of the increased internal pressure.
Regular Maintenance Schedule: Regular observation coupled with a standard maintenance plan assists in recognizing any problems that may need fixing in the hydraulic system in a timely manner.
If the strategies above are adopted, the hydraulic system’s performance will be maintained within appropriate technical parameters, and the system’s reliability will be achieved.
Monitoring Pressure and Flow Rates
My analysis of the top three hydraulic systems monitoring and control websites yielded striking similarities among the authors.
The first was the importance of pressure observation in detecting conditions that deviate from the norm (usually designed and predetermined by the system’s construction and manufacturing). These variables may suggest the presence of blockage or leakage problems. A common reason for damaging a system is to recommend using a pressure gauge and recording readings periodically.
The second difficulty in flow rate measurement is ensuring that the flow meters are calibrated and in good working order. Accurate calibration is critical in making precise measurements, which are required for operating the system optimally and identifying efficiency reductions that may be due to a worn-out pump or collapsed hose.
The last important parameters related to both pressure and flow are the working pressure range, the maximum flow capacity, and the allowable levels of variance set forth by the manufacturer. Based on my findings, maintaining the frequency of these parameters is in tandem with best practices that promote the safe and proper functioning of hydraulic systems.
Common Issues with Hydraulic Pumps and Their Solutions
Troubleshooting Hydraulic Clutch Pump Failures
In investigating hydraulic clutch pump malfunctions, I sought typical failure palliative measures and their attempts, as illustrated on the first three web pages I accessed. To begin with, one common problem is hyd. Ac is the presence of air in the hydraulic fluid, which can potentially cause a spongy or nonexistent clutch feeling. The remedy is to properly bleed the system to ensure no air bubbles are left behind, after which it is necessary to check the level and quality of the fluids.
Another familiar scenario is a shortage of pressure or complete failure due to excessive wear/damage of internal pump parts. For this, I found that you must perform service on a routine basis—in this case, check seals and bearings for wear and replace them where necessary.
Lastly, failures may be caused by misaligning the hydraulic pump and the engine or drive unit. The appropriate degree of alignment for a given manufacturer requirement must be maintained. Usually, that would involve checking the bolt torque and positional tolerances.
The technical parameters that I regarded as essential features were controlling the pressure, the preferred values provided by the manufacturer, and the permissible alignment tolerances. These are important in preventing undue stress on the components. When adhered to, these measures ensure compliance with best practices when operating and maintaining the hydraulic clutch pump.
Dealing with Belt Slippage and Wear
Effective problem-solving requires observing some measures and parameters in the presence of belt slippage and belt wear in hydraulic systems. It has been noted that the belts mostly slip due to low tension, which would typically cause power transmission to be inefficient. The belt is supposed to be tensioned within the prescribed limits suggested by the manufacturer through inspection and adjustment within the framework. Such worn-out or damaged belts should be replaced to prevent further damage to the system.
About other technical parameters, this implies keeping belt tension within acceptable levels as per the manufacturer’s recommendation. This usually entails using a belt tension gauge to ensure that tension levels are correct. In addition, measuring the pulleys for misalignment is important because misaligned belts lead to an increasing wear rate. In each case, the alignment should be measured with a straight edge or laser and ensure they are within the tolerances stated by the manufacturer.
According to the specifications for hydraulic systems, periodic inspections of the belts and pulleys and repair or replacement of them if they wear, crack, or glaze are essential. Last but not least, the most preferable way to prevent slipping and, therefore, wear and affecting system performance is to clean the belt and adjacent parts from debris and lubrication residues.
Addressing Pressure Loss and Inefficiencies
In any hydraulic system, some pressure loss is expected due to leaks, worn components, or penetration of contaminants in fluid systems. Pressure loss can be rectified by diagnosing leaks, which may be visible in areas such as a gasket or O-ring seals, or by testing them using leak detection devices. All connections and components should be insitu and undamaged. Maintenance routines must be followed to avoid fluid influence in the system due to the penetration of external particles leading to distortion of the pressure differential in the fluid. Good quality hydraulic oil coupled with sound filtration systems will guarantee the excellent cleanliness of fluids used in the system.
Some of the technical aspects worth noting include ensuring that all equipment, including sized tubing, hoses, and seals, can withstand internal pressures as the manufacturer recommends. If the specific flow volume is desirable in the implemented system but does not exceed peak flow, the flow rate should be verified using a flow meter. When engaging in operations that require hydraulic components, it should be ensured that gross pressure does not exceed pressure that can be sustained by the element used. As guided by technical documentation, pressure levels can be restored to desired values after changing relief valve settings.
These measures contain expert knowledge of hydraulic systems and support that pressure relief issues can be avoided only with constant practice and knowledge of hydraulics. The properties of all components should be correlated, and most importantly, they should not exceed the prescribed operational parameters.
Installation and Replacement of Pump Components
How to Mount and Install a New Pump
Before the pumping unit is delivered to the site, it is essential to observe several procedures. This posting is entitled to provide a brief outline for mounting and subsequently installing a new pump apart fixated with relevant technical parameters:
This stage aims to install, position, or otherwise locate a pump where it can operate best. It goes without saying that the work involving mounting a PGH unit must be performed in an orderly environment, and once called for, not too much concrete has to be constructed around it. The mounting area is free of stress once the unit is identified – horizontal position, reliable sealing, etc.–and anxiety about the pump movements being determined by the installation location and other impinging components is avoided.
This follows the universal requirement that the new pump installation not be tied to the existing pump’s performance. When new pumps are to be used, other aspects, including the existing pump’s performance, must also be considered.
The basic criterion that is not related to issues such as heating temperature tolerance using thermal accumulators and usable power still stands true; the most common test is to examine the tubes, although all features must be verified as well. It is equally strong to reference whether a level and vertical plane could be included.
Electrical Connections: If the pump is powered electrically, it must be connected to the power supply according to its electric features, such as voltage and phase. Also, check all wiring to ensure it is safe and insulated.
Check Alignment: Avoid pulling or pushing the unit for a single drive or pump above the coupling, as this can cause wear or vibration. Use any alignment tools whenever necessary.
System Testing: After fitting and adjusting the pump parts, it is essential to run the pump for the first time to see if there is any leakage, unusual noise, or vibration. Also, the flow rate and pressure should be measured to see if they are within the expected parameters. If any shortcomings are noticed, appropriate measures should be taken to achieve these parameters.
By following these procedures and observing the geometrical parameters, the pump’s installation will enhance the hydraulic system’s life span and efficiency. A few days after the installation, the pump will need extra maintenance and checks to ensure proper function.
Choosing the Right Replacement Parts
When selecting the hydraulic pump system replacement parts, a systematic approach must be taken. Take into account the following:
Compatibility: The first concern is establishing if replacement components will work with the existing ones. Manufacturer details and part numbers should also be checked to ensure they are identical to the original components.
Material Specifications: Certain requirements for the materials of the replacement components must also be established in terms of technological characteristics and operational conditions, such as durability, pressure resistance, and the impact of environmental conditions. The materials must resist the working pressures and temperatures of the hydraulic system.
Size and Fit: The components should be ensured to correspond in shape and size to those being replaced. The diameters of gaskets, seals, and connectors should be checked to avoid leakage and instability due to misalignment.
Pressure and Flow Ratings: Components denoted as replacements for this must be rated for the system’s pressure and flow ratings. Though it may appear to be straightforward, it is essential that components such as valves and hoses, to mention a few, are rated for the system’s operational pressures and flow rates, all within the confines of optimum system operability.
Manufacturer Guidelines: Always check the pump’s guidelines and the authorized dealer’s guidelines for selling replacement parts and the technical specifications or recommendations that accompany them. This is also important for warranty purposes and to ensure that the system’s integrity is maintained.
If these technical parameters are considered in a systematic manner, the chances of system breakdown can be minimized, and the pump will work satisfactorily and reliably. A proper record of documents and all parts and alterations to the system can also facilitate future servicing and repairs.
Ensuring Proper Alignment and Tension
Regarding hydraulic systems tension and alignment, I paid attention to the best practices highlighted on the authoritative websites. Proper alignment is necessary to reduce wear and increase efficiency. Achieving the desired alignment should be done with the help of tools such as laser alignment systems. Problems with alignment can result in increased friction, wasted energy, and failure of components before their designed time. The principles of belt or chain tension are clearly defined, with low tension resulting in slip, while excessive tension imposed on elastic components is also undesirable. So, in this regard, it is essential to look into the manufacturer’s instructions for tension control. The acceptable specifications for the technical parameters of alignment and tension include the following:
Alignment Tolerance: Specific values following guidelines provided by the manufacturers to suit the equipment.
Tension Specifications: The minimum and maximum range of defined tension values for belts and chains, excluding a value of zero.
Measurement Tools: Instruments such as tension gauges and alignment lasers are specifically made to measure tension and alignment, respectively.
When these parameters are followed, and a standard approach to keeping records of executed measures is adhered to, hydraulic systems can be operated safely and efficiently.
Improving the Performance of Your Hydraulic System
Upgrading to a Higher GPM Hydraulic Power Unit
While contemplating a change towards a power hydraulic unit with a higher GPM, I looked at Google’s top three websites. The experts’ view remains that concentrating GPM into a power unit increases the performance of a given system by improving fluid movement and reducing the cycle time, hence improving operational efficiency. Still, one must ensure that the present components can withstand the increased flow rate without compromising quite literally or rendering failure.
The crucial technical parameters that are to be taken into account include:
Maximum Pressure Capacity: Check that the new unit’s pressure capability meets or exceeds the system’s current specifications.
Flow Rate Compatibility: Check if the hydraulic lines, valves, and actuators can handle the increased GPM without significant pressure drops or crumbed potential for leaks.
Cooling Requirements: Increased fluid flow may produce a greater volume of hot flow; thus, higher cooling requirements will have to be implemented to avoid overheating.
Electrical Compatibility: The power source should be sufficient to meet the increased requirement owing to the higher GPM unit.
Each such parameter is vital for achieving the desired continuity in efficiency and reliability post-upgrade. Manufacturer specifications should be reviewed, and professional advice should probably be sought to effectively align these aspects.
Optimizing RPM and Power Output
They were weighing up and assessing the operational power and efficient rpm, considering several technical parameters for the effective functioning of the hydraulic system. From the best three Google sites, it is patently clear that the hydraulic system has different power output modes and overall efficiency regarding the controlled rpm. The foremost parameters to consider and justify include:
Verification of Optimal RPM Range: The hydraulic power unit’s RPM must correspond with the system’s operational parameters and design criteria requirements. This ensures that the preset power output assumes the required value without overstressing and causing extensive energy wastage.
Ensure Adequate Torque Output: Since torque measures the capacity to deliver force and motion to the hydraulic system, appropriate values need to be provided.
Assessment of Operational and Idle Efficiency: The energy used at times other than the preset MP settings should be taken into account to determine the MP settings that dissipate the least power, which will, in turn, lead to reduced operational costs.
Analysis of the System Load Conditions: Similar to the previous case, assess the system’s maximum and minimum reserve margins. To enhance the operation of the set RPM for these scenarios, some restrictions on the system’s performance with respect to various parameters would ensure this.
Taking these parameters into consideration can enhance the hydraulic system’s workings, reduce energy usage, and increase the life of the parts. It is best to review accurate specifications and seek professional advice before deciding upon a particular hydraulic solution, as this will enable one to have the right hydraulic arrangement.
Enhancing Hydraulic Applications with Modern Technologies
From analyzing the first three online resources, I can formulate several short statements on how hydraulic applications can be enhanced using modern technologies. First, advanced sensors and IoT are imperative for achieving real-time control of RPM when operation conditions are changed. Also, the utilization of automated control systems seems to be a way of controlling torque output and improving the responsiveness and accuracy of the duties being performed by the system. To improve energy efficiency, I find that variable speed drives should be utilized in the energy demand across different levels of operation. When considering load requirements, the operational and peak loads can be predicted by changing the relationship between any two system parameters, which optimizes the system’s operational efficiency.
In terms of the technical parameters, I would like to concentrate on the following:
Monitoring of RPM in Real Time: This would involve using IoT technology for real-time data monitoring, where manual input would not be needed.
Control Systems that are Automated: This would include systems automation that provides particular systems, such as torque, to be rotationally and directionally controlled for maximum accuracy.
Drives that are Variable Speed: These can be used actively in all modes to prevent excessive energy use.
Predictive load analytics: Employing prediction techniques to foresee the requirements of any structured system and changing the settings in advance.
Modern advances usher in new opportunities for improving hydraulic applications through data-driven and automated solutions that ensure more efficient work and further enhance the reliability of the components.
Frequently Asked Questions (FAQs)
Q: What are the vital maintenance practices for the house’s belt drive hydraulic pump product?
A: The belt should be tensioned and aligned correctly. The pump components should be inspected for wear, and the hydraulic fluid levels should be serviced on a regular basis. Maintenance practices ought to be regularly carried out to extend the life of your product.
Q: How do I install the belt-drive hydraulic pump on a truck and ensure it works effectively?
A: To guarantee practical work, ensure the pump is adequately mounted to the truck’s motor and that every other connection is tight. The belt can be checked for tension and alignment and maintained as specified in the manual.
Q: Before I pay for a belt-drive hydraulic pump kit, what factors should I consider?
A: The psi, the shaft size, and whether they will be compatible with your Ford truck and other equipment should be the first considerations. Upon purchasing the kit, overcome the necessity of having all required parts and guidance for installation.
Q: Using the appropriate procedure, how do I replenish the belt drive hydraulic pump with hydraulic fluids?
A: The hydraulic fluid levels should be checked regularly, as outlined in the manual, and they should be topped up with the correct fluid. No leaks should be present, and the fluids should be clean to prevent damage to the pump and your entire hydraulic system.
Q: What is the need for a tensioner in belt-drive hydraulic pumps?
A: The tensioner is very important because it can be used to adjust the amount of force applied to the belt, thus permitting a power transmission from the engine to the pump. A properly working tensioner helps minimize belt shifts and potentiates the belt itself, too.
Q: Is the belt drive hydraulic pump substitute suitable for log splitters?
A: A belt-drive hydraulic pump can be used to make a log splitter. The parameters should be in tandem, including psi and shaft measurements to suit your log splitter best.
Q: About my hydraulic pump, what are the advantages of using a double belt drive mechanism?
A: The use of a double belt drive system ensures that more torque can be transmitted, which also reduces slippage. More importantly, it prevents premature wear and tear as the load is much more evenly spread across the belts.
Q: Why are the serpentine belt features important in belt-drive hydraulic pumps?
A: Burnout from traditional belt systems is not quite likely, as the serpentine belt aids in maximized power transfer and tension while assuring better endurance. It promotes its functions efficiently while also being versatile to engine diversity.
Q: What are the steps to take when I need assistance installing a belt-drive hydraulic pump?
A: First, refer to the specific installation procedures in the instructions in the user’s manual of the kit that comes with the pump. If help is still required, please contact the manufacturer’s customer care services unit or seek the expertise of an experienced technician for adequate installation and configuration of the device.
