Canned motor pumps have revolutionized the world of fluid handling, offering a reliable and innovative solution to one of the most critical challenges in industrial pumping—leak prevention. These advanced sealless pumps combine the motor and pump into a single hermetically sealed unit, ensuring enhanced safety, efficiency, and minimal environmental impact. Whether you’re navigating the complexities of chemical processing, power generation, or any application requiring the transport of hazardous or volatile fluids, understanding how canned motor pumps function and their key advantages is essential. This guide will provide a comprehensive overview of canned motor pumps, exploring their design, operation, benefits, and why they are a preferred choice in numerous industries seeking safe and efficient pumping solutions.

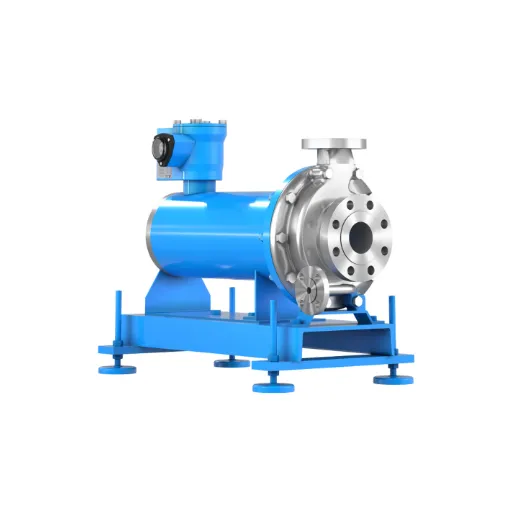

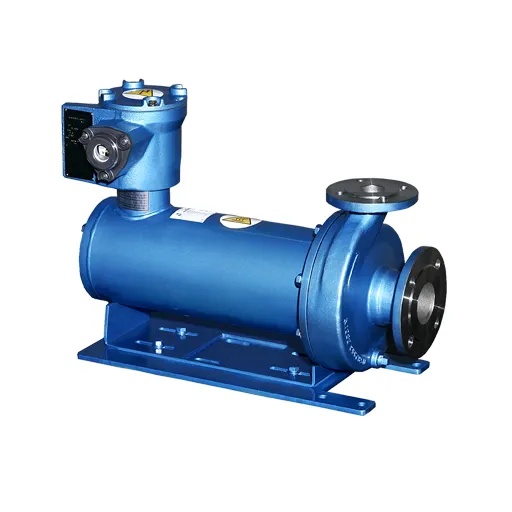

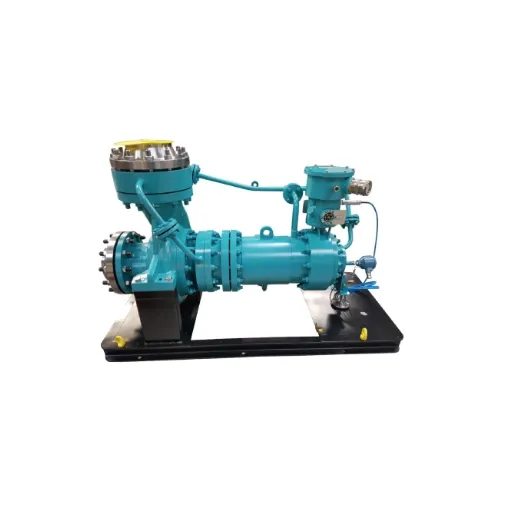

What is a canned motor pump?
Understanding the canned motor technology
Canned motor technology encompasses a pump and motor within one unit for zero leakage and very high dependability. A motor is bound in a hermetic casing, which makes the use of shaft seals or couplings obsolete as they will eventually wear out and leak. This design is especially useful in controlling dangerous, poisonous, or high-temperature fluids because of the full containment throughout the pumping process.
The basic mechanism relies on employing magnetic coupling of the motor’s stator and the rotor that drives the impeller. Cross-connections that could jeopardize the system’s integrity are not employed with this configuration. The outcome is a design that requires less maintenance and has a greater operational life due to friction and wear. Contamination control is important in some environments, and canned motor pumps are very effective in those environments due to a closed system that eliminates external interference.
Canned motor technology has a very remarkable advantage that cannot be ignored—the ability to endure capricious conditions like heavy pressure and harsh temperatures. This technology is being employed in chemical processing industries and even in nuclear power generation, which speaks a lot about the reliability and efficiency it offers. Furthermore, its compact structure and low moving components validate its economical value for applications that require sturdy and continuous performance.
How does a canned motor pump work?
Working with a canned motor pump requires joining the motor and pump together into a single unit. There’s no dynamic seal between the pump and the motor, meaning there is no chance of leakage. The motor windings and rotor are placed in a hermetically sealed housing, ensuring the pumped fluid stays contained even when there’s high pressure.
Energy from the motor is transferred rotationally to the fluid via the motor which the pump’s impeller is directly mounted on. If not a secondary liquid, the hydraulic oil used in the housing is safe and further ensures efficient lubrication and cooling for motor bearings and other internals during operation. These are positives as they lessen the complexity of external lubrication systems.
Canned motor pumps are popular when transporting aggressive, hazardous and volatile refrigerants as the elimination of seals reduces the chances of fluid leakage. For industrial purposes, their compact design supplementing durability under tough environments improves system reliability, energy efficiency, and over performance.
Key components of a canned motor pump
- Stator: A canned motor pump has a motor section, and its motor includes the stator which is a very important part. The stator is located outside the containment shell and the rotor is magnetically coupled to it. The rotor moves due to the magnetic force being emitted from the stator. The energy required to pump the working fluid is provided by the rotor. The stator also has stator windings which are usually insulated. These windings are sealed so that they are secure from the working fluid and withstand high temperatures.
- Rotor: Incorporating the electric motor and the driven impeller creates an assembly where the electric motor is enclosed in a shell that rotates a shaft within a casing filled with an appropriate liquid. The rotor directly couples with the impeller, which moves the rotor up or down and provides mechanical energy for the liquid flow. A magnetic field produced by the rotor undergoes rotation and gives energy to various moving parts and energizes the pump.
- Containment Shell: This forms a complete seal for the electric motor from the fluid being pumped and the primary electrical parts that corrode easily. The materials used which do not conduct magnets like steel enable the shield to endure erosion. Non-magnetic materials which do corrode like stainless steel, Hastelloy oder other resistant alloys ensure the shield lasts long and is very useful in harsh chemicla enviroments.
- Impeller: The main assists in providing the fluid with energy is transfered by the impeller and the hydrolic system if the impeller transfers energy for agitating. Impeller blades are designed using chemical resistant polymers such thermoplastics or even durable stainless steel to ensure the needed flow and pressure is achieved.
- Sleeve and Thrust Bearings: These components are crucial to properly aligning the rotor and minimizing the friction during operation. Canned motor pumps use hydrodynamic bearings with self-contained lubrication systems, so oil doesn’t have to be added externally. The fluid that is pumped lubricates the bearings.
- Cooling Pathways: Cooling pathways integrated within the motor serve to control temperature of the windings and bearings. These pathways control flow of the pumped fluid, removing heat from important parts to stabilize their running temperatures.
- Terminal Box: This is a enclosure where the stator leads are connected. It encapsulates system components to prevent access to live electrical parts which might lead to unsafe conditions that could be encountered during use.
Reliable construction and integrated features of the canned motor pump necessitate operational stability throughout a myriad of industrial processes. Its design reduces risks associated with hazardous fluids as well as seal pumps while maintaining efficiency and reliability.
How does a canned motor differ from traditional pumps?
Comparison with centrifugal pumps
Both traditional centrifugal pumps and canned motor pumps use impellers to transfer fluids, however, their design, functions, and applicable uses are very different. Canned motor pumps are built differently from centrifugal pumps since centrifugal pumps utilize mechanical seals or packing to guard against fluid leakages, especially at the shaft. This mechanism proves to be dangerous in demanding applications because of the risk of leakage, maintenance, and loss of downtime. On the other hand, canned motor pumps incorporate hermetically sealed construction where the motor and pump are integrated into a single unit and do not need shaft seals. This design reduces the chances of leaks and proves beneficial in applications with toxic, radioactive, or otherwise hazardous fluids.
Canned motor pumps also offer a compact structural design that results in a center of gravity shift, a decrease in moving parts, and distraction-free flow paths. This results in a larger reduction in vibration and noise levels when compared to centrifugal pumps. Canned motor pumps are also manufactured for shed spaces, which makes them further energy efficient.
Canned motor pumps performance studies estimate a range between 75 and 85 percent efficiency. Depending on the application, these figures can cross and even outperform centrifugal pump efficiency. Canned motor pumps have an added advantage in terms of design, as maintenance costs are lower compared to other centrifugal pumps due to the lack of mechanical seals which generally add to the failure points in centrifugal pumps.
Like most pumps, centrifugal pumps tend to dominate when it comes to high flow rates, alongside low pressure—areas where canned pumps lack. What canned motors do boast is performance in high-safety standard domains, such as chemical processing, nuclear energy facilities, and pharmaceuticals. Despite their lack of versatility, there is little doubt that the modular construction logic and operational advantages of canned pumps grant them an edge in specialized fluid handling.
Advantages of using canned motor pumps
Canned motor pumps are exceptional when it comes to protecting the environment, ensuring reliability and operational efficiency, and they achieve this through offering a variety of benefits. One of the benefits includes the complete containment of the pumped fluid as leaks from mechanical seals are no longer an issue,e like in conventional pumps. This is very useful in caring for waste materials, toxic or radioactive substances, as it mitigates risks to the environment and workplace.
Canned pumps come with their unique seal-less design that allows them to work with less maintenance compared to other pumps. The absence of mechanical seals leads to a lack of worn out failures, which leads to lower costs and an extended lifespan of the system. They function efficiently with little to no background noise, making them ideal for production in the pharmaceutical industry and in the semiconductor industry, where precision and cleanroom standards are a must.
The application of modern technology to canned motor pumps has enhanced their performance even further. Advancements to the thermal management system enables them to dissipate heat more efficiently, allowing higher temperature fluids to be used with ease. Moreover, the use of modern materials and new manufacturing processes increased the thrust of more corrosive and volatile materials, enabling their use in very demanding industrial regions.
For engineered and standardized safety applications across industries, pumped fluids need to be sealed in containers with virtually no leakage and robust versatility. These properties make customized solutions for borders bound with engineering barriers featuring sophisticated fluid containment, defense, and eco-friendly dynamics integrated into one unit.
The role of the electric motor in pump efficiency
The efficiency of pump systems is significantly affected by the use of electric motors, considering they impact energy consumption, performance consistency, and lifecycle expenses. New electric motor technologies, such as VFDs and synchronous motor types, have remarkably improved the energy efficiency of pumping systems. For example, VFDs allow for motor speed adjustment, which matches pump performance to specific flow and pressure requirements, therefore minimizing energy consumption.
Electric motors consume about 70% of the total energy expended in industrial pumping operations, which shows the need for more energy-efficient options. Employing high-efficiency electric motors lowers energy costs in the long term, which in turn lowers the carbon footprint, thereby meeting strict emission controls. Other than these, smart sensors placed on the electric motors enable real-time monitoring, supporting predictive maintenance models. Such reduced non-productive time helps address measures needed to reduce the underlying inefficiencies before they escalate.
Choosing the right type of motor for a given pump configuration requires a careful study of its torque requirements, duties, and start-stop cycles. The integration of modern motor technology with control systems allows industries to greatly improve the overall pump efficiency and reliability during operation.
What are the benefits of a sealless design?
How canned motor pumps help eliminate leaks
Canned motor pumps are manufactured in such a way that a dynamic seal, which is the primary vulnerable point in a traditional pump, is eliminated. Motors and pumps are integrated into a single unit where the rotor fully sits submerged in a sealed can. Due to this design, all components located internally are entirely segregated from the external world. This will make sure that fluids and gases stay contained internally, whether in normal or harsh operating conditions.
They are considered very safe, especially when handling highly corrosive, toxic, or explosive substances. This can be attributed to the fact that the pumps eliminate the risk of leakage. This makes them ideal for use in nuclear, pharmaceutical, and chemical processing facilities where the slightest amount of leakage may prove to be catastrophic both from a safety standpoint and an environmental perspective. Moreover, the addition of advanced materials, high-performance specialized alloy, and ceramics makes the pump housing more durable, resistant to corrosion, and ensures long-term reliability even in an aggressive operating environment.
Another important feature of canned motor pump technology is operational efficiency. The absence of mechanical seals, increasing maintenance requirements, and costs while substantially increasing uptime. Moreover, the lack of shafts and couplings which accompany a sealless design also reduce frictional losses, further improving energy efficiency.
Canned motor pumps showcase an innovation in the containment of fluids because of their reliability and environmental safety. This is made possible through their design, which incorporates advanced motors and modern materials, truly reflecting robotic engineering at its finest. Harnessing these technologies makes strides towards leak-free operations in industrial settings.
Why is reliability enhanced in sealless design?
Pump reliability in sealless pump designs is improved with the absence of mechanical seals since traditional assemblies usually include a mechanical seal which is a primary failure point. Continuous wear from operations, abrasive fluids, temperature changes, and cyclic operations puts seals at risk of degrading, leaking, or failing and causing shutdowns. These risks are completely avoided due to the absence of this part in sealless pumps.
In addition, other sealless design features, such as canned motors of magnetic drive pumps, make use of hermetic windows that guarantee no contact between fluids and external parts. Containment of dangerous, volatile, or poisonous fluids is done optimally, which minimizes the chances of environmental pollution or damage to equipment and the environment. Moreover, the use of Hastelloy or titanium in these designs makes them more durable as they protect the pump from losing material because of aggressive chemical fluids.
Sealless system innovations like sophisticated monitoring technologies improve their functionality even further. This information facilitates advanced maintenance procedures that prevent unplanned breakdowns and maximize operational effectiveness. Moreover, the uncomplicated structure of the sealless pumps leads to fewer moving components, resulting in reduced maintenance checkups and more reliable performance. All these reasons together illustrate how the reliability of sealless designs surpasses that of other systems in harsh industrial settings.
How do canned motor pumps handle high-temperature applications?
Impact of fluid properties on pump performance
Canned motor pumps are notably affected by the physical and chemical attributes of the fluid they contain. Viscosity, density, and thermal conductivity are damning factors for a pump’s efficiency, heat control, and operation behavior. For example, fluids with greater viscosity require more energy to maintain a flow rate, which leads to friction losses while reducing hydraulic efficiency. Likewise, the power is also affected by fluid’s density because denser liquids result in higher energy requirements for movement and additional mechanical loading on the system.
Aggressive fluids require additional construction materials for components such as pump casing and impeller which prevents them from degradation and preserves structural integrity over protracted periods Aggressive fluids also need to consider thermal conductivity and specific heat impacting heat flow during operation since high temperature applications may lead to overheating and failure of parts.
Selection of nuclear and pump features depends on fluid characteristics strongly, striking balance between fluid properties and pump design allows operators to improve efficiency, curb equipment wear and tear, improve service life, and withstand the harsh realities of the industrial landscape.
Managing the temperature rise of the motor
In industrial settings, ensuring that an electric motor does not overheat is critical to preserving its life and efficiency. An electric motor suffers temperature rise when under load as it runs, and during the running process, electrical and mechanical losses occur, adding heat. This includes losses in copper windings, core losses, and even frictional heat. If not taken care of properly, high temperatures might cause more than just the degradation of insulation. Efficiency would reduce while the wear and tear of components would rise drastically.
To control temperature rise, modern motors utilize various state-of-the-art thermal management systems in conjunction. One of the strongest approaches to this problem is the incorporation of highly efficient cooling systems, which include liquid cooling methods and even forced-air systems that remove heat with efficacy during continuous operation. Moreover, a motor’s temperature tolerance is highly reliant on the selection of top-grade materials such as heat-resistant alloys and high-grade insulators, which from augment the motor’s overall temperature tolerance.
Smart monitoring and control systems with built-in sensors now provide temperature data in real-time. This facilitates predictive maintenance, allowing action to be taken before overheating risks. Also, implementing Variable Frequency Drives (VFDs) greatly enhances motor performance by modifying operational speeds and minimizing heat production from partial load scenarios. When these methods are applied alongside a proper appreciation of operational needs and requirements, it becomes possible to reduce the dangers associated with temperature escalation and improve service life. The motor functions at heightened efficiency throughout prolonged usage.
Utilizing an auxiliary impeller for motor cooling
An auxiliary or secondary impeller is an accessory cooling motor part that enhances motor cooling by directing more airflow over the motor’s housing. These impellers, usually fitted to the shaft of the motor, are driven by the motor and thus, are able to provide cooling throughout the operation period. Their functionality is major in the systems where the speed cycling is frequent or in high ambient temperature conditions where passive cooling systems are inadequate.
That implementing of an auxiliary impeller into constructed design of the motor can decrease its temperature for about 10–20% This comes increase the efficiency of the motor changes of its reliable operating time, performance impacts; while thermal mechanical stress on motor Isolation damage-repair expense in ensure insulation life.
Also, the development of CFD (computational fluid dynamics) software technologies has made it possible to accurately model the performance of impellers under varying operating conditions. This guarantees that the impellers are optimally designed for the motor’s size, use, and thermal control requirements. The addition of auxiliary impellers to motor systems allows operators to achieve advanced cooling effectiveness without sacrificing energy efficiency, further increasing the reliability and operational life of the motor.
What are the maintenance requirements for canned motor pumps?
Inspection and lubrication procedures
Scheduled inspection and relubrication of canned motor pumps are paramount to their operational integrity and performance efficiency. Relubrication follows the visual checks of external signs of unit corrosion, wear on spiral seals, as well as possible leak points on the housing, flange joints, and other sealing surfaces around gaskets and bolts. Vibrational analysis is crucial and should be done as lower vibrations signal motor issues due to bearings, impellers, or even misalignment in the motor parts.
As in many applications, lubrication plays a critical part in lowering the resistance, friction, and wear of internal moving parts such as the motor bearings. In most canned motor pumps, the process fluid serves a dual purpose, aiding in cooling and lubrication, so no separate reservoir is needed for the lubricant. Operators must monitor and ensure a clean system free of solid and contaminant deposits that could compromise the lubrication system. If needed, sophisticated filtration devices could be added directly to the pump to enhance particulate elimination or prolong the bearing and lubricant life.
Data critical to the canned motor pump diagnosis includes the calculation of the average of the onboard motor temperature, flow rate, and pressure value, and capturing their values intermittently to monitor and assess if any changes occur that would indicate malfunctions or deviations indicative of maintenance necessity. Developing an intra-operator schedule on pump inspections driven by manufacturer requirements ensures reduced unplanned downtimes while maintaining the overall system lifespan.
Common issues and elimination strategies
Diagnosing systematic issues is crucial in managing any pump system, as it requires changing what doesn’t work through analysis of the operational flow. Here are some of the operations problems that may come up alongside recommended solutions or prevention strategies:
- Kavitation: Pumps working under low pressure conditions have the potential to create and collapse vapor bubbles which aggressively damages pumps over time. To prevent kavior, Check rigidity arms of the impeller, the dimensions of the suction pipes, make sure liquid levels are alright. Also remember to rependimize friction losses and maintain NPSHa above that of the suction Head.
- Ned Positive Suction Head Available (NPSHA): This term refers to the amount of dissolved vapor in liquid and is the measurement a fluid dynamic system must possess to supply suction head.
- Imbalance: Between the motor and sharp the pump is in a standing position, and imbalance directly affects the decay of efficiency. Aligning the rotors leads to a constructive approach. Motors first through the use of advanced orthodontic tools helps readapt the pump, thus decreasing extreme vibration, bearing degeneration, and increasing.
- Leakage: Springs becoming loose or around them said to be screws lead to a lowered security preventing leakage along escape routes due to cavities becoming holes. The best way for any weak seals include suitable compact protection or cautious sealing. Reduction in damaged appendages also seals increase,s tighter surrender controlling holes.
- Overheating: Increased operating temperature can lead to bearing or winding failure and system inefficiencies. Additionally, overheating can stem from excessive load, lack of adequate cooling, and insufficient lubrication. To alleviate this concern, ensure proper lubrication schedules, clean cooling passages, and supervise load and temperature parameters at automation control units on a continuous basis. Implementation of automated thermal control systems can also add protection.
- System Vibration: Problems with vibration can also stem from unbalanced rotors, loose items, or faulty foundational mounting. Apply vibration monitoring to conduct periodic analysis on the pump’s performance to pinpoint abnormalities. To resolve vibration problems, retain proper mounting alignment, and perform dynamic balancing on rotating constituents.
- Clogging or Blockages: A clog can occur due to the solids or debris present within the fluid stream, which can eventually lower flow rates and damage internal pump components. Clogged suction lines can be prevented with the use of strainers or filters, along with periodic system cleaning. Considerable wear resistant materials enable the use of abrasive fluids without worry.
Monitoring best practices and routinely scheduled inspections aim to mitigate unplanned pump maintenance while achieving peak system efficiency and extending system longevity. Performance data analysis can help achieve these goals.
Long-term reliability and performance tips
- Establish Predictive Maintenance Programs: Predictive maintenance techniques, such as vibration and thermal imaging, allow for the early identification of potential failures. Operational data, together with condition-monitoring technologies, provides actionable insight that prevents catastrophic breakdowns while improving system performance.
- Material Selection and Fluid Compatibility: Ensure all materials used in construction of the pump components are suitable for the fluid being pumped. This reduces the risk of corrosion, erosion, and materials degradation which impact reliability and performance. Applying advanced metallurgy or composites may be required for more corrosive or abrasive applications.
- Optimizing Energy Efficiency: Undertake a review of the system parameters such as flow rate, head, operating pressures and energy consumption of the pump to locate areas that require optimization. Trimmed impellers, variable frequency drives (VFDs), and modifications to the piping design are examples of measures that can reduce energy losses and lifecycle costs.
- Adhere to Manufacturer Suggestions: Stick to the recommended maintenance tasks and schedule for lubrication and spare part replenishment as documented by the OEM of the pump. This approach helps maintain steady operational performance while conforming for warranty conditions which are important for maintenance and service contracts.
Therefore, operators can maximize ROI and optimize the spending on reliable operations in return continuously high performance and enhanced durability from these pumping systems throughout entirety their lifespan when these framework strategies integrated into comprehensive maintenance system met.
Frequently Asked Questions (FAQ)
Q: What is a canned motor pump, and how does it differ from pumps with mechanical seals?
A: A canned motor pump is a type of sealless pump where the motor and pump are integrated into a single unit, eliminating the need for mechanical seals. This design reduces the risk of fluid to leak and provides increased safety. Unlike pumps with mechanical seals, canned motor pumps use a common shaft for the pump and motor, which is enclosed by stator and rotor cans, preventing the escape of the pumped liquid.
Q: How does the magnetic drive system enhance the safety of canned motor pumps?
A: The magnetic drive system in canned motor pumps eliminates the need for mechanical seals, which are prone to wear and leaks. This system uses a magnetic coupling to transfer torque, ensuring that the fluid inside the motor remains contained, thus enhancing the safety by preventing leaks and exposure to hazardous materials.
Q: What materials are commonly used in the construction of canned motor pumps?
A: Common materials used in canned motor pumps include type 304 stainless steel and hastelloy c276 for their excellent corrosion resistance. Silicon carbide and carbon graphite are often used for their durability and ability to handle high temperatures and corrosive fluids.
Q: How do canned motor pumps handle heat transfer within the system?
A: Canned motor pumps utilize the pumped liquid itself to cool the motor. The fluid flows through the motor, transferring heat away from the stator and rotor, thus maintaining optimal operating temperatures. This design eliminates the need for external cooling water and increases efficiency.
Q: What role do stator and rotor cans play in a canned motor pump?
A: Stator and rotor cans provide double containment for the motor and pump components. They prevent the fluid inside the motor from leaking while protecting the motor from the pumped liquid, ensuring long-term durability and reliability.
Q: Can canned motor pumps handle fluids with high vapor pressure?
A: Yes, canned motor pumps are well-suited for handling fluids with high vapor pressure due to their sealless design, which minimizes the risk of vapor leaks and maintains the integrity of the fluid throughout the pumping process.
Q: How does fluid friction affect the performance of canned motor pumps?
A: Fluid friction in canned motor pumps can lead to eddy current losses, impacting efficiency. However, the design of the pump minimizes these losses by ensuring smooth fluid flow through the motor and rotor chamber, optimizing performance and reducing energy consumption.
Q: What are the advantages of using a common shaft for the pump and motor in canned motor pumps?
A: Using a common shaft for the pump and motor eliminates the need for mechanical seals and couplings, reducing maintenance requirements and enhancing reliability. This integration also simplifies the design, resulting in a more compact and efficient pumping solution.
Q: Why is the compatibility of the motor fluid important in canned motor pumps?
A: The compatibility of the motor fluid is crucial because it directly interacts with the wetted components of the pump. Ensuring compatibility prevents chemical reactions that could damage the pump or compromise its performance, especially in industries like petrochemical, where specific fluid properties are essential.
