Axial Piston Pump Advantages and Disadvantages

Understanding Axial Piston Pumps

Working Principles of Axial Piston Pumps

Axial piston pumps work by performing a reciprocating motion that converts mechanical energy into hydraulic energy. They have a rotating cylinder block having several pistons aligned parallel to the drive shaft. The rotation of the cylinder block causes pistons to be reciprocated in their bores by an inclined swashplate or bent-axis mechanism. This piston motion alternates suction and pressure cycles so that fluid is sucked into and discharged out of the pump at high pressure.

During operation, the angle of the swashplate or bent-axis configuration becomes paramount in determining pump displacement. A larger angle will increase the travel of the pistons, thereby increasing fluid displacement, while a smaller angle causes displacement to reduce. The adjustability of these pumps allows for broad appeal as either fixed or variable displacement pumps. The level of precision for flow rate control also lies at the core of their usefulness in any number of hydraulic systems.

Axial piston pumps, being small, efficient, and capable of working under high pressures (usually around 450 bar or 6,500 psi), find great application in various industries. To maintain such a high performance level, they must be manufactured within strict tolerance requirements, maintained with due care, and operate in a clean environment to avoid any chances of contamination and mechanical wear. Knowledge of such working principles makes one competent, so to speak, in choosing and installing these pumps in various important hydraulic applications.

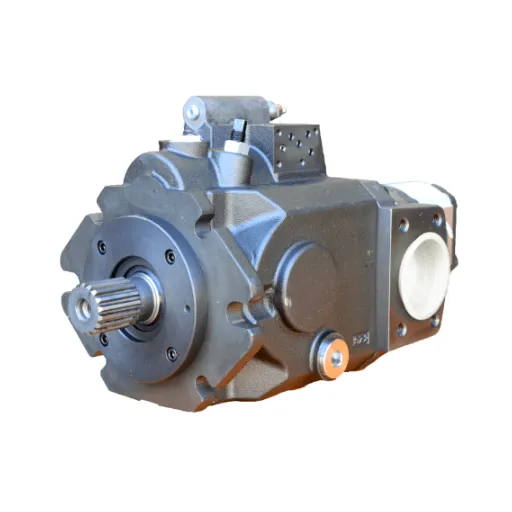

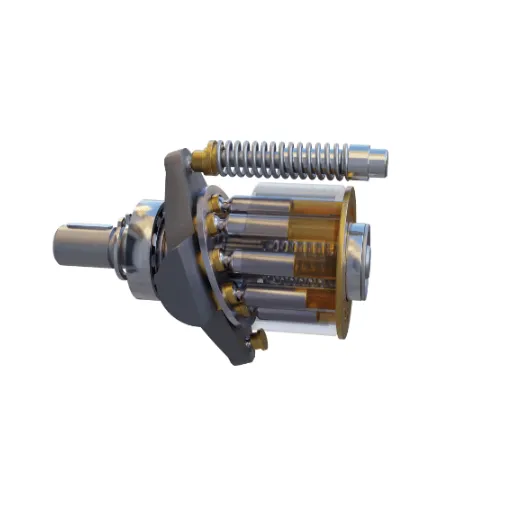

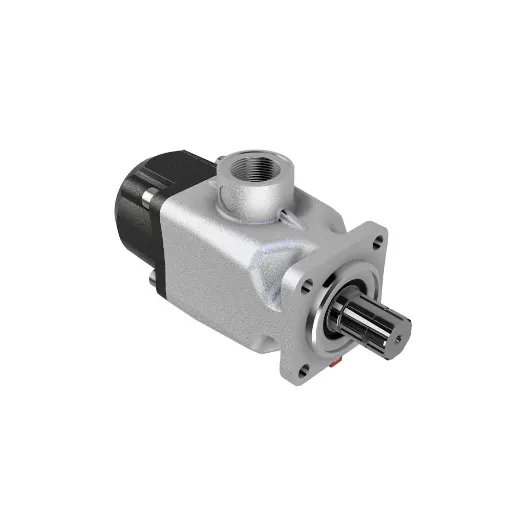

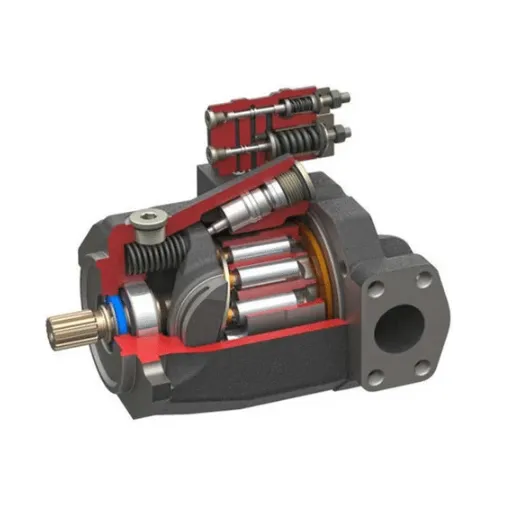

Internal Components of an Axial Piston Pump

For the purposes of providing an understanding of the inner workings of axial piston pumps, the setup of several critical components relevant to the operation of the pump should be on the list. At the very center of the design is a cylinder block which houses pistons. The pistons are arranged inside the cylinder block in a circular fashion, permitting smooth reciprocating motion during the operation of the pump. This movement of the piston is imparted by the swash plate, which is basically an inclined disc converting the rotational power into a linear motion of the piston, thus doing away with fluid displacement.

The valve plate is another necessary component for controlling the flow of hydraulic fluid into and out of the pump. The valve plate is constructed with several ports that come into alignment with the cylinder block during rotation. This allows for the timely intake of fluid while the cylinder block is in the suction phase and the timely discharge of fluid during the cylinder block’s compression phase. The valve plate is usually made out of a material that is able to resist wear and is durable enough for long-term operation under high pressure.

Besides, the pump’s bearings and drive shaft transmit mechanical energy with as low friction and wear as possible. The bearings support the rotational alignment of the various mechanical components and thus, minimize mechanical losses and ensure stability. The drive shaft acts as an interface between the pump and an external power source, such as an electric motor or an internal combustion engine, transmitting the rotational input to operate the pump. Knowing these inner parts and their relationship will enable you to guarantee the perfect functioning and good maintenance of axial piston pumps in hydraulic systems.

Comparison with Radial Piston Pumps

Axial piston pumps being very compact, efficient, and versatile, radial piston pumps became best suited for high pressure, durability, and very smooth running.

Advantages of Axial Piston Pumps

Efficiency and Performance

Axial piston pumps are extensively used for their really great efficiency and performance in fluid power systems. Since these pumps involve multiple pistons arrayed about the rotation axis, they operate continuously under high pressure with precise delivery of fluid. This gives somewhat little energy loss, which applications demand along with a constant flow rate and good control of hydraulic functions. Also, axial piston pumps are designed to be compact and lightweight, so the overall weight and space of the system are reduced, causing energy savings in mobile and industrial machines.

These pumps excel in keeping operational stability during load variations. An axial piston pump with the adjustment of a swash plate may, therefore, regulate flow and pressure outputs dynamically to operational specifications. The resulting flexibility allows efficient use of power, hence reduced energy consumption, and cheaper operational costs. Another favorable consequence of their manufacture according to high standards is low friction and heat generation, which implies low mechanical wear and high long-term performance due to pump life.

From an industrial point of view, yet another advantage lies in the feature of integration with modern control systems. Hence, an axial piston pump is compatible to be use along electronically-controlled hydraulic systems where pressure, flow rate, and temperature can be accurately monitored and regulated. As a result, this helps the pump maintain peak efficiency, along with following the smart technology trend in industrial and mobile applications. Translating technological advances in hydraulic engineering to an advantage for pump design enables the realization of outcomes with performance criteria tuned to the requirements of dynamic and high-demand environments.

Compact and Space-Saving Design

Modern pump designs have been developed to fit into tight spaces without compromising performance or enhancing it. A compact, space-saving design is of paramount importance in a domain where its applications may include mobile hydraulics, robotics, and aerospace. Reducing the much-needed footprint allows manufacturers to combine such pumps into smaller equipment assemblies, in terms of functionality or operational standards, without compromise. Such an optimization is made possible by advanced CAD tools, enabling the engineer to simulate real-world constraints and iterate on design layout.

The design of compact pumps utilizes one major the integration of multiple components into single assemblies, to reduce the number of discrete parts. For example, placing the control valves inside the pump body takes away the need for external tubing, hence simplifying the system and reducing potential points of leakage. High-strength alloys and composite materials further lend favor to the smaller designs since they permit thin and sturdy components that can withstand high pressure.

On the other hand, such designs usually employ very recent technologies, such as microelectromechanical systems, in order to operate with precision within confined spaces. The more modern the technology, the more efficient the operation and the easier the installation becomes, especially for modular systems used for industrial or high-performance applications. This growth in the popularity of compact and space-saving designs caters to the rising demand in the industry for efficient, lightweight yet powerful solutions meeting spatial and performance requirements. Streamlined equipment under such a trend allows for the greater productivity potential of its manufacturers and lower maintenance-cost practices.

Adaptability to Various Pressure Ranges

Advanced engineering requires systems able to operate under widely varying pressure ranges. This is so because the equipment undergoes variations in the working conditions at extremes in industries such as chemical processing, aerospace, energy, and pharmaceuticals. The field of materials science and sensor technology is advanced enough to consider the reliability of a component or system under low-pressure and high-pressure conditions. For example, precision-engineered seals and valves are constructed from composite materials that maintain integrity under extreme pressures, thus guaranteeing safety and performance.

One of the major hurdles in creating systems for diverse pressure ranges involves the maintenance of the constancy of function without inefficiency. Adaptive control systems, in conjunction with monitoring technologies in real-time, such as piezoelectric pressure sensors or advanced optical pressure measurers, come into play. They provide continuous feedback and adjustments to keep systems optimized despite changing pressures at any given time. This keeps downtime and mechanical wear at bay, both of which prove detrimental to operational efficiency and cost-effectiveness in a high-stakes environment.

Moreover, the integration of simulation and modeling tools into the design phase already grants engineers a chance to assess system behavior under different pressure scenarios with a high degree of accuracy. For instance, CFD allows potential designers to understand flow patterns, turbulence, and pressure distribution inside various components, thus avoiding expensive and time-consuming first prototyping. This ability to foresee gives additional adaptability to the equipment and allows the possibility of tailoring designs to specific industrial requirements ahead of time, thereby prompting solutions that adapt to various pressure conditions’ adoption among many sectors. This ensures the equipment is adaptable to the modern dynamics of industry, requiring flexibility, coupled with strict standards for safety and performance.

Disadvantages of Axial Piston Pumps

Higher Initial Costs

Being efficient and flexible, axial piston pumps tend to have far higher initial costs when compared with simpler pump designs. These costs can be attributed to the complex design requiring careful engineering and precision manufacturing with advanced materials. Thus, we have outlined five factors that explain the higher initial investment:

• Precision Engineering Requirements: Axial piston pumps require intricate manufacturing processes owing to their design complexities. The tight tolerances and precision alignments required add to production costs as machinery and skills at an advanced level are needed.
• Choice of Materials: Pump parts are often made from superior materials like hardened steel or special alloys to meet high-pressure requirements and severe working conditions. These materials also raise their cost in purchase and production.
• Advanced Sealing Technologies: Axial piston pumps, with an aim at efficiency and leak minimization, employ complex sealing systems. The designing, manufacturing, and installation of these state-of-the-art seals are quite expensive.
• Testing and Quality Assurance: Strict quality checks should be exercised to guarantee that performance and safety standards are fulfilled. This entails pressure tolerance, durability, and reliability tests on the pumps, which are costs that add to the final product.
• Control-System Integration: Many modern axial piston pumps have advanced electronic control systems to achieve fine performance adjustment. These systems have sophisticated sensors and processors, which add to the price paid by the customer.

These high initial costs may be considered as barriers for many, but the long-term benefits of axial piston pumps, namely, in efficiency, reliability, and flexibility in demanding industrial applications, often make wiser investments.

Increased Design Complexity

The advanced engineering aspects of axial piston pumps have generated higher levels of complexity in their design. This itself is a multifaceted configuration of components, which requires various precision parameters to meet and to give the application a tech-oriented performance boost. Five points explain this increased design complexity:

• Intricate Design of the Valve Plate: The valve plate controls the fluid flow inside the pump. With the modern design techniques, the valve plate needs to be made with micrometer-level precision to keep leakage to a minimum and ensure efficient performance, hence requiring very advanced machining.
• Multiple Cylinder Assemblies: Axial piston pumps often have multiple cylinders, which develop the necessary pressure and flow capacity. Such assemblies have to be perfectly aligned and balanced, owing to which, if not done, operational inefficiencies may be induced and wear and tear take place, thus increasing engineering difficulties.
• Enhanced Swashplate Mechanism: The swashplate is actually situated at the center of the pump, and it controls piston stroke. To develop materials for this part with very high strength and wear resistance that waxes smooth motion under high pressure presents quite a challenge.
• Integration of Electronic Control Systems: Most axial piston pumps will incorporate an electronic system for the proportional control of a solenoid for the feedback loop for pressure, so as to be able to adjust themselves in real time. This means an additional set of design and testing requirements in both the electrical and mechanical domains.
• High-Pressure Tolerance Requirements: These pumps are made to operate at pressures above 4,000 psi. Achieving this uses high-end technology in materials and sealing mechanisms to prevent failure under extreme stresses and to maintain high durability and performance.

Because of this confluence of design specifications, strict control in the manufacturing and assembly processes is essential since any minute aberration in dimensions could drastically influence the functioning of the pump and reduce its lifespan.

Maintenance Requirements

A high-pressure pump requires maintenance to ensure it runs for an extended lifespan is considered. Periodic inspection should include wear checks on seals, valves, and diaphragms that undergo severe mechanical and thermal stresses. Maintenance should include periodic lubrication of moving parts with proper lubricants recommended by the manufacturer, as improper and insufficient lubrication can lead to accelerated wear or catastrophic failure.

Meanwhile, operators should always observe pressure and temperature values to ascertain deviations within the specified values, for which, in such instances, potential threats of cavitation, blockage, or damaged components may arise. Another maintenance consideration would be the periodic changing of filters to prevent any debris from ingress that could harm internal parts of the system.

Customarily, a detailed maintenance log has been kept, listing inspections, repairs, and replacements. This data may be used for trend analysis and predictive maintenance to foresee failures and optimize system performance. If these are followed in accordance with the specifications of the manufacturer, the structured procedures can significantly increase operational efficiency and reliability of the pump.

Common Applications of Axial Piston Pumps

Use in Manufacturing Industries

Due to their high efficiency, dependability, and ability to manage hard tasks, axial piston pumps are integral to almost every industry. CNC machines, presses, and automated assembly lines employ hydraulic systems, wherein these pumps serve with hydraulic power. Production processes with stringent requirements for uniform and accurate output demand exact flow control and high-pressure settings on these pumps.

In addition, axial piston pumps are highly versatile and can be customized to fulfill the special requirements of different manufacturing operations. For instance, in plastic manufacturing, the pumps are used in injection molding machines to control hydraulic pressure and flow the kind of control needed to produce complex molds. In the same way, they perform major functions in hydraulic presses and rolling mills of metal processing, ensuring the ease and sustenance of productivity.

A manufacturer can hold system performance to the extreme and cut down on system downtime by utilizing the awesome features of axial piston pumps, which in turn would promote productivity and cost efficiency. These pumps are manufactured especially for continuous-run grinding-and-testing scenarios so they can sustain uninterrupted manufacturing processes in critical environments. Their usability has been showcased due to their universal nature, found almost anywhere across different sectors.

Role in Construction Machinery

Axial piston pumps are of great importance for construction machinery because they need to be very sturdy and efficient to operate all the critical hydraulic systems. Since these pumps provide variable flow and pressure depending on the exact requirement of operation, heavy-duty equipment runs very smoothly. Listed below are the five most prominent applications of axial piston pumps used in construction machinery:

• Excavators: During digging, lifting, and material handling, axial piston pumps provide hydraulic power that controls the movements of the arm, boom, and bucket to ensure precise operations.
• Bulldozers: The hydraulic systems, controlled by these pumps, provide hydraulic power to the movement of the blade and its tilting for clearing, leveling, and grading on construction sites.
• Cranes: These pumps provide hydraulic power to crane boom systems so that heavy loads can be lifted and positioned with accuracy.
• Loaders: Hydraulic systems in loaders are powered by hydraulic pumps to guarantee a steady control of the bucket for loading materials, carrying loads, or for dumping.
• Concrete Mixer: Axial piston pumps are used to power drum rotation and other hydraulic functions to allow an uninterrupted mixing and reliable delivery of concrete.

Hence, the high-pressure operation capability, plus their sturdiness and versatility, render these pumps very vital in bearing the heavy stresses imposed by construction machinery for diverse applications.

Applications in the Aerospace Sector

Axial piston pumps are used within the aerospace industry with great precision, reliability, and performance. They are designed to stand up to extreme conditions, including high pressures, changing temperatures, and taxing operational cycles. Below are five critical uses of axial piston pumps in the aerospace industry:

• Hydraulic Flight Control Systems: Axial piston pumps supply hydraulic power to primary and secondary flight control surfaces, including ailerons, flaps, and rudders. Because it can maintain constant flow rates at high pressures, the pilot can use it to land and maneuver the aircraft with great precision.
• Landing Gear Operation: These pumps are part of the landing gear actuation systems, which allow gentle deployment and retraction. They uphold their performance under varying loads and during very critical instances, such as takeoff and landing.
• Aircraft brake system: Axial piston pumps give the hydraulic pressure needed for optimal function of advanced brake systems in ensuring safe landing deceleration. Modern aircraft braking systems highlight their durability and ability not to discharge hydraulic fluid at high flow rates.
• Thrust Reversal Systems: As hydraulic thrust reversers, axial piston pumps work to reverse engine thrust upon touchdown of the aircraft, thus preventing deceleration and reducing runway usage. In this regard, the ability of such pumps to sustain performance even at very close actuation cycles is of utmost importance.
• Auxiliary Power Units: Hydraulic power through axial piston pumps is provided for various auxiliary systems within an aircraft, such as cabin pressurization and air-conditioning. Their reliability ensures the uninterrupted operation of key support systems during flight.

Such applications put forth the versatility and high-performance attributes of axial piston pumps that, in turn, ensure high efficiency and safety of the modern aerospace systems.

Selecting an Axial Piston Pump

Key Factors to Consider

• Operating Pressure and Performance Theories: When choosing an axial piston pump, its maximum working pressures or maximum operating pressures and overall performance efficiency must be inspected. Current pumps exist with high-pressure possibilities reaching 700 bar or more for heavy-duty applications. Then, volumetric and mechanical efficiency rates must also be considered since they affect system performance and, ultimately, its consumption of energy.
• Flow Rate and Displacement: The necessary flow rate and displacement are values that need to be set so that the pump is worthy of service. The pump should be capable of discharging the expected flow with good volumetric efficiency, even during variable loads. An adjustable displacement option is more suitable in systems with variable flow requirements.
• Material Compatibility and Durability: The materials selected for building a pump should be compatible with the working fluid and be wear-resistant in a high-pressure regime. For example, aerospace-grade pumps often incorporate titanium or special alloys to ensure minimum weight while still maintaining structural integrity in extremes.
• Heat Dissipation and Thermal Management: Heat dissipation and thermal control are of paramount importance because sustained high-pressure operation leads to overheating and system degradation. Thus, pumps with features for cooling from within or a design that promotes heat dissipation would largely increase the reliability of the system.
• Maintenance and Lifecycle Costs: Ease of maintenance and the expected lifecycle of a pump need to be weighed carefully. Models with modular construction or self-diagnostic features would ease maintenance and cut down on downtime and running costs. The integration of predictive maintenance algorithms and real-time monitoring capabilities with current systems can increase service life even more.
• Noise and Vibration Characteristics: Noise is vital during operation, and so is vibration in an environment demanding one with no disruption, such as an aircraft air cabin or a medical system. The pump should have noise ratings in decibels that are low, with a good vibration-damping property to ensure smoother operation and gain adherence to regulatory and environmental standards.

Undertaking thorough analytical procedures on those factors would ensure the utmost selection of an axial piston pump for your application, where utmost performance is assured, and safety and sustainability standards are considered.

Evaluating System Requirements

When identifying system requirements for an axial piston pump, special attention must be paid to the precise functioning to allow proper sizing and, therefore, maximum efficiency. Hydraulic system flow rate and pressure requirements will establish how large-scale the system must be in order to achieve performance conditions. The flow rate has to coincide with the system requirements for either the pump to utilize excess power or to be inert; likewise, the pressure ratings should be considerate of the peak pressure in application so that system failure or premature wear does not take place.

In addition, conditions that affect the environment and the operation itself are to be taken into account, such as temperature ranges, fluid type, presence of contaminants, etc. Pumps built with robust materials and seals can operate under stringent conditions such as high temperatures or abrasive fluids, thereby promoting longevity. Suppressed noise and low vibration applications, usually the case in the aerospace and healthcare industries, require pumps that are advanced in acoustic design and vibration suppression techniques.

Aside from this, integrating the pump into the system architecture should also be considered. Working within the constraints of the available space for mounting, designs should also factor in ease of maintenance in the system to make it more reliable and accessible for routine servicing. With accurate modeling of the system, it becomes possible to simulate the performance of the pump using a computational tool, such as CFD, under various conditions, giving decision-making data that is invaluable.

Through systematic appraisal backed by accurate data analysis, an engineer will ensure that the selected axial piston pump satisfies both immediate functional demands and long-term operation objectives, while providing sustainable performance.

Balancing Budget and Long-term Goals

A comprehensive and pragmatic approach must be taken when it comes to balancing issues of budgeting versus an operational objective in the long run. From my perspective, an initial approach to this problem would be to identify its main functional requirements and expected life span in regard to a particular system or component. It will be subjected to exhaustive cost-benefit comparisons against its initial acquisition cost or installation costs, and in particular, the possible savings in the long run on maintenance and running efficiency, and durability.

One should always invest in a system that is scalable and reliable over a long period of time, even if it is only somewhat more expensive in terms of capital cost. For instance, capitalizing a bit more on advanced equipment or technologies would majorly cut down the operational cost-to-benefit ratio by way of its energy consumption, downtime, and performance. This would give the system a lifeline that bars against competitiveness as demand changes.

Much in the same way, in this tactic, I utilize strategic procurement and systematic maintenance as a prime way to bring budgetary constraints to bear against global intentions. Partnerships get negotiated with vendors, and components remain subject to predictive maintenance so as to maximize the life span of such components and incur rather than bear expenses. Hence, the balance may be achieved with a snappy strategy giving prime importance to economizing and just as much of an insistence on foresight.
