BOOST PERFORMANCE WITH T6C Series Vane Pump BY Denison
When it comes to optimizing hydraulic performance, the T6C Series Vane Pump by Denison is a sound investment. With a proven track record of reliability and efficiency, this pump is designed for high-pressure industrial applications. The T6C Series Vane Pump delivers best-in-class quality and precision, with advanced controls that allow for customized performance optimization. Its compact design also ensures that space requirements are minimal, making it a smart choice for both new and existing hydraulic systems. Overall, the T6C Series Vane Pump is a top-of-the-line choice for businesses looking to maximize their hydraulic performance and productivity.
- Customized Solutions
- High Efficiency
- Reasonable Pricing
- Technical Support and Service

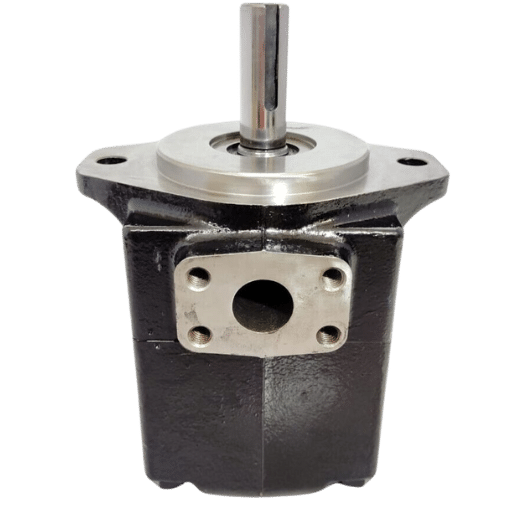

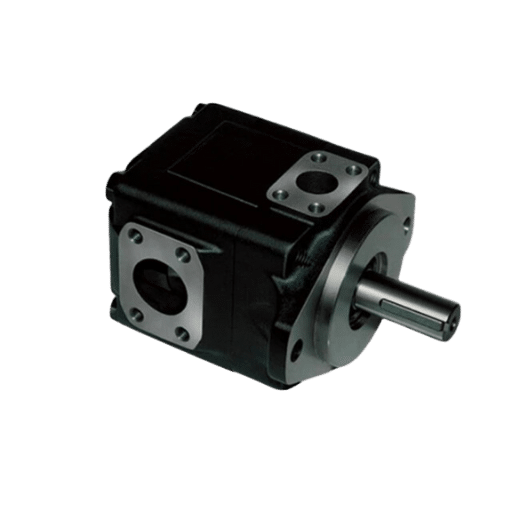

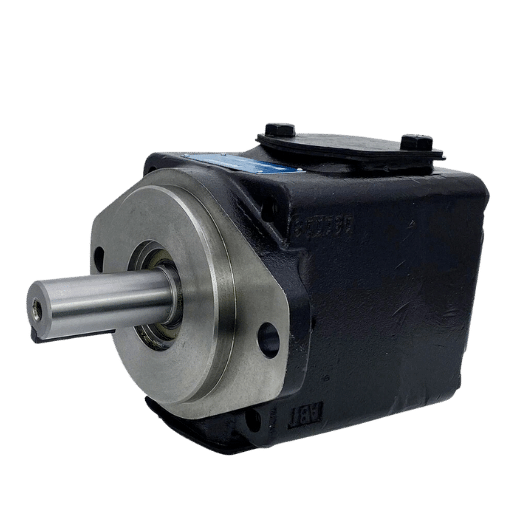

Denison Vane Pump T6C Series is a robust and dependable pump designed for hydraulic systems
-
Description of Vane Pump T6C Series: Information and Specifications
Introducing the Denison Vane Pump T6C Series! This robust pump offers exceptional performance in hydraulic systems, operating efficiently at pressures up to 3000 PSI. Ideal for construction and industrial machinery, its compact design saves space and ensures easy integration. The pump’s advanced vane technology provides smooth operation with minimal noise, making it suitable for noise-sensitive applications. It’s highly adaptable, with multiple displacement options to meet specific needs. Experience reliable power and efficiency with the Denison Vane Pump T6C Series today!
Key Features of the Vane Pump T6C Series
High Efficiency: The pump boasts a high volumetric efficiency, typically above 94%, which minimizes heat generation and enhances energy savings.
Broad Operating Range: It supports a wide speed range from 600 to 3600 RPM, suitable for various applications, including low-speed, high-viscosity environments.
Low Noise Levels: Designed specifically to reduce noise, the pump features low ripple pressure (±2 bar), which helps in minimizing noise in hydraulic systems.
Versatile Configurations: The pump offers multiple options for cam displacement, shafts, and porting, allowing for tailored installations based on specific needs.
Durable Design: The use of a double lip vane enhances resistance to particle contamination, significantly extending the pump’s lifespan.
Cartridge Concept: The replaceable cartridge design simplifies maintenance, reducing downtime and associated costs.
Adaptability to Fluids: It is capable of handling a wide range of fluid viscosities, from 860 to 10 cSt, including fire-resistant and biodegradable fluids, making it versatile for different industrial environments.
Experience unparalleled efficiency and minimal noise with the Denison Vane Pump T6C Series. Ideal for applications demanding dependable and quiet hydraulic power, this pump boasts versatile configurations and a robust design for enduring performance across diverse industrial settings. Inquire now for further details!
Denison Vane Pump T6C Series Parameter Options
| Parameter | Options |
|---|---|
| Displacement (ml/rev) | 10.8 - 100.0 |
| Maximum Continuous Pressure (bar) | 240 |
| Maximum Intermittent Pressure (bar) | 210 - 240 |
| Speed Range (RPM) | 600 - 3600 |

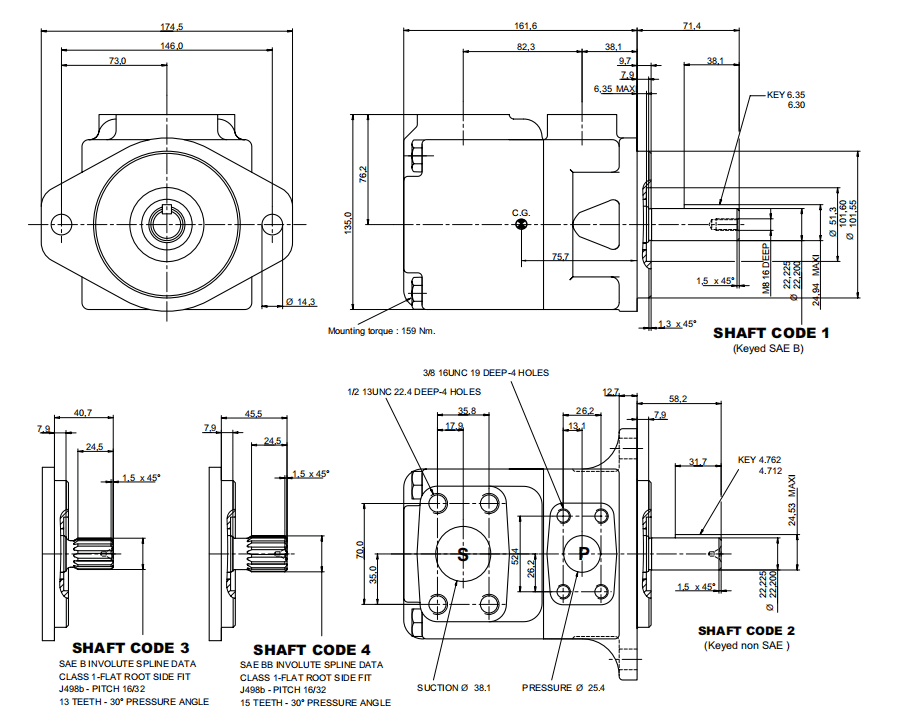

| Shaft Types | Keyed, Splined |
| Fluid Compatibility | Petroleum, Synthetic, Biodegradable |
| Viscosity Range (cSt) | 10 - 860 |
| Temperature Range (°C) | -30 to 100 |
The Denison Vane Pump T6C Series delivers high efficiency and quiet operation, ideal for reliable hydraulic power. It offers a wide speed range, multiple displacement options, and compatibility with various fluids, including petroleum, synthetic, and biodegradable types. This series is versatile for various industrial applications, featuring robust design options like keyed and splined shafts.
General Installation Notes for the T6C Series Vane Pump
Rotation & Ports Indication:
- The rotation and ports orientation are viewed from the shaft end.
- CW (Clockwise) and CCW (Counter-Clockwise) options are available.
Start-Up Check-Up:
- Remove all protective plugs and covers before starting the pump.
- Verify that the pump rotation matches the motor or engine rotation.
- Ensure the hydraulic system is filled with clean fluid, and consider flushing the system before start-up.
- Air should be bled from the system to facilitate good pump priming.
- Open the first valve on the circuit to the tank during start-up to prevent pressure build-up.
Inlet and Return Line Recommendations:
- Maximize the distance between the suction pipe and return lines in the tank.
- Use a bevel on suction and return lines to increase the surface area and reduce flow velocity, ideally at a minimum angle of 45°.
- Maintain appropriate flow velocities: inlet between 0.5 to 1.9 m/s and return lines below 6 m/s.
- Ensure that all return and suction lines are submerged in the oil to avoid aeration or vortex formation.
Denison Vane Pump T6C Series Catalog
| Model | Denison Vane Pump Price | Contact Us |
|---|---|---|
| T6C-003-1R00-B1 | $2,400.00 - $2,600.00 | Inquiry about this Parts |
| T6C-028-2R00-C1 | $2,500.00 - $2,800.00 | Inquiry about this Parts |
| T6C-017-1R00-B1 | $2,400.00 - $2,600.00 | Inquiry about this Parts |
Get In Touch
If you’re interested in exploring a range of high-performance hydraulic pumps, and you’re looking for a brand that matches the quality and reliability of industry leaders, consider LOYAL.
Interested in learning more about our products and how they can benefit your operations? Visiting our official website or reaching out to our customer service team through official channels will provide you with all the information and assistance you need.
Choose LOYAL for reliable, efficient, and innovative hydraulic solutions tailored to meet and exceed your expectations.
Latest Articles ※
Related Topics About Hydraulic Pump
Denison Vane Pump T6C Series: Common Queries
Explore the advantages of the Denison Vane Pump T6C Series for enhanced performance.
Q: What is the maximum pressure rating for the Denison Vane Pump T6C Series?
A: The maximum continuous pressure rating for the T6C Series is up to 240 bar, with intermittent pressures reaching up to 275 bar.
Q: What types of fluids are compatible with the T6C Series Vane Pumps?
A: The T6C Series is compatible with various hydraulic fluids, including petroleum-based fluids, synthetic fluids, and biodegradable fluids.
Q: What are the available displacement options for the T6C Series?
A: The T6C Series offers displacement options ranging from 10.8 ml/rev to 100 ml/rev, catering to different flow requirements in hydraulic systems.
Q: Can the T6C Series operate at high speeds?
A: Yes, the T6C Series can operate at speeds up to 3600 RPM, making it suitable for a wide range of industrial applications.
Q: What are the shaft options available for the T6C Series Vane Pumps?
A: The T6C Series offers both keyed and splined shaft options, allowing flexibility in installation and compatibility with different systems.
Q: How does the T6C Series handle noise levels?
A: The T6C Series is designed to minimize noise, featuring low ripple pressure and advanced vane technology to ensure quiet operation, ideal for noise-sensitive environments.
