Understanding Hydraulic Pumps and Motors: Efficiency and Functionality

Hydraulic pumps and motors are integral components in a wide range of industrial and mobile machinery, serving as the backbone for systems that demand reliable power transmission. These devices not only enable the conversion of mechanical energy to hydraulic energy (and vice versa) but also significantly impact the efficiency, performance, and longevity of hydraulic systems. Whether you’re an engineer, technician, or simply someone seeking to understand the mechanics behind fluid power systems, grasping the functionality and efficiency of hydraulic pumps and motors is crucial. This article will explore the fundamental principles behind these components, highlight their role in modern machinery, and examine the factors that influence their operational efficiency. By the end of this discussion, you’ll gain a deeper understanding of how these systems function and how to optimize their performance.

Introduction to Hydraulic Systems

What is a Hydraulic System?

A hydraulic system is set up to generate force and motion using pressurized fluid. At its core, the system works on Pascal’s Law, which states that a change of pressure applied to an enclosed fluid is transmitted equally throughout the fluid. This principle lets hydraulic systems transfer energy very efficiently while amplifying the force, making them an important aspect of many applications.

Hydraulics involves a few very important components, including a hydraulic pump, a fluid reservoir, valves, actuators, and piping or tubing. The pump generates the flow so that hydraulic fluid from the reservoir is moved under high pressure through the system. Valves then control the flow and direction of the fluid, while the actuators convert the fluid’s pressure and flow into mechanical energy to perform work. Under a closed-loop scenario, energy loss is very minimal during operation, which makes the method very efficient and reliable.

Therefore, hydraulic systems are used across many industries due to their high power densities, precise control, and heavy-load-carrying capability. These include construction equipment such as excavators and loaders; manufacturing; and even aircraft systems. Such scalability allows for very simple to very complex configurations customized to meet an operational need. Utilizing the science of fluid mechanics, hydraulic systems offer great performance and flexibility to present-day engineers.

The Role of Pumps and Motors in Hydraulics

Pumps and motors are the lifeblood of every hydraulic system, converting mechanical energy to hydraulic energy and vice versa. These work together to generate pressurized fluid to perform work. Hydraulic pumps take fluid out of a reservoir and pressurize it to ensure a constant flow goes into the system. The motors use this pressurized liquid to generate mechanical force or torque to drive other components of the machinery. This combination ensures precision and high-performance operation.

• Gear Pumps： Gear pumps are hydraulic systems because they are simple, reliable, and cheap. They work by interfacing with each other to produce suction and pushing fluids through the system. These pumps are suited for low to medium-pressure applications such as industrial machinery or light construction equipment.
• Vane Pumps： Known for their smoothness of operation and uniform flow, vane pumps consist of rotating vanes that expand and contract within a cavity to pump fluid. These are utilized for applications that require moderate pressure with high efficiency, such as plastic injection molding and automotive transmissions.
• Piston Pumps： Intended for high-pressure capacity, piston pumps operate through a reciprocating motion developed within the cylinders to press and move the fluid. Such pumps can be fully required for pressurized conditions and utmost precision, which in turn demand heavy-duty applications like cranes, mining machinery, and aircraft hydraulic systems.
• Axial piston motors： They perform exceptionally well in high-pressure situations, and efficiency rates of such motors are thus high. They work through the motion of pistons set parallel to an axis, sometimes producing significant amounts of torque. Being motors generating considerable torque, axial piston motors find use in heavy industrial equipment and mobile hydraulics, and are also utilized in high-performance systems requiring delicate control.
• Radial Piston Motors： The radial piston motors have pistons arranged radially around a central cam. These motors are capable of generating a high torque at a low speed; thus, they are employed in winching, conveying, and drilling rig applications. In addition, their rugged nature maintains their ability to operate in adverse environments.

Though each performs its function in its special way, they all contribute toward making hydraulic systems versatile and more efficient in various industries.

Benefits of Using Hydraulic Pumps and Motors

Hydraulic machinery fairs with several advantages, making it an integrated apparatus for numerous industrial and mobile applications.

• High Power Density： Hydraulic systems enjoy an almost unmatchable power-to-weight ratio, which would allow smaller designs to house enormous output capabilities. For instance, hydraulic motors can supply a torque magnitude of even 10,000 Nm, which is by any measurement a higher capacity in heavy-duty operations than that of electrical systems. Thereby delivering the much-needed power in situations where space is a major concern.
• Accuracy and Control： Hydraulic systems are capable of generating precise values for speed, pressure, and force, alternately or simultaneously. With advanced proportional valves, an operator can control movements and adjustments down to tolerances of ±0.1 mm in positioning applications.
• Durability and Reliability： Designed for harsh environments, capable of severe pressure (up to 700bars), hydraulic pumps, and motors are very durable. Solidly built to prevent downtime and to minimize maintenance, hydraulic devices find an application in construction, mining, and oil drilling.
• Energy Transfer Efficiency： Hydraulic systems find an efficient energy transfer of about 90%. High efficiency minimizes loss of energy during its operations, which makes hydraulic energy less costly for processes needing prolonged power, such as industrial presses and mobile equipment.
• Flexibility and Scalability： Hydraulic pumps and motors can be scaled and customized for applications ranging from small robotic systems to huge industrial machinery. Their modular construction allows engineers to adjust and expand systems in changing operational needs, providing a secure setting for long-term adaptability.

The benefits listed emphasize that hydraulic pumps and motors are integral to the optimization of performance, boosting efficiencies, and responding to modern-day industrial requirements.

Types of Hydraulic Pumps

Overview of Hydraulic Pump Types

Hydraulic pumps are classified into various types according to this, that is, internal construction, operating principles, and individualized application conditions. Gear, vane, and piston, each are dissimilar in benefit for meeting industrial and commercial needs.

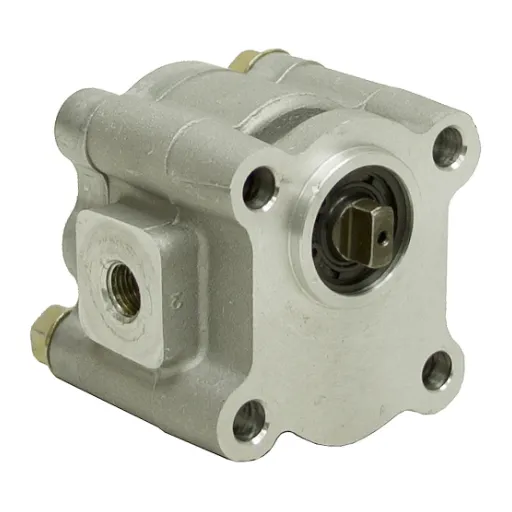

• Gear Pumps： Gear pumps have somewhat a simple construction with two gears actuating volumetric displacement to move fluids. Gear pumps are always low in pressure and are very reliable, simple to maintain, and conserved. Industrial lubrication systems and heavy equipment would be two examples where this would be useful.
• Vane Pumps： Vane pumps, with slotted rotors and variably adjustable vanes, move fluids very efficiently. Known to combine low noise with high performance, vane pumps are ideal for mid-pressure applications in material handling and aerospace hydraulics, among others. They provide very good volumetric efficiency with the least leakage incurred.
• Piston Pumps： Piston pumps have high versatility and high-pressure applications. They operate on pistons that move inside a cylinder block so that an accurate discharge of the fluid is delivered. In industries that have stringent requirements, such as construction, mining, and large-scale fabrication, they are found to be always useful. Having the capability of being varied in flow rates, these pumps are the most appropriate choice for production activities.
• Axial and Radial Pumps： The axial and radial piston pumps are kinds of piston pumps that allow precise control by axial or radial movement of the pistons. High-power density and efficient energy transfer are required from injection molding systems and hydraulic presses.

Based on the characteristics and capabilities of various types of pumps, engineers will design and optimize their systems. Thus, it guarantees the performance and durability are increased with the obvious need.

Vane Pumps: Characteristics and Applications

The names of the pumps are ranked according to the type of positive displacement pump, wherein a series of vanes are mounted on a rotor that rotates inside a cavity. They have made their place in the dyeing industry, apart from dye-making processes, despite their being highly inconvenient size-wise, with fixed flow rates, and their varying viscous capability. This internal design of the pump reduces pulsation to a minimum and offers smoother operation compared to other pumping mechanisms.

Additional benefits gained by vane pumps include their ability to deal efficiently with low-viscosity fluids, while also acquiring the ability to self-compensate for wear. This results from the centrifugal action on the vanes, whereby a tight seal is maintained between the rotor, the vanes, and the pump casing. This wear compensation extends the life of the pump and lowers maintenance costs.

The applications of the various types of vane pumps are several thousand, including hydraulic systems, fueling operations, refrigeration units, and automotive transmissions. Keeping the refueling and de-icing systems of aircraft in mind, one may say that a vane pump is suited for these operations because of its dependable performance and precise operation. The pump’s ability to adjust to pressure or flow fluctuations would make it the perfect fit for hydraulic machinery in an industrial environment.

Modern materials and coatings are now used while designing advanced vane pumps to increase energy efficiency and wear resistance. With advances in computational fluid dynamics and material science, engineers can design vane pumps for high-pressure applications and ensure reliability even for critical systems.

Comparative Analysis of Hydraulic Pump Types

Hydraulic pump types include gear, vane, piston (axial and radial), centrifugal, and clutch pumps.

Understanding Hydraulic Motors

How Hydraulic Motors Work

Hydraulic motors work by converting hydraulic energy into mechanical energy to drive machine kinematics. This process of conversion initiates when pressurized hydraulic fluid, which is usually oil, is allowed inside the motor through the connected hydraulic system. This pressurized fluid is created by means of a pump, and it flows through various chambers of the motor to apply force upon its internals, such as gears, vanes, or pistons, depending on the type of motor. This force produces the rotational motion of the motor shaft, which then passes into the mechanical system or equipment that is connected thereto.

The hydraulic motor is a type of machine that converts the flow and pressure of a liquid into mechanical motive force. The efficiency and capabilities of a hydraulic motor depend on how it gets pressure-rated, its torque output, volumetric displacement, and flow capacity. There are several types of motors based on their design and operational characteristics, such as vane motors for constant flow applications, axial piston motors for high-pressure applications, and radial piston motors for high torque-low speed applications. Centrifugal-style hydraulic motors are well-suited for high-flow-low-pressure situations, and clutch-drive designs are found in variable-speed heavy-duty machinery.

Precision in fluid dynamic control is critical to their function so that losses of energy may remain at a minimum and efficiency is achieved. Modern-day hydraulic motors use the most advanced sealing technologies, high-strength materials, and precision engineering to withstand the most extreme conditions, including pressures up to 700 bars and flow rates of well beyond 650 liters per minute. They constitute key components in industries ranging from construction and agriculture to manufacturing and transport, enabling dependable operation and unmatched performance under harsh application conditions.

Different Types of Hydraulic Motors

1. Gear Motors： This is a primary type of hydraulic motor using a gear system for rotoaction. Gear motors are simple, rugged, and cheap. Typically, there is an inlet port, an outlet port, and meshing gears that displace hydraulic fluid for the generation of mechanical energy. Being fairly simple in design, they are useful in situations where medium speed and torque are needed, such as in agricultural machinery and conveyor systems. In the case of these applications, the gear motors have difficulty in handling high-pressure systems due to the internal leakage in situations of very high pressure.
2. Vane Motors： Vane motors use a rotor with sliding vanes, and characteristics say the design is balanced, giving a smooth operation. Hydraulic fluid enters the motor and pushes the vanes of the rotor, causing it to turn. Vane motors perform best in systems requiring speed and torque for constant weight; thus, they are used in industrial automation, injection molding presses, and low- to medium-pressure, mobile-type equipment. They generally operate up to 210 bar and are quite volumetrically efficient.
3. Piston Motors： Piston motor types offer superior performance, demanded of maximum efficiency, reliability, and power output. The motor works by using pistons mounted in a cylinder block, whose reciprocating hydraulic motion is then converted into rotational motion. Piston Motors can work at pressures above 450 bar and thus create more torque than any other type. They are the heavy-duty jobs constituting construction equipment, mining machines, and offshore oil drilling rigs. Due to their complex engineering, these engines require more cost and are also more elaborate to maintain.
4. Radial Piston Motors： Radial piston motors belong to a certain class of piston motors that have pistons arranged radially about a central shaft. They have a good torque efficiency and can resist very high working pressure, which is ideal for winches, cranes, very high-load industrial tools, etc. It is their speed regulation under load variation and speed that becomes effective in demanding and very technical environments.

By understanding the peculiarities and advantages of each type of hydraulic motor, the engineer or technician will be in a position to select the most ideal given the conditions of their operation, which will aid in the performance and cost-efficiency of their system.

Applications of Hydraulic Motors in Various Industries

Hydraulic motors are broken down into five industries with harder environments where high torque power is required due to strong working conditions.

• Construction Industry： Hydraulic motors are mounted in a construction setup involving excavators, bulldozers, and cranes to carry very fine and precise movements of heavy loads under the direction of a lifting, digging, and earthmoving operation. For hydraulic excavators, the motors rotate the arm and make the machine really dig under heavy loads.
• Agricultural Industry： It is in the agricultural sector that you will find hydraulic motors fitted to machines such as harvesters, tractors, and irrigation systems. These motors are used to provide a steady flow of power for such applications as conveyor belts, spraying booms, and cutting operations. Such research reveals that with modern hydraulic systems in agriculture, efficiencies of up to 30% can be gained above those of conventional mechanical systems.
• Oil and Gas Industry： Hydraulic motors play a key role in the operation of drilling rigs, subsea equipment, and pipeline automation. The environments require the motors to function under high pressures and various speeds. Such motors are, for instance, used to power rotary drill equipment and stabilize processes on offshore drilling platforms situated in deep-sea conditions.
• Manufacturing Industry： High-performance and modern hydraulic motors are employed in the manufacturing industry for presses, plastic injection molding machines, and conveyor systems. They ensure that the automation processes are carried out with precision and reliability. Likewise, such machinery is designed to deliver consistent force, as in hydraulic presses for metal stamping or forming of parts.
• Mining Industry： Hydraulic motors find great application in mining through operations such as rock crushing, conveyor belts, and drill rigs. They ensure increased productivity and reduced downtime by functioning smoothly in the harshest of environments- being high in dust particles, heat, and heavy loads. Another example would be the usage of hydraulic motors in underground mining machinery conditions to make sure of efficient drilling and transportation of materials in confined spaces.

Such applications showcase the creativity and reliability of the hydraulic motor, highlighting its paramount importance in modern machinery across several industrial sectors. Being subjected to tough operational requirements has made it obligatory for these industries to invent and optimize.

Hydraulic Pump and Motor Efficiency

Factors Affecting Efficiency

The efficiency of hydraulic pumps and motors depends on several factors that govern their behavior under divergent working conditions. By and large, these factors can be classified as being mechanical, volumetric, or total efficiency, depending upon the context under consideration.

• Internal Leakage: Internal leakage is considered if the fluid leaks through clearances present in the pump or motor, thereby decreasing the output flow and giving rise to volumetric losses. Precise engineering of components combined with maintenance of such operating conditions where losses are as minimal as possible is the way to minimize such losses.
• Mechanical Friction: Friction occurring between moving parts within the hydraulic system causes heat generation and energy the two brightest examples of loss of mechanical efficiency. Application of appropriate materials, better lubrication, and superior manufacturing techniques may curb some of the friction problems.
• Temperature Control: High temperatures drive down fluid viscosity, increasing internal leakage and wearing down components. To prevent such occurrences, it is paramount that the system is equipped with a cooling mechanism (heat exchanger or such) to maintain thermal stability and good performance.
• Fluid Condition and Maintenance: Hydraulic fluid condition is one of the important things to attain high system efficiency. Dirt, particles, or an aging fluid deteriorate system performance by wearing the components and lessening the energy transfer. Through regular analysis and filtration of the hydraulic fluid, its integrity can be maintained equally over time.
• Component Wear and Tolerance Accuracy: Wear and tear of components (e.g., seals, pistons, gears) can diminish the efficiency of a hydraulic system. Maintenance of close tolerances during manufacture and regular inspections of the systems can reduce the effects of wear and increase system life.
• Working Pressure and Speed: The design of hydraulic pumps and motors calls for operation within specific ranges of pressure and speed for maximum efficiency. Operating beyond intended parameters creates inefficiencies, overheating, and wear created much faster time. Therefore, it is in the best interest of efficiency to utilize pumps and motors with the pressure and speed recommended by the manufacturers along those lines.

If hydraulics system designers and operations professionals are to proficiently maintain and hence ensure the maximum rest of the life out of these products, they must be reckoned with. The solution remains open-ended and is always undergoing redefinition as progress in material sciences, design innovations, and predictive maintenance technologies unfolds.

Improving Pump and Motor Efficiency

To boost the hydraulics pumps and motors’ efficiency, one would want to ensure that the system is designed to accommodate its intended operation. Selecting inappropriately sized components may cause inefficiency and gradual degradation of the systems, whereas correct components ensure compatibility with the load demands placed upon the system. I would also see to it that the system follows the criteria as set by the manufacturer, including operation within a specified pressure range, speed, and fluid viscosity, since these criteria influence energy consumption and component life.

The second issue I tend to be deeply concerned about is maintaining the hydraulic fluid in good condition. Contaminants in the fluid-particulates, water, or air-greatly reduce the efficiency of any pump or motor and accelerate wear and tear accordingly. I would put in place a very stringent hydraulic fluid maintenance schedule involving continuous filtration, contamination monitoring, and between-fluid replacement at periods recommended by the system designer so as to reduce avoidable internal friction and guarantee smooth operation.

Lastly, technology could be my ally in making a system more efficient. Variable displacement pumps and motors would provide a solution; they adjust flow and torque in real-time to meet the demands of the system, thus preventing energy wastage. In addition to these, I would use updated sensors and predictive maintenance software to look after system health and catch any problems before the system fails. Regular inspections with smart technology integration would also ensure hydraulic systems remain efficient and reliable in the long run.

Real-World Efficiency Examples

Hydraulic systems typify efficiency applied in industrial applications, injection molding machines being the best examples. Servo hydraulic technology is usually applied in these systems, whereby traditional hydraulic components are combined with highly efficient servo motors. By controlling pressure and flow rates accurately, this system considerably reduces energy consumption; some studies report as high as approximately 60% energy savings versus conventional hydraulics.

Excavators and loaders epitomize another modern application in the building industry. These machines typically operate with load-sensing hydraulic systems with variable displacement pumps that adjust pressure and flow settings according to the task’s exact requirements. This limits power losses and extends the service life of components since unnecessary stress is eliminated from parts.

In a similar context, the implementation of hybrid hydraulic-electric technologies has indicated prospects for improved vehicle efficiency. For instance, energy is captured through hydraulic hybrid drivetrains in commercial trucks, which utilize regenerative brake systems, and this energy would otherwise dissipate as heat. This new generation of technology demonstrated increased fuel efficiency; some case studies even claimed to achieve a 30% decrease in fuel consumption.

So, with this reasoning, combined with cutting-edge technologies such as sensors, predictive analytics, and energy-efficient components, hydraulic systems will experience high levels of performance and sustainability in various industry sectors.

Maintenance and Troubleshooting

Essential Maintenance Tips for Hydraulic Equipment

Proper maintenance of hydraulic equipment ensures maximum performance levels, reducing downtime and thus extending the life of the system. Below are some of the intricate and technical maintenance procedures that keep hydraulic systems fit for optimum operation:

• Regular Fluid Checks： Hydraulic fluids are the life force of any hydraulic system. Regularly monitor the fluid level and quality to ensure that the system has lubrication and dissipation of heat. Contaminated and degraded fluids can cause wear to components and lead to inefficiency in the system. Always replace hydraulic fluids according to the intervals given by the manufacturer, and always use the hydraulic fluid type specified for the system.
• Filter Replacement： Filters act as barriers to prevent solid contaminants from reaching the system. Once clogged or deteriorated, the filter restricts flow in the system-because the more resistance to flow, the more performs adversely the and needs periodic checking and replacement per the directions of the manufacturer or anytime a pressure drop is read within the filter element, indicating the inefficiency of the filter.
• Check Hydraulic Hoses and Connections： Hydraulic hoses may deteriorate with age due to wear, external abrasion, or extremes of temperature. Check visually for cracks, leaks, and signs of degradation. Ensure that all fittings and connections are tight to prevent leakage of fluid and loss of pressure.
• Achieve the Right Pressure for the System： Use of a hydraulic system outside its prescribed pressure range puts undue strain on components, leaving them prematurely worn or failing. Pressure gauges should be used to verify the specified system pressure and adjusted accordingly.
• Monitor Unusual Noises and Vibrations： Strange noises or surges of vibrations cannot be ignored without the respective misalignment, cavitation, or the wearing out of parts. It would be nice to be able to identify and deal with them at the very inception, thus saving from costly repairs and loss of time from unexpected operating shutdowns.
• Temperature Management： Hydraulic systems consider temperature changes. Excess heat reduces fluid viscosity and destroys seals, and cold impedes the fluid’s progress. Keep an eye on cooling systems and fluids that may have been designed for more extreme temperature environments.
• Scheduled Preventive Maintenance (PM)： The set maintenance program guarantees the best inspections and servicing of systems at the correct time. This program should include system flushing, wear assessment of components, and calibration of sensors and actuators on a performance basis.

If these practices of maintenance were carried out with precision, the hydraulic system would work better, failure with any kind of risk would become least, and the life of the system would increase.

When to Seek Professional Help

The hydraulic systems are complicated and need attention for optimum functioning and safety. In case there are persistent fluid leaks, weird noises, or unusual heating of the hydraulic system even after its periodical maintenance, the system should be entrusted to an expert. Leaks may indicate that wear and tear has set into seals or connectors. Unusual noises can point to cavitation or air getting inside the system, which is detrimental to its functioning. Overheating usually points to contamination or inefficiency in the cooling system. Trying to fix these problems without expert knowledge could lead to more damage or cause safety hazards.

It is advisable that a professional be consulted whenever the system performance suffers degradation, like loss of excessive pressure, delayed actuation movements, or lowered fluid flow. These symptoms are usually indicative of damage to interior components such as worn valves, pump failure, or contamination of hydraulic fluid. Precise diagnosis of the root cause and hence target repair is carried out by professionals with the aid of diagnostic tools like flow meters and infrared thermography. One cannot resolve such complex problems efficiently without proper tools and skills, thus increasing delays and the possibility of errors.

At the same time, this is a necessary process when planning large modifications or an overhaul and modernization of the hydraulic system. Upgrading a system calls for comprehensive knowledge of how well new components will work with the old installation and specification of safety standards and industry-related regulations. The expert ensures that the upgraded system in its real operation lives to a higher standard of efficiency, reliability, and safety with minimal downtime. Going for professional involvement in good time for these critical situations can help protect the long life and efficient function of the hydraulic systems within the companies.
