When a hydraulic pump fails, it disrupts critical operations for businesses in industrial, agricultural, or construction sectors and leads to costly downtime. These complex components are vital to hydraulic systems because they convert mechanical energy into hydraulic energy efficiently and accurately. This comprehensive guide takes you through the complex process of diagnosing, troubleshooting, and repairing hydraulic pumps with actionable insights and best practices.
Understanding Hydraulic Pumps
Types of Hydraulic Pumps
Hydraulic pumps are vital elements of hydraulic systems that transfer fluid by converting mechanical power into hydraulic energy. There are three main types of hydraulic pumps, each designed for specific applications and operational requirements:
| Pump Type | Operation | Applications | Advantages | Limitations |
|---|---|---|---|---|

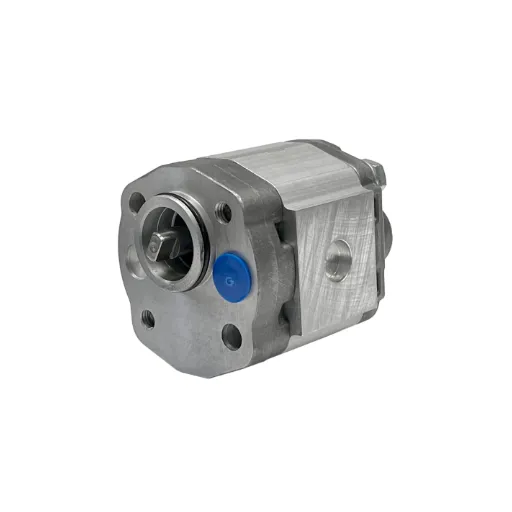

| Gear Pumps | Use rotating gears to generate flow and pressure | Agricultural, construction, and industrial machinery | Reliable, compact, inexpensive, and easy maintenance | Limited to low-moderate pressure applications |

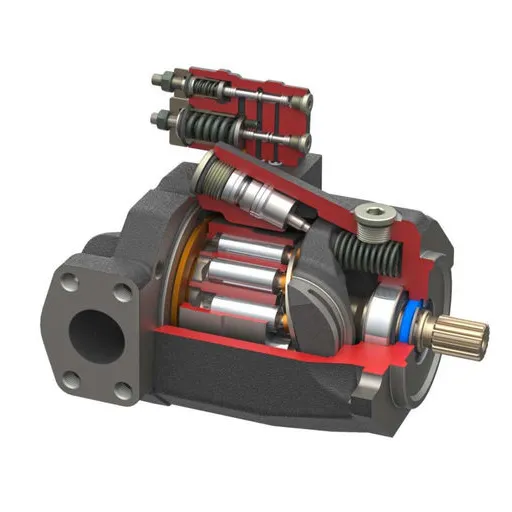

| Piston Pumps | Use pistons moving inside cylinders for precise control | Heavy industrial equipment and machinery | High efficiency, handles high-pressure conditions | More expensive and complex than gear pumps |
| Vane Pumps | Use sliding vanes in the rotor to direct the flow | Power steering systems, certain industrial applications | Consistent performance, smooth operation, quiet | Less durable with contaminated fluids |
How Hydraulic Pumps Work
Hydraulic pumps operate by converting mechanical energy into hydraulic energy through fluid movement. The process begins when the pump creates a vacuum at the inlet, allowing fluid to flow in from a reservoir. The fluid is then pressurized through mechanical action inside the pump and sent out through the outlet to power the hydraulic system.
The basic operation involves:
- Fluid Intake: Vacuum creation draws fluid from the reservoir
- Pressurization: Mechanical action increases fluid pressure
- Energy Transfer: Pressurized fluid powers hydraulic components
- System Operation: Energy applied for lifting, pushing, or rotating functions
Common Applications of Hydraulic Pumps
Power excavators, bulldozers, and cranes with hydraulic systems rated up to 5,000 psi for heavy lifting and digging operations.
Drive presses, injection molding machines, and conveyor systems with forces up to 50,000 tons for stamping and forming operations.
Power plows, harvesters, and loaders with multi-stage systems for precision farming operations.
Provide hydraulic power for landing gear, flight controls, and braking systems under pressures up to 4,000 psi.
Support steering systems, deck machinery, and stabilization mechanisms in corrosive saltwater environments.
Common Hydraulic Pump Issues
Identifying Hydraulic Pump Failures
Early detection of hydraulic pump failures is crucial to prevent costly downtime and major system damage. Key indicators include:
- Excessive Noise: May indicate cavitation or component wear
- Performance Loss: Reduced system efficiency and operational capability
- Fluid Leakage: Both internal and external leaks affect pressure maintenance
- Overheating: Indicates potential overload or insufficient lubrication
Symptoms of Common Hydraulic Issues
| Symptom | Possible Causes | Impact |
|---|---|---|
| Excessive Noise/Vibration | Aeration, cavitation, and wrong fluid viscosity | Component damage, reduced efficiency |
| Slow/Erratic Operation | Pressure loss, internal leakages, clogged filters | Reduced productivity, inconsistent performance |
| Fluid Leaks | Worn seals, damaged hoses/fittings | System inefficiency, environmental concerns |
| Overheating (>180°F/82°C) | Insufficient cooling, overloading, contaminated oil | Thermal degradation, component failure |
| Pressure Drops | Faulty regulators, worn pumps, external leaks | Reduced operating power |
| Contaminated Fluid | Dirt ingress, water contamination, incompatible fluids | Accelerated wear, system degradation |
⚠️ Impact of Hydraulic Pump Failures
- System Downtime: Up to 25% reduction in operational availability
- Maintenance Costs: Reactive maintenance can cost 5x more than preventive maintenance
- Safety Hazards: Unexpected failures can endanger personnel
- Contamination: Failed pumps can damage other system components
Hydraulic Pump Repair Process
Step-by-Step Repair Instructions
- 1Initial Inspection and AssessmentConduct a thorough external inspection for visible damage, fluid leaks, and wear patterns. Use thermal imaging or vibration analytics to identify hidden issues.
- 2Disassembly and DocumentationCarefully disassemble following manufacturer’s instructions. Document each step with photos and detailed notes for proper reassembly.
- 3Component Cleaning and AnalysisClean all components with approved solvents. Measure critical components using calipers or micrometers to check wear against specifications.
- 4Replacement of Worn PartsReplace damaged components with OEM-approved or ISO standard parts to ensure performance and reliability.
- 5Reassembly with Torque SpecificationsReassemble the pump applying proper torque specifications. Use thread-locking compounds where required and ensure correct component alignment.
- 6Testing and CalibrationPerform low-pressure tests for leaks, then high-pressure testing under load conditions. Measure flow rate, pressure output, and efficiency.
- 7Final Adjustments and System IntegrationComplete final calibration and reintegrate into the hydraulic system. Monitor for unusual behavior during initial operation.
Essential Tools for Hydraulic Pump Repair
Essential for removing bearings, pulleys, and tightly fitted components without damage. Provide controlled force application.
Ensure proper bolt and fitting tightening to manufacturer specifications, preventing assembly compromise.
Dial indicators and micrometers for measuring tolerances and alignments within design specifications.
Specialized presses and drivers for proper seal and O-ring installation to prevent leakage.
Test electrical components, including solenoids and control modules, for proper operation.
Measure hydraulic fluid pressures during testing to identify leaks or blockages.
Ultrasonic cleaners, brushes, and degreasers to remove debris and contaminants.
Simulate operating conditions and verify pump performance specifications efficiently.
Safety Precautions During Repair
🔒 Critical Safety Measures
- Depressurize System: Ensure complete depressurization before repair work
- Personal Protective Equipment: Wear safety goggles and chemical-resistant gloves
- System Isolation: Disconnect power and implement lockout/tagout procedures
- Tool Inspection: Use only appropriate, undamaged tools
- Fluid Handling: Follow manufacturer guidelines for toxic/flammable fluids
- Contamination Control: Maintain a clean work environment
- Emergency Preparedness: Ensure access to first aid and fire suppression
Troubleshooting Techniques
Diagnosing Hydraulic Pump Problems
Effective diagnosis requires a systematic approach combining visual inspection, performance testing, and fluid analysis:
- Visual Inspection: Check for leaks, unusual sounds, and wear patterns
- Performance Testing: Measure pressure, flow rate, and temperature
- Fluid Analysis: Test for contamination, water, and air content
- Cavitation Detection: Look for pitting and listen for rattling noises
- Historical Review: Examine maintenance records and system requirements
Actionable Solutions for Common Issues
| Problem | Causes | Solutions |
|---|---|---|
| Cavitation | Low inlet pressure, high temperatures | Maintain NPSH requirements, monitor fluid temperature, install air release valves |
| Excessive Noise/Vibration | Misalignment, air entrainment, wear | Use laser alignment tools, eliminate air leaks, replace worn bearings |
| Pressure Drop | Clogged filters, worn parts, and blockages | Clean filters and intake areas, replace worn components, use ultrasonic testing |
| Overheating | Poor lubrication, excessive load, restricted flow | Verify lubrication and viscosity, review load ratings, check cooling passages |
| Seal Failures | Improper installation, material incompatibility | Select compatible materials, follow torque specifications, and check shaft balance |
When to Repair vs Replace
Decision Factors:
- Repair When: Limited damage (worn seals, faulty valves), cost-effective restoration possible
- Replace When: Multiple failures, systems over 10,000 service hours, recurring problems
- Consider: Total cost of ownership, energy efficiency improvements, system compatibility
Maintenance Tips for Hydraulic Pumps
Importance of Regular Maintenance
Regular maintenance is crucial for:
- Maintaining long-term reliability and performance
- Early detection of wear and tear
- Preventing 60-80% of hydraulic system failures caused by fluid contamination
- Optimizing total cost of ownership
Proper Lubrication Techniques
Key Considerations:
- Lubricant Selection: Based on load, temperature, speed, and environment
- Application Methods: Manual, automatic, or centralized systems
- Contamination Control: Filtration systems and clean storage practices
- Monitoring: Real-time systems with IoT sensors for predictive maintenance
Frequently Asked Questions (FAQ)
Common signs include unusual noises during operation, decreased performance, visible leaking, low hydraulic fluid levels, and elevated operating temperatures.
Inspect for leaks, listen for unusual noises, check hydraulic fluid levels and cleanliness, and monitor equipment performance and operating temperatures.
Common causes include low hydraulic fluid levels, contaminated hydraulic oil, improper operating temperatures, damaged components, and lack of regular maintenance.
Check hydraulic connections for tightness, inspect for leaks, test oil for contamination, replace damaged parts, refill with fresh hydraulic fluid, and monitor fluid levels regularly.
Identify the leak source, check for damaged seals or fittings, replace faulty components, ensure proper sealing, and implement regular maintenance schedules.
Maintain proper fluid levels, keep fluid clean and contamination-free, monitor operating temperatures, and prevent vapor bubble formation conditions.
Improper temperatures can damage the pump, cause premature component wear, degrade hydraulic fluid, decrease performance, and potentially lead to system failure.
Consider replacement for major problems like severe leakage, persistent unusual noises, inability to achieve required pressure/performance, or when repair costs exceed replacement benefits.
Check hydraulic fluid levels regularly, replace damaged components promptly, keep the system clean, monitor operating temperatures, and use appropriate fluid types.
💡 Pro Tips for Success
- Implement predictive maintenance with advanced sensors
- Maintain detailed service records for trend analysis
- Use only OEM or ISO-certified replacement parts
- Train personnel on proper diagnostic techniques
- Invest in quality testing equipment for accurate diagnosis
