Hydraulics systems are essential in a plethora of industries, furnishing power and precision for diverse applications. At the very core of multiple hydraulic systems are the Haldex-Barnes-type hydraulic pumps, which are constructed for sturdiness and efficiency. Identifying the exact model and specifications of the Haldex Barnes pump thus becomes a vital yet difficult job- especially when it concerns a matter of parts replacement, maintenance, or upgrade. It is this guide that shall walk you through the entire procedure and shall give you the various pieces of information and the tools that shall help you in accurately identifying the hydraulic pump. It will serve technicians, engineers, and even equipment owners, enabling them to streamline troubleshooting, ensure compatibility, and maximize their hydraulic systems’ performance.
Understanding Haldex Barnes Hydraulic Pumps
Introduction to Hydraulic Pumps
Hydraulic pumps are devices that conduct mechanical energy conversion into hydraulic energy by imparting flow and pressure. They are mainly responsible for forcing fluids through the circuit for force transmission and making these fluids available for a multitude of functions. Operating in industrial and agricultural applications and heavy mobile equipment, they require high considerations of precision and efficiency.
The hydraulic pumps more commonly used today are of three kinds: the gear pump, the piston pump, and the vane pump. The gear pump works on a simple but reliable principle of generating flow by intermeshing gears. The piston pump is the ideal one in high-pressure applications with very high efficiency, which pushes fluids with pistons. The vane pump finds applicability at moderate pressures and offers smooth output. For specific advantages, one will be selected based on its pressure, flow rate, and type of fluid with which it will be working.
Correctly selecting a particular hydraulic pump is crucial for it to work properly and for its longevity. The major factors of consideration include the operating pressure of the system, the demand for flow, and the nature of the hydraulic fluid being used. Maintenance must be regularly done, such as checking wear, contamination, and alignment, so that there is no reduction in performance. By understanding the essentials about hydraulic pumps and selecting the kind of pump that suits your application, you will most certainly have a satisfactorily working hydraulic system.
Overview of Haldex and John S. Barnes
Haldex is a leading global manufacturer that offers a full spectrum of brake systems and components for commercial vehicles and wide range of hydraulic solutions. It relies on years of technical knowledge to develop reliable, high-performing products that maximize safe use and efficiency. Hydraulic products from Haldex include gear pumps, valves, and power units engineered for the most demanding industrial and mobile hydraulic applications. Haldex components are known for strength and versatility, hence are used extensively in construction, agricultural, and material handling equipment.
The name John S. Barnes carries prestige in the hydraulic arena, where it pioneered gear pump technology and cost-effective, durable solutions for the industry’s needs. Specializing in low-pressure gear pumps, John S. Barnes products are designed to provide a dependable operation that focuses on compact design, requiring minimal energy consumption. These pumps are apt for usages wherein constant flow needs to be maintained with little upkeep-their core industries being manufacturing and transportation.
The commitment of both Haldex and John S. Barnes to quality and innovation translates into their product designs and applications. Haldex concentrates on hydraulic and brake system solutions ranging from the simple to the high-performance model. On the other hand, John S. Barnes makes efficient, application-specific pumps for more specialized applications. Together, their works have distinguished themselves in the hydraulics domain as a symbol of dependability and performance for all critical systems around the world.
Types of Haldex Barnes Hydraulic Pumps
Depending on the heavy variety of hydraulic pumps, Haldex Barnes positions it to be fit for an assortment of industrial and mobile applications. The major types of pumps within their product range are gear pumps, vane pumps, and piston pumps, all of which are manufactured to satisfy distinct working requirements.

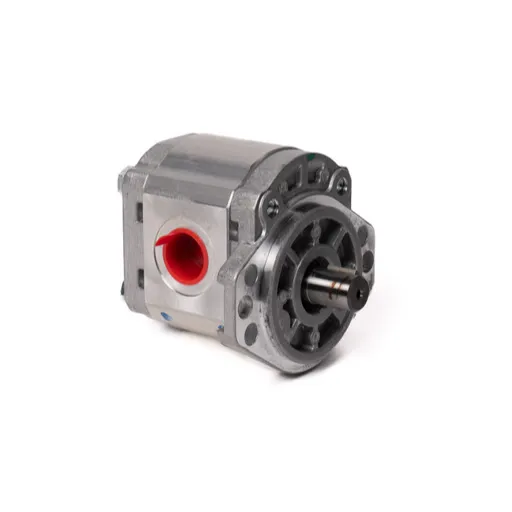

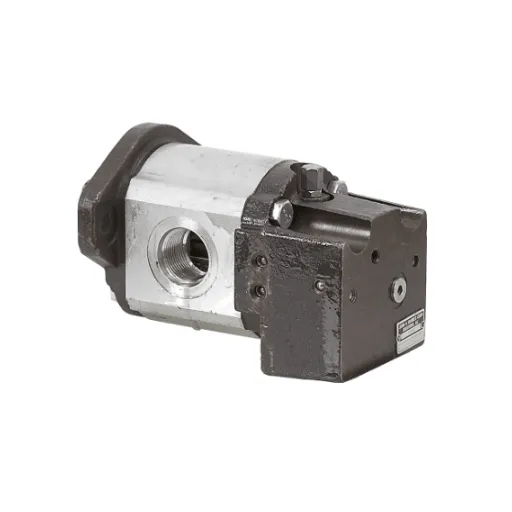

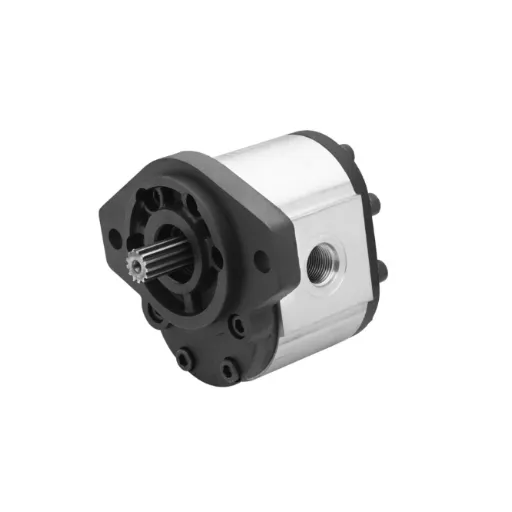

- Gear Pumps: These pumps are widely acknowledged as the more common types in the Haldex Barnes catalog due mainly to their reliability and simplicity. They work by interlocking two gears that sweep from hydraulic flow across diverse types of low- to medium-pressure applications. Gear pumps are often employed in construction equipment and agricultural machinery, as well as in material-handling systems, where such high efficiency and durability within tough working conditions are required.
- Vane Pumps: Commonly celebrated for their quiet operation and dependable functioning in medium-pressure applications. A slotted rotor with vanes moves fluid through the pump housing, making ideal pump selections for environments where low noise and constant fluid delivery are paramount.
- Piston Pumps: Designed to operate at very high pressures, Haldex Barnes piston pumps perform exceedingly well in vital systems where variable displacement and utmost efficiency are required. It is apt for machinery within hard-working industries such as mining, construction, and oil and gas, wherein dependable power and adaptability are crucial for smooth operations.
Every variety of the Haldex Barnes hydraulic pump is established to perform optimally according to the specific needs of the application. Their extensive product range demonstrates the brand’s capacity to provide target solutions for multiple industries, ever ensuring constant and reliable hydraulic performance.
Design Variations and Their Significance
Gear Pump vs. Other Hydraulic Designs
Gear pumps are simple and reliable, operating efficiently with fluids of high viscosity. Other hydraulic designs such as vane or piston pumps, however, provide flexibility in the operation, maintenance, and handling of various fluid types.
Identifying Design Variations in Haldex Pumps
Haldex-type pumps come in many varieties to supply for the diversified requirements of hydraulic systems in industrial sectors. One of the major design variations is the method of application of gear pumps, wherein precision gears operate fluid transfer under high pressure. They are mostly preferred where reliability, compactness, and generation of constant flow rates under tough operating conditions are important.
Some Haldex versions operate under the vane pump principle by employing sliding vanes and superior efficiency at lower and medium pressures. This way, operation is quieter with less pulsation, which becomes very important when used in equipment such as aerial lifts or small hydraulic systems. Meanwhile, piston-type Haldex pumps are able to sustain very high pressure, suitable for very arduous applications-the construction and heavy machineries industry requiring such extreme pressure.
The modular design approach in Haldex allows for a customized arrangement of the pump, making it adaptable to various hydraulic circuits. Adjustable displacement models can be provided when needed, thus allowing for adjustment to pump output for the time variable system requirements. Applying all these design aspects allows Haldex hydraulic pumps to ensure high performance and long-term durability for an extensive range of operational fields.
Impact of Design on Performance
The design of hydraulic pumps shall directly affect its motor efficiency, mechanical endurance, and applicability for different uses. The detailed engineering considerations help manufacturers adjust performance to meet a wide range of requirements imposed by the industries. Five design considerations mentioned below will impact the functioning of hydraulic pumps:
- Materials: Choice of materials like cast iron or aluminum alloys affects the wear, corrosion, and ability to resist high-pressure conditions. In general, cast iron pumps are favored for high-durability applications, while aluminum is chosen for lightweight construction suitable for mobile machinery.
- Sealing Efficiency: Advance sealing methods reduce internal leakage, thus improving volumetric efficiencies. Low-friction seals in such systems can reduce energy losses by about 15%, thereby decreasing running costs.
- Porting Design Optimized: Precise porting implies reduced disturbances in turbulence and the availability of consistent flow rates. Port geometries are in fact often optimized using CFD (Computational Fluid Dynamics) simulations to achieve ultimate performance, with these efficiencies being higher at the order of approximately 10% in high-flow systems.
- Pump Displacement Adjustability: Variable displacement pumps allow for load matching by supplying only the flow rate and pressure required by a system. Thus, they inherently provide enhanced energy savings. Studies reveal the benefit of variable displacement systems in saving energy up to 30% more when compared to fixed displacement systems.
- Thermal Management Features: The cooler channels embedded in high temperature designs and heat-resistant materials help increase the life of the hydraulic pumps. Thermally stabilized design assures hydraulic system functionality in an incredibly severe temperature range by maintaining hydraulic output level through time.
Such technical considerations highlight how the innovative design could enhance the output of a hydraulic pump and its reliability in several applications.
Identifying Components and Features
Key Components of Haldex Barnes Pumps
The Haldex Barnes hydraulic pumps are made with precision-engineered components intended for ultimate performance and reliability. Some major components include:
- Gear Mechanism: Being an internal gear mechanism, the fluid is efficiently moved, suffering minimal loss in energy and hence having maximum volumetric efficiency. Advanced tooth profile designs are implemented to reduce noise and vibration during operation.
- Housing and End Covers: Made up of high-quality materials like aluminum or cast iron, these components provide structural integrity to the pump and resist against wear in high-pressure applications. End covers are machined to very tight tolerances ensuring the internal components are located perfectly in alignment.
- Sealing Systems: The sealing systems use high-performance seals that prevent leakage and maintain the integrity of the system, which by design are made to withstand the thermal and chemical stresses encountered in a variety of hydraulic environments.
- Bearings: Heavy-duty bearings support the rotating elements of the pump, reducing friction and increasing life. The bearing has been selected for its efficient operating capacities under radial and axial load.
- Pressure Plates: These plates, which are adjustable, govern the fluid flow, thereby optimizing the pressure distribution and guaranteeing constant output performance. The advancement of materials for pressure plates has given rise to improved wear and thermal resistance.
- Pump Shaft: The shaft is usually made of a corrosion-resistant and durable alloy that transfers torque effectively from the motor to the gear assembly. Properly balancing the pump shaft will reduce operational noise and wear.
When put together, these components make a system capable of handling the toughest hydraulic applications yet maintaining the best in reliability and efficiency. Haldex Barnes pumps find use in applications demanding exacting performance such as industrial machinery, automotive systems, and agricultural implements.
Understanding Gear Mechanisms
Gear mechanisms serve as a fundamental element of countless mechanical systems in the precise transfer of power and motion. Basically, gears are rotary machine elements having teeth that mesh with other toothed components for imparting controlled force and speed to mechanical assemblies. They exist in varieties, such as spur, helical, bevel, and worm, each fit for specific applications. Different combinations of gears allow adjustments in torque and in their relative velocity of rotation, thus enhancing their versatility in industrial applications requiring efficiencies and design customizations.
The efficiency of gear mechanisms depends not just on the design but also on the materials used and manufacturing processes. Modern metallurgical methods and machining help to give strength and durability to the teeth of a gear so that they could resist wear during heavy loads, more or less continuous. The modern era has seen technological advances in computer-aided design and CNC machining, applied to gear manufacture; this technology offers engineers the ability to develop gears with huge precision. The lubrication systems further aid in reducing friction and generation of heat during gear operation; such activity causes an extension to the life of the gears with smooth functioning.
Gear mechanisms are widely used in fields requiring precision and reliability. Complex gear trains in automotive transmissions result in engine output being adapted to various driving conditions. Also, gears working in industrial machines need to be strong enough to bear high loads while providing a smooth production process. Hence, ongoing developments in gear technology are allowing for digital monitoring systems that give real-time data on operational performance and a maintenance forecast. With such innovations, gear mechanisms remain indispensable, providing unmatched performance in application varieties.

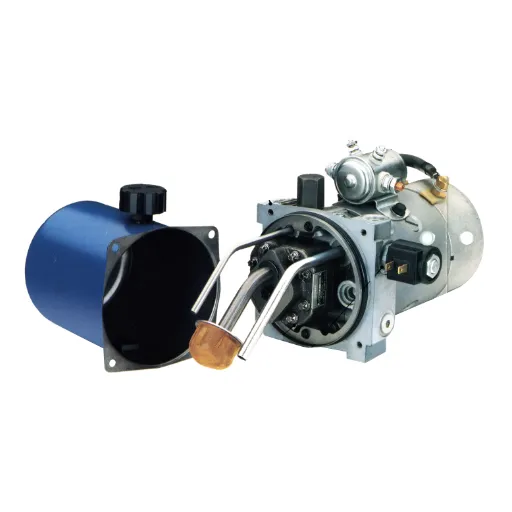

Identifying Motors Used in Haldex Pumps
Haldex Pumps are known for the wonder of their efficiency and reliability in all kinds of industrial and automotive applications. They are interfaced with a variety of motors that fit the requirements of the selected functions. Among frequent types of motors used for Haldex pumps are electric motors and hydraulic motors. Sometimes, hybrid motors combining the features of both technologies are also used. Electric motors, mainly AC and DC types, are used much because of their steady power output and suitability for use with present day control systems. Through the use of hydraulic motors, superior torque and pressure demands may be fulfilled.
There are various considerations in the selection of a motor for a Haldex pump, considering flow rate and pressure requirements, operating environment, and desired efficiency. For example, in automotive systems such as AWD systems, small and lightweight electric motors are preferred in order not to add weight to the vehicle and to maintain optimum performance. On the other hand, industrial machines use heavy and powerful hydraulic motors together with the Haldex pumps for heavy-duty operations that require high power outputs. Such motors are integrated to give the best output from the pump while ensuring energy efficiency and durability of the system.
Additionally, motor technologies undergo improvements that further stamped synergy upon the Haldex pumps with motors. Present-day designs employ intelligent control strategies-A variable frequency drive (VFD) or sensor-based system monitor speed and torque with precise control. This allows a very fine level of control so the pump motor system will always operate efficiently and, at the same time, mitigate wear so it won’t need too much maintenance. The technological advancements speak about the perpetual enhancements of the motors used in Haldex pumps, making them essential for countless applications, including automotive engineering and industrial manufacturing processes.
Hydraulic Pressure and Performance Metrics
Understanding Hydraulic Pressure Ratings
The pressure ratings of hydraulic equipment are essential determinants of the performance and safety of hydraulic systems. The hydraulic system passes force via a fluid, mostly oil, under very high pressure. The pressure to be generated by the pump and maintained inside the system should coincide with the rating of all components including the valves, fittings, and actuators used in the system. Exceeding the operating pressure beyond the working pressure rating of any component may lead to failure of the equipment, leakage, or even a hazardous rupture, causing downtime and expensive repairing.
A hydraulic system’s pressure rating is customarily calculated in pounds per square inch (PSI) or bar and refers to the maximum pressure the system can handle in free working conditions. Usually, two pressure ratings are to be considered, namely: the maximum operating pressure and the burst pressure. Maximum operating pressure describes a pressure within which the system is reliably working, while a burst pressure stands for the farthest that the system can withstand prior to its failure. Standards in the industry, such as the ISO and SAE, compel manufacturers to test and certify their system components to meet safety and performance criteria.
Modern advancements in hydraulic technology have envisioned components with higher pressure ratings and efficiencies optimized to suit varied industry requirements. For example, hydraulic systems in heavy construction machinery, agricultural implements, and certain cutting-edge manufacturing operations run above 5,000 PSI pressure. Material innovations in the form of high-strength alloys and composite reinforcements allow such systems to remain virtually unaffected by the demands for high pressure in terms of performance and durability. Pressure levels must therefore be monitored at all times by engineers and operators through reliable sensors and gauges to guarantee a smooth performance while prevention or early rejection of issues like blockage, leakage, or excessive wear rendering them impossible. By means of pressure ratings and the incorporation of reliable monitoring instruments, the parties involved can thereby enhance not just safety but productivity and lifespan of the hydraulic equipment.
Performance Metrics for Haldex Pumps
Performance metrics discuss the Haldex Pump operating with a few factors of efficiency and reliability. The flow rate is a critical metric due to defining the capacity of the fluid moving within a determined span of time. An optimum flow rate allows the pump to perform consistently under a range of operating demands. In the same manner, pump pressure is another metric that determines a pump’s stand on performing particular tasks and is heavily weighed in high-pressure systems. Crucial to safety is maintaining an optimum pressure output preventing any failure of the system.
Efficiency, energy consumption are important in assessing Haldex pump performance. A very efficient pump dissipates energy wastes, thus making for a cheaper process with less environmental degradation. Measuring these parameters generally involves measuring the power consumed by the pump and verifying that it corresponds to the power output at varying load levels. This increases the life-span of the pump and hence greatly reduces energy costs over a long term.
At last, the assessments of durability and maintenance intervals form an important part of the Haldex pump performance tests. Regular monitoring of wear and tear of components, followed by the recommended maintenance intervals, will assist in preventing costly repairs and unplanned shut-downs. Focusing on these important factors -flow rate, pressure output, efficiency, and durability will ensure that Haldex pumps perform optimally, satisfying the needs of demanding hydraulic systems.
Identifying Performance Issues
Performance issues in Haldex pumps have multiple causes that include fluid contamination, wear and tear of components, or less than desirable operating conditions. Contamination of fluid is one of the usual suspects for low performance since dirt, debris, or other particles can work their way into the hydraulic system. Contaminants might clog the components, decrease flow rates, or, through friction, their efficiency may ultimately be undermined. Keeping hydraulic fluids always filtered and clean is really significant in preventing the occurrence of such problems.
In addition, timely inspections of important parts such as seals, internal gears, and valves must be conducted to detect both wear and tear at incidences of major failure. Seals may get degraded or brittle with age as a result of being subjected to high pressure for long or very high temperatures, brasg internal leaks. Internal leakage directly reduces operating pressure along with and hence cause dissipation of pump efficiency. An early detection of these defects through a planned maintenance regime decreases downtime to a great extent, thereby enhancing the overall working life of the unit.
Any drop or irregularity in pressure may indicate issues with valves or inefficient gear operation. These inconsistencies should be addressed in the shortest possible time by cross-checking with operational data and manufacturer’s recommended values. Thanks to advanced data monitoring, digital solutions now provide engineers with remote performance monitoring where engineer-end tracking of performance data gives real-time insight into possible bottlenecks. Thus, such tools can be leveraged to ensure performance deficiencies are quickly fixed, thereby avoiding prolonged sub-optimal system functioning and expensive repairs.
Maintenance and Service Guidelines
Regular Maintenance Practices
A maintenance approach stands as one great way to ensure the longevity and performance of equipment. Once such maintenance would involve keeping records of scheduled inspections and servicing in line with manufacturer recommendations. Among the daily inspections are cleaning of components, tightening loose connections, and changing worn-out parts to avoid from minor issues escalating to serious malfunctions. In addition, a visual inspection should be performed from time to time for physical wear or damages so as to spot any hazard in its early stage.
Another important component of maintenance is the observation and analysis of performance data. Nowadays, digital tools allow the technician to follow equipment metrics, such as temperature, pressure, and power consumption, in real-time. Such operators can oppose present readings to historical data or against threshold values specified by manufacturers to detect anomalies and act on any corrective actions before incidents occur. Predictive maintenance technologies implemented via artificial intelligence and machine learning are gaining popularity as they provide accurate forecasts of potential failures that reduce their reactive repairs.
Lastly, good documentation and record-keeping aid effective maintenance practices. During maintenance and servicing, the repair or replacement of parts and upgrading systems must be recorded, keeping a clear history of equipment care. These records assist in further troubleshooting and verify that these records comply with regulatory requirements in industries where safety and operational protocols are strictly enforced. Through these maintenance practices, organizations achieve maximum efficiency of equipment with minimum downtime.
Identifying When to Replace Parts
Replacement time of parts is an essential factor in keeping equipment reliable and safe to operate. The proactive replacement of parts mostly involves careful observation of the wear and tear, efficiency of performance, and service appointment intervals that are suggested by the manufacturer. For example, regular inspections might reveal corrosion, cracks, or misalignment indicating impending failure in a part. Furthermore, it would also be feasible to check for unusual vibrations or excessive energy consumption from a component that is at sub-optimal working levels. Recognizing these signs at an early stage will save great cost and prevent unexpected downtime.
In an effort to maximize predictive maintenance potential using IoT sensors and AI analysis, more attention might be given to predicting exactly when parts should be replaced. These tools endlessly inspect real-time equipment data, noting the smallest shifts in operation away from what might be missed with manual revision. For instance, IoT sensors could track any change in temperature, pressure, or noise and mark unusual deviations that signify potential failure. Predictive algorithms will then use this data to analyze the remaining life of a part and restore the replacement at its most beneficial time, thus avoiding sudden unplanned breakdowns.
Another significant consideration that should be taken into account is manufacturer recommendations for part replacement because they offer comprehensive information regarding expected life and maintenance schedule. Although real-time data is full of valuable information, when coupled with manufacturer guidelines, it ensures critical components being serviced or replaced before significant deterioration of their performance. Industries in which safety is of utmost concern, such as aviation and health care, generally impose very strict-complying with these directives. Equipped with advanced technology, then the organization can perhaps eliminate any disparities arising between expert maintenance practice and actual operational efficiency, sustaining equipment in the longer run.
Frequently Asked Questions (FAQ)
Q: How do you identify a Haldex Barnes hydraulic pump?
A: Haldex Barnes hydraulic pump identification refers basically to recognizing a pump and thereby determining its specifications, model numbers, and characteristics of Haldex Barnes hydraulic pumps. Such identification is useful in maintenance and servicing, as well as replacing specific pumps that are used in several applications.
Q: What is another way mounting arrangement for Haldex Barnes hydraulic pumps?
A: Haldex Barnes hydraulic pumps provide a range of mounting options, including flange mountings, among others, based on different applications. Such mounting configurations allow the pump to be securely fastened in the mobile and industrial setups, thereby enhancing the performance and efficiency of the application.
Q: What are the usual RPM ranges for John S. Barnes hydraulic pumps?
A: The usual RPM range for John S. Barnes hydraulic pumps varies widely based on the particular pump and the application. Most pumps run at RPMs to maximize the GPM output while also keeping up the performance under adverse conditions, generally between the range of 1000 to 3000 RPM.
Q: How can I calculate the flow rate in GPM of my hydraulic pump?
A: To determine flow rates in GPM for your Haldex Barnes hydraulic pump, take note from the pump’s specifications, usually contained in the manual or on a tag plate. Flow rate is essential to ensure that the pump works efficiently within its design parameters.
Q: What are the considerations when modifying a Haldex Barnes pump?
A: It is very important that, when modifying a Haldex Barnes hydraulic pump, consideration is given to its intended application and how any alterations might affect performance, for instance, through adjustment of pressure settings or changes in dimensions. It is important to consult an expert to verify that the modifications will not harm the integrity or functionality of the pump.
Q: How can I replace a Haldex Barnes pump used in harsh conditions?
A: To get around a Haldex Barnes pump working under harsh conditions, one has first to characterize the pump and check mounting options. As with all replacements, one must do everything to ensure that the replacement and the original equipment match, that is, pressure ratings and dimensions have to be the same so that it will work and will be reliable when used under those conditions.
Q: What are the characteristics of John S. Barnes hydraulic pumps?
A: John S. Barnes hydraulic pumps are durable, efficient, and versatile. These pumps are able to work higher pressure, including pressures up to 3000 psi, suitable either for mobile or for industrial applications, and hence this brand has become one of the most common across various sectors.
Q: How can I keep my Haldex Barnes hydraulic pump in good working condition, so it works best for me?
A: Ideal performance of your Haldex Barnes hydraulic pump will require regular inspections and services wherein one checks for leaks, wear, and proper setting. Cleaning the pump occasionally will prevent wear and will lengthen its life while also increasing the pump’s efficiency. Make sure to keep fluid levels up, too, and use good quality hydraulics fluid.
Conclusion
This comprehensive guide provides the essential knowledge needed to successfully identify, maintain, and optimize Haldex Barnes hydraulic pumps. By understanding the various components, design variations, and performance metrics outlined in this guide, technicians and engineers can ensure optimal system performance, extend equipment life, and minimize costly downtime.
