Understanding Hydraulic Pumps
Types of Hydraulic Pumps
There exist three principal types of hydraulic pumps based on conception and functional mechanism: gear, vane, and piston type pumps. Each kind is used for specific applications and defined by specific characteristics of operation, making it well-suited to different hydraulic systems.
| Pump Type | Key Features | Applications | Pressure Range |
|---|---|---|---|
| Gear Pumps | Simple, durable design with two meshing gears | Agricultural machinery, construction equipment, and industrial lubrication | Low pressure |
| Vane Pumps | A series of vanes in the rotor, for smooth operation | Manufacturing automation, machine tooling, automotive systems | Low to medium pressure |
| Piston Pumps | High performance, precise control, reciprocating pistons | Aerospace systems, heavy industrial machinery, hydraulic presses | High pressure |
Common Applications of Hydraulic Equipment
Given their efficiency in power transmission and capacity for high-load applications, hydraulic systems find application in numerous industries:
- Construction Machinery: Power excavators, bulldozers, loaders, and cranes with precise control and the ability to lift heavy loads (digging forces over 20,000 pounds)
- Aerospace Systems: Control landing gear, brakes, and wing flaps with pressures over 3,000 psi for extreme reliability
- Manufacturing and Automation: Operate hydraulic presses, injection molding machinery, and robotic arms (clamping force from 20 to 2,000 tons)
- Agricultural Equipment: Enable lifting, loading, and precise planting with capacities up to 10,000 pounds
- Mining: Power hydraulic drills, conveyors, and crushers with forces exceeding 1,000 tons
How Hydraulic Systems Function
Hydraulic systems are based on Pascal’s Law, which states that pressure applied anywhere in a confined fluid is transmitted equally in all directions throughout the fluid. These systems use a combination of pumps, hydraulic fluid, valves, and actuators to generate and control force and motion, typically operating under pressures exceeding 5,000 PSI in industrial applications.
Common Hydraulic Pump Failures
Identifying Symptoms of Hydraulic Pump Failure
Critical Warning Signs:
- Abnormal Noise: Whining, knocking, or growling sounds indicating cavitation, aeration, or contamination
- Pressure Fluctuation: Inconsistent or lower-than-expected pressure, suggesting internal leakage
- Excessive Heat Generation: Overheating due to friction, contamination, or pump malfunction
- Slow Operation: Actuators operating at reduced speeds or with hesitation
Common Issues Encountered in Hydraulic Systems
| Issue | Cause | Prevention Method | Impact |
|---|---|---|---|
| Fluid Contamination | Dirt, water, or metal particles | Efficient filtration systems | Abrasive wear, corrosion, and component clogging |
| System Leaks | Worn seals, loose joints, excess pressure | Regular seal inspection and pressure monitoring | Efficiency loss, environmental hazards |
| Overheating | High friction, inadequate cooling, misalignment | Temperature monitoring and cooling systems | Fluid degradation, accelerated wear |
| Poor Maintenance | Neglected schedules, ignored warning signs | Preventive maintenance programs | System unreliability, increased costs |
Impact of Neglected Maintenance on Pump Performance
Quantified Effects of Poor Maintenance:
- Efficiency Loss: A 10% efficiency drop causes a 25-30% increase in energy consumption
- Component Wear: Misalignment reduces bearing life from 40,000 to 1,500 hours
- Downtime Costs: Reactive maintenance costs 3-4 times more than preventive maintenance
- Repair Expenses: Neglected issues become 50-60% more costly to repair
- Safety Risks: 70% of pump incidents are preventable through timely maintenance

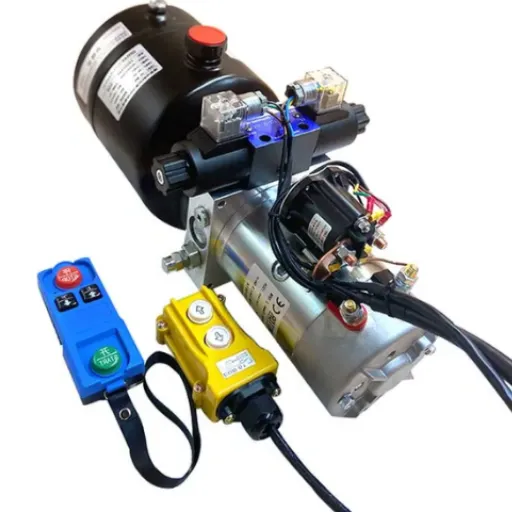

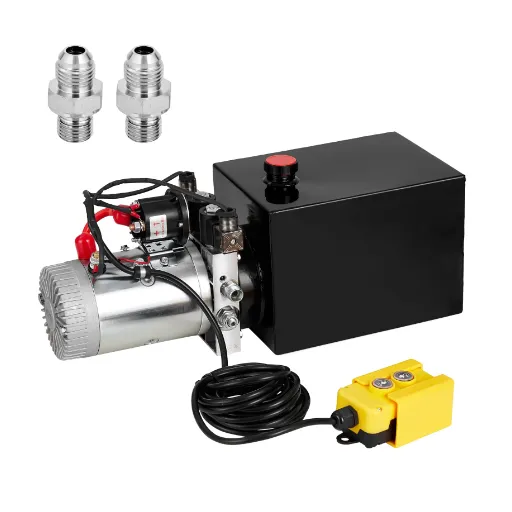

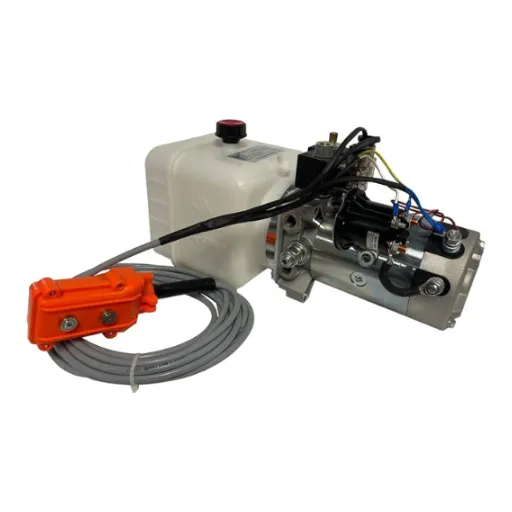

Troubleshooting Electric Hydraulic Pumps
Step-by-Step Troubleshooting Process
- 1Identify Symptoms and Document Observations: Record unusual noises, vibrations, pressure drops, overheating, or leaks for detailed diagnosis
- 2Perform Visual Inspection: Examine hydraulic lines, seals, valves, and reservoirs for wear, damage, and leaks. Check fluid levels and contamination
- 3Check Power Supply: Use diagnostic instruments to assess voltage, current flow, and connectivity according to manufacturer specifications
- 4Evaluate Hydraulic Fluid Quality: Check viscosity, temperature stability, and contamination levels. Replace if outside operational standards
- 5Check Pressure and Flow Rates: Measure outputs with certified gauges and compare to predetermined system parameters
- 6Assess Valve and Circuit Functionality: Examine control valves for proper operation and correct settings
- 7Test Electric Motor Functionality: Check insulation resistance, winding resistance, and operating temperature
- 8Review System Load and Demand: Analyze hydraulic system capacity and adjust loads according to recommendations
- 9Simulate Normal Operation: Test after repairs to verify pressures, flow rates, and optimal performance
Diagnosing Electrical Issues in Hydraulic Pumps
Electrical problems in hydraulic pumps require systematic diagnosis:
- Power Supply Verification: Use a multimeter to measure the voltage at the motor terminals
- Wiring Inspection: Check for loose terminals, frayed insulation, and proper grounding
- Sensor Testing: Verify pressure transducers, temperature, and flow sensors with diagnostic equipment
- System Log Analysis: Review historical errors and warnings for pattern identification
Mechanical Troubleshooting Techniques
Mechanical troubleshooting requires a systematic approach combining visual inspection with advanced diagnostic tools:
- Visual Inspection: Check bearings, belts, gears, and seals for wear, misalignment, or damage
- Vibration Analysis: Detect imbalances, looseness, or misalignments through frequency pattern evaluation
- Thermal Imaging: Identify temperature irregularities indicating friction or bearing failures
- Alignment Verification: Use laser alignment tools to ensure mechanical integrity
- Lubrication Analysis: Investigate lubricant properties for contamination or viscosity issues
Repair Process for Hydraulic Pump Issues
Essential Tools and Equipment for Repairs
| Tool Category | Equipment | Purpose |
|---|---|---|
| Measurement | Hydraulic Pressure Gauges, Flow Meters | Accurate pressure and flow rate measurement |
| Temperature | Infrared Thermometers, Thermal Imaging Cameras | Temperature variation detection and thermal analysis |
| Assembly | Torque Wrenches, Specialized Seal Tools | Proper tightening and component removal |
| Testing | Hydraulic Test Bench, Diagnostic Software | Controlled testing environment and system analysis |
| Maintenance | Filter Carts, Fluid Analysis Kits | Fluid contamination monitoring and cleaning |
Step-by-Step Guide to Repairing a Hydraulic Pump
1Preparation and Safety Measures
Ensure system is fully depressurized, wear appropriate PPE (gloves, safety goggles), maintain a clean workspace, and assemble required tools, including wrenches, torque tools, and precision instruments.
2System Assessment
Inspect the hydraulic pump for visible damage, use diagnostic equipment to test pressure and flow rates, compare readings against manufacturer specifications, and document findings.
3Disassembly
Carefully disconnect the pump from the hydraulic circuit, cap connections to prevent contamination, mark components during dismantling for proper reassembly, and secure all hardware.
4Inspection of Components
Examine internal components (pistons, gears, seals) for wear, scoring, or pitting. Use micrometers to measure tolerances and identify components requiring replacement.
5Cleaning and Replacement
Clean reusable components with appropriate solvents or an ultrasonic cleaner. Install OEM replacement parts to maintain compatibility and performance standards.
6Reassembly
Assemble pump in reverse disassembly order, torque bolts to manufacturer specifications, ensure proper seal and gasket seating, and lubricate moving parts as specified.
7Testing and Calibration
Reinstall the pump, conduct a low-pressure test for leaks, gradually increase to operational pressures while monitoring flow rate and pressure stability, and adjust parameters for optimal performance.
8Documentation and Maintenance Scheduling
Document all maintenance actions, components replaced, measurements taken, and calibration details. Establish a preventive maintenance plan based on manufacturer recommendations.
When to Seek Professional Hydraulic Repair Services
Consider Professional Service When:
- The system exhibits severe leakage, loud noises, overheating, or significant efficiency decline
- Critical components (cylinders, pumps, valves) require precision repair or replacement
- High-pressure operations or stringent compliance standards are involved
- Advanced diagnostic equipment and specialized expertise are required
- Safety risks exceed in-house maintenance capabilities
Best Practices for Maintenance and Longevity
Regular Maintenance Checklist for Hydraulic Systems
| Maintenance Task | Frequency | Key Focus Areas |
|---|---|---|
| Fluid Level and Quality Check | Weekly | Color, viscosity, contamination levels |
| Filter Maintenance | Monthly | Clean or replace based on conditions |
| Leak Inspection | Weekly | Hoses, seals, fittings for fluid leaks |
| Temperature Monitoring | Daily | System operating temperature |
| Hose and Connection Exam | Monthly | Abrasions, cracks, and connection tightness |
| Pump Performance Test | Quarterly | Noise, vibration, pressure consistency |
| Relief Valve Testing | Semi-annually | Proper pressure specifications |
| System Flushing | Annually | Remove residues and contamination |
Tips for Preventing Hydraulic Pump Failures
- Keep Fluids Clean: Implement regular oil sampling and advanced filtration systems to maintain contamination levels within acceptable limits
- Control Temperature: Monitor heat levels regularly and use cooling mechanisms to prevent rapid fluid aging and component damage
- Regular Filter Maintenance: Follow strict maintenance schedules to inspect and replace filters, ensuring consistent flow and system protection
- Monitor System Pressure: Review pressure settings frequently to prevent undue stress on pumps and components
- Use Compatible Fluids: Ensure hydraulic fluid compatibility with pump materials and seals to prevent deterioration and performance issues
- Prevent Cavitation and Aeration: Maintain proper fluid reservoir levels and check for air leaks in suction lines
- Schedule Systematic Inspections: Plan regular inspections to identify worn, damaged, or improperly aligned components
- Proper Storage Procedures: During extended downtime, drain or condition fluids and clean components to prevent contamination
Recommended Practices for Hydraulic Equipment Care
Advanced Maintenance Strategies:
- Scheduled Maintenance: Perform activities based on operational conditions and manufacturer standards
- Proper Fluid Management: Use manufacturer-recommended fluids with regular testing for contamination and chemical composition
- Optimal Pressure Maintenance: Keep system pressure within specified ranges with accurate gauge monitoring
- Contamination Control: Install advanced filtration systems and maintain strict cleanliness protocols
- Temperature Regulation: Monitor operating temperatures and ensure proper cooling system functionality
- Staff Training: Ensure all personnel receive proper training on equipment operation and maintenance procedures
Frequently Asked Questions (FAQ)
Q: What are the causes of hydraulic pump failure?
A: Common causes include contaminated hydraulic fluid, insufficient lubrication, improper installation, and deterioration of components such as seals and bearings. Early detection and correction save repair costs and maintain peak performance.
Q: How do I troubleshoot my hydraulic pump?
A: Start by checking for system leaks and hydraulic fluid levels. Listen for unusual noises and monitor performance changes. If necessary, disassemble the pump to inspect internal components for damage.
Q: What is the repair procedure for hydraulic pumps?
A: The process involves disassembling the pump, inspecting components like gears, seals, and valves for damage, replacing damaged parts, reassembling, and testing for operational efficiency and reliability.
Q: When should maintenance be done on a hydraulic pump?
A: Regular maintenance should be performed to ensure longevity and optimal performance. Typically, inspect the system and change hydraulic fluids every 6-12 months, depending on usage. Regular maintenance helps identify problems before they cause pump damage.
Q: What are the types of hydraulic pumps?
A: The main types are gear pumps, piston pumps, and vane pumps. Each category has particular features and applications. Understanding your pump type is essential for proper repair and maintenance.
Q: My hydraulic pump is leaking; what should I do?
A: Immediately identify the leak source—commonly seals, fittings, or pump housing. Clean the fluid, check hydraulic hoses, and, depending on severity, perform hydraulic repairs to address the problem.
Q: How do I keep hydraulic machinery working efficiently?
A: Regularly change hydraulic fluid, examine hydraulic hoses, and ensure all components function correctly. Address small problems early to prevent them from developing into expensive repairs.
Q: How much does it cost to repair an electric hydraulic pump on average?
A: Repair costs vary greatly depending on damage extent and the required components. Minor repairs may cost several hundred dollars, while complex repairs could exceed a thousand dollars. Consult a hydraulic service technician for detailed estimates.
Q: How does hydraulic fluid quality influence pump performance?
A: Higher-quality hydraulic fluid significantly improves pump performance. Contaminants and impurities cause excessive wear, lower efficiency, and eventual pump failure. Clean hydraulic fluid ensures longer service life and greater reliability.
